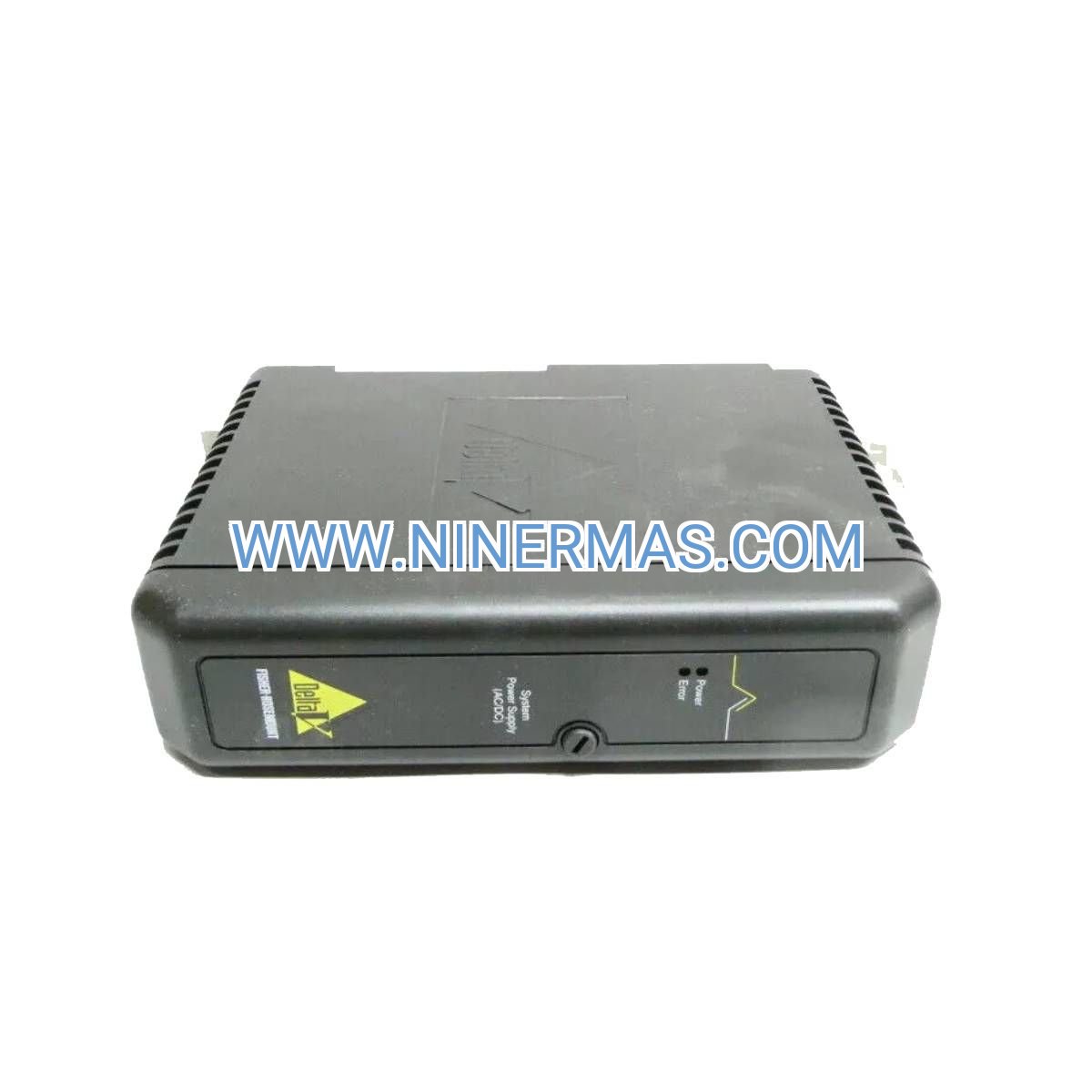

KJ1501X1-BA2 Industrial DC/DC Power Converter (DeltaV S-Series Certified)

The KJ1501X1-BA2 represents a mission-critical power conversion solution engineered for DeltaV S-Series distributed control architectures. This industrial-grade DC/DC converter transforms 18-32VDC input into regulated 24VDC output at 50W continuous capacity, delivering the reliability demanded by process automation environments where downtime translates directly to production losses.

Designed for integration with Emerson's DeltaV ecosystem, this power module addresses the fundamental challenge facing process engineers: maintaining stable voltage rails across distributed I/O networks while withstanding extreme industrial conditions. Whether deployed in offshore platforms battling salt-laden atmospheres or chemical plants managing corrosive vapor exposure, the KJ1501X1-BA2 provides the power backbone that keeps critical control loops operational.

With redundant architecture support, wide operating temperature range (-40°C to +70°C), and comprehensive protection circuitry, this converter eliminates single points of failure in your automation infrastructure. The result: reduced maintenance interventions, extended system uptime, and confidence that your control system remains energized even when primary power sources fluctuate.

Core Capabilities & Business Value

→ Redundant Power Architecture Support
Deploy in N+1 configurations with automatic load sharing and failover capabilities. When one converter experiences fault conditions, the backup unit seamlessly assumes full load within milliseconds—preventing process interruptions that could cost thousands per hour in lost production.

→ Extended Environmental Tolerance
Operates reliably from -40°C to +70°C with 5-95% humidity tolerance, eliminating the need for climate-controlled enclosures in many installations. This translates to lower infrastructure costs and simplified cabinet design for remote or harsh-environment deployments.

→ Comprehensive Fault Protection
Integrated overvoltage, overcurrent, and short-circuit protection safeguards downstream I/O modules and field devices. Automatic recovery from transient faults reduces troubleshooting time and prevents cascading failures across your control network.

✓ High-Efficiency Conversion (≥85%)
Minimizes heat generation and reduces cooling requirements, allowing higher-density installations in control cabinets. Lower thermal stress extends component lifespan and decreases long-term replacement costs.

✓ DIN Rail Mounting Simplicity
Standard 35mm DIN rail compatibility enables tool-free installation and removal. Keyed connectors prevent reverse polarity errors during maintenance, reducing commissioning time and eliminating a common source of field failures.

✓ Proven Reliability (>200,000 Hour MTBF)
Solid-state design with no moving parts delivers exceptional longevity in continuous-duty applications. This reliability metric translates to fewer spare parts inventory requirements and reduced lifecycle ownership costs.

Industrial Application Scenarios

Petrochemical Refining Operations
In catalytic cracking units and distillation columns, the KJ1501X1-BA2 powers distributed I/O carriers monitoring temperature, pressure, and flow parameters across multi-acre facilities. The module's ability to maintain regulation during input voltage sags—common during motor starting events—prevents false alarms and maintains process stability during transient electrical disturbances.

Pharmaceutical Batch Manufacturing
Clean-room environments demand power supplies that won't introduce electromagnetic interference into sensitive analytical instruments. This converter's low-noise output and CE certification ensure compliance with pharmaceutical equipment validation protocols while powering reactor control systems, material transfer automation, and environmental monitoring networks.

Water Treatment Facilities
Municipal and industrial water treatment plants leverage the KJ1501X1-BA2's corrosion-resistant construction and wide humidity tolerance to power control systems in pump stations, clarifiers, and chemical dosing skids. The module's ability to operate in non-climate-controlled environments reduces installation costs in outdoor or semi-outdoor applications.

Food & Beverage Processing
CIP (clean-in-place) systems and pasteurization control loops require power supplies that maintain output stability during frequent washdown procedures. The sealed construction and moisture tolerance of this converter enable reliable operation in high-humidity processing areas where condensation is routine.

Mining & Mineral Processing
Conveyor control systems, crusher automation, and ore processing lines subject electrical equipment to vibration, dust, and temperature extremes. The KJ1501X1-BA2's rugged design and extended temperature rating make it suitable for control cabinets located in mill buildings, concentrator facilities, and remote mine sites.

Technical Parameters & Selection Criteria

Sizing Guidance: Calculate total current draw of all I/O modules on the carrier, multiply by 24V to determine wattage, then add 20% safety margin. For redundant configurations, each converter must handle 100% of the load independently.

Advanced Integration Features

Redundant Power Distribution Networks
When deployed in pairs, the KJ1501X1-BA2 creates fault-tolerant power architectures using diode-OR load sharing. Each converter monitors output voltage and current, automatically adjusting its contribution to maintain balanced load distribution. If one unit fails, the remaining converter instantly assumes full load without interrupting downstream equipment.

Diagnostic Integration with DeltaV Controllers
While the module operates as a standalone power converter, its status can be monitored through DeltaV system diagnostics when connected to controller modules. LED indicators provide local visual confirmation of power good, fault conditions, and output voltage status for rapid troubleshooting during commissioning or maintenance activities.

Scalable Cabinet Architecture
The compact DIN rail form factor enables modular cabinet designs where power supplies can be added incrementally as I/O counts expand. Keyed connectors ensure proper mating with I/O carriers and prevent installation errors that could damage sensitive electronics during system modifications.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory orders
Warranty Coverage: 12 months from delivery date, covering manufacturing defects and component failures
Technical Support: Application engineering assistance for system design, replacement part cross-referencing, and troubleshooting guidance
Documentation Package: Installation manual, wiring diagrams, dimensional drawings, and certification documents included with each shipment

Frequently Asked Questions

What is the primary difference between the BA2 and BC1 model variants?
The KJ1501X1-BA2 is a single DC/DC converter module, while the BC1 variant integrates two converters in a single assembly with built-in load sharing and automatic failover circuitry. Choose BA2 for cost-effective single-supply applications or when building custom redundant configurations; select BC1 for pre-engineered redundant power systems.

Can this power module operate in hazardous area classifications?
When installed in appropriately rated enclosures, the KJ1501X1-BA2 meets ATEX Zone 2 requirements and is suitable for Class I Division 2 locations. For Zone 0/1 or Division 1 applications, the power supply must be located outside the hazardous area or within explosion-proof enclosures.

How do I calculate the required power capacity for my I/O configuration?
Sum the current draw specifications for all I/O modules on your carrier (typically 50-200mA per module), multiply by 24V to convert to watts, then add a 20% safety margin. For example, eight modules at 100mA each = 0.8A × 24V = 19.2W; with 20% margin = 23W, well within the 50W capacity.

Is the KJ1501X1-BA2 compatible with legacy DeltaV M-Series systems?
This converter is specifically designed for S-Series architecture and uses different mounting and connector interfaces than M-Series equipment. For M-Series systems, consult VE-series power modules that match the M-Series mechanical and electrical specifications.

What routine maintenance does this power supply require?
The solid-state design requires no scheduled maintenance. During annual plant shutdowns, inspect terminal connections for tightness, verify adequate cooling airflow around the module, and confirm LED status indicators show normal operation. No capacitor replacement or calibration is necessary.

How quickly does the backup converter assume load during a primary supply failure?
In redundant configurations, the backup converter detects primary supply voltage drop within 2-3 milliseconds and assumes full load before downstream I/O modules experience brownout conditions. This seamless transition prevents process interruptions and maintains scan cycle integrity.

Ready to Enhance Your DeltaV Power Infrastructure?

Contact our automation specialists to discuss your specific application requirements, receive sizing assistance for your I/O configuration, or request technical documentation. We provide comprehensive support from initial system design through commissioning and ongoing operation.
