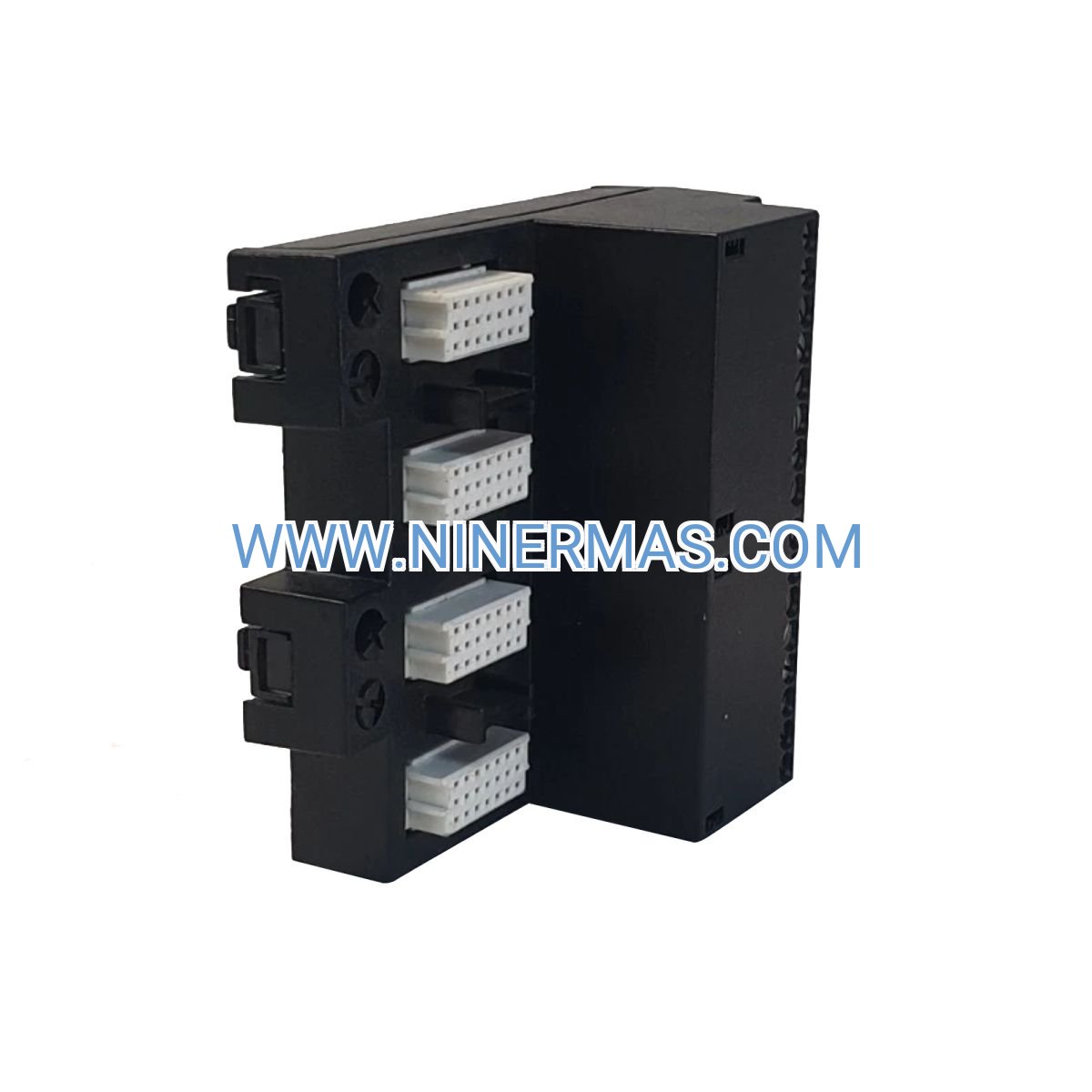

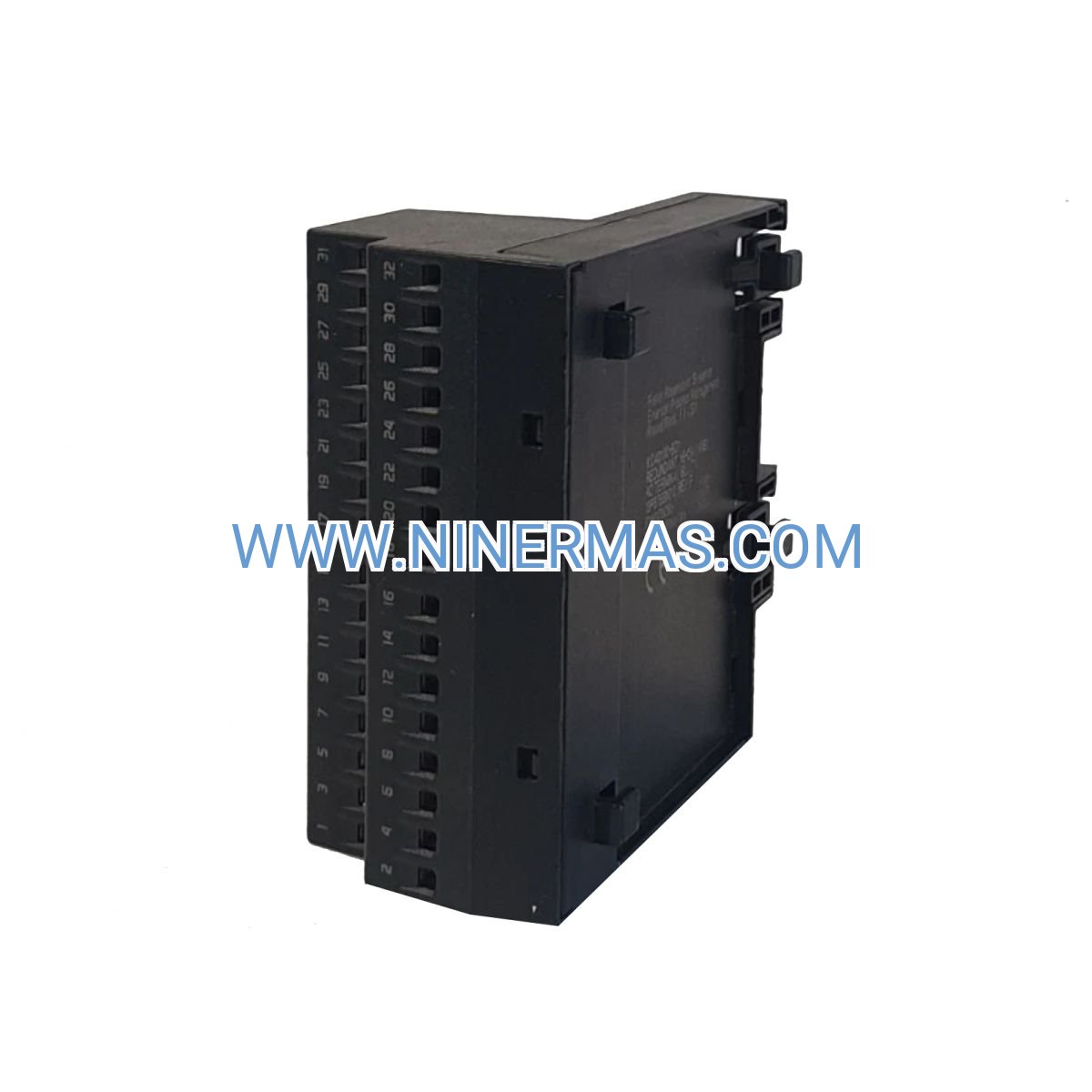

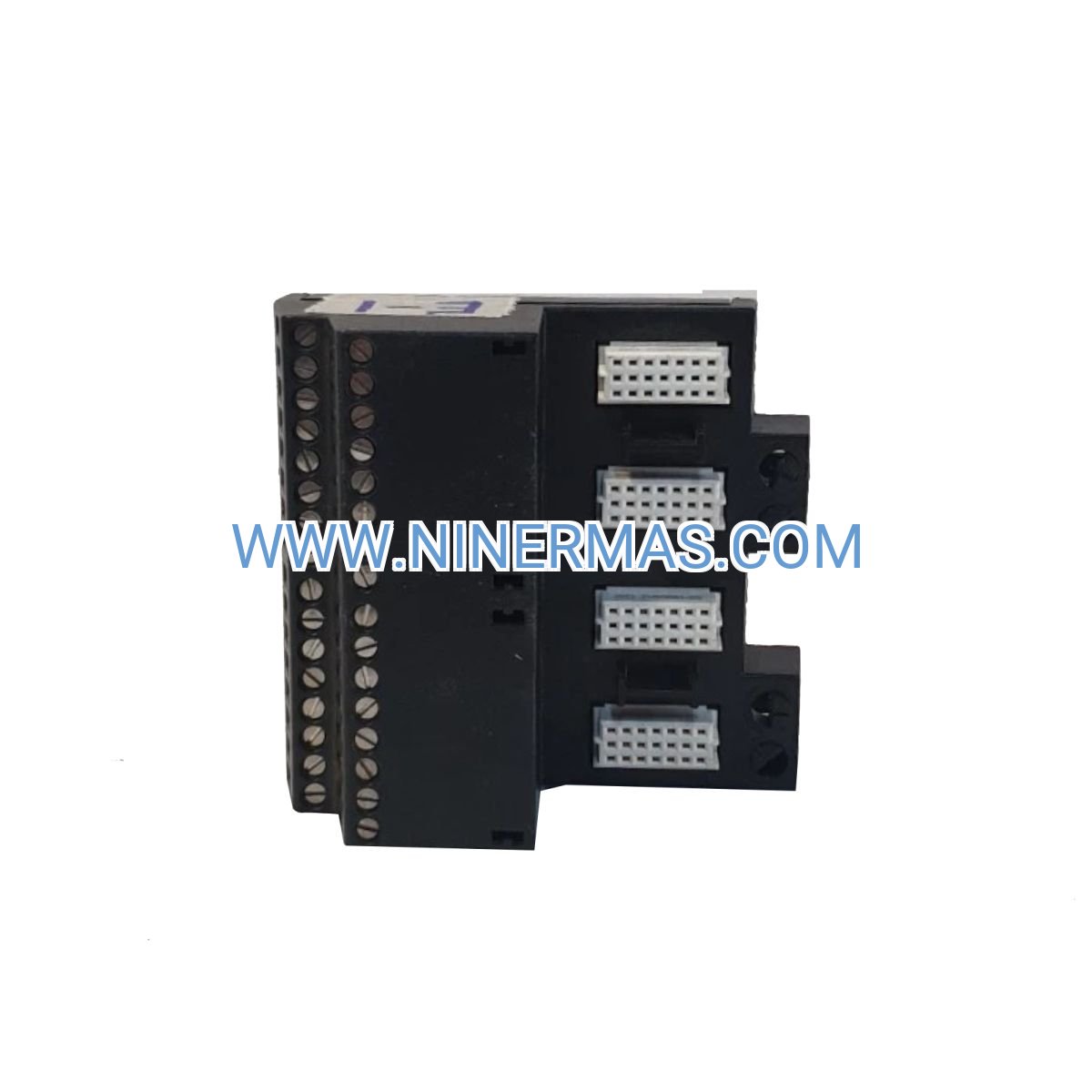

KC4011X1-BD1 Redundant Analog Output Terminal Block (Industrial-Grade DeltaV Field Interface)

The KC4011X1-BD1 is a mission-critical field wiring interface designed for redundant analog output architectures in Emerson DeltaV distributed control systems. This 16-channel terminal block ensures uninterrupted 4-20mA signal delivery to final control elements through automatic failover between primary and backup I/O cards, making it indispensable for safety-instrumented systems, continuous process industries, and high-availability manufacturing environments where control signal loss could trigger equipment damage, production losses, or safety incidents.

Built to withstand harsh industrial conditions from -40°C to +70°C, the KC4011X1-BD1 carries global hazardous area certifications (FM, ATEX, IECEx) and supports online card replacement without process disruption. Its A5 rotary key position prevents installation errors, while bumpless transfer technology maintains output values during failover events—eliminating process upsets that plague non-redundant control architectures.

Key Features & Industrial Benefits

→ Zero-Downtime Failover Architecture
Automatic switchover to backup analog output card occurs within milliseconds upon primary card failure, maintaining continuous control signal delivery to valves, dampers, and variable frequency drives. This eliminates emergency shutdowns caused by I/O card failures—a critical advantage in refineries, chemical plants, and power generation facilities where unplanned downtime costs $50,000-$500,000 per hour.

✓ Bumpless Transfer Technology
During failover events, the terminal block preserves the last valid output value, preventing sudden valve position changes that could destabilize reactor temperatures, compressor surge margins, or distillation column pressures. This feature is essential for exothermic reaction control, anti-surge systems, and cascade control loops where output discontinuities trigger process upsets.

✓ Hot-Swappable Maintenance Capability
Replace failed I/O cards during normal operation without breaking field wiring connections or shutting down control loops. This capability reduces mean time to repair (MTTR) from hours to minutes and eliminates costly production interruptions for routine maintenance—a game-changer for 24/7 continuous process operations.

✓ Hazardous Area Compliance
FM/CSA Class I Division 2, ATEX Zone 2, and IECEx certifications enable deployment in explosive atmosphere locations without expensive purge systems or intrinsic safety barriers. DNV and ABS marine approvals support offshore platform and FPSO installations where space and weight constraints demand compact, certified solutions.

✓ Robust Environmental Tolerance
10g shock resistance and 0.7g vibration tolerance ensure reliable operation in high-vibration environments near rotating equipment, while ISA-S71.04 Class G3 protection guards against corrosive airborne contaminants in pulp mills, wastewater treatment plants, and mining operations.

✓ Diagnostic Visibility
Real-time card health status visible through DeltaV operator interface enables predictive maintenance strategies, allowing replacement of degrading cards before failure occurs—reducing unplanned downtime by 40-60% compared to reactive maintenance approaches.

Industrial Application Scenarios

Refinery Crude Unit Control
In atmospheric distillation units processing 100,000+ barrels per day, the KC4011X1-BD1 provides redundant control for reflux pump speed controllers, overhead condenser bypass valves, and furnace fuel gas control valves. A single I/O card failure without redundancy could force unit shutdown, resulting in $2-5 million daily revenue loss. The terminal block's automatic failover maintains stable fractionation during card replacement, preserving product quality specifications and preventing off-spec material that requires expensive reprocessing.

Pharmaceutical Bioreactor Temperature Control
FDA-regulated biologics manufacturing demands validated redundant control for critical process parameters. The KC4011X1-BD1 supports 21 CFR Part 11 compliance by maintaining continuous control loop integrity during I/O card maintenance, eliminating batch failures that cost $500,000-$2 million in lost product and regulatory documentation burden. Bumpless transfer prevents temperature excursions that denature proteins or trigger out-of-specification results requiring batch rejection.

Gas Turbine Anti-Surge Protection
Centrifugal compressors in natural gas processing and LNG facilities require millisecond-response anti-surge valve control to prevent catastrophic impeller damage. The KC4011X1-BD1's redundant architecture ensures continuous valve positioning even during I/O card failures, protecting $5-15 million compressor assets. The terminal block's 30VDC/100mA per channel rating supports high-speed electro-pneumatic positioners with HART diagnostics for predictive maintenance of critical rotating equipment.

Power Plant Steam Turbine Governor Control
Redundant speed control systems in 500MW+ combined-cycle power plants rely on the KC4011X1-BD1 for parallel connection of primary and backup governor controllers. During grid frequency disturbances or controller switchovers, the terminal block maintains stable turbine speed regulation, preventing generator trips that cost $50,000-$100,000 in lost revenue per hour and strain grid stability during peak demand periods.

Chemical Reactor Cooling Control
Exothermic polymerization reactors in plastics manufacturing require fail-safe cooling control to prevent runaway reactions. The KC4011X1-BD1 enables redundant control valve positioning for cooling water and emergency quench systems, ensuring continuous temperature regulation even during I/O card maintenance. This architecture meets IEC 61511 safety integrity level (SIL) requirements for safety instrumented functions protecting against thermal runaway scenarios.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the KC4011X1-BD1 when control loop availability requirements exceed 99.9% (less than 8.76 hours downtime per year) or when process safety analysis identifies single I/O card failure as an unacceptable risk. For non-critical loops where brief control signal loss is tolerable, standard non-redundant terminal blocks offer lower initial cost. Calculate total cost of ownership including downtime costs—redundant architectures typically achieve ROI within 6-18 months in continuous process industries.

Advanced Integration Capabilities

HART Protocol Support: The 30VDC field circuit rating provides sufficient loop voltage for HART-enabled smart positioners and actuators, enabling remote diagnostics, valve signature analysis, and predictive maintenance without additional infrastructure. HART multiplexing through the DeltaV system allows simultaneous process control and asset management on the same 4-20mA wiring.

Foundation Fieldbus Migration Path: While the KC4011X1-BD1 supports conventional 4-20mA signaling, it integrates seamlessly with DeltaV systems running mixed analog and Foundation Fieldbus segments. This enables phased migration strategies where critical loops remain on proven analog technology while non-critical loops transition to digital fieldbus—reducing project risk and capital expenditure.

Cybersecurity Considerations: As a passive wiring termination device, the KC4011X1-BD1 has no network connectivity or firmware, eliminating cybersecurity vulnerabilities present in smart I/O devices. This air-gap architecture provides inherent protection against industrial control system (ICS) cyber attacks targeting Modbus, OPC, or Ethernet/IP protocols.

Installation Best Practices & Commissioning

Wire Sizing Calculations: For 4-20mA loops up to 1000 feet (305 meters), use 18 AWG wire to maintain loop resistance below 600 ohms. This ensures minimum 12VDC at field device terminals for HART communication and provides adequate voltage margin for intrinsic safety barriers if required. For longer runs or higher resistance loads, calculate voltage drop using Ohm's law: V_drop = I_loop × (R_wire + R_load).

Grounding & Shielding: Connect cable shields to terminal block ground at one end only (typically at the I/O cabinet) to prevent ground loops that cause measurement noise and erratic control behavior. In high-EMI environments near VFDs or welding equipment, use twisted-pair shielded cable with 360-degree shield termination at both ends through EMC cable glands.

Redundant Card Synchronization: After installing both primary and backup analog output cards, verify output synchronization through the DeltaV operator interface before declaring the redundant pair operational. Output mismatch greater than 0.5% indicates card calibration drift or configuration errors that could cause output bumps during failover—requiring card replacement or recalibration before production use.

Failover Testing Protocol: Perform controlled failover testing during commissioning by removing the primary I/O card while monitoring field device response. Acceptable performance shows less than 50ms switchover time and zero output deviation greater than 0.1% of span. Document failover test results for regulatory compliance and maintenance training purposes.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock items shipped to North America, Europe, and Asia-Pacific regions via express courier (DHL, FedEx, UPS). Expedited same-day shipping available for emergency outage situations at additional cost.

Custom Configuration: Factory-configured terminal blocks with pre-wired jumpers or special key positions available with 2-3 week lead time for project quantities exceeding 10 units.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty and advance replacement programs available for critical spares inventory management.

Technical Support: Unlimited phone and email support from certified DeltaV application engineers for wiring diagram review, redundancy configuration, troubleshooting, and system integration assistance. On-site commissioning support available for large-scale projects.

Documentation Package: Complete installation manual (Document 12P2046), wiring diagrams, hazardous area certification documents, and material traceability certificates included with every shipment. CAD drawings and 3D STEP files available upon request for panel design integration.

Frequently Asked Questions

Q: Can I use the KC4011X1-BD1 terminal block with non-redundant analog output cards?
A: Yes, the terminal block functions normally with single (non-redundant) I/O cards, though you lose automatic failover capability. The A5 key position ensures compatibility with both redundant and non-redundant DeltaV analog output modules. However, using redundant terminal blocks with non-redundant cards provides no availability benefit and increases unnecessary cost—specify standard terminal blocks for non-critical applications.

Q: What is the maximum field wiring distance supported by the 30VDC circuit rating?
A: Maximum distance depends on wire gauge and load resistance. With 18 AWG wire (6.4 ohms per 1000ft) and typical 250-ohm HART device, maximum distance is approximately 1500 feet before voltage drop compromises HART communication. For longer runs, use 16 AWG wire or consider 2-wire transmitter power supplies with separate signal wiring to maintain adequate loop voltage.

Q: Does the terminal block require periodic calibration or maintenance?
A: No. The KC4011X1-BD1 is a passive wiring termination device with no active electronics requiring calibration. Recommended maintenance includes annual visual inspection for loose terminal screws, corrosion, or physical damage. Measure contact resistance every 2-3 years in high-vibration environments—resistance exceeding 0.5 ohms indicates terminal wear requiring replacement.

Q: Can I hot-swap the terminal block while I/O cards are installed and field wiring is connected?
A: No. Per Emerson safety guidelines, terminal blocks may only be removed or inserted when NO I/O card is installed AND no field wiring is connected. This requirement prevents arcing at connector contacts, protects field devices from transient voltages, and maintains hazardous area compliance. Always de-energize the I/O carrier and disconnect field wiring before terminal block removal.

Q: What happens to control outputs during the failover transition between primary and backup cards?
A: The DeltaV system maintains the last valid output value during failover through bumpless transfer technology. Switchover time is typically 20-50 milliseconds—fast enough that most control loops experience no noticeable disturbance. However, fast-response loops controlling compressor anti-surge or turbine speed may require additional tuning to accommodate brief control signal interruption during failover events.

Q: Is the KC4011X1-BD1 compatible with Foundation Fieldbus or HART-IP digital protocols?
A: No. This terminal block supports conventional 4-20mA analog signaling only. For Foundation Fieldbus H1 segments, specify DeltaV FF terminal blocks (KJ2005X1 series). For HART-IP or WirelessHART integration, use DeltaV CHARMs I/O with appropriate wireless gateways or Ethernet-connected HART multiplexers.
