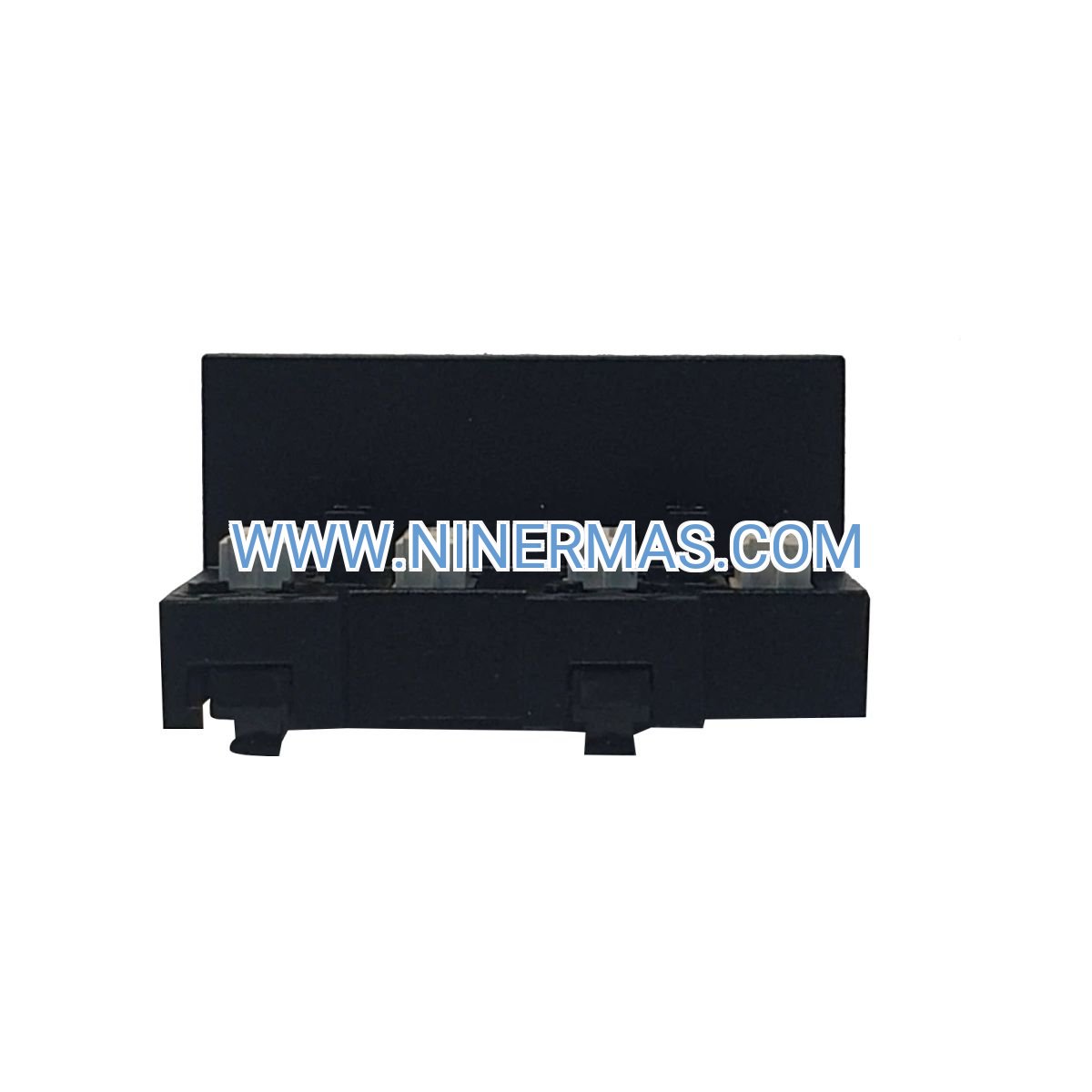

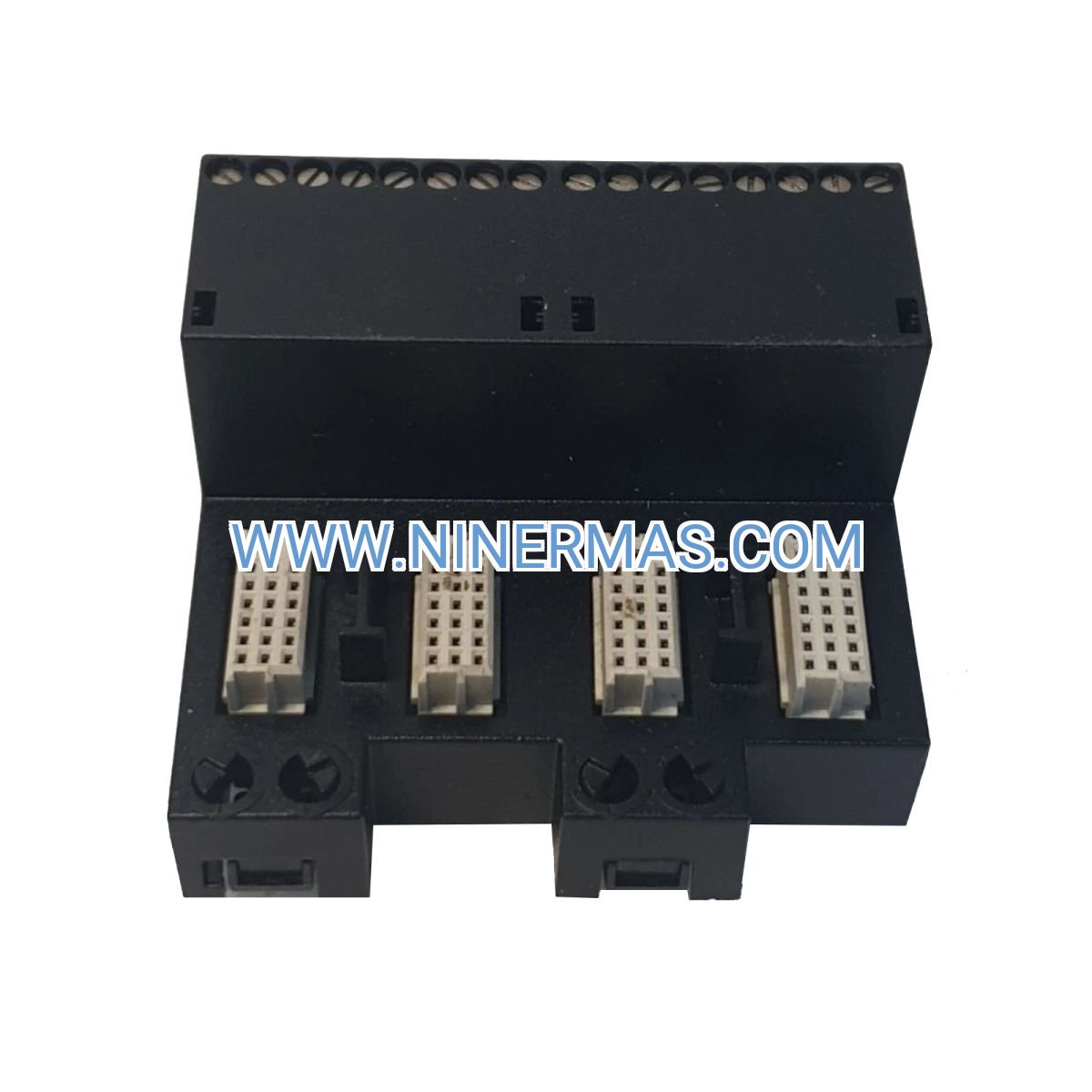

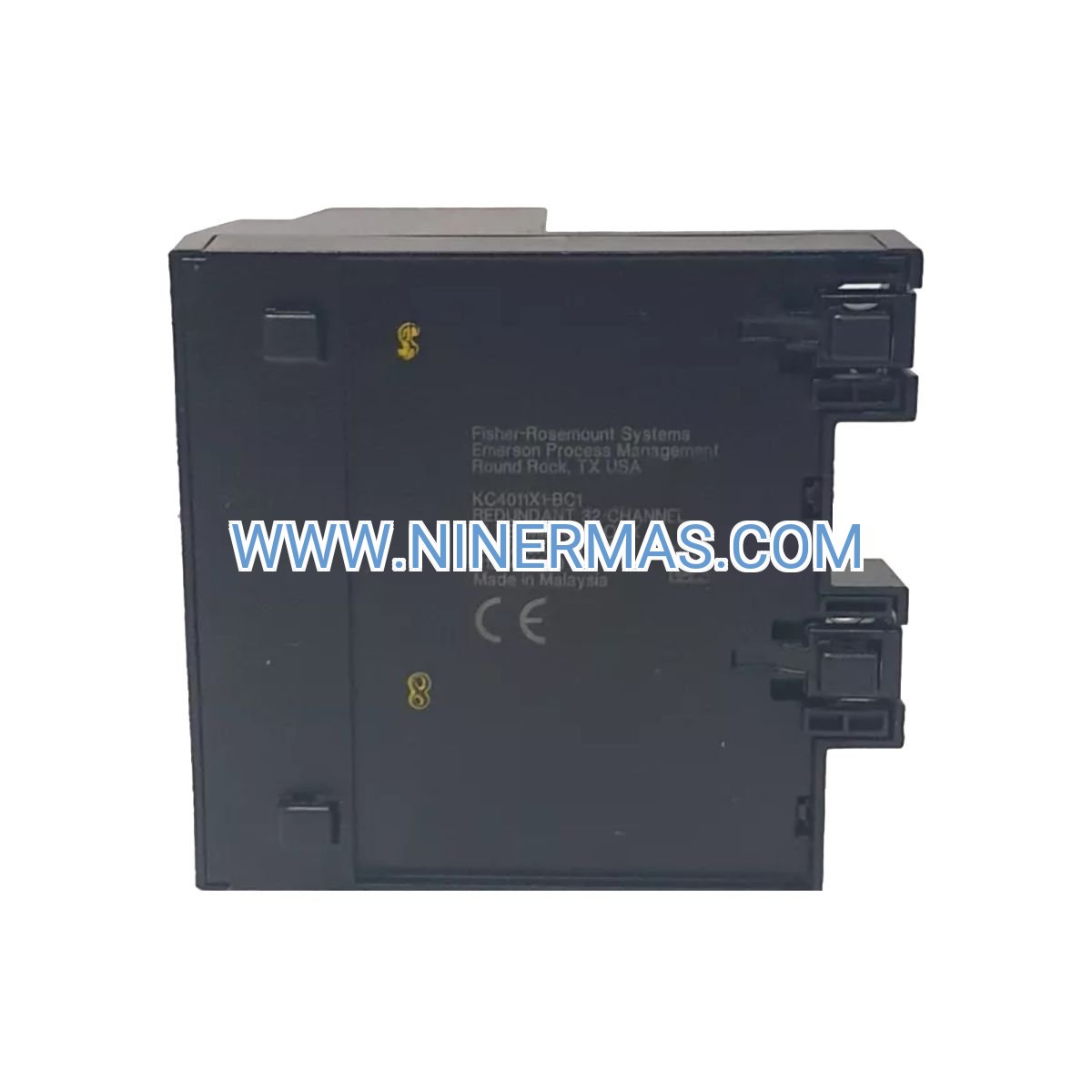

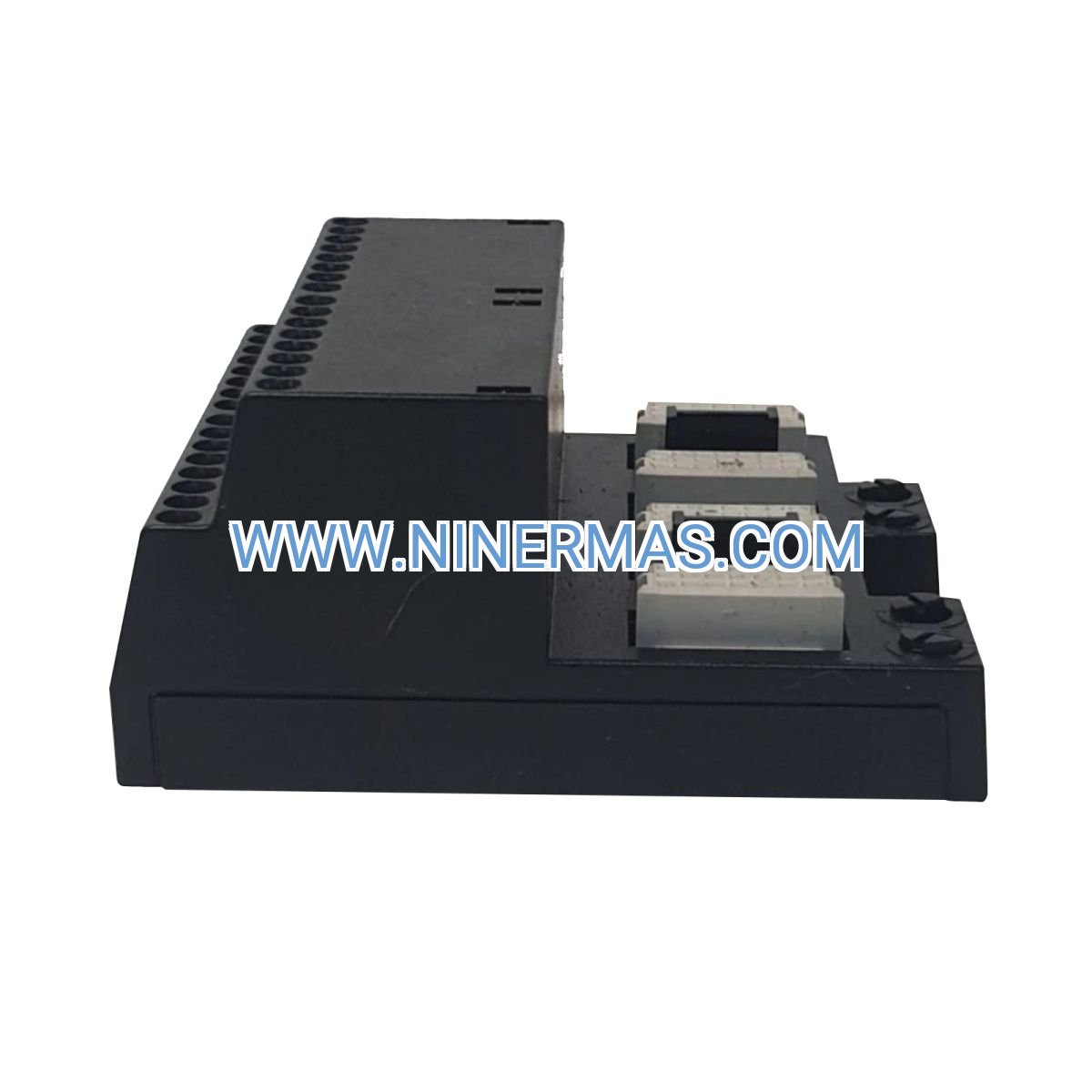

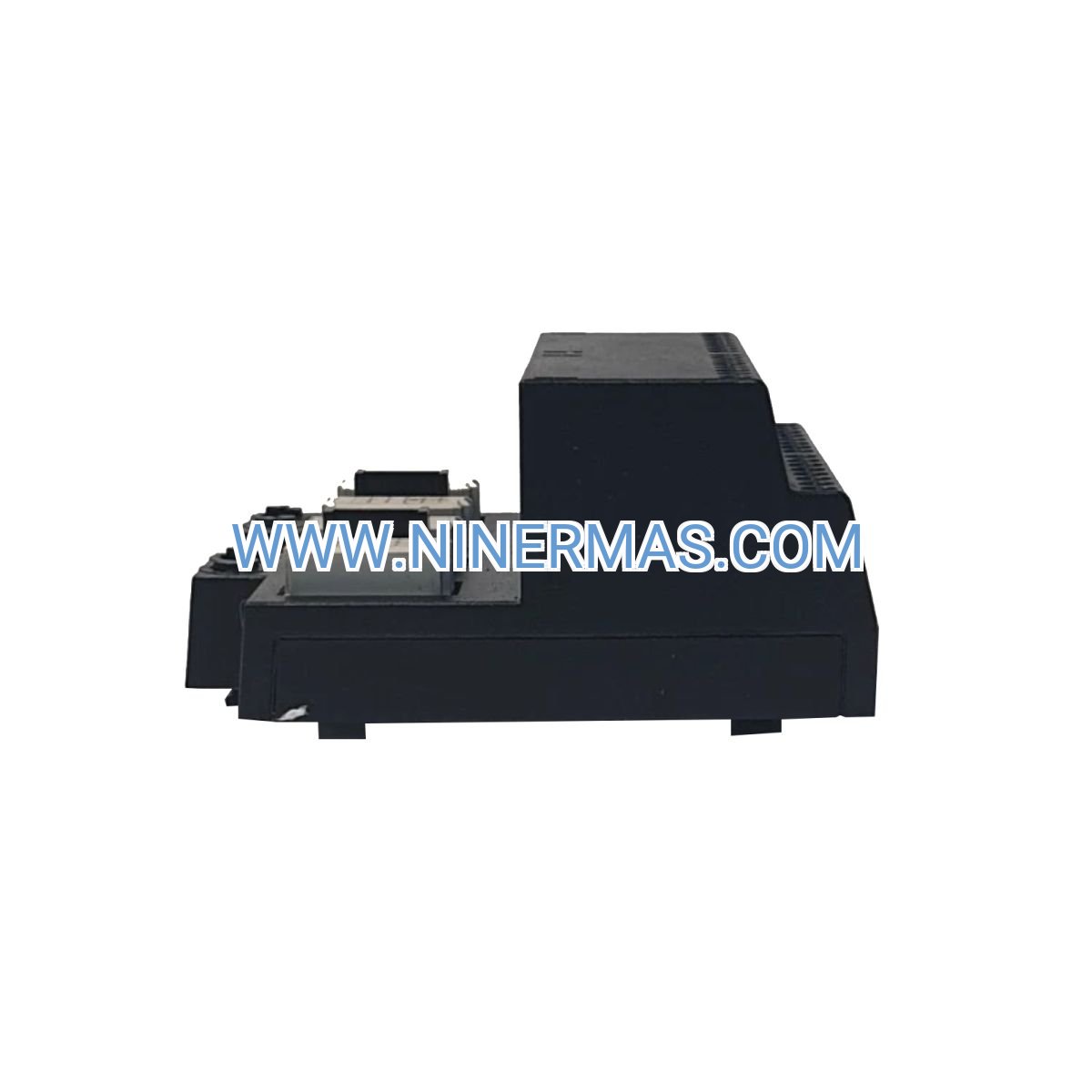

KC4011X1-BC1 Redundant Discrete Input Terminal Block (Industrial-Grade 32-Channel Solution)

The KC4011X1-BC1 represents a mission-critical wiring interface engineered for fault-tolerant discrete input applications within Emerson DeltaV distributed control architectures. This 32-channel redundant terminal block delivers uninterrupted signal acquisition from safety-critical field instrumentation, serving industries where process downtime translates to substantial operational losses—including petrochemical refineries, pharmaceutical manufacturing, offshore energy platforms, and utility-scale power generation.

Built to withstand extreme industrial environments ranging from -40°C Arctic installations to +70°C desert climates, the KC4011X1-BC1 maintains signal integrity through conformal coating protection against corrosive atmospheres, mechanical shock resistance up to 10g, and vibration tolerance exceeding offshore platform requirements. Global hazardous area certifications (FM/CSA Class I Division 2, ATEX Zone 2, IECEx, DNV/ABS marine) enable deployment in explosive atmosphere zones without additional barriers or enclosures.

When paired with redundant DeltaV I/O cards, this terminal block enables 1oo2 voting logic for emergency shutdown systems, continuous process monitoring during maintenance activities, and diagnostic visibility into field device health—transforming traditional single-point-of-failure architectures into resilient control systems that meet IEC 61508/61511 safety integrity requirements.

Core Features & Business Value

→ Dual-Channel Redundancy Architecture
Eliminates measurement blind spots during I/O card failures, sensor malfunctions, or wiring damage. Each of 32 input channels connects to two independent signal paths, allowing control systems to detect discrepancies, annunciate faults, and maintain process visibility through the healthy channel—reducing unplanned shutdowns by up to 40% in critical applications.

✓ Hot-Swappable Terminal Block Design
Supports removal and installation with system power applied (when I/O card is removed and field wiring disconnected), enabling pre-wiring in controlled shop environments before hazardous area deployment. This capability reduces commissioning time by 30-50% and minimizes technician exposure to classified locations during installation and troubleshooting.

→ E3 Rotary Keying System
Mechanical coding prevents mismatched terminal block installation, ensuring field wiring compatibility with redundant discrete input cards. The foolproof keying mechanism eliminates cross-wiring errors that could damage field devices or create safety hazards, particularly valuable during multi-discipline construction projects with rotating contractor teams.

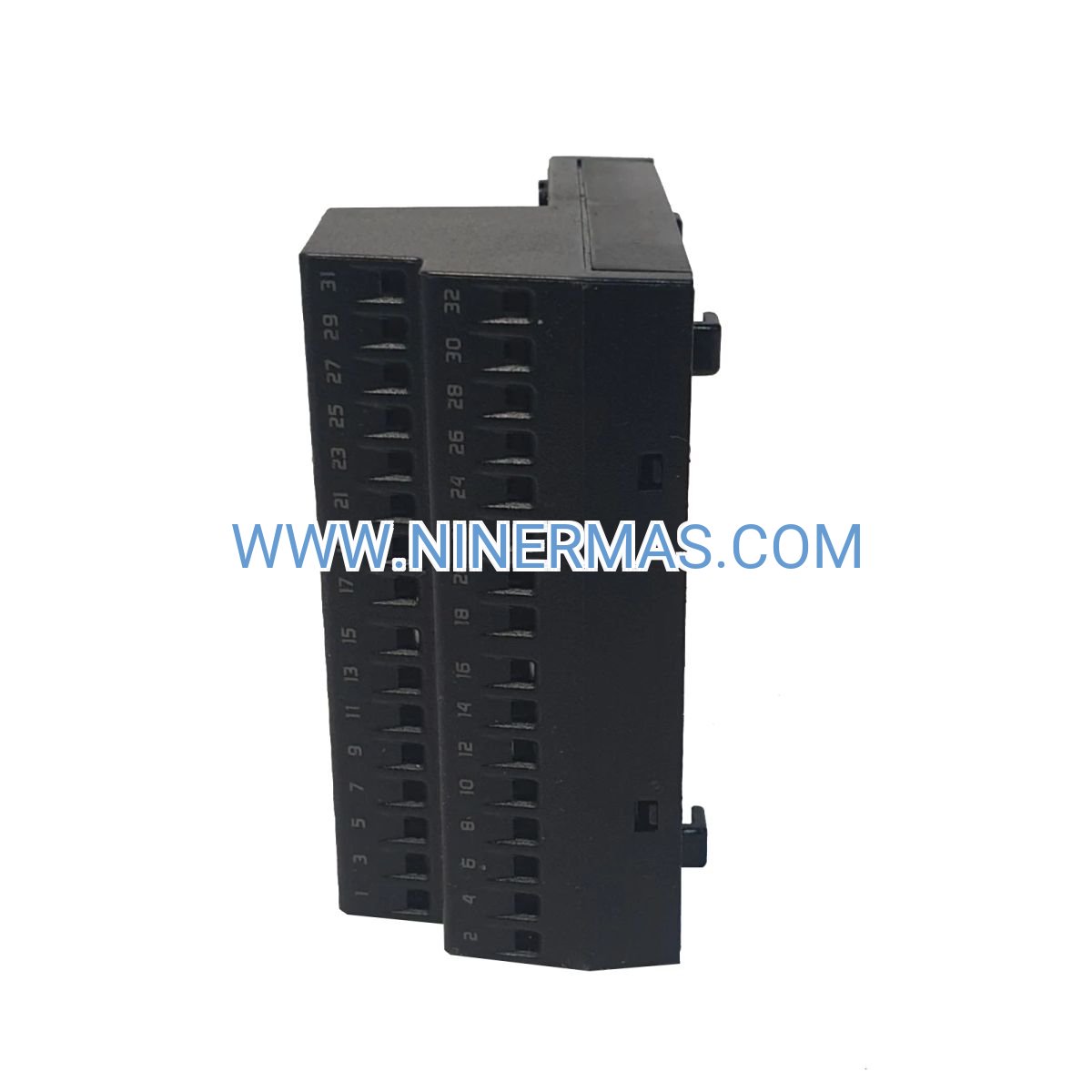

✓ Screw Cage Terminal Construction
Accommodates 22-14 AWG field wiring with tool-accessible terminals that maintain connection integrity through thermal cycling and vibration. Unlike spring-clamp terminals that may loosen over time, screw cage design provides verifiable torque values during commissioning and supports annual inspection protocols required by safety management systems.

→ ISA-S71.04 Class G3 Conformal Coating
Protects terminal block electronics from sulfur dioxide, hydrogen sulfide, chlorine, and other airborne contaminants prevalent in chemical processing and pulp/paper facilities. The protective coating extends service life beyond 15 years in corrosive atmospheres that would degrade unprotected electronics within 3-5 years.

✓ 30VDC 5mA Per-Channel Rating
Compatible with industry-standard proximity switches, pressure switches, level switches, and dry contact devices without requiring external power supplies or signal conditioners. The 160mA total current capacity supports full 32-channel population with margin for voltage drop across long cable runs up to 500 meters.

Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore oil platforms, the KC4011X1-BC1 interfaces with redundant pressure switches monitoring wellhead pressure, flame detectors protecting process modules, and gas detection panels safeguarding personnel areas. When either redundant channel detects an unsafe condition, the DeltaV controller initiates emergency depressurization, fuel isolation, and platform evacuation alarms—maintaining protective functions even if a single I/O card, field device, or cable fails. This architecture helped one North Sea operator achieve 99.97% ESD system availability over a 5-year period, exceeding regulatory requirements and avoiding $12M in potential production deferrals.

Pharmaceutical Batch Manufacturing
Critical process parameters like reactor temperature limits, sterile barrier integrity, and clean-in-place (CIP) completion rely on redundant switch inputs to maintain GMP compliance. The KC4011X1-BC1 enables continuous batch monitoring during scheduled I/O card replacement, preventing batch holds that would otherwise cost $50K-$200K per incident in lost production and quality investigation labor. FDA-regulated facilities use the redundant architecture to demonstrate control system reliability during process validation and regulatory inspections.

Combined-Cycle Power Plant Turbine Protection
Gas turbine control systems depend on redundant vibration monitors, overspeed trip devices, and flame detectors to prevent catastrophic equipment damage. The KC4011X1-BC1 terminal block supports 1oo2 voting logic where either redundant channel can initiate turbine trip, while also detecting sensor failures that would otherwise go unnoticed until the next scheduled outage. One 500MW facility reduced turbine trips by 60% after implementing redundant input monitoring, avoiding $2.5M annually in forced outage costs and grid reliability penalties.

Chemical Reactor Interlock Systems
Exothermic reaction control requires redundant monitoring of cooling water flow, reactor pressure relief, and emergency quench activation. The KC4011X1-BC1 provides fault-tolerant signal acquisition for these safety-critical interlocks, ensuring protective actions occur even during single-point failures. The terminal block's ATEX Zone 2 certification allows installation in control rooms adjacent to classified process areas without expensive purged enclosures, reducing installed cost by $3K-$5K per terminal block compared to intrinsically-safe alternatives.

Water Treatment SCADA Systems
Municipal water utilities monitor redundant level switches in clearwells, high-service pump stations, and elevated storage tanks to prevent overflows and supply interruptions. The KC4011X1-BC1 enables continuous monitoring during maintenance, supports remote diagnostics of field device health, and provides audit trails for regulatory compliance reporting—critical capabilities for utilities serving populations exceeding 100,000 where service interruptions trigger mandatory incident reporting and potential EPA enforcement actions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KC4011X1-BC1 when your application requires fault-tolerant discrete input monitoring for safety instrumented systems (SIS), emergency shutdown systems (ESD), or critical process interlocks where single-point failures are unacceptable. For standard (non-redundant) discrete input applications, consider the KJ4006X1-BF1 terminal block to reduce hardware costs by approximately 40%. Verify that your DeltaV I/O cards support redundant operation and match the E3 keying position before ordering.

Extended Functions

DeltaV System Integration: The KC4011X1-BC1 integrates seamlessly with DeltaV redundant controllers, providing automatic failover between primary and secondary I/O cards without operator intervention. The DeltaV control system continuously compares signals from both redundant channels, generating diagnostic alarms when discrepancies exceed configurable thresholds—enabling predictive maintenance of field devices before failures impact process operations.

Advanced Diagnostics: When connected to DeltaV redundant I/O cards, the terminal block supports channel-level diagnostics including open-circuit detection, short-circuit identification, and signal quality monitoring. These diagnostics appear in DeltaV operator displays and can trigger automated work order generation in CMMS systems, reducing mean-time-to-repair (MTTR) by 50% compared to traditional troubleshooting methods.

Cybersecurity Compliance: As a passive wiring component, the KC4011X1-BC1 contains no firmware, network interfaces, or programmable logic—eliminating cybersecurity vulnerabilities associated with intelligent field devices. This architecture simplifies IEC 62443 compliance for industrial control systems in critical infrastructure sectors subject to NERC CIP, TSA pipeline security, or CFATS chemical facility regulations.

Customization Options: While the standard KC4011X1-BC1 ships with E3 keying for redundant discrete input applications, Emerson offers factory customization for special voltage ratings, alternative terminal types, or application-specific labeling for large project quantities (typically 50+ units). Contact our application engineering team for custom configuration feasibility and lead time estimates.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-2 business days via expedited carriers to North America, Europe, Middle East, and Asia-Pacific destinations. For project quantities exceeding 20 units, contact our sales team for volume pricing and stocking programs that guarantee availability aligned with your construction schedule.

Warranty Coverage: All KC4011X1-BC1 terminal blocks include Emerson's standard 18-month warranty covering manufacturing defects and material failures. Extended warranty programs up to 5 years are available for critical applications where spare parts inventory costs exceed $10K annually.

Technical Support: Our certified DeltaV application engineers provide pre-sales system architecture consultation, wiring diagram review, redundancy configuration guidance, and post-installation troubleshooting support. Support services include remote diagnostics via secure VPN connections, on-site commissioning assistance, and training for maintenance personnel.

Documentation Package: Each terminal block ships with installation instructions, wiring diagrams, hazardous area certification documents (Document 12P2046), and material traceability certificates. Complete DeltaV system manuals including "S-Series and CHARMs Hardware Installation" and redundant I/O configuration guides are available for download from our technical library.

Frequently Asked Questions

Q: Can I use the KC4011X1-BC1 terminal block with non-redundant DeltaV I/O cards?
A: No. The E3 keying position is specifically designed for redundant discrete input cards. Attempting to install this terminal block on non-redundant I/O cards will result in mechanical interference from the keying mechanism. For standard discrete input applications, use the KJ4006X1-BF1 terminal block with compatible keying.

Q: What is the maximum cable length between field devices and the KC4011X1-BC1 terminal block?
A: With 24VDC field devices drawing 5mA per channel, cable runs up to 500 meters (1640 feet) are supported using 18 AWG shielded cable. For longer distances, consider using 16 AWG cable or local I/O marshalling cabinets to minimize voltage drop. Always calculate voltage drop based on actual cable resistance and verify that field device minimum operating voltage is maintained.

Q: How do I configure 1oo2 voting logic for redundant inputs in DeltaV?
A: DeltaV control modules include built-in function blocks for redundant input processing, including 1oo2 (trip if either channel activates), 2oo2 (trip only if both channels activate), and diagnostic comparison modes. Configuration is performed in DeltaV Explorer using the Control Studio application. Consult Emerson's "Redundant I/O Configuration Guide" (Document 12P3456) for detailed programming examples.

Q: Does the KC4011X1-BC1 require separate power supplies for redundant channels?
A: No. The terminal block is a passive wiring interface that does not require external power. Field devices connect to a common 24VDC power supply, with each device's output contact wired to both redundant input channels on the terminal block. The redundant DeltaV I/O cards provide isolated input circuits for each channel.

Q: Can I install the KC4011X1-BC1 in ATEX Zone 1 or Class I Division 1 hazardous areas?
A: No. This terminal block is certified only for Zone 2 (ATEX) and Division 2 (FM/CSA) installations. For Zone 1/Division 1 applications, the terminal block must be installed in a purged/pressurized enclosure or you must use intrinsically-safe barrier modules between field devices and the terminal block. Consult your site's electrical classification drawings and engage a certified hazardous area design specialist.

Q: What maintenance is required for the KC4011X1-BC1 terminal block?
A: Annual inspection of terminal screw tightness (torque to 0.5 Nm) and visual inspection of wire insulation for damage or degradation. The terminal block contains no user-serviceable parts and requires no calibration. Replace the terminal block if physical damage, connector wear, or keying mechanism failure is observed. Expected service life exceeds 15 years in typical control room environments.

Order Your KC4011X1-BC1 Redundant Terminal Block Today

Eliminate single-point-of-failure risks in your critical control systems with genuine Emerson KC4011X1-BC1 redundant discrete input terminal blocks. Our global inventory ensures rapid delivery to support emergency replacements, planned maintenance outages, and new construction projects. Contact our DeltaV specialists at sale@ninermas.com or +0086 187 5021 5667 for technical consultation, volume pricing, and project-specific stocking programs.
