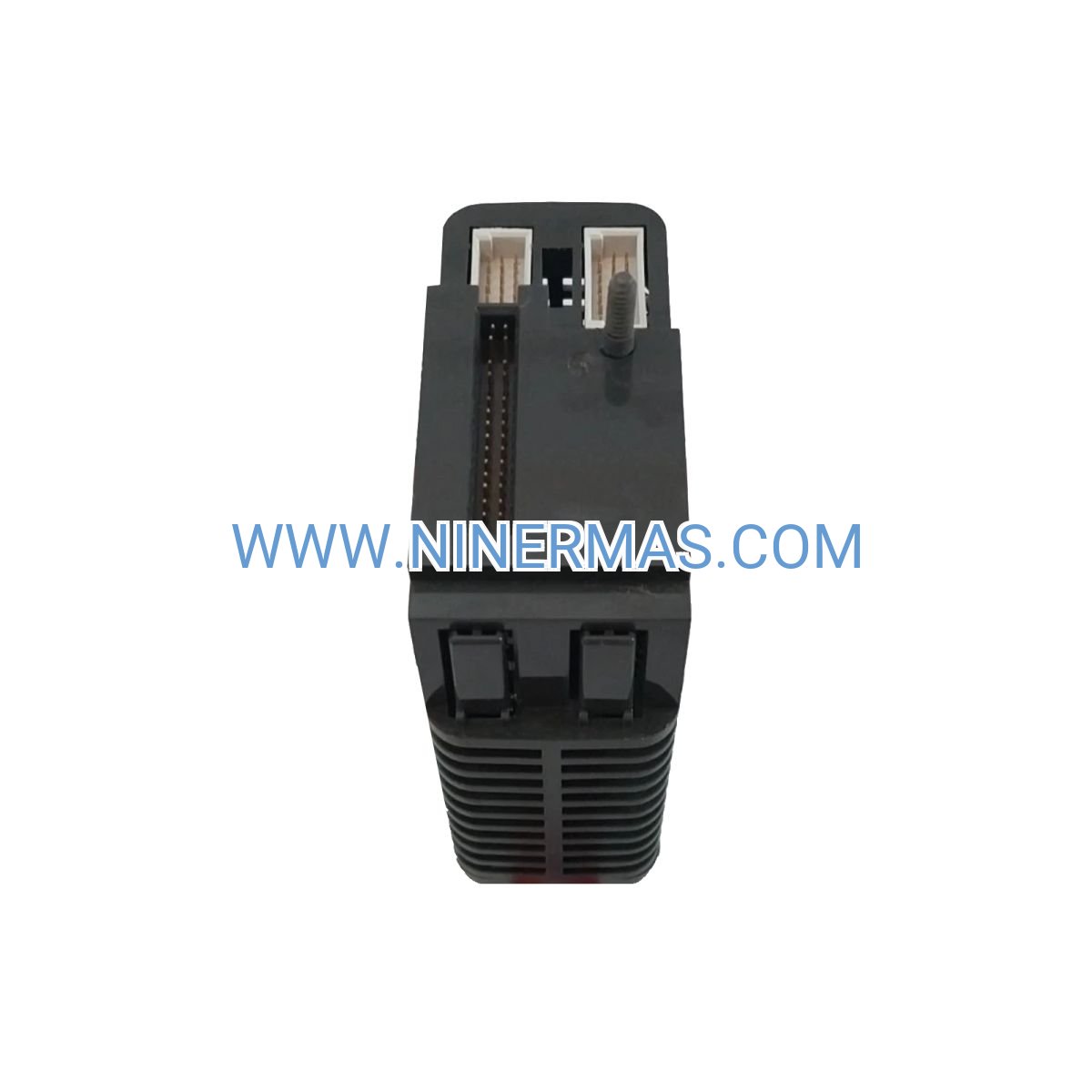

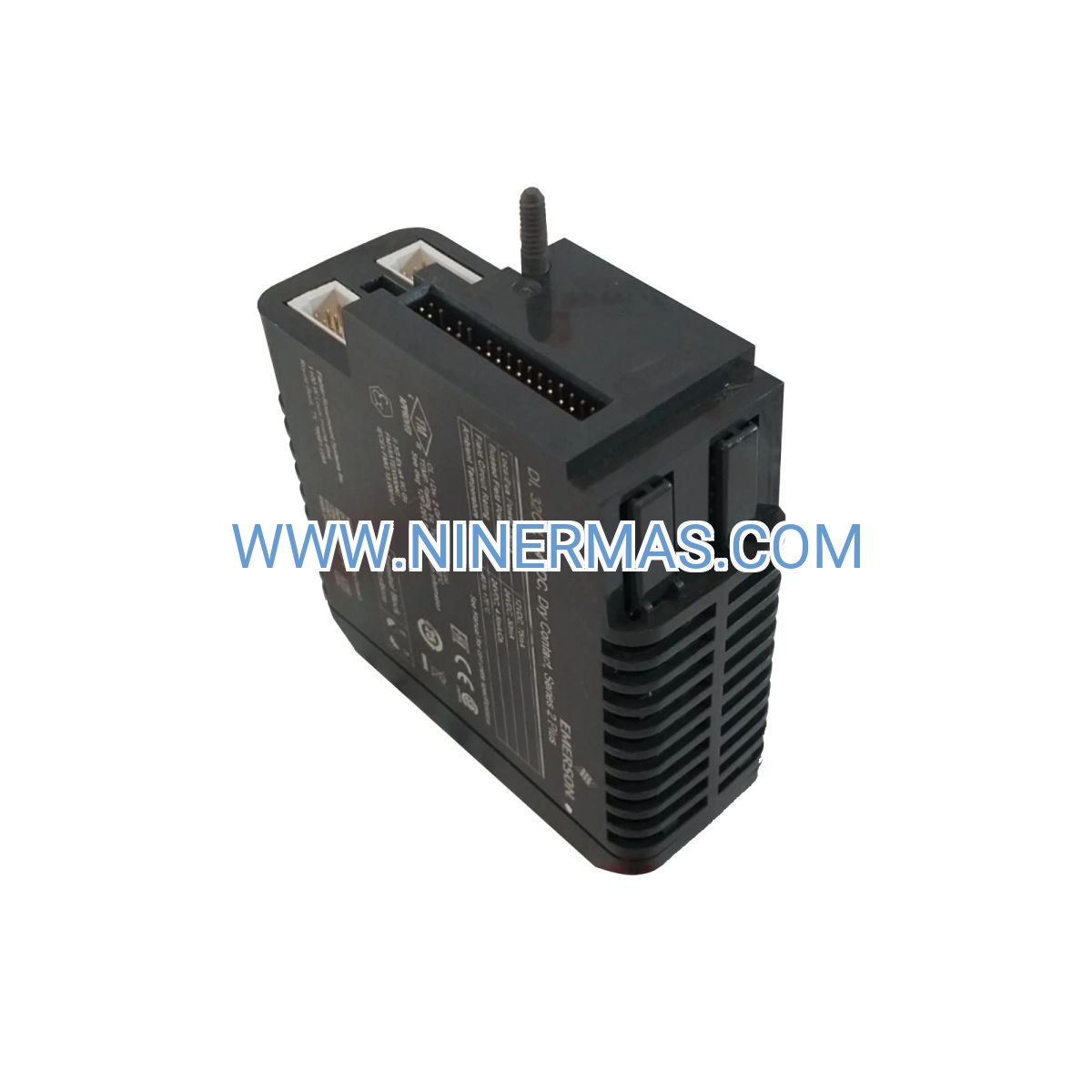

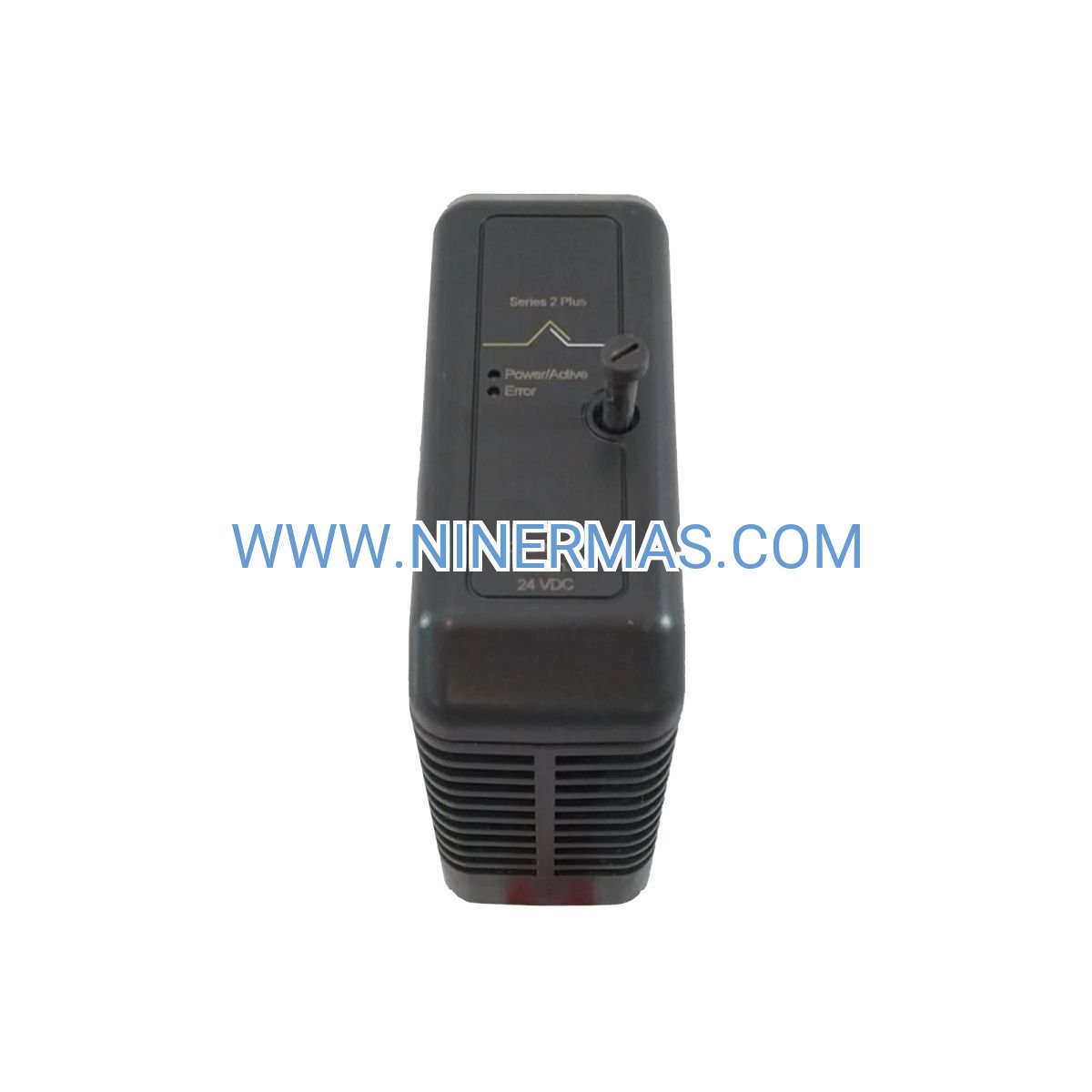

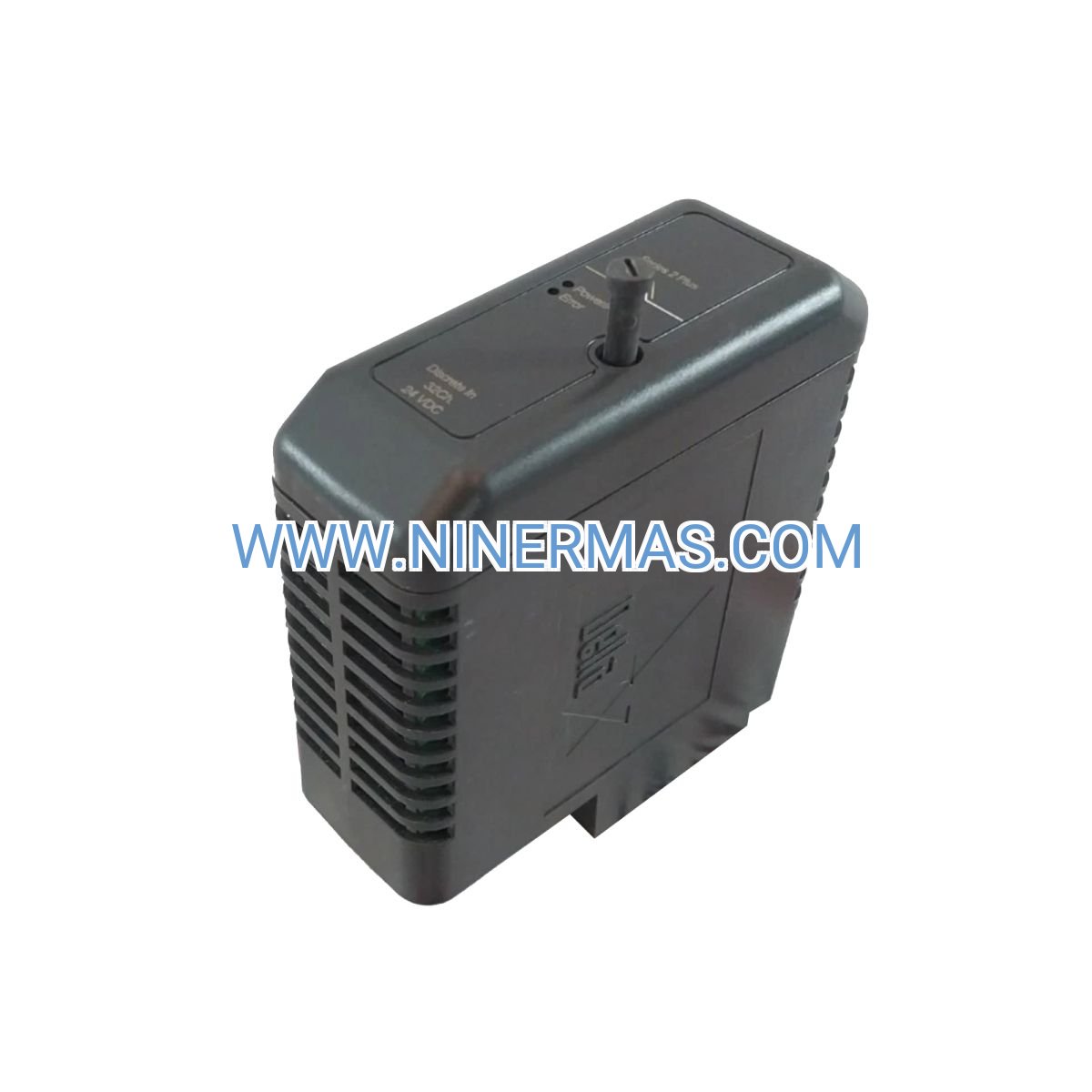

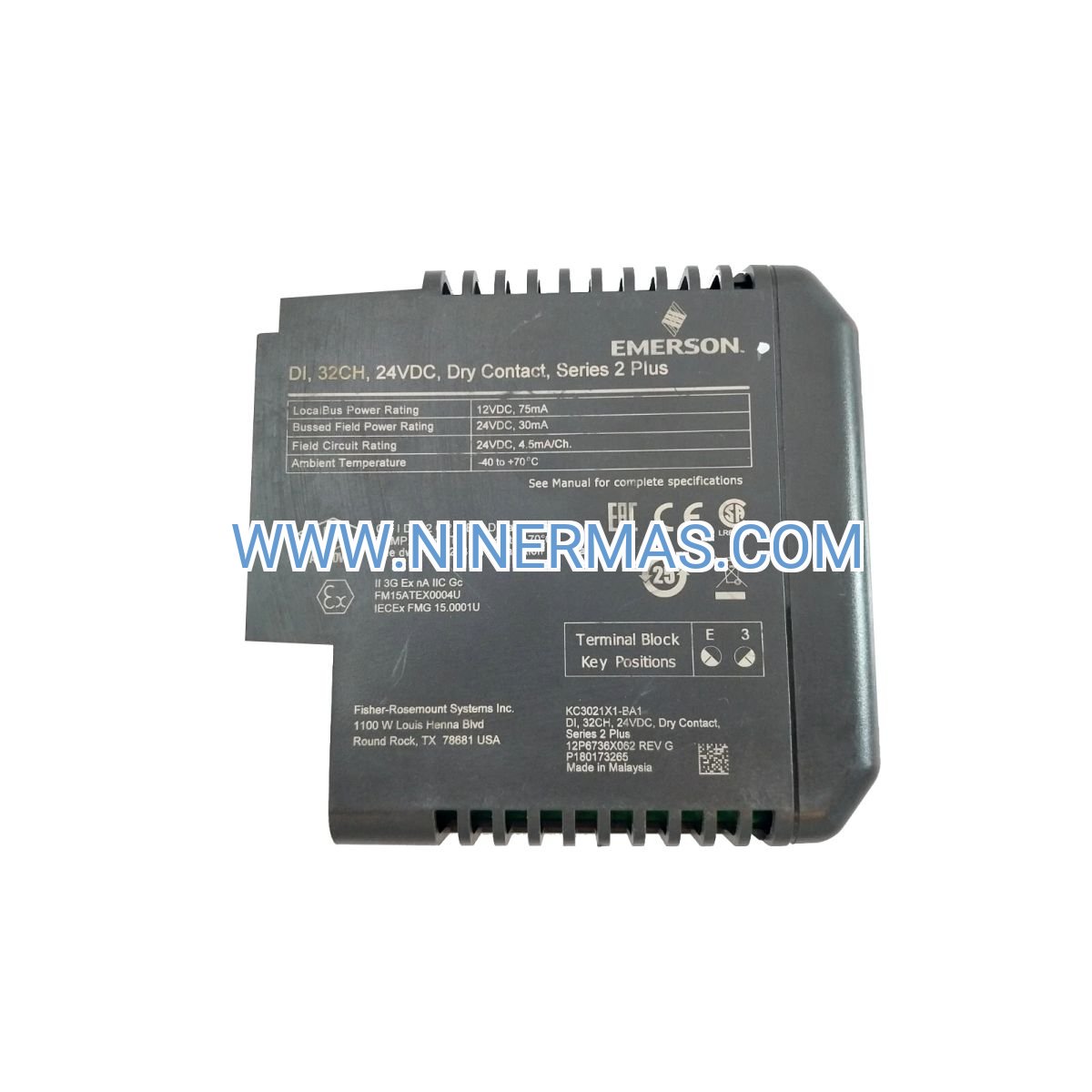

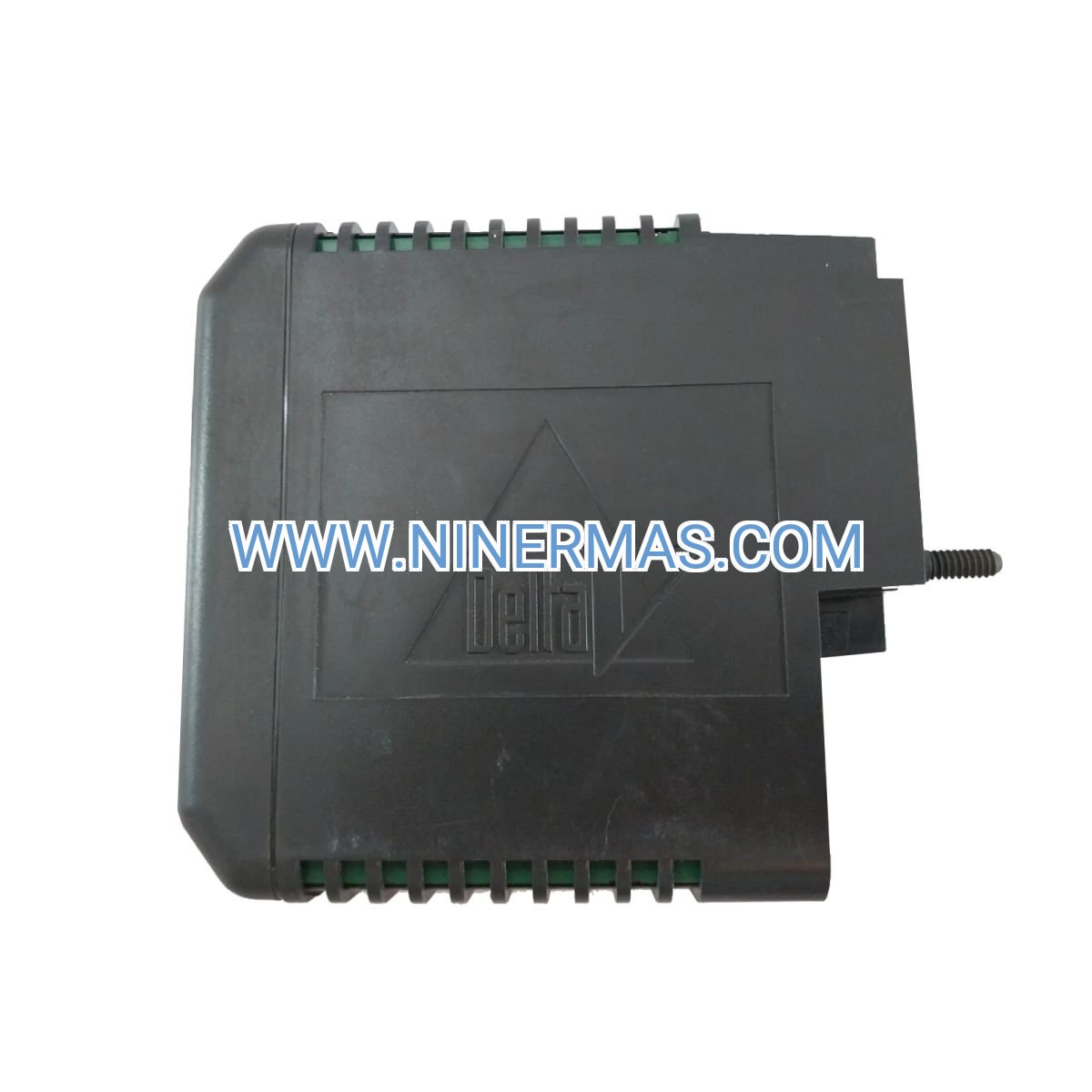

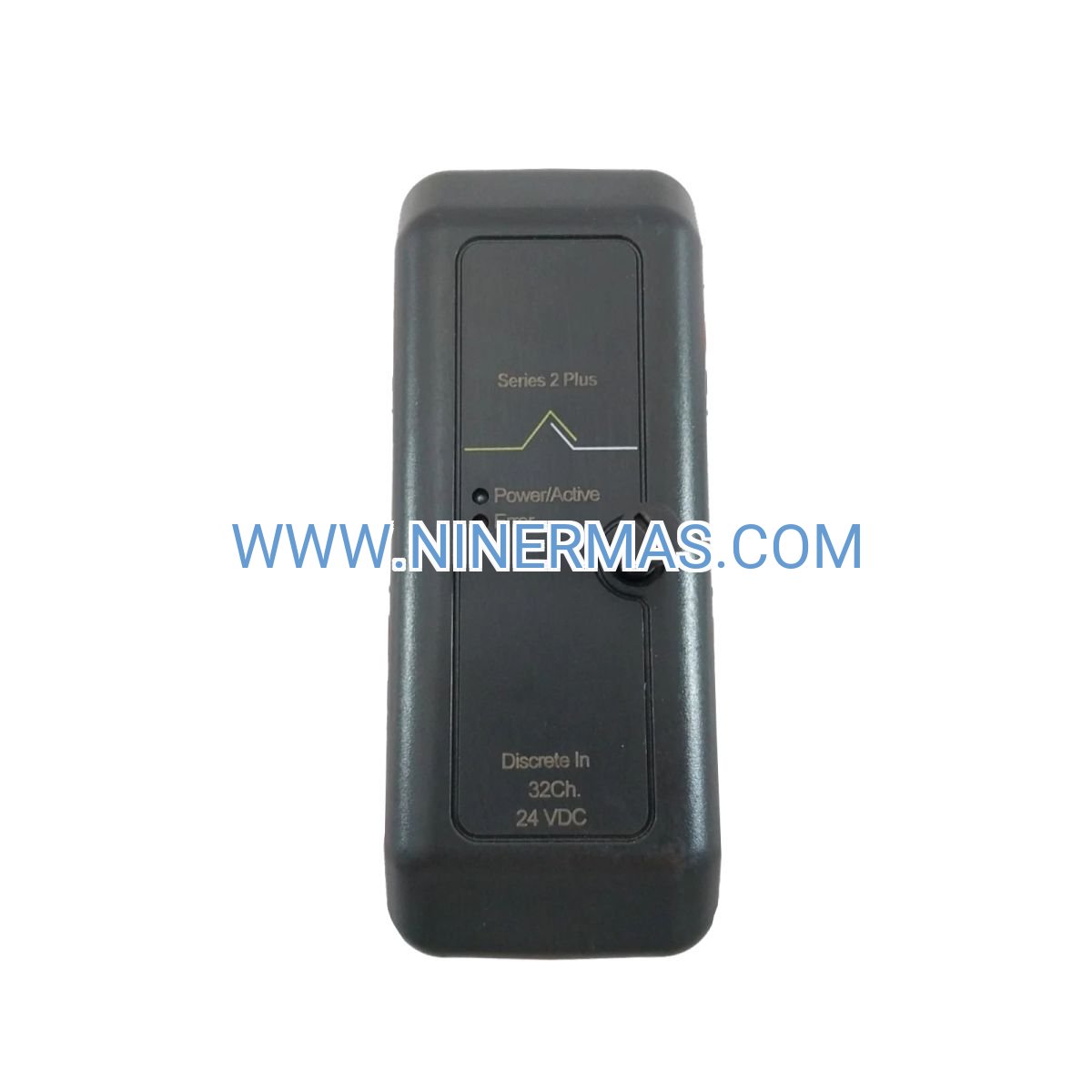

KC3021X1-BA1 High-Density Digital Input Terminal Block (Industrial-Grade DeltaV Interface)

Designed for mission-critical process automation, the KC3021X1-BA1 delivers 32 independently isolated dry contact input channels in a single compact assembly. This terminal block serves as the primary interface between field-mounted discrete devices and DeltaV DI Plus carrier systems, enabling real-time monitoring of valve positions, equipment status, and safety interlocks across oil & gas, chemical processing, and power generation facilities.

Built to withstand harsh industrial environments, each channel features 250V channel-to-channel isolation and 1500V channel-to-ground protection, preventing electrical faults from cascading through your control system. The hot-swappable architecture allows maintenance teams to replace terminal blocks without system shutdown—a critical advantage for continuous process operations where downtime costs exceed $50,000 per hour.

Whether you're retrofitting legacy relay panels or designing greenfield DCS installations, the KC3021X1-BA1 reduces engineering time by 30% through auto-discovery protocols and eliminates wiring errors with clearly labeled screw terminals and integrated LED diagnostics.

Core Features & Benefits

→ 32 Isolated Input Channels: Monitor twice as many field devices per terminal block compared to standard 16-channel designs, cutting cabinet space requirements and reducing material costs by up to 40%.

→ Sub-10ms Response Time: Capture fast-changing discrete signals from high-speed packaging lines, emergency shutdown systems, and rapid-cycle machinery without missing critical state transitions.

→ Universal Input Compatibility: Accept signals from dry contacts, wet contacts (18-30 VDC), and solid-state proximity sensors without external signal conditioning—simplifying BOM management and reducing spare parts inventory.

→ Hot-Swap Maintenance: Replace failed terminal blocks in under 90 seconds without powering down adjacent I/O or interrupting process control loops, maintaining production continuity during unplanned repairs.

→ Per-Channel LED Indicators: Troubleshoot wiring issues and verify signal states at a glance during commissioning, eliminating the need for multimeters and reducing startup time by 25%.

→ Software-Configurable Debounce: Adjust filtering from 0-1000ms per channel to eliminate contact bounce from aging mechanical relays while preserving fast response for solid-state sensors.

Application Scenarios

Refinery Safety Instrumented Systems (SIS): In hydrocarbon processing units, the KC3021X1-BA1 interfaces with emergency shutdown valves, flame detectors, and gas detection panels. When a combustible gas sensor trips, the terminal block's <10ms response ensures the DeltaV safety controller receives the alarm signal before gas concentrations reach explosive levels. Channel-to-ground isolation protects the DCS from lightning-induced surges common in outdoor tank farms.

Pharmaceutical Batch Manufacturing: Connect to CIP (clean-in-place) valve position switches, agitator motor contactors, and sterile filter integrity sensors. The removable terminal block design allows validation engineers to replace I/O during annual GMP audits without breaking wire seals on field junction boxes, maintaining 21 CFR Part 11 compliance while reducing validation costs by $15,000 per campaign.

Water Treatment SCADA Networks: Monitor pump run status, high-level float switches, and chlorine analyzer alarms across distributed lift stations. With 32 channels per block, a single DI Plus carrier can supervise an entire pumping station, reducing Ethernet switch ports and fiber optic runs compared to distributed I/O architectures—cutting infrastructure costs by 35%.

Power Plant Turbine Protection: Interface with vibration trip relays, bearing temperature switches, and lube oil pressure contacts on steam and gas turbines. The KC3021X1-BA1's MTBF exceeding 200,000 hours ensures reliable operation through 20+ year turbine lifecycles, while ATEX Zone 2 certification permits installation in classified electrical rooms adjacent to generator enclosures.

Mining Conveyor Interlock Chains: Collect pull-cord emergency stop signals, belt misalignment switches, and motor overload contacts from kilometer-long conveyor systems. Galvanic isolation prevents ground loop currents caused by long cable runs through electrically noisy crusher buildings, eliminating nuisance trips that previously caused 12+ hours of lost production monthly.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KC3021X1-BA1 when your application requires more than 16 discrete inputs per carrier slot, when field devices operate on 24 VDC systems, or when hot-swap capability is mandated by plant availability targets exceeding 99.5%. For intrinsically safe (IS) applications in Zone 0/1 hazardous areas, specify the KJ-series IS barrier terminal blocks instead.

Extended Functions

Predictive Diagnostics Integration: The terminal block continuously monitors input impedance and detects degraded contact resistance before complete failure occurs. When integrated with DeltaV Insight software, trending algorithms predict relay contact wear-out 4-6 weeks in advance, enabling condition-based maintenance scheduling that reduces emergency callouts by 60%.

Cybersecurity Hardening: All I/O communications use encrypted DeltaV fieldbus protocols compliant with IEC 62443 industrial cybersecurity standards. The terminal block's firmware is digitally signed and verified during power-up, preventing unauthorized code injection through physical access attacks.

Custom Channel Grouping: Configure logical channel groups (e.g., channels 1-8 for Reactor A, 9-16 for Reactor B) through DeltaV Explorer software. Grouped channels share common alarm suppression and maintenance bypass logic, simplifying operator interfaces and reducing configuration errors during plant expansions.

Delivery & Service Assurance

✓ Lead Time: Standard stock items ship within 3-5 business days via DHL/FedEx. Custom-configured terminal blocks with factory-installed labels ship within 10 business days.
✓ Warranty: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended 5-year warranties available for critical sparing programs.
✓ Technical Support: Lifetime access to application engineers via phone/email (8AM-8PM EST). Remote commissioning assistance included with purchase of 10+ units.
✓ Documentation Package: Each terminal block includes calibration certificate, dimensional drawings (AutoCAD DWG format), wiring diagrams, and DeltaV library objects for drag-and-drop configuration.

Frequently Asked Questions

Q: Can the KC3021X1-BA1 interface with 120 VAC relay contacts directly?
A: No, this terminal block is designed for 24 VDC systems only. For 120 VAC applications, use external interposing relays with 24 VDC coils, or specify the KC3022X1 variant rated for 120 VAC inputs.

Q: What is the maximum cable length between field devices and the terminal block?
A: Up to 1000 meters (3280 feet) using shielded twisted-pair cable (Belden 9842 or equivalent). For runs exceeding 500m, use 18 AWG wire to minimize voltage drop and enable proper fault detection.

Q: How much power does the KC3021X1-BA1 consume from the DI Plus carrier?
A: Typical consumption is 2.5W with all 32 channels active. Each DI Plus carrier supplies up to 15W, allowing one KC3021X1-BA1 plus auxiliary I/O modules on the same carrier.

Q: Is the terminal block compatible with legacy DeltaV M-series controllers?
A: Yes, the KC3021X1-BA1 works with all DeltaV controller generations (M3, M5, MQ, SIS) running DeltaV software version 11.3 or later. Firmware updates may be required for controllers manufactured before 2015.

Q: Can I mix normally-open and normally-closed contact wiring on the same terminal block?
A: Absolutely. Each channel's logic state (active-high or active-low) is configured independently through DeltaV software, allowing mixed contact types without external signal inverters.

Q: Does the terminal block support remote I/O configurations over Ethernet?
A: The KC3021X1-BA1 mounts on local DI Plus carriers only. For remote I/O applications, use the terminal block with DeltaV VE-series electronic marshalling systems that support Ethernet/IP and HART-IP protocols.

Start Your Integration Today

Reduce your DCS cabinet footprint and improve system reliability with the KC3021X1-BA1 terminal block. Our application engineers are standing by to review your I/O requirements, recommend optimal carrier configurations, and provide AutoCAD panel layout drawings within 24 hours.

Request a technical consultation: Share your project specifications via email, and receive a customized bill of materials including terminal blocks, carriers, cables, and spare parts—complete with pricing valid for 90 days.
