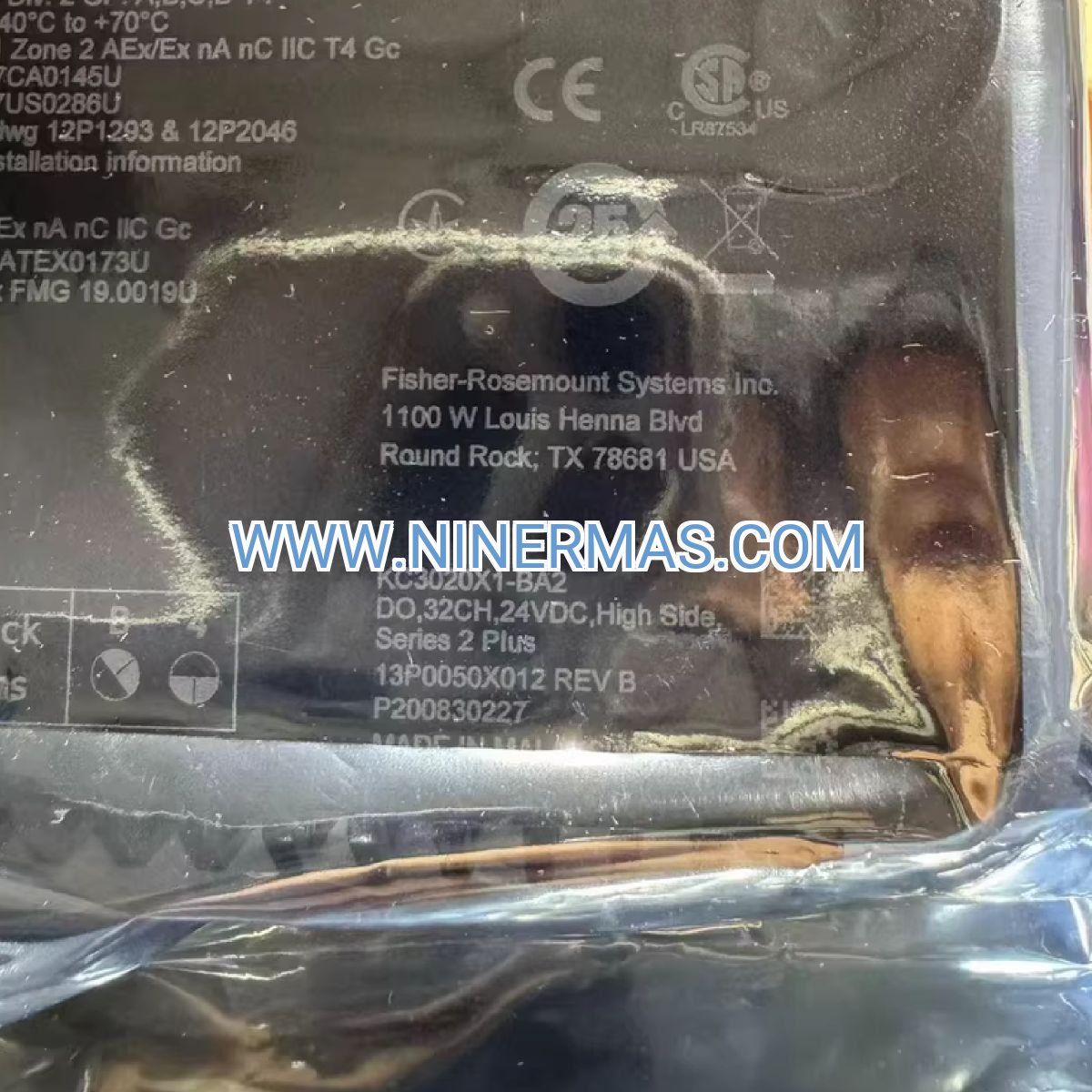

KC3020X1-BA2 Digital Output Card (Industrial-Grade 32-Point Controller)

The Emerson KC3020X1-BA2 represents a mission-critical digital output solution for DeltaV distributed control architectures, providing 32 independently addressable 24VDC switching channels in a single hot-swappable module. Engineered for continuous operation in harsh industrial environments, this high-side driver card delivers deterministic control for solenoid valves, motor contactors, alarm annunciators, and interlock logic across chemical processing, oil & gas, power generation, and pharmaceutical manufacturing sectors.

Target Applications: Process engineers and automation specialists requiring high-density discrete output control with built-in diagnostics, channel-level fault detection, and seamless DeltaV system integration will find this module indispensable for reducing panel space, simplifying wiring infrastructure, and achieving predictive maintenance capabilities through real-time current monitoring.

Key Differentiators: Unlike legacy relay-based output systems, the KC3020X1-BA2 combines solid-state reliability with per-channel short-circuit protection, thermal shutdown safeguards, and 1500 VDC isolation—eliminating nuisance trips while enabling online diagnostics that detect wiring faults before they escalate into unplanned downtime.

Core Features & Business Value

✓ 32 Independent Output Channels
Maximize cabinet density with 32 discrete 24VDC outputs in a single-slot footprint, reducing hardware costs by up to 40% compared to 8-channel alternatives while simplifying spare parts inventory.

✓ High-Side Switching Architecture
Positive logic control ensures fail-safe operation—outputs automatically de-energize during power loss or card failure, meeting IEC 61511 safety integrity requirements for emergency shutdown systems.

✓ Advanced Diagnostic Intelligence
Real-time monitoring detects open circuits (broken wires), short circuits, and excessive voltage drop on every channel, triggering immediate alarms through DeltaV's HMI while logging fault history for root cause analysis.

→ Hot-Swap Capability
Replace modules during live operation without powering down I/O carriers or interrupting adjacent channels—critical for 24/7 facilities where maintenance windows don't exist.

→ Surge-Rated Output Drivers
2A surge capacity (10ms) handles inrush currents from solenoid coils and lamp filaments, while continuous 0.5A rating supports standard industrial actuators with 20% safety margin.

→ Conformal-Coated PCB Construction
Military-grade coating protects against humidity, corrosive gases, and conductive dust in cement plants, wastewater facilities, and offshore platforms—extending MTBF beyond 200,000 hours.

Application Scenarios

Pneumatic Valve Manifold Control (Chemical Batch Processing)
In specialty chemical reactors requiring precise ingredient sequencing, the KC3020X1-BA2 controls up to 32 pneumatic isolation valves from a single card. Individual channel diagnostics identify stuck valve positioners or failed solenoid coils during recipe execution, preventing off-spec batches. The card's <5ms response time ensures repeatable valve timing for critical addition steps where ±50ms accuracy determines product quality.

Motor Starter Interfacing (Material Handling Systems)
Conveyor systems in distribution centers utilize the module to energize 24VDC starter coils for belt motors, diverters, and sortation gates. Short-circuit protection prevents card damage when starter contacts weld closed, while thermal shutdown activates if ambient temperatures exceed design limits during summer peak loads. Maintenance teams receive advance warning of coil degradation through trending current draw patterns.

Annunciator & Alarm Panel Driving (Refinery Control Rooms)
Drive LED indicator towers, audible horns, and mimic panel lamps for process upset conditions. The card's high-side switching eliminates ground loop interference that causes false alarms in electrically noisy refinery environments. Operators receive instant visual confirmation when emergency depressurization sequences activate, improving response times during critical incidents.

Safety Interlock Logic (Turbine Generator Protection)
Implement permissive logic for gas turbine startup sequences and emergency trip circuits. Deterministic scan times guarantee that protective interlocks execute within specified time budgets, while redundant I/O configurations provide bumpless failover if the primary card develops faults. The fail-safe design ensures turbine fuel valves close upon loss of control power.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KC3020X1-BA2 when your application requires more than 16 discrete outputs per I/O slot, demands per-channel diagnostics for predictive maintenance programs, or operates in environments where relay contact wear creates reliability concerns. For intrinsically safe zones, consider the KC3020X1-BA1 IS-rated variant. Applications requiring AC output switching should specify the KC3021 series instead.

Extended Functions

DeltaV Integration: Automatic configuration discovery through the DeltaV system database eliminates manual I/O mapping. Engineers assign tag names, alarm limits, and scaling parameters using DeltaV Explorer, with changes downloaded to controllers during runtime without process interruption.

Redundancy Support: Deploy in redundant I/O carrier configurations for critical control loops requiring zero downtime. Automatic failover occurs within one controller scan cycle (typically 100ms), maintaining process continuity during card replacement or scheduled maintenance.

Remote Monitoring: Access real-time channel status, current draw, and fault logs through DeltaV mobile applications or third-party SCADA systems via OPC-UA interfaces. Maintenance teams receive push notifications when output currents deviate from baseline profiles, enabling condition-based maintenance strategies.

Customization Options: Factory configuration services available for pre-wired terminal blocks, custom cable assemblies, and application-specific firmware tuning. Consult with Industrial Control Hub engineering for projects requiring non-standard voltage ranges or specialized environmental ratings.

Delivery & Service Assurance

Lead Time: Factory-sealed units ship within 2-5 business days from our regional distribution centers. Expedited same-day dispatch available for critical outage situations—contact our emergency support line for priority processing.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for installations in extreme environments (offshore platforms, desert climates, arctic facilities).

Technical Support: Lifetime application engineering assistance included with purchase. Our DeltaV-certified specialists provide wiring diagram reviews, configuration file validation, and remote troubleshooting support via phone, email, or video conference.

Documentation Package: Each module ships with installation manual, terminal block wiring diagrams, DeltaV configuration templates, and calibration certificates traceable to NIST standards. CAD drawings and 3D STEP files available for panel layout design.

Frequently Asked Questions

Q: Can the KC3020X1-BA2 interface directly with 120VAC solenoid valves?
A: No, this module provides 24VDC outputs only. For AC voltage switching, use an external interposing relay rated for your AC load, with the KC3020X1-BA2 controlling the relay coil. Alternatively, specify the Emerson KC3021 series AC output card for direct 120/240VAC control.

Q: What is the maximum cable distance between the output card and field devices?
A: With 18 AWG wire and 0.5A load, maximum distance is approximately 300 meters (1000 feet) before voltage drop exceeds acceptable limits. For longer runs, use 14 AWG wire or install remote I/O carriers closer to field devices. The card's diagnostic system will flag excessive voltage drop conditions.

Q: How does the card perform in high-vibration environments like compressor skids?
A: The module meets IEC 60068-2-6 vibration specifications (10-150 Hz, 1g acceleration) and includes locking terminal blocks to prevent wire loosening. For severe vibration applications, consider shock-mounted I/O enclosures or the ruggedized KC3020X1-BA2-R variant with enhanced mechanical reinforcement.

Q: Can I mix different output card types in the same DeltaV I/O carrier?
A: Yes, DeltaV carriers support heterogeneous I/O configurations. You can combine digital output, digital input, analog input, and analog output cards in any slot arrangement. The system automatically recognizes card types during power-up and configures communication parameters accordingly.

Q: Does the card support pulse-width modulation (PWM) for proportional valve control?
A: No, the KC3020X1-BA2 provides discrete on/off switching only. For proportional control applications requiring 4-20mA or 0-10VDC signals, use the Emerson KC4012 analog output card. Some users implement software-based PWM through rapid on/off cycling, but this approach reduces relay life and is not recommended for critical control loops.

Q: What cybersecurity features protect the I/O network from unauthorized access?
A: The card communicates exclusively through DeltaV's proprietary fieldbus protocol, which operates on isolated network segments separate from plant Ethernet. Access control is managed at the DeltaV controller level through role-based permissions, audit logging, and encrypted configuration downloads. For additional security, implement network segmentation and firewall rules per IEC 62443 guidelines.

Optimize Your DeltaV System Performance

Ready to reduce panel footprint while improving diagnostic capabilities? The KC3020X1-BA2 delivers the channel density and reliability your critical processes demand. Our application engineers are standing by to review your I/O requirements, recommend optimal card configurations, and provide detailed wiring schematics tailored to your specific installation.

Request a Technical Consultation: Contact Industrial Control Hub today for project-specific guidance, volume pricing, and expedited delivery options. We support global installations with regional stock, multilingual technical support, and 24/7 emergency replacement services.
