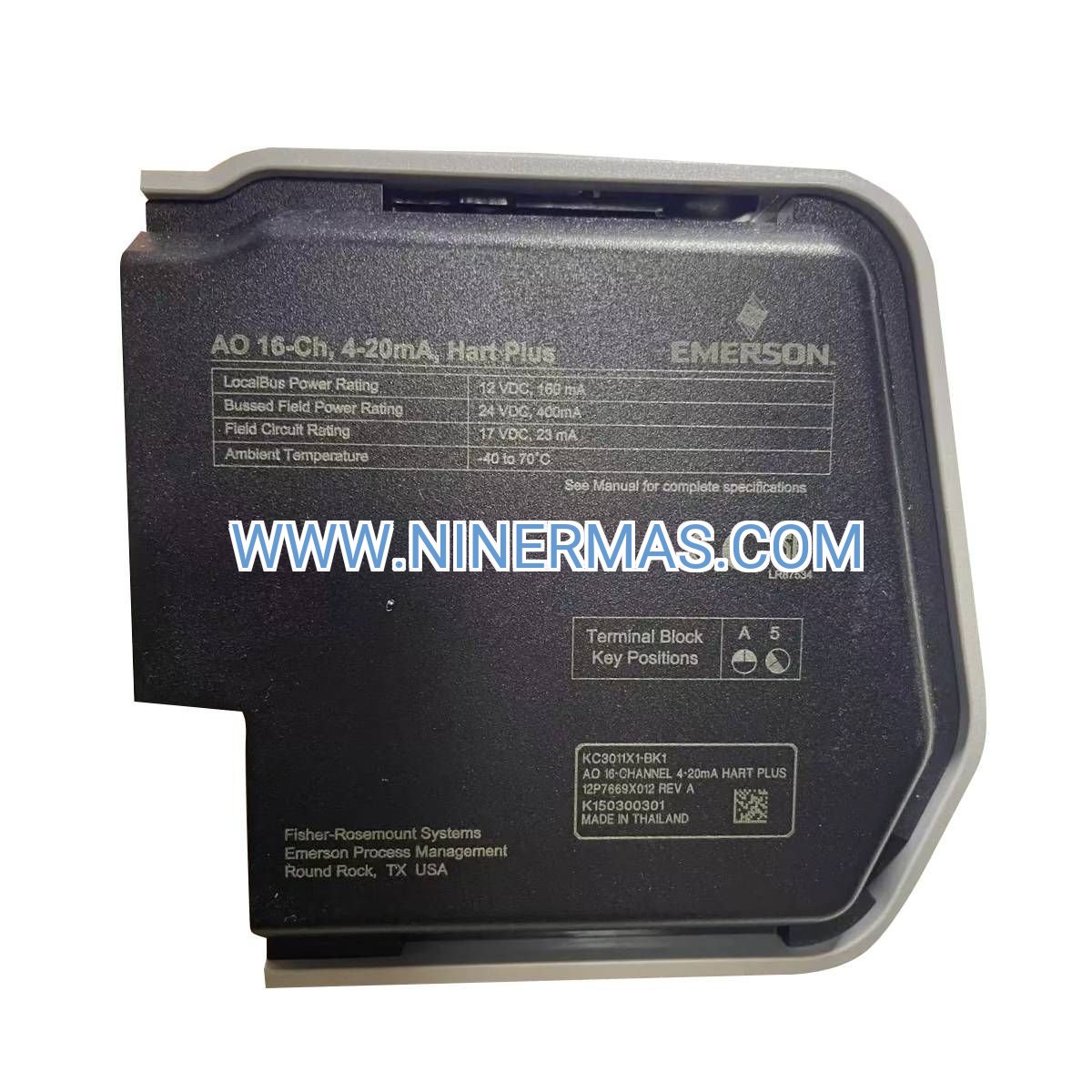

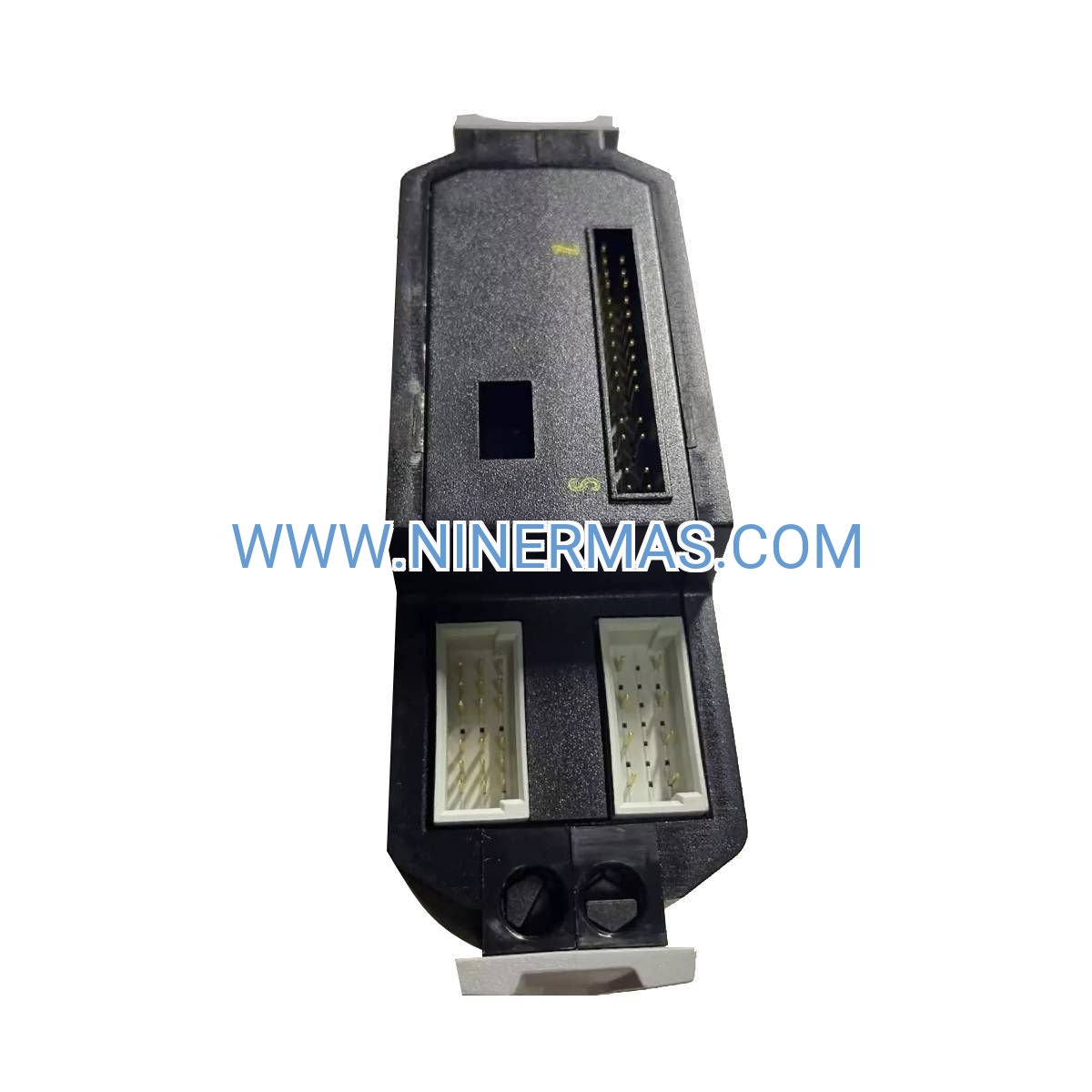

KC3011X1-BK1 Analog Output Module (Industrial-Grade 16-Channel HART Plus Solution)

The KC3011X1-BK1 represents a professional-grade analog output solution engineered for distributed control system architectures requiring precision signal transmission and advanced diagnostics. This 16-channel module combines 4-20mA current loop technology with HART Plus communication capabilities, delivering reliable performance across chemical processing, energy production, and manufacturing automation environments.

Designed for integration within Emerson DeltaV S-Series platforms, this module addresses the critical need for high-density I/O configurations while maintaining signal integrity and diagnostic visibility. Industrial facilities benefit from reduced wiring complexity, enhanced troubleshooting capabilities, and seamless integration with existing HART-enabled field instrumentation.

Whether you're upgrading legacy control infrastructure or deploying new automation projects, the KC3011X1-BK1 provides the foundation for scalable, maintainable process control systems with proven reliability in demanding industrial conditions.

Core Features & Technical Advantages

✓ High-Density Channel Architecture
16 independent analog outputs maximize cabinet space utilization while reducing installation footprint by up to 40% compared to traditional 8-channel designs. Lower hardware costs and simplified panel layouts accelerate project deployment.

✓ HART Plus Diagnostic Integration
Bi-directional digital communication overlays the 4-20mA signal, enabling real-time device health monitoring, remote configuration, and predictive maintenance without interrupting process control. Reduces unplanned downtime by identifying issues before failure occurs.

✓ Precision Signal Delivery
16-bit digital-to-analog conversion with ±0.1% accuracy ensures tight process variable control. Critical for applications requiring precise valve positioning, flow regulation, and temperature management where signal drift impacts product quality.

✓ Electrical Isolation Protection
Channel-to-channel and channel-to-backplane isolation eliminates ground loop interference and protects against voltage transients. Maintains signal integrity in electrically noisy industrial environments with variable frequency drives and high-power equipment.

✓ Hot-Swap Serviceability
Field-replaceable design allows module exchange during operation without system shutdown. Maintenance teams can address hardware issues during production runs, minimizing revenue impact from unscheduled outages.

✓ Wide Operating Temperature Range
-40°C to +70°C operational capability supports installations in extreme climates, from Arctic facilities to desert refineries, without additional environmental conditioning requirements.

Typical Application Scenarios

→ Chemical & Petrochemical Processing
Controls reactor temperature jackets, distillation column reflux ratios, and catalyst feed rates through precise valve positioning. HART diagnostics identify valve stiction and positioner calibration drift before batch quality issues emerge, reducing off-spec production by 15-25%.

→ Oil & Gas Production Facilities
Manages separator level control, pipeline pressure regulation, and compressor anti-surge systems across upstream, midstream, and downstream operations. Hazardous area certifications (ATEX/IECEx) enable deployment in Zone 2 classified locations with proper barrier installation.

→ Power Generation & Utilities
Regulates boiler feedwater flow, turbine governor control, and emissions control system actuators. 100ms update rate supports fast-response applications while HART Plus enables condition-based maintenance strategies that extend equipment lifecycle 20-30%.

→ Pharmaceutical Manufacturing
Ensures GMP-compliant batch processing through validated control loops for mixing, heating, and sterile filtration operations. Audit trail capabilities via HART communication support regulatory compliance documentation requirements.

→ Water & Wastewater Treatment
Drives chemical dosing pumps, aeration blower controls, and clarifier rake mechanisms. Isolation features protect sensitive instrumentation from electrical noise generated by large motor loads in pump stations and treatment basins.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KC3011X1-BK1 when your application requires more than 8 analog outputs per rack location, HART device integration for asset management, or when cabinet space constraints demand high I/O density. For applications not requiring HART communication, consider standard analog output modules to optimize cost. Verify that your DeltaV system runs version 11.3 or later for full compatibility.

Extended Functions & Integration Capabilities

Asset Management Integration: HART Plus data streams directly into AMS Device Manager and other asset management platforms, providing centralized visibility into field device health, calibration status, and performance trends. Enables predictive maintenance workflows that reduce emergency service calls by 30-40%.

Redundancy Support: Compatible with DeltaV redundant controller configurations for high-availability applications. Automatic failover ensures continuous process control during controller switchovers without output disruption or process upsets.

Custom Scaling & Linearization: Software-configurable output scaling accommodates non-linear valve characteristics, custom engineering units, and split-range control strategies. Eliminates need for external signal conditioners in complex control schemes.

Diagnostic Alerts: Module self-diagnostics monitor internal power supplies, DAC performance, and communication integrity. Automatic fault notifications via DeltaV alarm system enable rapid response to hardware degradation before process impact occurs.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock modules ship within 1-2 business days via express courier. Typical transit time: 3-5 days for domestic shipments, 7-10 days for international destinations. Expedited shipping available upon request for critical project timelines.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects and component failures. Warranty includes replacement module shipment and return shipping for defective units. Extended warranty programs available for long-term projects.

Technical Support: Application engineering assistance provided at no charge for system integration questions, configuration guidance, and troubleshooting support. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Each module ships with installation manual, wiring diagrams, DeltaV configuration templates, and calibration certificates. Additional resources include video tutorials, application notes, and integration guides available via download portal.

Frequently Asked Questions

What DeltaV system versions support the KC3011X1-BK1 analog output module?
This module requires DeltaV version 11.3 or newer for full functionality. Systems running older versions may require software upgrades before module installation. Contact our technical team for compatibility verification if you're uncertain about your current system version.

Can this module operate in hazardous area classifications?
Yes, the KC3011X1-BK1 carries ATEX and IECEx certifications for Zone 2/Division 2 installations when used with approved intrinsic safety barriers or in properly classified control room environments. Always consult local electrical codes and engage certified professionals for hazardous area installations.

How does HART Plus differ from standard HART communication?
HART Plus provides faster communication speeds (up to 10x), enhanced multi-drop capabilities supporting more devices per segment, and extended diagnostic data sets compared to conventional HART. These improvements enable more sophisticated asset management strategies and faster commissioning workflows.

What external components are required for 4-20mA loop operation?
Field devices require external 24VDC loop power supplies rated for the total loop resistance. The KC3011X1-BK1 provides the control signal but does not source loop power. Calculate power requirements based on device consumption, wire resistance, and safety margins per NEC/IEC guidelines.

How many modules can a single S-Series carrier accommodate?
Standard carriers support up to 8 I/O modules, though actual capacity depends on total power consumption and thermal dissipation. High-power modules may require derating. Use Emerson's configuration tools to validate power budgets during system design.

Is online calibration supported without process interruption?
Yes, the module supports online calibration and diagnostics through DeltaV software without taking control loops out of service. This capability reduces maintenance windows and allows calibration during normal production operations.

Order Your KC3011X1-BK1 Module Today

Upgrade your process control infrastructure with proven analog output technology trusted by leading industrial facilities worldwide. Our inventory includes factory-sealed units with full manufacturer traceability and certification documentation. Contact our sales team for volume pricing, technical specifications, or application consultation.

Request a quote: Email sale@ninermas.com or call +0086 187 5021 5667
Technical inquiries: Our application engineers respond within 4 business hours
Bulk orders: Volume discounts available for projects requiring 10+ modules
