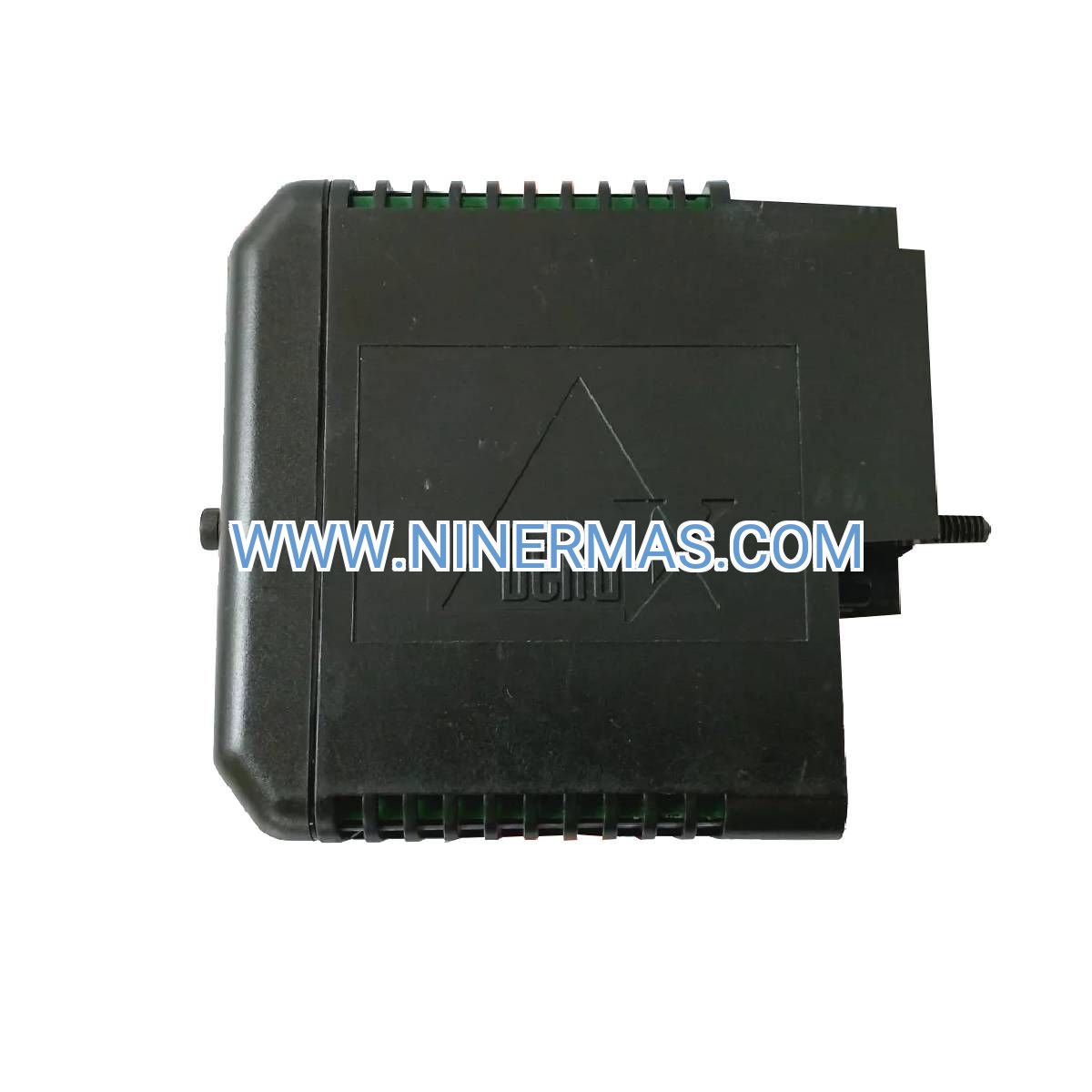

KC3010X1-BA1 Analog Input Module (Industrial-Grade 8-Channel Solution)

The KC3010X1-BA1 represents Emerson's commitment to precision signal acquisition in mission-critical process environments. This 8-channel differential analog input module integrates seamlessly into DeltaV distributed control architectures, delivering 16-bit resolution and exceptional noise immunity for applications where measurement accuracy directly impacts product quality, safety compliance, and operational efficiency.

Engineered for continuous operation in petrochemical plants, pharmaceutical cleanrooms, power stations, and water treatment facilities, the KC3010X1-BA1 combines robust hardware design with intelligent diagnostics. Each channel features galvanic isolation, HART communication capability, and field-configurable input ranges—enabling flexible deployment across diverse sensor types without hardware modifications.

Whether you're upgrading legacy control systems or designing greenfield installations, this module provides the foundation for reliable data acquisition. Its hot-swappable architecture minimizes maintenance windows, while comprehensive certifications (CE, UL, ATEX, IECEx) ensure global regulatory compliance.

Key Features & Technical Advantages

→ Precision Signal Processing: 16-bit A/D converters deliver ±0.1% accuracy across the full measurement span, ensuring reliable process variable tracking even in noisy electrical environments. Ideal for critical temperature, pressure, and flow measurements.

→ Multi-Range Input Flexibility: Each of the eight channels independently supports 4-20mA current loops, 1-5VDC, or 0-10VDC voltage signals. Configure mixed signal types on a single module to reduce spare parts inventory and simplify system design.

→ HART Protocol Integration: Access smart transmitter diagnostics, perform remote calibration, and retrieve device health data without additional interface hardware. Reduces commissioning time by up to 40% compared to conventional analog-only systems.

→ Channel-to-Channel Isolation: Galvanic isolation prevents ground loop interference and protects against voltage transients, extending sensor lifespan and reducing false alarms in electrically harsh installations.

→ Hot-Swap Capability: Replace modules during live operation without disrupting adjacent I/O channels or requiring controller restarts—critical for maintaining uptime in 24/7 process facilities.

→ Extended Temperature Range: Operates reliably from -40°C to +70°C, supporting installations in outdoor enclosures, high-temperature process areas, and extreme climate zones without additional environmental conditioning.

Industrial Application Scenarios

Refinery Distillation Control
Monitor column temperatures at multiple tray levels with millisecond update rates. The KC3010X1-BA1's high accuracy ensures precise separation control, reducing off-spec product by 15-25%. Pair with redundant controllers for critical fractionation units.

Pharmaceutical Batch Processing
Track reactor temperatures, jacket pressures, and agitator speeds with FDA 21 CFR Part 11-compliant audit trails. HART diagnostics provide early warning of sensor drift, preventing batch failures and regulatory non-conformances.

Power Plant Turbine Monitoring
Acquire bearing temperatures, lube oil pressures, and vibration sensor outputs with 100ms scan rates. Integrate with predictive maintenance algorithms to detect anomalies 72 hours before critical failures occur.

Water Treatment Chemical Dosing
Measure pH, ORP, chlorine residual, and turbidity with ±0.1% accuracy for precise chemical feed control. Reduce reagent consumption by 12-18% while maintaining discharge permit compliance.

Food & Beverage Pasteurization
Ensure HACCP compliance with validated temperature measurements across heat exchangers. The module's isolation prevents electrical noise from variable frequency drives affecting critical safety parameters.

Technical Specifications & Selection Guide

Selection Criteria: Choose the KC3010X1-BA1 when you need high-density analog input with HART diagnostics. For redundant applications, consider pairing with duplicate modules on separate I/O carriers. If your application requires faster scan rates (<50ms), evaluate the VE4003 M-series alternative. For hazardous area installations, verify ATEX/IECEx certification matches your zone classification.

Advanced Integration Capabilities

DeltaV System Architecture: The module mounts on VE4050 or VE4051 I/O carriers and communicates via the 10Mbps DeltaV LocalBus. Supports both simplex and redundant controller configurations with automatic failover in <200ms.

IoT & Cloud Connectivity: Stream process data to Emerson's Plantweb Optics platform for machine learning-based anomaly detection. HART variables can be mapped to OPC UA servers for enterprise MES/ERP integration.

Cybersecurity Features: Firmware authentication, encrypted configuration downloads, and role-based access control align with IEC 62443 industrial cybersecurity standards.

Custom Scaling & Linearization: Apply square root extraction for differential pressure flow measurement, polynomial curves for thermocouple linearization, or custom characterization tables—all configured through DeltaV Explorer without programming.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 24 hours via express courier. Typical delivery to major industrial hubs: North America 2-3 days, Europe 3-5 days, Asia-Pacific 4-6 days.

Custom Configuration: Pre-programmed modules with your specific channel assignments and HART device descriptors available with 5-7 business day lead time.

Warranty Coverage: 12-month comprehensive warranty includes parts, labor, and return shipping. Extended 36-month coverage available for critical spares programs.

Technical Support: Lifetime access to certified DeltaV application engineers for configuration assistance, troubleshooting, and system optimization. Average response time <4 hours for urgent issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificates, and DeltaV library files for rapid commissioning.

Frequently Asked Questions

Can this module interface with third-party DCS platforms?
The KC3010X1-BA1 is designed exclusively for Emerson DeltaV systems and requires DeltaV controllers and I/O carriers. For multi-vendor integration, consider using DeltaV's OPC server to share data with other control systems.

What wiring termination options are compatible?
Use the KJ4006X1-BT1 terminal block for screw-clamp connections or the spring-clamp variant for tool-free wiring. Both support 12-24AWG field wiring and include built-in test points for commissioning.

How does accuracy degrade over the operating temperature range?
Typical temperature coefficient is ±0.005%/°C. At the extreme -40°C operating point, expect ±0.3% total accuracy including ambient effects—still superior to most competitive modules.

Is field calibration required after installation?
No. Factory calibration remains valid for 5 years under normal conditions. However, DeltaV's built-in calibration utilities allow in-situ verification against portable calibrators without module removal.

Can I monitor loop power supply health for 4-20mA transmitters?
Yes. HART diagnostics include loop current measurement, allowing detection of wiring faults, transmitter failures, or power supply issues before they cause process upsets.

What's the maximum cable length for analog signals?
For 4-20mA current loops: up to 1500 meters with standard instrumentation cable. Voltage inputs: 300 meters maximum to maintain accuracy specifications. Use shielded twisted-pair cable in electrically noisy environments.

Order Your KC3010X1-BA1 Today

Upgrade your process control infrastructure with proven Emerson technology. Whether you're replacing aging I/O hardware or expanding existing DeltaV systems, the KC3010X1-BA1 delivers the reliability and performance your operations demand.

Ready to proceed? Contact our application engineers to discuss your specific requirements, receive a detailed quotation, or request technical documentation. Volume pricing available for multi-module projects.
