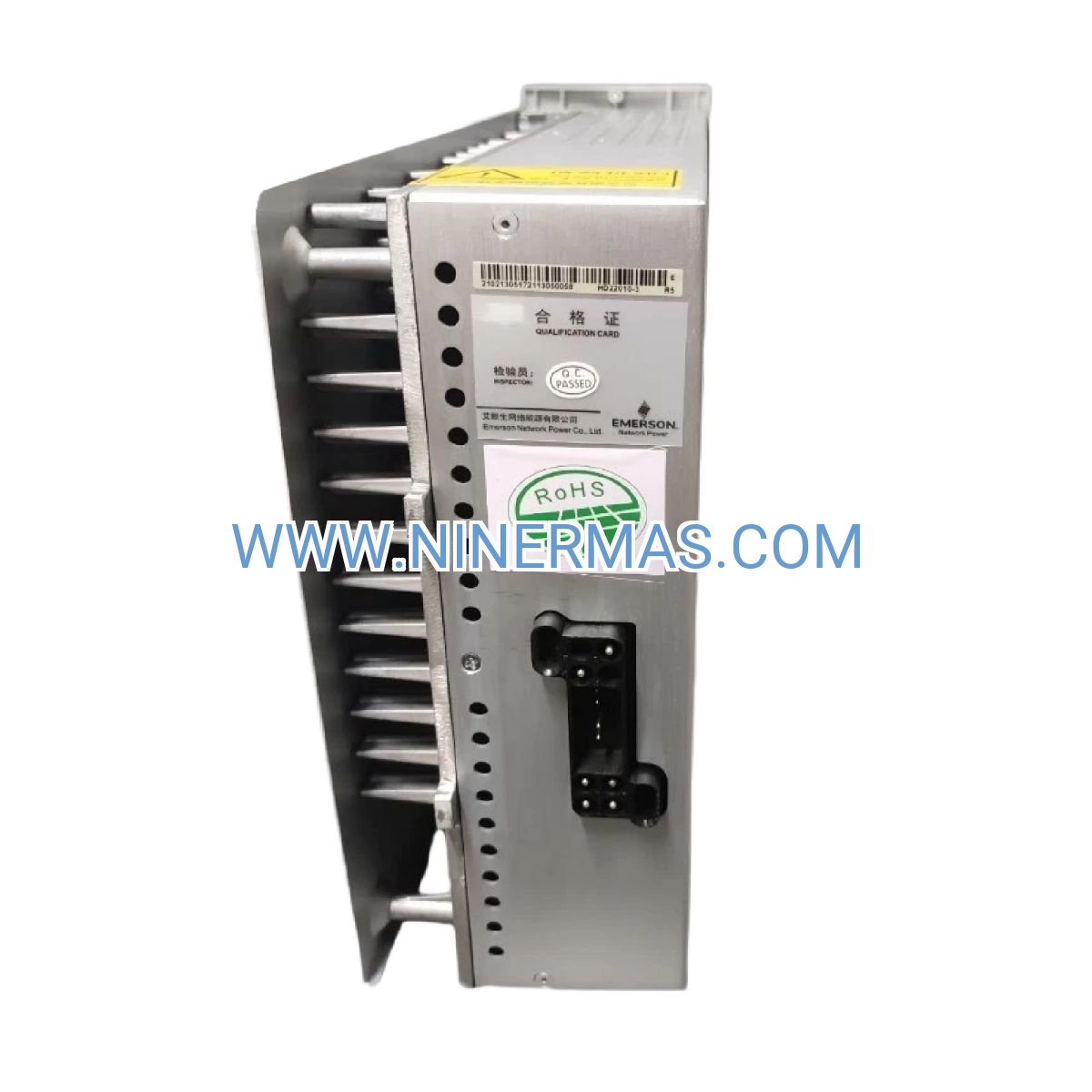

HD22010-3 High-Frequency Rectifier Module (Industrial-Grade 220VDC Power Conversion)

The HD22010-3 represents a proven solution for mission-critical DC power distribution in telecommunications networks, utility substations, and industrial control environments. Engineered by Emerson, this 10-ampere rectifier module integrates three-phase passive power factor correction with high-frequency switching topology to deliver stable 220VDC output while maintaining >0.94 power factor compliance with international grid standards.

Designed for 24/7 operation in harsh industrial environments, the HD22010-3 combines wide input voltage tolerance (323-475VAC) with comprehensive diagnostic capabilities via RS485 interface. The module's front-accessible design and hot-swap capability enable rapid maintenance without system downtime, making it ideal for N+1 redundant power architectures in critical infrastructure applications.

Whether you're upgrading legacy telecom power plants, designing new substation control systems, or expanding industrial DC distribution capacity, the HD22010-3 delivers the reliability, efficiency, and monitoring capabilities demanded by modern power-critical installations.

Key Performance Features & Technical Advantages

→ Three-Phase Passive PFC Architecture
Achieves >0.94 power factor without active switching components, reducing harmonic distortion on utility grids while improving system reliability. Complies with GB/T 17794.2.2-2003 and DL/T781-2001 electromagnetic compatibility standards for deployment in regulated telecom and utility environments.

→ Wide Input Voltage Range (323-475VAC)
Accommodates grid voltage fluctuations common in industrial and utility installations without derating or shutdown. Three-phase, three-wire configuration supports standard 380VAC/400VAC/415VAC distribution systems across global markets.

→ Precision Voltage Regulation
Maintains 220VDC nominal output across 176-320VDC adjustable range with ±0.3V display accuracy. High-frequency PWM control delivers fast transient response during load changes and equipment startup conditions.

→ Intelligent Thermal Management
Load-dependent fan control operates at three speeds (off/half/full) based on temperature and current draw, minimizing acoustic noise (<55dB) while extending fan service life. Front-to-rear airflow design simplifies rack cooling integration.

→ RS485 Remote Monitoring
Real-time telemetry of voltage, current, temperature, and alarm status via Modbus RTU protocol. Enables centralized power management through SCADA systems, building management platforms, or proprietary telecom network management systems.

✓ Hot-Swappable Design
Front-access module replacement without rear cabinet access or system shutdown when deployed in redundant configurations. Automatic current sharing ensures balanced load distribution across parallel modules.

Application Scenarios & Industry Solutions

Telecommunications Infrastructure
Power cellular base stations, microwave relay equipment, and fiber optic transmission systems requiring uninterruptible 220VDC supply. The module's high power factor reduces utility demand charges while the RS485 interface integrates with telecom network management systems for remote site monitoring. Ideal for outdoor equipment shelters and carrier hotels where acoustic noise and thermal efficiency are critical.

Utility Substation Automation
Supply DC power for protective relays, SCADA remote terminal units (RTUs), and substation control systems. Wide input voltage tolerance accommodates grid transients near high-voltage switchgear, while CE/FCC/RoHS compliance meets utility procurement standards. The rugged construction withstands electromagnetic interference from transformers and circuit breakers.

Industrial Process Control
Serve as charging modules in DC power distribution panels for manufacturing facilities, chemical plants, and oil & gas installations. The -25°C to +55°C operating range supports outdoor equipment enclosures and unheated control buildings. Parallel operation capability enables scalable power capacity for expanding automation systems.

Railway Signaling Systems
Provide reliable DC power for track circuits, interlocking equipment, and wayside signal controllers. The module's wide temperature range and vibration-resistant construction suit trackside installations, while the diagnostic LED display simplifies field troubleshooting by maintenance crews.

Data Center Legacy Systems
Support 220VDC power distribution architectures in telecommunications data centers and colocation facilities. Low acoustic noise (<55dB) permits installation in occupied equipment rooms, while the compact 413mm depth fits standard 19-inch racks with rear cable management.

Technical Specifications & Selection Guide

Selection Criteria: Choose the HD22010-3 when your application requires 10A continuous output at 220VDC with three-phase input capability. For lower power requirements (5A), consider the HD22005-3A variant. Verify that your input voltage falls within the 323-475VAC range and that your facility provides three-phase, three-wire distribution. For single-phase applications or different voltage requirements, consult our power systems engineering team for alternative rectifier solutions.

Advanced Monitoring & Diagnostic Capabilities

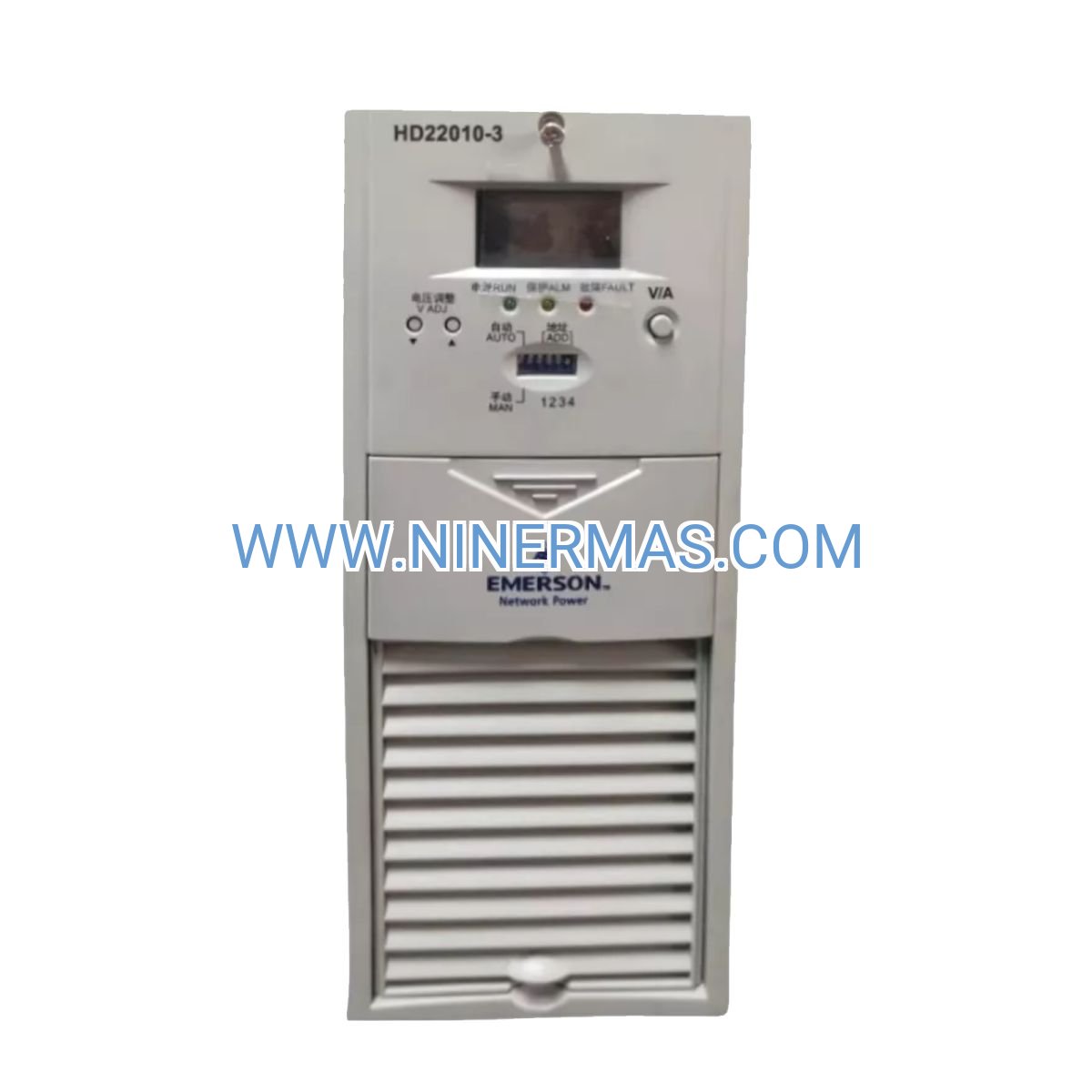

Front Panel LED Indicators
✓ RUN (Green) – Normal operation, output voltage within regulation
✓ ALM (Yellow) – Warning conditions: high temperature, fan failure, communication loss
✓ FAULT (Red) – Critical failures: overvoltage, overcurrent, input phase loss

3-Digit LED Display
Toggle between output voltage and current readings using the front-panel A/V button. During fault conditions, the display shows diagnostic codes for rapid troubleshooting without requiring external test equipment or communication interface access.

RS485 Communication Protocol
Modbus RTU-compatible interface provides real-time access to 20+ parameters including input voltage per phase, output voltage/current, internal temperature, fan speed, and cumulative operating hours. Supports broadcast and addressed polling modes for integration with multi-drop networks up to 32 devices per bus.

Remote Control Functions
Adjust output voltage setpoint remotely (176-320VDC range), enable/disable module operation, reset latched alarms, and configure communication parameters without physical access to the module. Ideal for unmanned remote sites and centralized power management systems.

Installation Guidelines & System Integration

Rack Mounting: Standard 19-inch rack-mount design occupies 3U vertical space. Install rack rails (sold separately) and slide module into position until front panel is flush with rack face. Secure with captive screws on front panel.

Input Wiring: Connect three-phase AC input to rear terminal block using 14 AWG (2.5mm²) minimum wire size for 10A continuous load. Verify phase rotation and voltage before energizing. Install upstream circuit breaker rated 15-20A for overcurrent protection.

Output Wiring: Connect DC output to battery bus or load distribution panel using 12 AWG (4mm²) minimum wire size. Observe polarity markings on terminal block. Install DC fuse or circuit breaker rated 15A for downstream protection.

Communication Wiring: Use shielded twisted-pair cable for RS485 connections. Terminate bus at both ends with 120-ohm resistors. Maximum bus length: 1200 meters at 9600 baud. Ground shield at one point only to prevent ground loops.

Parallel Operation: For N+1 redundancy or increased capacity, connect multiple modules to common DC bus. Automatic current sharing ensures balanced load distribution. Configure each module with unique RS485 address (1-247) for individual monitoring.

Delivery, Warranty & Technical Support

Lead Time: In-stock units ship within 1-2 business days. Custom configurations or project quantities (10+ units) typically ship within 5-7 business days. Expedited shipping available for critical infrastructure projects.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for mission-critical applications. Warranty includes advance replacement service to minimize downtime.

Technical Support: Our certified power systems engineers provide pre-sales load calculations, system architecture design, commissioning assistance, and post-installation troubleshooting. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, commissioning checklist, RS485 communication protocol specification, and dimensional drawings. CAD files and 3D models available upon request for system design integration.

Frequently Asked Questions

Q: Can the HD22010-3 operate with single-phase input power?
A: No, this module requires three-phase, three-wire input (323-475VAC). For single-phase applications, consider alternative rectifier models designed for single-phase operation. Contact our engineering team for recommendations based on your specific power requirements.

Q: What is the maximum number of modules that can operate in parallel?
A: The HD22010-3 supports parallel operation with automatic current sharing. Typical installations use 3-6 modules in N+1 redundant configurations. The limiting factor is usually the DC bus capacity and battery charging requirements rather than the module's parallel capability.

Q: How much energy savings can I expect from the >0.94 power factor?
A: High power factor reduces reactive power charges from utilities and minimizes I²R losses in distribution wiring. For a 10A module operating continuously, expect 5-8% reduction in utility costs compared to rectifiers with 0.85 power factor, depending on your utility's rate structure and demand charges.

Q: Is the module compatible with lithium-ion battery systems?
A: The HD22010-3 is designed for lead-acid and VRLA battery systems with 220VDC nominal voltage. Lithium-ion systems require specialized charging profiles and battery management integration. Consult our engineering team to discuss lithium-ion compatibility and required modifications.

Q: What maintenance is required for long-term reliability?
A: Annual inspection recommended: verify output voltage accuracy, check terminal connections for tightness, clean air intake filters, and verify fan operation. Cooling fans are field-replaceable components with typical 5-year service life. No other user-serviceable parts require routine maintenance.

Q: Can I monitor multiple rectifiers through a single RS485 connection?
A: Yes, the RS485 interface supports multi-drop networks with up to 32 devices per bus. Assign each module a unique address (1-247) and connect all modules to a common twisted-pair bus. Your SCADA or monitoring system can poll each module individually for status and telemetry data.
