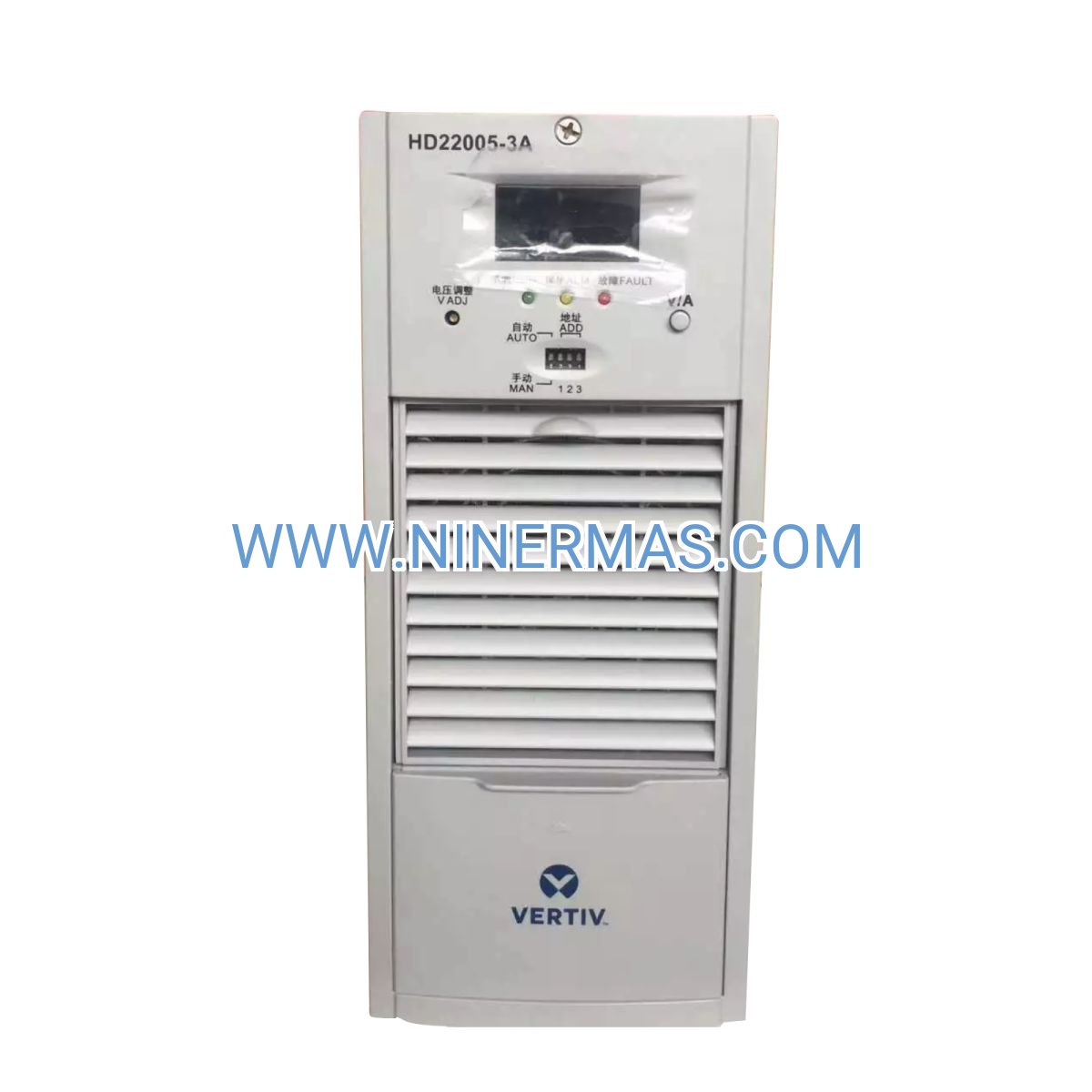

HD22005-3A Industrial-Grade Rectifier Module (220VDC 5A High-Efficiency Power Conversion)

The HD22005-3A represents a breakthrough in industrial DC power conversion, engineered specifically for mission-critical telecommunications infrastructure, data center operations, and industrial control environments. This high-frequency switching rectifier module transforms 3-phase AC input into stable 220VDC output with exceptional >91% conversion efficiency, dramatically reducing energy costs and thermal management requirements in large-scale power distribution systems.

Designed for system integrators and facility managers who demand uncompromising reliability, the HD22005-3A combines advanced soft-switching topology with passive power factor correction to achieve >0.94 PF while maintaining compliance with stringent EMI/EMC standards. Whether you're upgrading legacy telecom central offices, deploying new data center infrastructure, or modernizing industrial battery backup systems, this rectifier module delivers the performance, monitoring capabilities, and protection features required for 24/7 operation in harsh environments.

With intelligent temperature-controlled cooling, comprehensive fault diagnostics via RS485 communication, and multi-stage protection circuits, the HD22005-3A minimizes downtime while maximizing system availability. The adjustable 176-320VDC output range accommodates diverse battery chemistries and load requirements, making it the versatile solution for applications ranging from railway signaling to substation control power.

Key Features & Technical Advantages

→ Superior Energy Efficiency: Soft-switching DC/DC converter technology achieves >91% efficiency across the full load range, reducing utility costs by up to 15% compared to conventional linear rectifiers while minimizing heat dissipation in equipment rooms.

→ Exceptional Power Quality: 3-phase passive PFC circuit maintains power factor >0.94, eliminating harmonic distortion and reactive power penalties while ensuring compliance with utility interconnection standards and IEEE 519 guidelines.

→ Intelligent Adaptive Cooling: Temperature-controlled fan system operates in silent natural convection mode below 30% load, automatically engaging forced-air cooling only when thermal conditions require it—reducing acoustic noise and extending fan service life.

✓ Wide Input Voltage Tolerance: Accepts 323-475 VAC 3-phase input across 45-65 Hz frequency range, accommodating utility voltage variations and generator-based backup power without external voltage regulation equipment.

✓ Precision Output Regulation: Adjustable 176-320VDC output with ±0.3V voltage accuracy and ±0.2A current measurement precision ensures optimal charging profiles for lead-acid, VRLA, and lithium-ion battery systems.

✓ Advanced Remote Monitoring: RS485 communication port enables real-time SCADA integration, providing continuous visibility into voltage, current, temperature, fault codes, and operating hours for predictive maintenance and system optimization.

Industrial Application Scenarios

Telecommunications Central Office Power Plants: Deploy the HD22005-3A in telecom facilities to power switching equipment, transmission systems, and network infrastructure with rock-solid 220VDC distribution. The high power factor reduces demand charges on utility bills, while RS485 connectivity integrates seamlessly with existing building management systems for centralized alarm monitoring. Phase failure protection automatically derates output to 2.5A when one input phase is lost, maintaining critical circuit operation during utility faults until backup generators stabilize.

Data Center DC Distribution Systems: Modern hyperscale and colocation data centers increasingly adopt 220VDC distribution to eliminate multiple AC/DC conversion stages and improve overall power delivery efficiency. The HD22005-3A's >91% efficiency reduces cooling loads by 8-12%, directly lowering PUE (Power Usage Effectiveness) metrics. Temperature-controlled cooling minimizes acoustic emissions during light-load periods, critical for noise-sensitive environments. Parallel multiple modules for N+1 or N+2 redundancy configurations that ensure continuous operation even during maintenance or component failures.

Electrical Substation Auxiliary Power: Utility substations require reliable DC power for protective relays, SCADA RTUs, circuit breaker trip coils, and automation equipment. The HD22005-3A's rugged design withstands the electrical transients, temperature extremes (-25°C to +55°C), and electromagnetic interference common in high-voltage switchyard environments. Wide input voltage tolerance accommodates voltage sags during fault conditions, while comprehensive protection circuits prevent damage from lightning-induced surges and switching transients.

Industrial UPS Battery Charging Systems: Maintain float or equalize charging for large-capacity battery banks in manufacturing facilities, chemical plants, and process industries. The adjustable output voltage (176-320VDC) supports multi-stage charging algorithms for different battery chemistries, while current limiting at 40% of rated output protects cells from thermal runaway during bulk charging. LED fault code display and RS485 diagnostics enable maintenance personnel to quickly identify and resolve charging system issues before they impact production uptime.

Railway Signaling & Train Control Infrastructure: Railway systems worldwide standardize on 220VDC nominal voltage for signaling equipment, interlocking systems, and automatic train protection (ATP) circuits. The HD22005-3A's conformal-coated electronics resist moisture, dust, and corrosive atmospheres in trackside equipment shelters. Vibration-resistant construction and wide operating temperature range ensure reliable operation in outdoor installations subject to extreme weather conditions and mechanical stress from passing trains.

Technical Specifications & Selection Guide

Selection Criteria: Choose the HD22005-3A when your application requires 220VDC nominal voltage with moderate current capacity (up to 5A continuous). For higher power requirements, consider paralleling multiple modules or upgrading to the HD22010-3 (10A) variant. Verify that your facility's 3-phase AC supply falls within the 323-475 VAC input range and that adequate ventilation clearance (minimum 50mm on sides/rear) is available for thermal management.

Advanced Protection & Fault Management

The HD22005-3A incorporates multiple layers of protection circuitry to safeguard both the rectifier module and connected DC loads from electrical faults and abnormal operating conditions:

Input Voltage Monitoring: Continuous surveillance of all three input phases detects over-voltage, under-voltage, and phase imbalance conditions. When input voltage exceeds safe thresholds or falls below minimum operating levels, the module executes a controlled shutdown to prevent component damage. Phase failure detection automatically derates output to 2.5A at 260V when operating on two phases, maintaining critical loads until utility service is restored.

Output Over-Voltage Protection (OVP): Independent monitoring circuit tracks DC output voltage and triggers immediate shutdown if voltage rises above preset limits, protecting sensitive telecommunications equipment, control systems, and battery banks from destructive over-voltage events caused by regulator failures or feedback loop instabilities.

Short-Circuit Current Limiting: Advanced current-mode control restricts fault current to 40% of rated output (2A for the 5A module) during short-circuit conditions, allowing the rectifier to survive temporary wiring faults or load failures without internal damage. Automatic restart capability resumes normal operation once the fault clears, minimizing system downtime.

Thermal Management & Over-Temperature Protection: Embedded temperature sensors monitor critical component temperatures (power semiconductors, transformers, electrolytic capacitors). When internal temperatures approach maximum ratings, the module progressively derates output power to maintain safe operating conditions. If temperatures continue rising, thermal shutdown protection activates to prevent catastrophic failures.

Extended Functionality & System Integration

Parallel Operation for Redundancy: Deploy multiple HD22005-3A modules in parallel configurations to achieve N+1 or N+2 redundancy for mission-critical applications. Current-sharing circuitry automatically balances load distribution across paralleled modules, ensuring even thermal stress and maximizing system reliability. Hot-swap capability allows replacement of failed modules without interrupting DC bus voltage to connected loads.

Battery Charging Optimization: Programmable output voltage and current limiting enable implementation of multi-stage charging algorithms (bulk, absorption, float) optimized for specific battery chemistries. Temperature compensation inputs (optional) adjust charging voltage based on battery temperature, extending battery service life and preventing thermal runaway in VRLA and lithium-ion systems.

SCADA & BMS Integration: The RS485 communication port supports Modbus RTU protocol for seamless integration with supervisory control and data acquisition (SCADA) systems, building management systems (BMS), and data center infrastructure management (DCIM) platforms. Monitor real-time parameters including input voltage (all phases), output voltage, output current, internal temperature, fault status, and cumulative operating hours for predictive maintenance scheduling.

Delivery, Warranty & Technical Support

Lead Time: In-stock units ship within 1-2 business days via expedited courier services (DHL, FedEx, UPS). Custom configurations or volume orders (10+ units) typically require 2-3 weeks for factory preparation and quality testing.

Warranty Coverage: All HD22005-3A rectifier modules include a comprehensive 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs (up to 5 years) available for critical infrastructure deployments.

Technical Support: Our certified power systems engineers provide pre-sales application consultation, system design assistance, load calculations, and battery sizing recommendations. Post-sales support includes installation guidance, commissioning procedures, troubleshooting assistance, and firmware updates (if applicable).

Documentation Package: Each module ships with complete installation manual, wiring diagrams, RS485 communication protocol specifications, dimensional drawings, and compliance certificates (CE, RoHS, FCC). Additional resources including CAD models, thermal derating curves, and MTBF calculations available upon request.

Frequently Asked Questions

Q: Can the HD22005-3A operate on single-phase or two-phase AC input?
A: The module is designed for 3-phase, 3-wire AC input. When one phase fails, phase failure protection automatically derates output to 2.5A at 260V to maintain critical loads. However, continuous operation on single-phase or two-phase input is not recommended and may void warranty coverage. For single-phase applications, consider alternative rectifier models specifically designed for 1-phase input.

Q: What is the maximum number of HD22005-3A modules that can be paralleled?
A: Up to 8 modules can be paralleled on a common DC bus for redundant power systems. Proper current-sharing requires matched output voltage settings (within ±0.5V) and adequate DC bus bar sizing to minimize voltage drop. Consult factory application notes for detailed paralleling guidelines and recommended bus bar configurations.

Q: How much energy savings can I expect compared to older rectifier technology?
A: The HD22005-3A's >91% efficiency represents a 12-18% improvement over conventional ferro-resonant or SCR-based rectifiers (typically 75-80% efficient). For a 1kW load operating 24/7, this translates to approximately 950 kWh annual energy savings, reducing operating costs by $95-$140/year (assuming $0.10-$0.15/kWh utility rates) while decreasing cooling requirements by 8-12%.

Q: Is the RS485 communication port compatible with standard Modbus RTU protocol?
A: Yes, the RS485 interface supports industry-standard Modbus RTU protocol with configurable baud rates (9600, 19200, 38400 bps) and device addresses (1-247). Register maps for voltage, current, temperature, and fault status are documented in the communication protocol manual. Custom protocols may be available for OEM integrations—contact technical support for details.

Q: What maintenance procedures are required to maximize service life?
A: Quarterly inspections should verify proper cooling fan operation, check for dust accumulation on air intake filters, and confirm output voltage/current readings match expected values. Annual maintenance includes cleaning cooling fan blades, inspecting power connections for signs of overheating, and verifying RS485 communication functionality. Electrolytic capacitors (primary wear-out component) typically require replacement every 8-10 years in high-temperature environments.

Q: Can the output voltage be adjusted remotely via RS485 communication?
A: Standard firmware supports remote monitoring of output parameters but requires manual adjustment of output voltage via front-panel potentiometer. Custom firmware with remote voltage adjustment capability is available for OEM applications requiring automated battery charging algorithms or dynamic load management—minimum order quantities apply.
