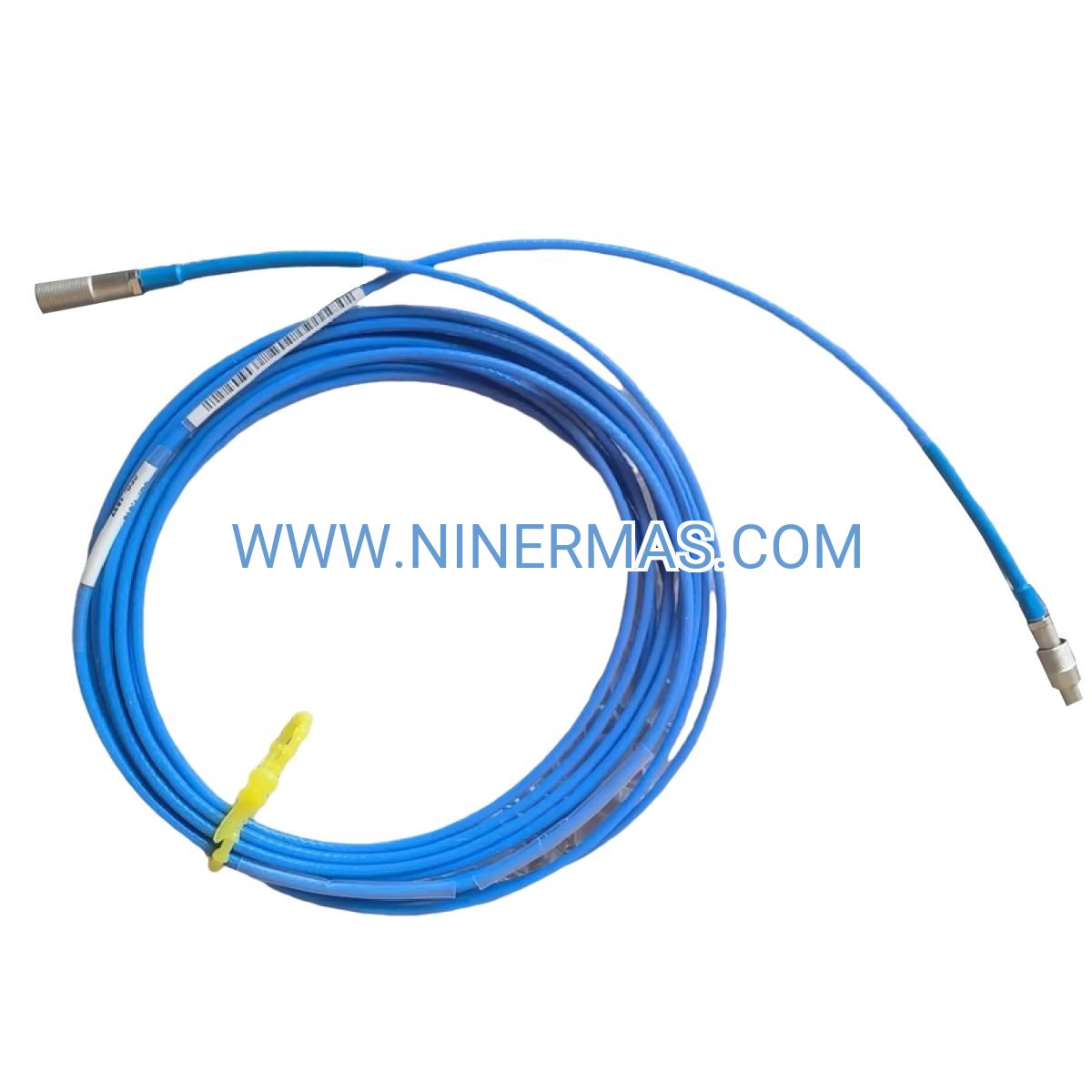

EZ1900-040 Extension Cable (Industrial-Grade Eddy Current Sensor Connectivity)

The EZ1900-040 is a precision-engineered 4-meter extension cable designed specifically for eddy current proximity sensor systems in industrial machinery monitoring applications. Manufactured by Emerson, this non-armored cable solution extends the operational range between EPRO eddy current sensors and signal converters while preserving measurement accuracy critical for turbomachinery vibration analysis, shaft displacement monitoring, and predictive maintenance programs in power generation, petrochemical processing, and heavy manufacturing environments.

Built for demanding industrial installations, this extension cable addresses the challenge of sensor placement in hard-to-reach machinery locations while maintaining signal integrity across extended distances. Target users include maintenance engineers, instrumentation technicians, and reliability specialists who require flexible routing options without sacrificing the sub-micron resolution necessary for early fault detection in rotating equipment.

Key advantages include low-capacitance coaxial construction that preserves high-frequency signal components, triple-layer EMI shielding for noise rejection in electrically harsh environments, and temperature-stable materials rated from -40°C to +125°C for continuous operation across diverse climate zones and process conditions.

Core Features & Benefits

→ Precision Signal Transmission: 50-ohm characteristic impedance matching minimizes signal reflection and phase distortion, ensuring accurate gap voltage measurement for displacement sensing applications with ±0.5% linearity preservation.

→ Superior EMI Protection: Multi-layer shielding architecture delivers >90dB electromagnetic interference rejection, enabling reliable operation adjacent to VFDs, motors, and high-power electrical distribution systems without signal degradation.

→ Flexible Installation Design: Non-armored construction with 10x cable diameter minimum bend radius allows routing through cable trays, conduit systems, and confined machinery spaces while maintaining mechanical integrity and signal quality.

→ Extended Temperature Range: Industrial-grade insulation materials and conductor assemblies rated for -40°C to +125°C continuous operation, suitable for arctic outdoor installations through high-temperature process environments.

→ Factory-Terminated Connectors: Industrial-grade threaded coupling connectors pre-installed at both ends eliminate field termination errors, reduce installation time by 60%, and ensure moisture-resistant connections in humid environments.

→ Low-Capacitance Design: Specialized coaxial cable construction maintains sensor sensitivity across full measurement bandwidth, preserving detection capability for high-frequency vibration components up to 10kHz.

Application Scenarios

Steam Turbine Bearing Monitoring: In power generation facilities, the EZ1900-040 extends EPRO eddy current sensors from turbine bearing housings to control room-mounted signal converters. The cable's low-capacitance design preserves the ability to detect bearing wear patterns and shaft eccentricity changes as small as 5 microns, enabling condition-based maintenance scheduling that prevents catastrophic failures and unplanned outages.

Centrifugal Compressor Shaft Displacement: Petrochemical plants deploy this extension cable for radial position monitoring in multi-stage compressors. The EMI shielding rejects electrical noise from nearby motor drives, while the temperature rating accommodates hot process gas environments, delivering reliable displacement data that prevents rotor-to-stator contact and extends seal life by 40%.

Large Motor Vibration Analysis: Manufacturing facilities use the EZ1900-040 to connect proximity sensors on critical drive motors to centralized monitoring systems. The flexible construction enables routing through existing cable infrastructure without machinery disassembly, reducing installation costs by 50% while providing continuous vibration data for predictive maintenance programs.

Pump Radial Position Tracking: Water treatment and chemical processing operations utilize this cable for monitoring pump shaft position in corrosive environments. The non-armored design suits indoor pump rooms where mechanical protection is unnecessary, while the sealed connectors prevent moisture ingress in high-humidity conditions.

Fan Rotor Clearance Measurement: HVAC systems and industrial ventilation equipment employ the EZ1900-040 for tip clearance monitoring in large axial fans. The 4-meter length accommodates sensor placement at fan housings with signal converter mounting at accessible maintenance locations, enabling real-time clearance tracking that optimizes aerodynamic efficiency.

Technical Parameters & Selection Guide

Selection Criteria: Choose the EZ1900-040 when sensor-to-converter distance requirements fall within 4 meters and the installation environment is indoors or in protected enclosures. For outdoor installations, harsh chemical exposure, or areas with mechanical hazard risks, consider armored cable alternatives. Verify that total system cable length (sensor integral cable + extension cable) does not exceed manufacturer specifications for your specific EPRO sensor model to maintain calibration accuracy. For installations requiring longer distances, consult factory guidelines on maximum extension length or consider signal repeater solutions.

Extended Functions

System Integration Compatibility: The EZ1900-040 interfaces seamlessly with Emerson AMS Machinery Manager and CSI 6500 machinery health monitoring platforms, enabling integration into plant-wide condition monitoring networks. The cable's signal preservation characteristics support both analog 4-20mA output converters and digital communication protocols for IIoT-enabled predictive maintenance systems.

Multi-Channel Configurations: Deploy multiple EZ1900-040 cables in parallel for XY radial position monitoring or multi-bearing measurement arrays. The consistent electrical characteristics across cables ensure matched phase response and amplitude tracking necessary for orbit analysis and shaft centerline position calculations.

Retrofit Applications: The flexible design and factory-terminated connectors make the EZ1900-040 ideal for upgrading legacy vibration monitoring systems. Replace aging extension cables without sensor removal or system recalibration, minimizing downtime during modernization projects.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock items via express courier with tracking. Bulk orders (10+ units) ship within 5-7 business days.

Custom Configurations: Special length requirements or alternative connector types available with 10-15 business day lead time. Contact technical sales for custom specifications.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Warranty includes free replacement for cable failures due to manufacturing defects.

Technical Support: Access to Emerson-certified application engineers for installation guidance, system integration assistance, and troubleshooting support via email and phone during business hours (GMT+8).

Documentation Package: Each cable ships with installation instructions, electrical specifications datasheet, connector torque requirements, and compatibility matrix for EPRO sensor models.

Frequently Asked Questions

What EPRO eddy current sensor models are compatible with the EZ1900-040 extension cable?
The EZ1900-040 is compatible with all EPRO PR6423 series eddy current proximity sensors including PR6423/01M, PR6423/003, PR6423/010, and PR6423/013 models. It also works with CON021, CON031, and CON041 signal converter series. The 50-ohm impedance matching ensures proper operation across the entire EPRO eddy current product line.

Can I connect multiple extension cables together to achieve longer distances?
While physically possible, cascading extension cables is not recommended as it increases total system capacitance and may degrade signal quality beyond acceptable limits. For distances exceeding 4 meters, consult the sensor manufacturer's maximum cable length specifications for your specific sensor model, or consider using a signal repeater/amplifier for extended range applications.

How does the non-armored design affect installation in industrial environments?
The non-armored construction is suitable for indoor installations, control rooms, enclosed machinery housings, and cable tray routing where mechanical protection from impact or crushing is not required. For outdoor installations, areas with heavy foot traffic, or locations with potential mechanical damage risks, armored cable versions provide additional protection. The non-armored design offers superior flexibility for tight-radius bends and confined space routing.

What is the maximum operating temperature for continuous use in high-heat applications?
The EZ1900-040 is rated for continuous operation at temperatures up to +125°C (257°F), making it suitable for most industrial process environments including steam turbine applications, hot oil systems, and elevated-temperature machinery installations. For intermittent exposure to higher temperatures or cryogenic applications below -40°C, contact technical support for specialized cable options.

Does the cable require special grounding or shielding termination procedures?
The factory-terminated connectors include integrated shield termination, eliminating the need for field grounding procedures. Simply connect the threaded couplings to the sensor and converter—the shield automatically grounds through the connector bodies. Ensure both the sensor mounting and converter chassis have proper earth ground connections for optimal EMI rejection performance.

How do I verify signal integrity after installation of the extension cable?
After installation, measure the gap voltage output with the sensor at a known distance from the target surface (typically using calibration shims). Compare the reading to the sensor's calibration curve—it should match within ±2% of the expected value. For dynamic measurements, verify that vibration amplitude readings remain consistent with baseline data collected before cable installation. Significant deviations may indicate connector issues or excessive total cable length.

Get Your EZ1900-040 Extension Cable Today

Enhance your machinery monitoring system with reliable signal extension. Contact our technical sales team for volume pricing, custom length configurations, or application-specific recommendations. Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
