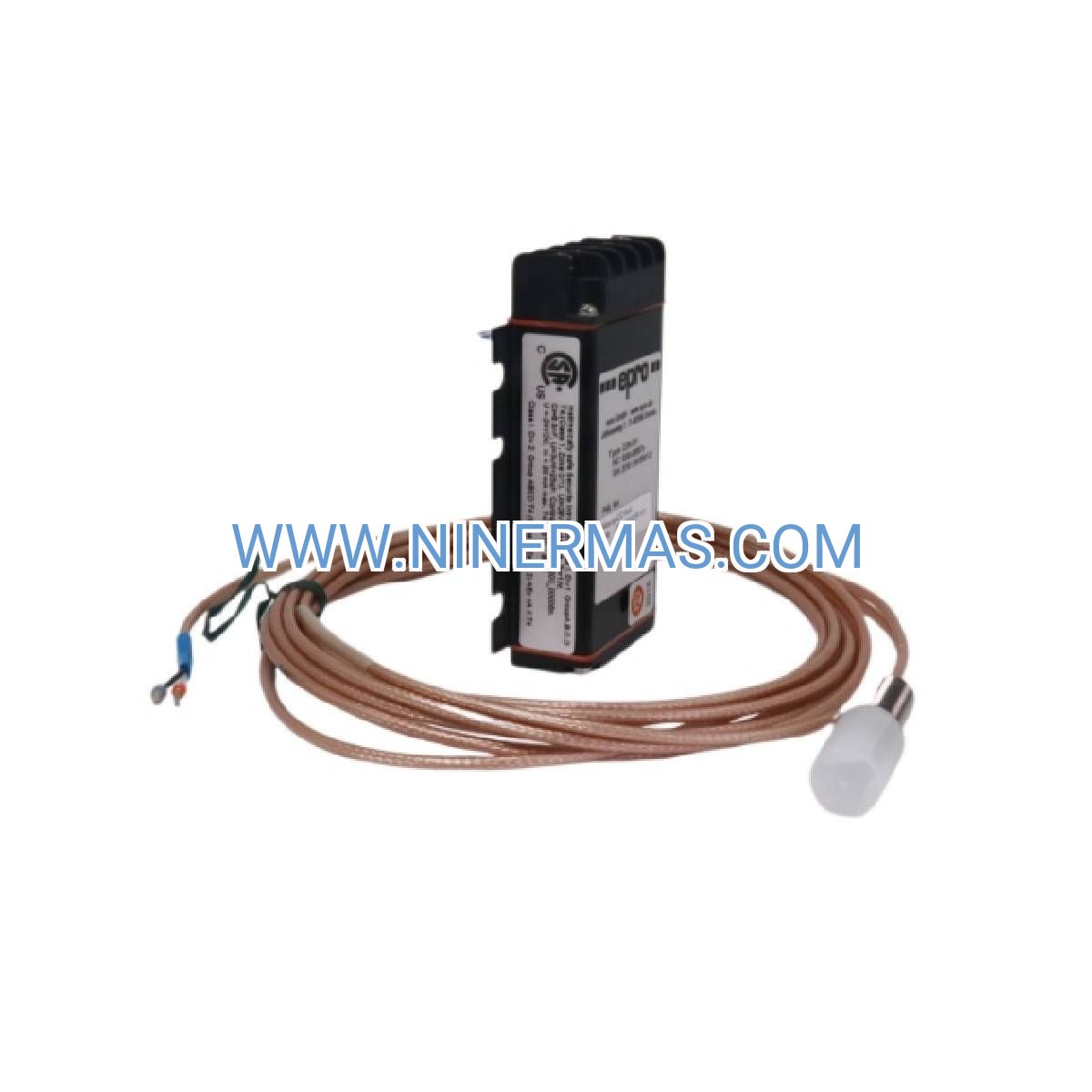

CON031 Signal Converter (Industrial-Grade Eddy Current Interface Module)

The CON031 represents a precision-engineered signal conditioning solution designed to bridge eddy current proximity sensors with modern control architectures. This converter transforms capacitance variations from PR642x-series probes into standardized voltage outputs, delivering real-time displacement and vibration intelligence for critical rotating assets. Built for environments where measurement integrity directly impacts operational safety and equipment longevity.

Industrial facilities face persistent challenges in translating raw sensor data into actionable insights—signal degradation over cable runs, electromagnetic interference in switchgear environments, and compatibility gaps between legacy sensors and contemporary monitoring platforms. The CON031 addresses these pain points through differential input topology, extended cable drive capability, and universal output formatting that integrates seamlessly with PLCs, SCADA networks, and vibration analysis systems.

Target users include reliability engineers managing turbomachinery fleets, maintenance teams responsible for compressor trains and steam turbines, and system integrators deploying condition-based monitoring programs in power generation, petrochemical processing, and heavy manufacturing operations. The converter's factory calibration and DIN-rail form factor enable rapid deployment in retrofit projects and new installations alike.

Core Features & Benefits

→ Wide-Bandwidth Signal Fidelity
DC to 20 kHz frequency response captures both slow thermal growth and high-frequency blade-pass vibrations, ensuring no critical machinery dynamics escape detection. This bandwidth supports applications from journal bearing clearance monitoring to gear mesh fault diagnosis.

→ Extended Environmental Range
-30°C to +100°C operating window accommodates outdoor installations, unheated enclosures, and proximity to heat-generating equipment without performance degradation or recalibration requirements.

→ Long-Distance Cable Capability
Drives sensor cables up to 9 meters while maintaining signal integrity, reducing the need for remote junction boxes and simplifying installation in large machinery trains or distributed monitoring architectures.

✓ Plug-and-Play Calibration
Each unit ships with probe-specific calibration data, eliminating field setup time and reducing commissioning errors. Calibration certificates traceable to ISO 17025 standards included with every converter.

✓ Dual Power Supply Flexibility
Accepts ±15V DC or ±24V DC input, matching common industrial power distribution standards and enabling integration into existing control panel designs without custom power supplies.

✓ Hazardous Area Certification
CE and ATEX approvals permit deployment in Zone 2 classified locations, expanding application scope to upstream oil & gas facilities and chemical processing units.

Typical Application Scenarios

Steam Turbine Thrust Position Monitoring
In combined-cycle power plants, the CON031 processes signals from axial displacement probes to detect thrust bearing wear and rotor shift conditions. Early detection prevents catastrophic blade rubs and unplanned outages, with one utility reporting 18-month bearing life extension after implementing continuous thrust monitoring.

Centrifugal Compressor Radial Vibration Analysis
Petrochemical facilities use CON031 converters to monitor compressor shaft orbits in real time. The system identifies developing imbalance, misalignment, and bearing defects weeks before traditional route-based vibration programs, enabling planned maintenance windows rather than emergency shutdowns.

Pump Seal Clearance Tracking
Refineries deploy the converter to measure mechanical seal face gap in high-pressure injection pumps. Continuous clearance data reveals seal wear progression, optimizing replacement intervals and reducing fugitive emissions from premature seal failures.

Motor-Driven Fan Rotor Position Control
Cement plants integrate CON031 outputs into PLC control loops for induced draft fan positioning. Precise rotor location feedback enables automated gap adjustment, maintaining optimal aerodynamic efficiency and reducing auxiliary power consumption by 4-7%.

Gas Turbine Differential Expansion Measurement
Power generation operators monitor casing-to-rotor thermal growth during startup and load changes. The converter's DC response captures slow thermal transients, preventing rub events during critical operating transitions.

Technical Parameters & Selection Guide

Selection Criteria: Match converter model to probe series—CON031 optimized for 8mm diameter PR642x probes with 2-4mm measurement range. For larger gap ranges or 11mm probes, consult factory for alternative converter models. Verify power supply voltage availability in target panel before ordering. For ATEX Zone 1 applications, specify intrinsically safe barrier accessories.

Extended Functions

Digital Communication Upgrade Path: Optional COM module enables Modbus RTU or HART protocol integration, allowing remote configuration changes and diagnostic data retrieval without physical panel access. Ideal for offshore platforms and unmanned facilities.

Dual-Channel Configurations: Pair two CON031 units for X-Y orbit plotting or differential measurement applications. Synchronized sampling ensures phase-accurate vibration vector analysis.

Custom Scaling Options: Factory can program non-standard output ranges (e.g., 4-20mA current loop, 0-5V) for direct interface with specific PLC analog input cards or chart recorders.

IoT Gateway Integration: Third-party edge devices can digitize CON031 analog outputs for cloud-based condition monitoring platforms, enabling remote expert analysis and fleet-wide benchmarking.

Delivery & Service Assurance

Lead Time: Standard units ship within 5-7 business days from order confirmation. Custom-configured converters (non-standard scaling, special certifications) require 3-4 weeks production time.

Warranty Coverage: 24-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical service applications.

Technical Support: Access to application engineers via email and phone during business hours (GMT+8). Emergency support available for critical machinery protection systems.

Documentation Package: Each converter includes installation manual, wiring diagrams, calibration certificate, and probe compatibility matrix. PLC integration examples available for Rockwell, Siemens, and Schneider platforms.

Frequently Asked Questions

What interface methods work with existing DCS systems?
The CON031's ±10V output connects directly to most DCS analog input cards rated for ±10V or 0-10V ranges. For current loop systems, add a V-to-I converter module (available separately). Modbus-equipped DCS can integrate via optional COM module for digital data transfer.

Which probe cable lengths maintain measurement accuracy?
Standard configuration supports up to 9 meters of RG58 coaxial cable with <2% additional error. For 12-15 meter runs, specify low-capacitance cable (RG223) at time of order. Beyond 15 meters, consider remote-mount converter placement near the probe.

How much power reduction occurs with optimized vibration monitoring?
Facilities implementing continuous CON031-based monitoring report 12-18% reduction in unplanned downtime. Energy savings stem from preventing catastrophic failures (which often damage multiple components) and optimizing maintenance intervals to avoid over-servicing healthy equipment.

What installation clearances does DIN-rail mounting require?
Allow 25mm spacing on each side for heat dissipation and 50mm above the unit for cable bend radius. Vertical orientation preferred for convective cooling. Avoid mounting directly above heat-generating devices like power supplies or motor starters.

Can remote diagnostics identify converter faults before failure?
When paired with the optional COM module, remote monitoring tracks internal temperature, power supply voltage, and output signal quality metrics. Trending these parameters enables predictive replacement before converter failure impacts machinery protection.

Which legacy monitoring systems accept CON031 retrofit installations?
The converter maintains backward compatibility with Bently Nevada 3300 series monitors and early AMS 2140 analyzers. Output scaling matches legacy Proximitor® sensors, allowing drop-in replacement without reconfiguring alarm setpoints or trending databases.
