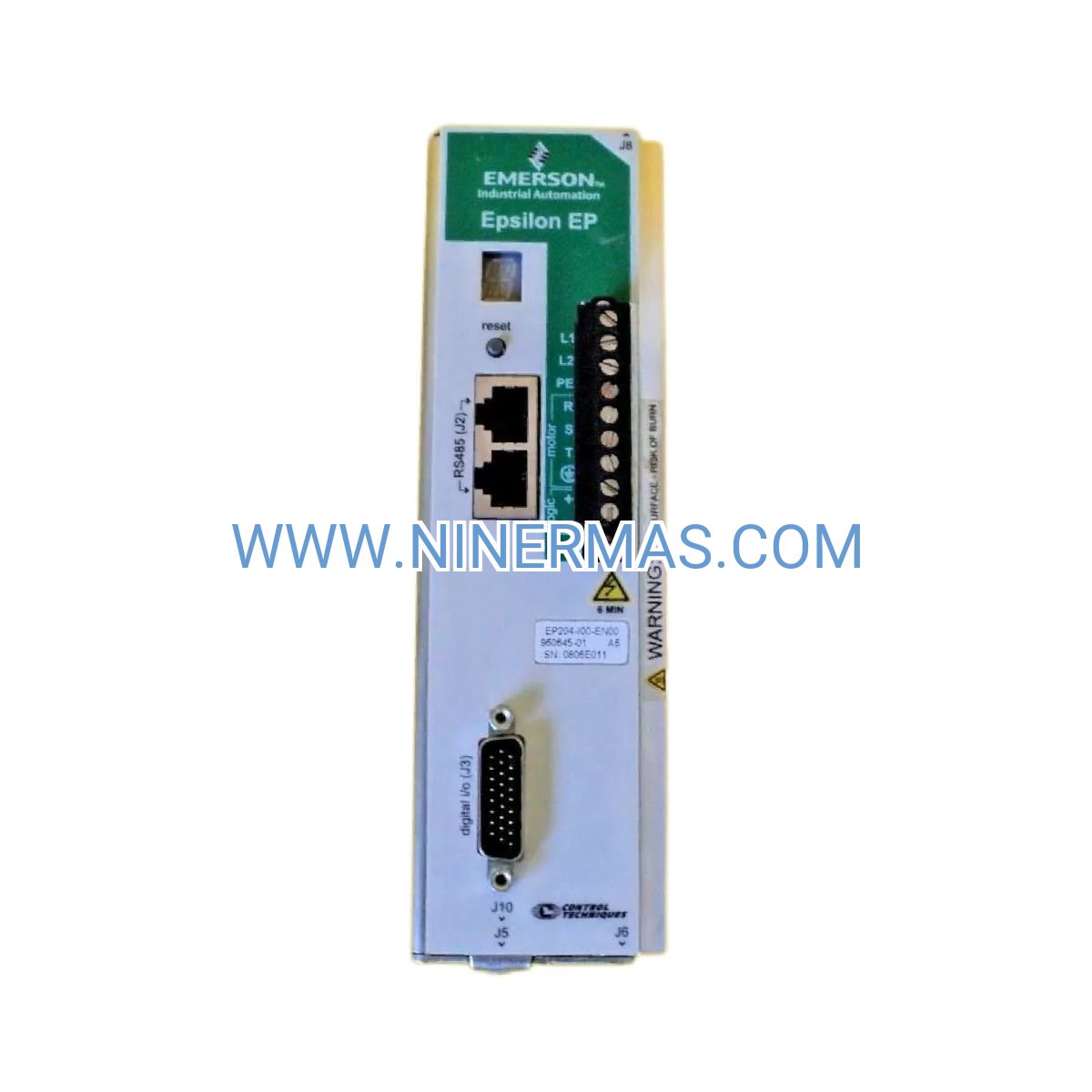

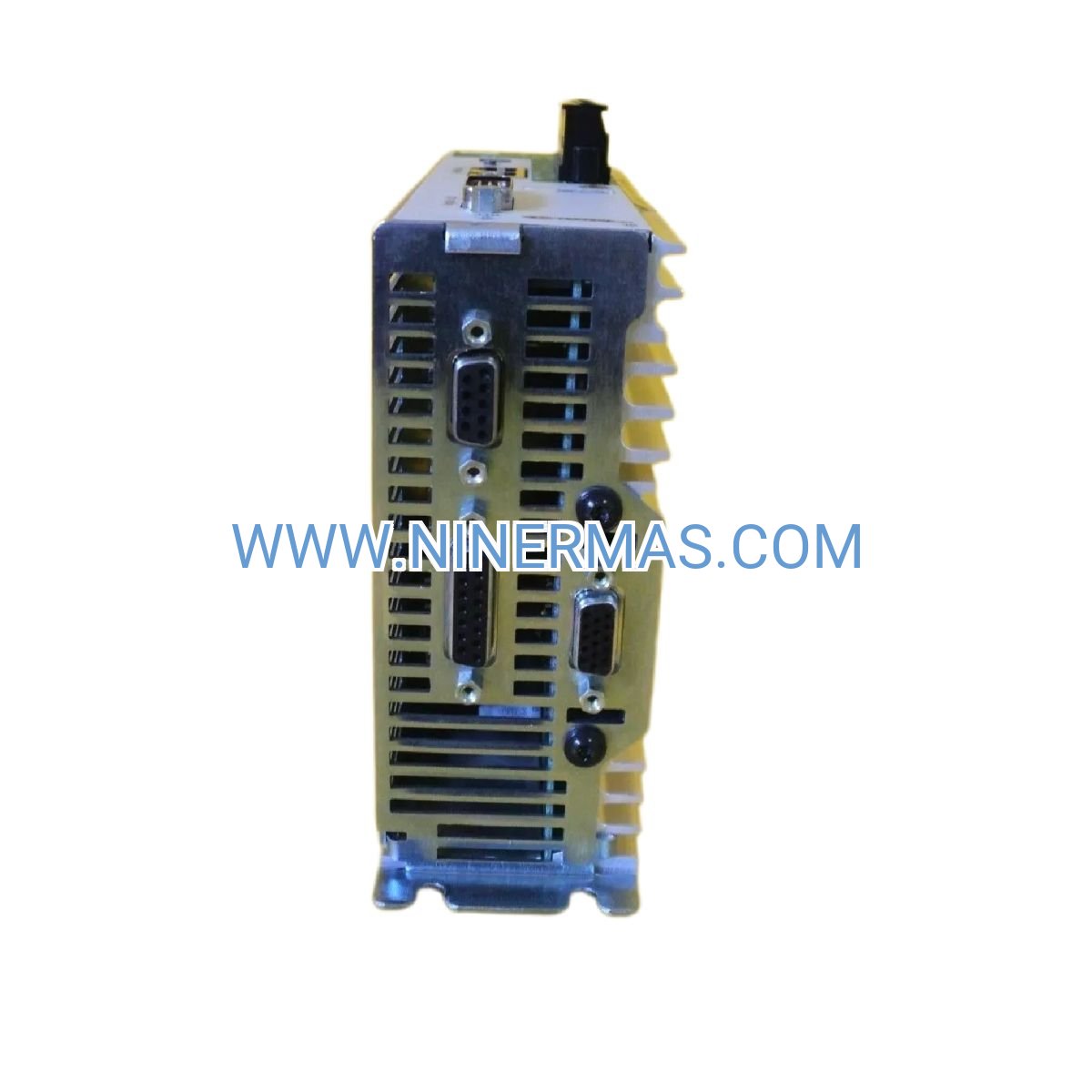

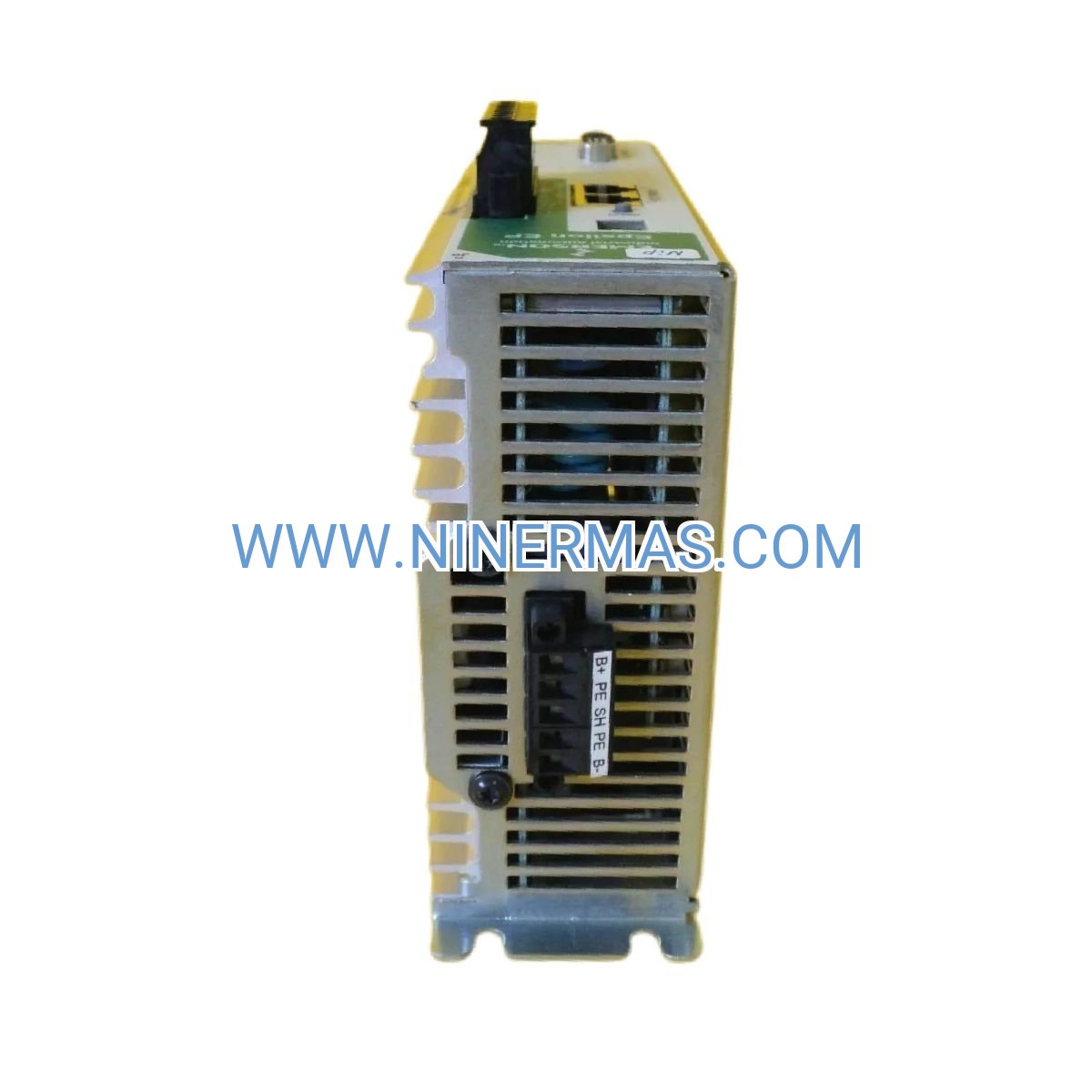

EP204-I00-EN00 Industrial Servo Drive (1275W Continuous Power)

The EP204-I00-EN00 is an industrial-grade servo amplifier engineered by Emerson for high-precision motion applications. Delivering 1275 watts of continuous power with 4.0A current capacity, this drive combines advanced digital control algorithms with robust hardware design to meet the demands of automated manufacturing, packaging lines, and material handling systems. Built for 24/7 operation in challenging industrial environments, it provides the reliability and performance critical to maintaining production uptime.

Designed for system integrators and OEM manufacturers, the EP204-I00-EN00 addresses common automation challenges: positioning accuracy, dynamic response, thermal management, and integration complexity. Its adaptive tuning capabilities reduce commissioning time by up to 60%, while comprehensive diagnostic features minimize troubleshooting effort. Whether you're upgrading legacy equipment or designing new machinery, this servo drive delivers measurable improvements in cycle time, product quality, and energy efficiency.

With multi-protocol communication support and compatibility across Emerson's automation portfolio, the EP204-I00-EN00 simplifies system architecture while providing the flexibility to scale from standalone machines to enterprise-wide control networks. Backed by global technical support and proven field reliability, it represents a strategic investment in operational excellence.

Core Features & Benefits

→ Adaptive Auto-Tuning Technology: Automatically optimizes PID parameters based on mechanical load characteristics, reducing setup time from hours to minutes while ensuring stable operation across varying inertia ratios (1:1 to 30:1).

→ Multi-Fieldbus Connectivity: Native support for EtherNet/IP, Modbus TCP, and CANopen enables seamless integration with PLCs from multiple vendors, eliminating protocol conversion overhead and reducing system complexity.

→ Enhanced Thermal Management: Advanced heat dissipation design with intelligent fan control maintains optimal operating temperature (0-50°C ambient), extending component lifespan by 40% compared to standard drives.

→ Real-Time Diagnostics: Built-in oscilloscope function and event logging capture transient faults and performance anomalies, reducing mean time to repair (MTTR) by providing actionable troubleshooting data.

→ Energy Recovery Architecture: Regenerative braking capability returns kinetic energy to the DC bus, reducing total system energy consumption by 15-25% in applications with frequent deceleration cycles.

✓ Compact Footprint: Space-efficient design (45mm width) maximizes cabinet density, critical for retrofits and space-constrained installations.

Application Scenarios

Automated Packaging Lines:
In high-speed form-fill-seal operations, the EP204-I00-EN00 synchronizes multiple axes for precise film registration and product placement. A beverage packaging facility reduced product waste by 18% after implementing this drive for label applicator control, achieving ±0.1mm positioning accuracy at speeds up to 120 packages per minute.

CNC Machining Centers:
For tool changers and rotary indexers, this servo drive provides the torque stability and position holding required for precision metalworking. A contract manufacturer reported 35% faster tool change cycles and improved surface finish quality after upgrading to EP204 drives on their 5-axis machining centers.

Pharmaceutical Tablet Presses:
Controlling punch mechanisms in tablet compression equipment demands exceptional repeatability and force control. The drive's torque regulation maintains compression force within ±2% across millions of cycles, ensuring consistent tablet weight and hardness while meeting FDA validation requirements.

Textile Winding Systems:
In yarn and fabric winding applications, the EP204-I00-EN00 maintains constant tension control despite varying roll diameters. A textile manufacturer achieved 99.2% first-pass quality rates by eliminating tension variations that previously caused web breaks and material defects.

Robotic Pick-and-Place:
For delta robots and SCARA systems in electronics assembly, the drive's high-bandwidth current loop (2kHz) enables aggressive acceleration profiles without overshoot, increasing throughput by 22% while reducing mechanical stress on robot joints.

Technical Parameters & Selection Guide

Selection Criteria: Match drive continuous current to motor rated current with 20-30% margin for dynamic headroom. Verify encoder compatibility (incremental encoders require A/B/Z signals; absolute encoders need EnDat 2.2 or BiSS-C protocol). For applications requiring IP54 protection, order optional sealing kit separately. Ensure DC bus voltage rating accommodates supply voltage fluctuations and regenerative energy spikes.

Extended Functions

IoT Integration & Predictive Maintenance: Optional Ethernet gateway enables connection to Emerson's Plantweb digital ecosystem, providing cloud-based analytics for vibration monitoring, thermal trending, and predictive failure alerts. Machine learning algorithms analyze drive performance data to forecast bearing wear and capacitor degradation 4-6 weeks before failure.

Advanced Motion Profiles: Built-in cam profile generator supports electronic gearing, flying shear, and registration correction without external motion controller. Store up to 32 custom motion sequences in non-volatile memory for rapid recipe changeover.

Customization Options: Factory configuration services available for application-specific parameter sets, custom I/O mapping, and pre-loaded motion programs. Minimum order quantities apply for customized firmware variants.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations require 3-4 weeks for factory programming and testing. Expedited processing available for critical downtime situations (additional fees apply).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement and on-site service options.

Technical Support: Access to Emerson's global support network with 24/7 phone assistance, remote diagnostics, and application engineering consultation. Average response time: 2 hours for critical issues, 8 hours for general inquiries.

Documentation Package: Each drive includes quick start guide, detailed user manual (PDF), configuration software (Windows-compatible), and CAD models (STEP/IGES formats) for panel design integration.

Frequently Asked Questions

Q: What communication protocols does the EP204-I00-EN00 support for PLC integration?
A: The drive natively supports EtherNet/IP (compatible with Allen-Bradley/Rockwell PLCs), Modbus TCP (Schneider, Siemens, and others), and CANopen (DS402 profile). Protocol selection is configured via DIP switches or software—no additional hardware modules required. Cycle times: EtherNet/IP (1ms), Modbus TCP (2ms), CANopen (1ms).

Q: Can this servo drive handle inertia mismatch ratios above 10:1?
A: Yes, the adaptive tuning algorithm compensates for inertia ratios up to 30:1, though optimal performance occurs between 1:1 and 15:1. For ratios exceeding 20:1, consider mechanical gearbox optimization or upgrading to a higher-torque motor to improve dynamic response and reduce settling time.

Q: How much energy savings can I expect compared to older servo drives?
A: Field data shows 15-25% energy reduction in applications with regenerative cycles (frequent acceleration/deceleration). Continuous-duty applications see 8-12% savings from improved switching efficiency and reduced standby losses. Actual savings depend on duty cycle, load profile, and ambient temperature.

Q: What installation clearances are required for proper cooling?
A: Maintain 50mm (2 inches) clearance above and below the drive for convection cooling. Side-by-side mounting is acceptable with no spacing required. For ambient temperatures exceeding 40°C, increase top/bottom clearance to 75mm or install optional forced-air cooling kit.

Q: Is remote monitoring and diagnostics capability available?
A: Yes, via optional Ethernet gateway module (part number EG-100). This enables connection to Emerson's Plantweb Insight platform for real-time performance monitoring, alarm notification, and predictive maintenance analytics. Subscription-based service with monthly or annual billing options.

Q: Which encoder types are compatible with this drive?
A: Incremental encoders with A/B/Z differential signals (RS-422) and absolute encoders using EnDat 2.2 or BiSS-C protocols. Encoder supply voltage: 5VDC (500mA max). For resolver-based motors, order optional resolver interface card (RIC-01) separately.

Take the Next Step

Ready to enhance your motion control performance? Contact our automation specialists for application-specific recommendations, system integration support, and volume pricing. Request a technical datasheet or schedule a virtual demonstration to see the EP204-I00-EN00 in action.
