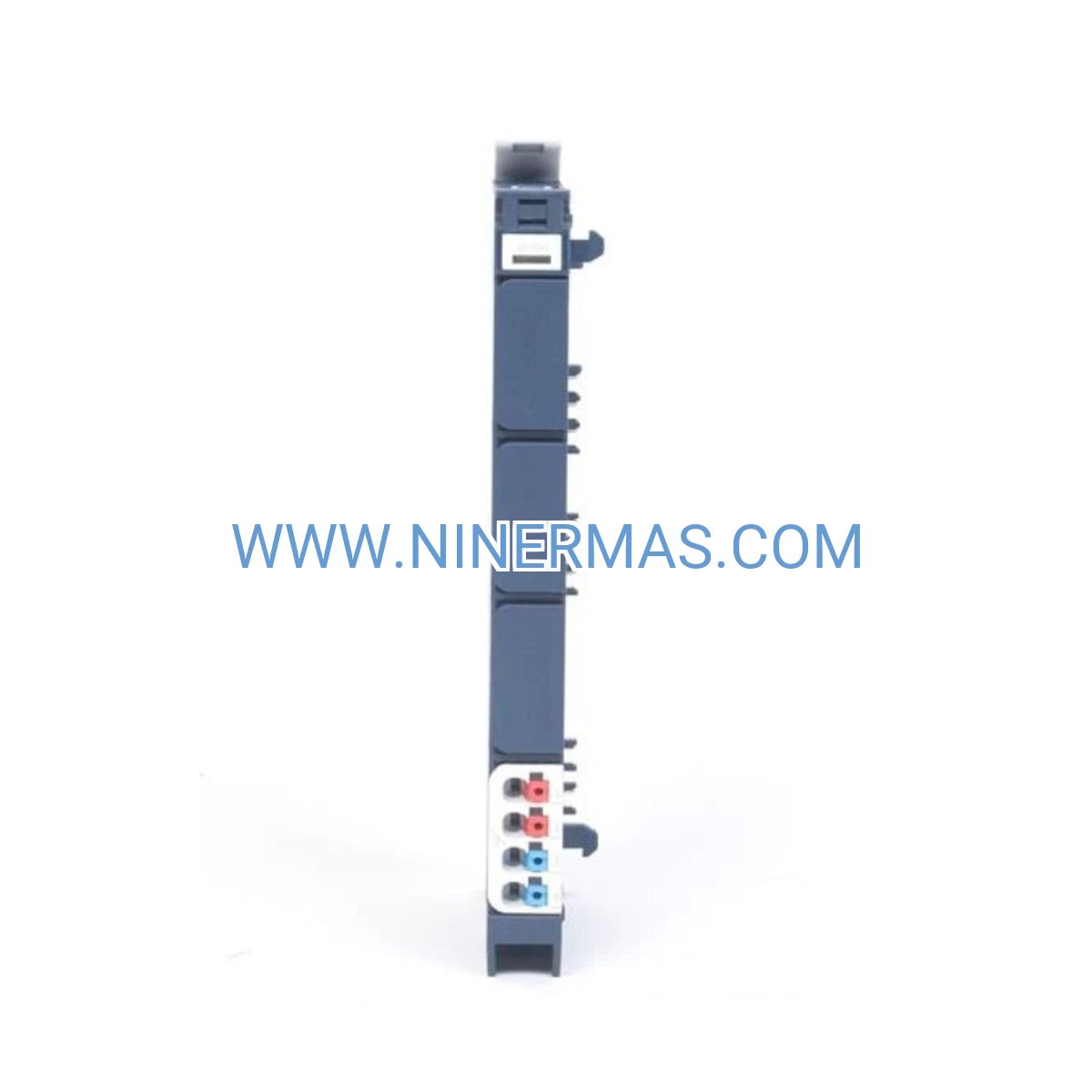

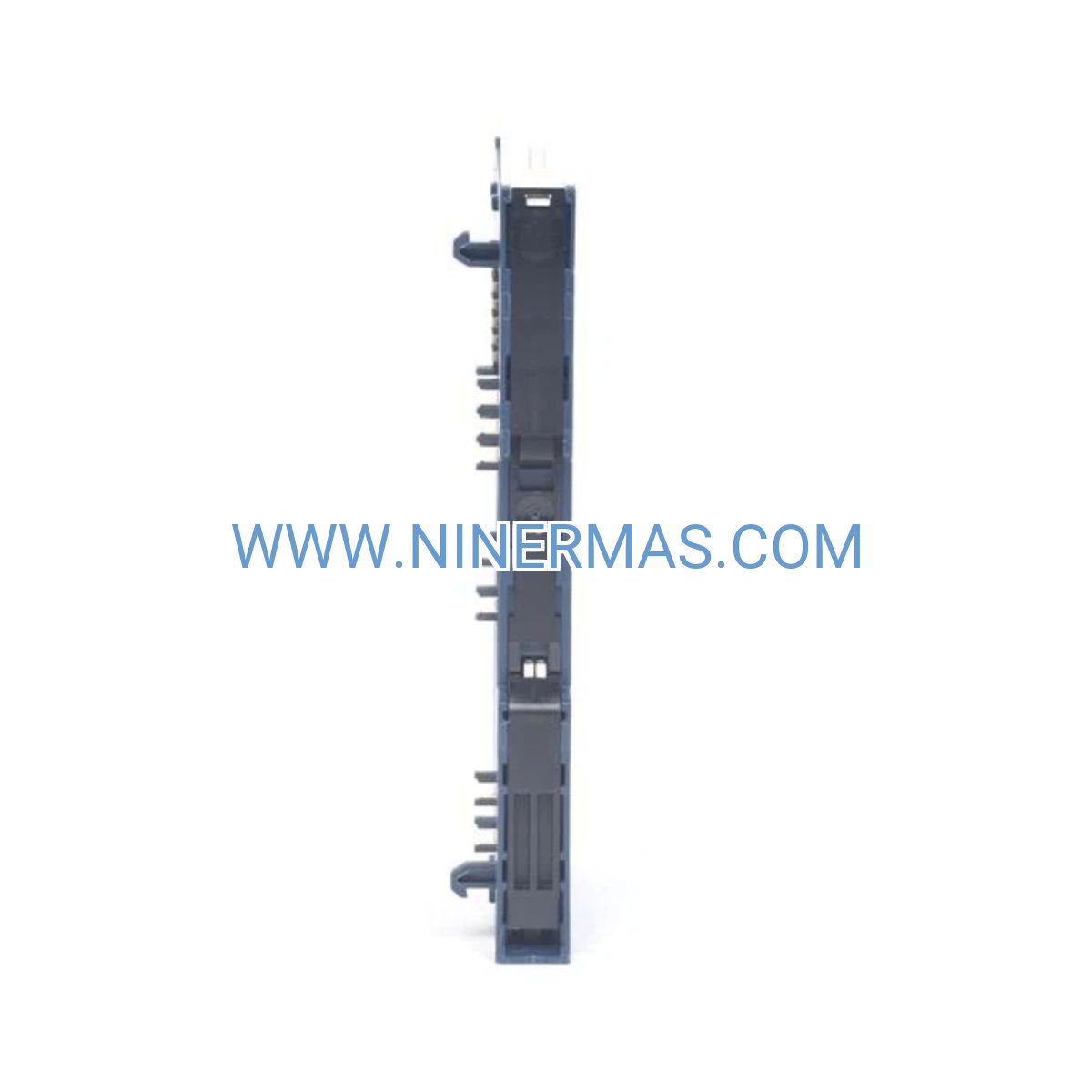

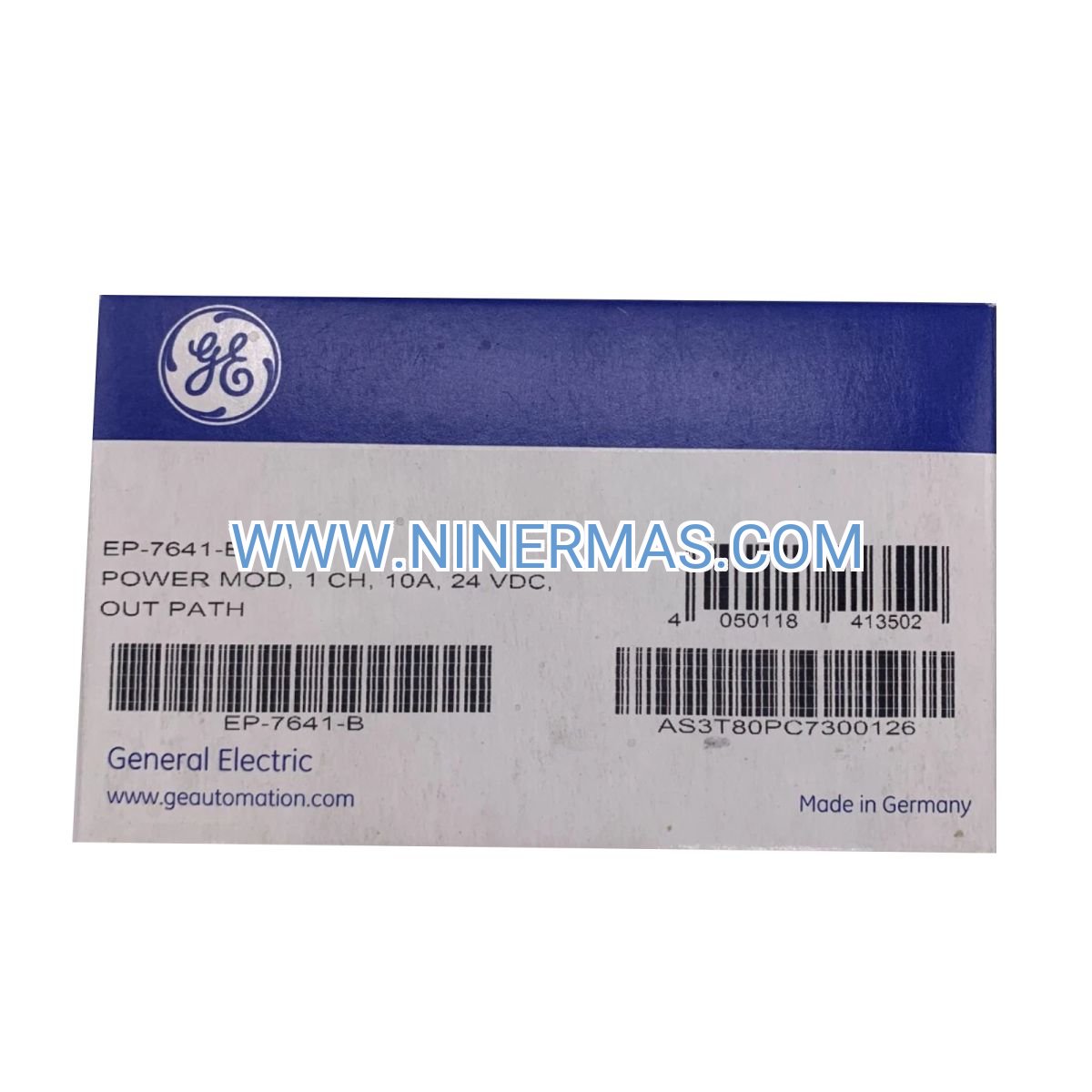

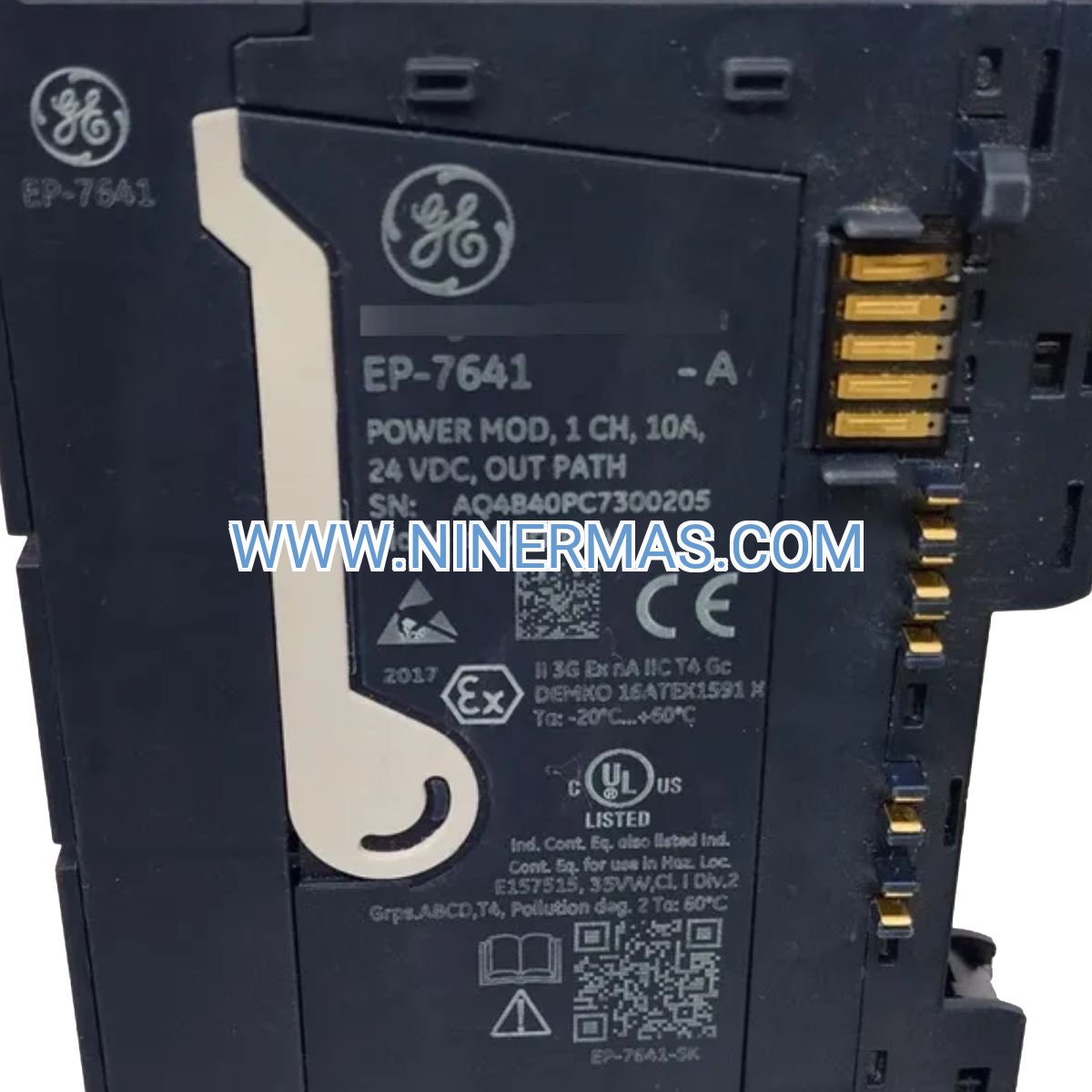

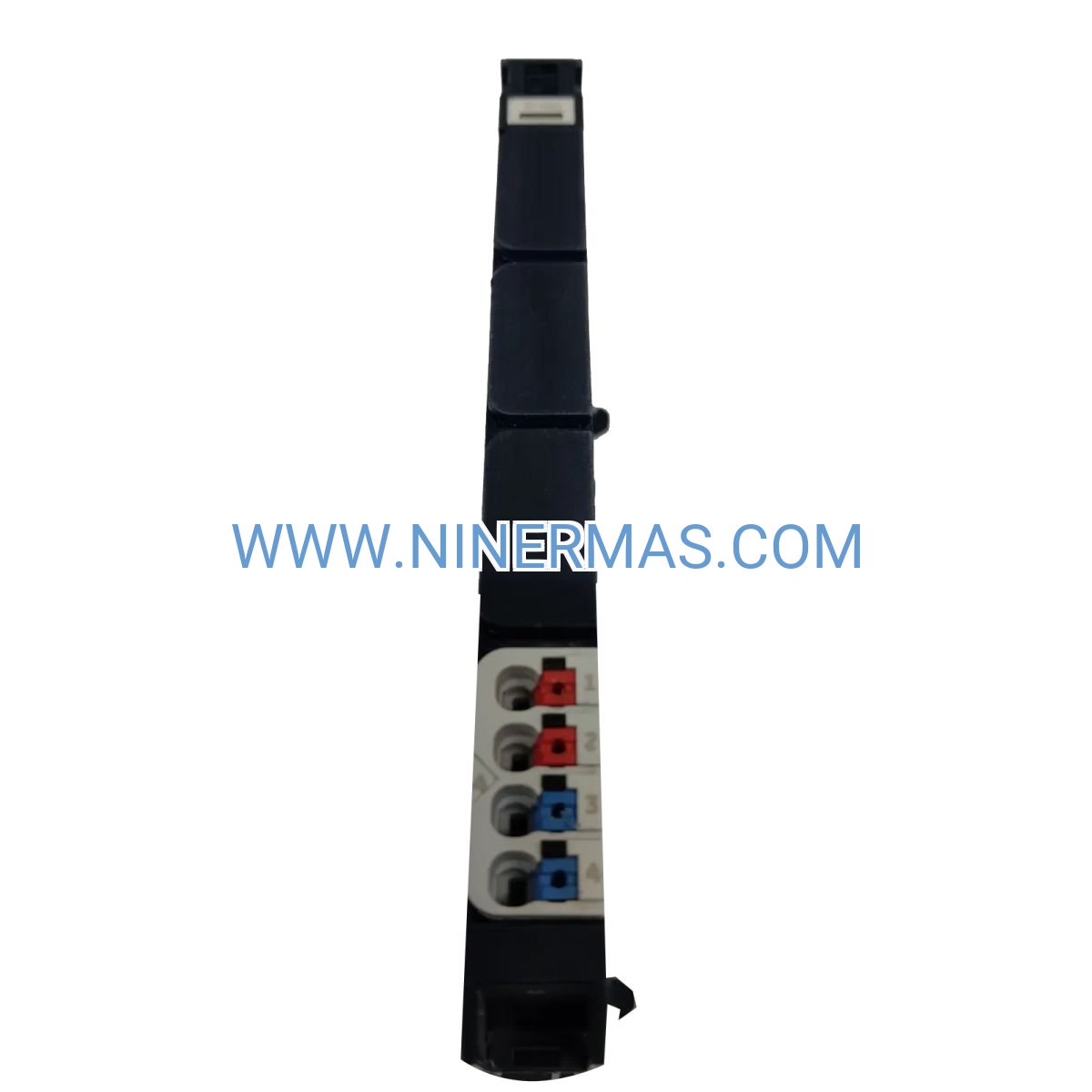

EP-7641 Industrial-Grade Power Module (24VDC, 10A Output Capacity)

Engineered for mission-critical automation environments, the EP-7641 represents a breakthrough in compact power distribution technology. This single-channel 24VDC module delivers up to 10 amperes of continuous current while occupying just 11.5mm of DIN rail space—enabling unprecedented I/O density in modern control cabinets. Designed by Emerson for global industrial deployment, it combines wide-range voltage tolerance (20.4V-28.8V) with robust environmental specifications to ensure reliable operation across manufacturing, process control, and infrastructure automation sectors.

Whether you're powering distributed I/O racks in a chemical plant, energizing pneumatic valve banks on packaging lines, or supplying field devices in building management systems, the EP-7641 provides the performance headroom and installation flexibility demanded by today's complex automation architectures. Its minimal 10mA self-consumption preserves power budgets in large-scale deployments, while IEC 61131-2 certification guarantees compliance with international industrial controller standards.

Ready to optimize your power distribution strategy? Contact our automation specialists for application-specific sizing guidance and volume pricing on the EP-7641 and complementary system components.

Key Performance Advantages

→ Ultra-Compact Footprint Engineering
At just 11.5mm wide, the EP-7641 achieves the industry's highest power-to-space ratio for 10A modules. This translates to 87 modules per meter of DIN rail—critical for high-density I/O configurations in space-constrained panels. The 76mm depth accommodates shallow wall-mount enclosures, while the lightweight 76g construction minimizes mechanical stress on mounting hardware.

→ Wide Voltage Input Tolerance
Accepts 20.4V to 28.8V supply range (±20% around 24VDC nominal), compensating for voltage drop in long cable runs, power supply regulation variations, and battery backup discharge curves. This resilience eliminates nuisance shutdowns and extends system uptime in real-world installations where perfect voltage regulation is impractical.

→ Extreme Temperature Resilience
Operates reliably from -20°C to +60°C without derating, making it suitable for unheated warehouses, rooftop equipment enclosures, and outdoor control cabinets. Storage rating extends to -40°C to +85°C for inventory in extreme climates. Humidity tolerance of 5%-95% non-condensing (per IEC 61131-2) ensures performance in coastal, tropical, and high-moisture industrial environments.

✓ Minimal Power Loss Design
Consumes only 10mA on the output path—negligible compared to the 10A delivery capacity. This 0.1% efficiency overhead means virtually all supplied power reaches your loads, reducing heat generation and enabling cascaded power distribution without cumulative voltage sag.

✓ Global Safety Certifications
CE marked for European markets, UL/cUL listed for North America, and IEC 61131-2 compliant for worldwide industrial controller applications. RoHS conformity ensures hazardous substance compliance for EU and global supply chains.

✓ Rapid DIN Rail Deployment
Snap-on mounting to standard 35mm DIN rail (EN 60715) enables tool-free installation and hot-swap replacement during maintenance windows. Side-by-side mounting without spacing requirements maximizes cabinet utilization.

Industrial Application Scenarios

Scenario 1: High-Density PLC I/O Expansion
Challenge: A pharmaceutical packaging line requires 120 digital outputs for solenoid valves, indicator lights, and relay coils, but cabinet space is limited to 1.5 meters of DIN rail.
Solution: Deploy twelve EP-7641 modules (138mm total width) to power ten output cards each, achieving full I/O capacity while reserving rail space for signal conditioning and network infrastructure. The wide input voltage range accommodates the 2V drop across 50-meter cable runs from the central power supply.
Outcome: 40% reduction in cabinet footprint versus traditional power distribution blocks, enabling single-panel consolidation and reducing installation labor by 18 hours.

Scenario 2: Building Automation VAV System Power
Challenge: A commercial office tower's HVAC system needs reliable 24VDC for 85 variable air volume box controllers distributed across seven mechanical rooms, some experiencing -15°C winter temperatures.
Solution: Install EP-7641 modules in each mechanical room to power local VAV clusters, leveraging the -20°C to +60°C operating range to eliminate the need for heated enclosures. The 5%-95% humidity tolerance handles condensation during seasonal transitions.
Outcome: Zero cold-weather failures over three winter seasons, $12,000 savings versus climate-controlled enclosure alternatives, and simplified maintenance with standardized spare parts inventory.

Scenario 3: Water Treatment Plant Distributed Control
Challenge: A municipal wastewater facility operates 200+ solenoid valves across clarifiers, aerators, and chemical dosing systems, requiring isolated power zones to prevent single-point failures from affecting multiple treatment stages.
Solution: Implement EP-7641 modules as zone power feeds, with each module supplying one treatment process area. The 10A capacity handles 15-20 standard solenoid valves per zone, while the minimal 10mA self-consumption prevents cumulative losses in the 30-module installation.
Outcome: Improved fault isolation reduced average downtime per incident by 65%, and modular architecture enabled phased expansion without redesigning the power distribution backbone.

Scenario 4: Automotive Assembly Line Pneumatics
Challenge: A robotic welding cell uses 40 pneumatic cylinders controlled by 24VDC solenoid valves, with frequent valve replacements requiring accessible wiring and minimal downtime.
Solution: Mount four EP-7641 modules adjacent to valve manifolds, grouping valves by robot zone for logical power distribution. The snap-on DIN rail mounting enables rapid module replacement during scheduled maintenance, while the compact width allows installation inside existing manifold enclosures.
Outcome: Valve replacement time reduced from 45 minutes to 12 minutes per unit, and standardized EP-7641 spares inventory supports three production lines with a single SKU.

Scenario 5: Food Processing Sanitary Zone Power
Challenge: A dairy processing plant requires 24VDC power for stainless steel valve actuators in washdown areas subject to high-pressure cleaning and temperature swings from -10°C (refrigeration) to +50°C (CIP cycles).
Solution: Deploy EP-7641 modules in IP67-rated junction boxes outside the spray zone, feeding power to sanitary valve clusters via sealed cable glands. The wide temperature range and humidity tolerance accommodate thermal cycling without condensation-related failures.
Outcome: Three-year operation with zero moisture ingress failures, and the compact module size enabled retrofitting into existing junction boxes without panel upgrades.

Technical Specifications & Selection Guide

Selection Criteria for Power Module Sizing:

1. Calculate Total Load Current: Sum the current draw of all devices to be powered by one EP-7641 module. Include inrush current for solenoid valves (typically 2-3× holding current) and ensure peak demand stays below 10A. For safety margin, design for 80% continuous loading (8A maximum).

2. Verify Voltage Drop Budget: If cable runs exceed 20 meters, calculate voltage drop using wire gauge and load current. Ensure voltage at the farthest device remains above minimum operating threshold (typically 20.4V for 24VDC systems). Use larger wire gauge or multiple distribution points if drop exceeds 2V.

3. Assess Environmental Conditions: Confirm installation location temperature stays within -20°C to +60°C range. For outdoor or unheated spaces, verify winter low temperatures. Check humidity levels—if condensation is possible, use IP-rated enclosures even though the module tolerates 95% RH.

4. Plan Redundancy Strategy: For critical processes, consider N+1 redundancy with multiple EP-7641 modules feeding the same load through diode isolation. Alternatively, maintain spare modules for rapid replacement (typical MTBF exceeds 100,000 hours).

5. Coordinate with Overcurrent Protection: Install appropriately rated fuses or circuit breakers on the input side of each EP-7641. Recommended: 12A fast-blow fuse for 10A module to protect wiring without nuisance trips during inrush events.

Extended Functionality & System Integration

IoT-Ready Power Monitoring (Optional Accessories):
While the EP-7641 itself is a passive power distribution device, it integrates seamlessly with Emerson's smart power monitoring accessories. Add current sensors and gateway modules to track real-time power consumption, detect anomalies indicating failing loads, and log energy usage for ISO 50001 compliance. Cloud connectivity enables predictive maintenance alerts when current draw patterns deviate from baseline profiles.

Modular Expansion Architecture:
The EP-7641's compact width enables scalable power distribution topologies. Start with a single module for initial I/O requirements, then add modules in parallel as your system grows—no redesign of the power backbone required. Each module operates independently, so failures are isolated to a single power zone rather than cascading across the entire system.

Customization for OEM Applications:
Emerson offers private-label and custom terminal configurations for OEMs integrating the EP-7641 into proprietary control panels. Options include pre-wired cable assemblies, custom terminal block colors for zone identification, and laser-etched labeling for asset tracking. Minimum order quantities apply—contact our OEM solutions team for details.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipping to US, UK, and EU destinations. Asia-Pacific deliveries typically arrive within 7-10 business days via expedited freight. We maintain buffer inventory of 200+ units to support urgent project requirements.

Custom Configuration Lead Time: 4-6 weeks for factory-customized terminal blocks, labeling, or pre-wired assemblies. Rush service available for critical projects—consult with our project management team for feasibility and surcharges.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement units shipped via expedited service to minimize downtime. Extended warranty programs available for mission-critical installations.

Technical Support Access: Lifetime phone and email support from Emerson-certified application engineers. Assistance includes wiring diagram review, power budget calculations, troubleshooting guidance, and firmware compatibility verification for integrated systems. Average response time: 4 hours during business hours.

Documentation Package: Each EP-7641 ships with installation quick-start guide, dimensional drawings, terminal wiring diagrams, and certification declarations. Full technical manuals, 3D CAD models (STEP format), and EPLAN macros available for download from our technical library.

Frequently Asked Questions

Q1: Can the EP-7641 power module interface directly with Siemens S7-1200 PLC output cards?
Yes, the EP-7641 provides standard 24VDC power compatible with Siemens, Allen-Bradley, Mitsubishi, and other major PLC brands. Connect the module output to the L+ terminal of your output card, and ensure the PLC's M terminal shares a common ground with the EP-7641's negative terminal. The 10A capacity supports up to 40 digital outputs (assuming 250mA per point) or 8 relay outputs (assuming 1.2A coil current).

Q2: What wire gauge should I use for a 15-meter cable run at 8A load?
For 15 meters at 8A with acceptable 2V drop, use minimum 1.5mm² (16 AWG) copper wire. This yields approximately 1.6V drop, keeping voltage above 22.4V at the load. For 1V drop (better margin), upgrade to 2.5mm² (14 AWG). Always verify wire ampacity meets or exceeds the 12A fuse rating protecting the circuit.

Q3: Does the EP-7641 include built-in short-circuit protection?
No, the EP-7641 is a passive power distribution module without internal overcurrent protection. You must install external fuses or circuit breakers on the input side rated appropriately for your wire gauge and load. Recommended: 12A fast-blow fuse or 10A thermal-magnetic breaker. This protects wiring and the module from sustained overload or short-circuit conditions.

Q4: Can I mount the EP-7641 horizontally or does it require vertical orientation?
The module can be mounted in any orientation on standard 35mm DIN rail—vertical, horizontal, or inverted. Ensure adequate ventilation around the module (minimum 10mm spacing to adjacent heat-generating components) and verify terminal access for maintenance. Horizontal mounting with terminals facing down is not recommended in dusty environments to prevent debris accumulation.

Q5: Is the EP-7641 suitable for marine or offshore platform installations?
While the EP-7641 meets IEC 61131-2 humidity specifications (5%-95% non-condensing), marine environments with salt spray require additional protection. Install the module inside IP65 or higher rated enclosures with desiccant breathers to prevent condensation. For offshore platforms, verify compliance with DNV-GL or ABS certification requirements—the EP-7641's base certifications may need supplemental documentation.

Q6: What is the expected service life of the EP-7641 in continuous operation?
With proper installation and loading within specifications, the EP-7641 typically exceeds 100,000 hours MTBF (mean time between failures)—equivalent to 11+ years of continuous operation. Actual lifespan depends on ambient temperature (higher temps reduce life), load cycling frequency, and environmental factors. Annual inspection of terminal tightness and visual checks for discoloration extend service life.
