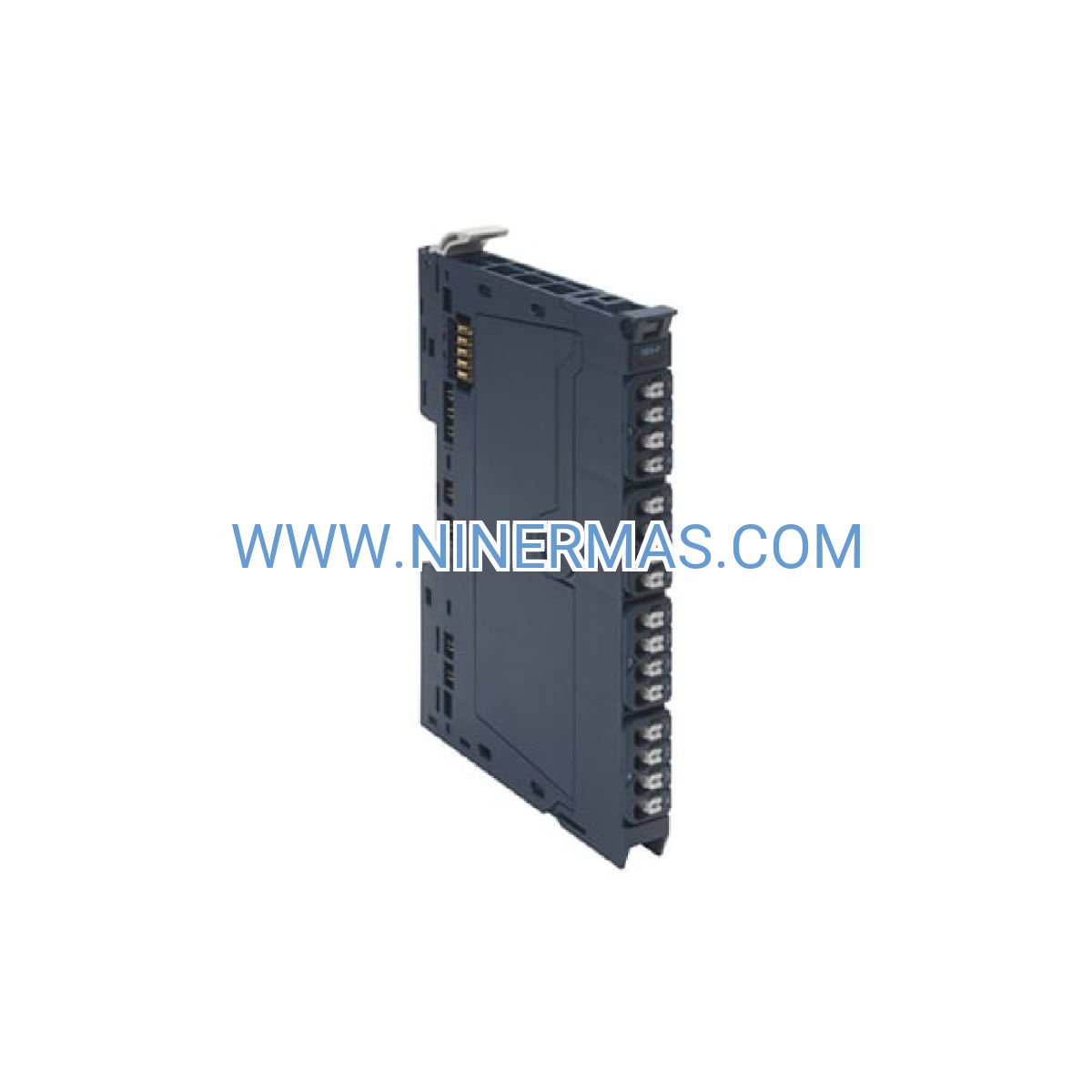

EP-3468 Analog Current Input Module (Industrial-Grade 8-Channel Measurement Solution)

Engineered for precision process measurement, the EP-3468 analog current input module transforms 4-20mA transmitter signals into actionable data for manufacturing execution systems, SCADA platforms, and distributed control networks. This RSTi-EP slice module combines 16-bit A/D conversion with 0.1% accuracy to deliver reliable signal acquisition from pressure transmitters, flow meters, level sensors, and temperature probes across chemical processing, water treatment, energy management, and building automation installations.

Core Features & Business Value

→ 16-Bit Resolution for Process Visibility
Capture subtle process variations with 0.0015% signal granularity (65,536 discrete measurement points across the 4-20mA range). This precision enables early detection of equipment degradation, tighter quality control tolerances, and compliance with FDA 21 CFR Part 11 and ISO 9001 documentation requirements in pharmaceutical and food manufacturing.

✓ Multi-Wire Sensor Compatibility
Accommodate 2-wire loop-powered transmitters, 3-wire externally powered sensors, and 3-wire + Functional Earth configurations without external signal conditioners. Each channel supplies up to 125mA for powering 4-20mA transmitters, eliminating auxiliary power supplies and reducing panel space requirements by 30-40% compared to traditional I/O systems.

✓ Integrated Diagnostics for Uptime Maximization
Automatic underrange detection (3.6mA threshold) and overrange detection (21.67mA threshold) identify sensor failures, wiring faults, or transmitter malfunctions before process upsets occur. Per-channel diagnostic status propagates to SCADA systems for predictive maintenance scheduling, reducing unplanned downtime by 15-25% in continuous process industries.

→ Noise Immunity for Harsh Environments
Software-selectable 50Hz/60Hz frequency suppression filters eliminate power line interference from VFDs, welding equipment, and switching power supplies. The 16-value averaging filter provides additional noise rejection for applications with high electromagnetic interference, maintaining ±0.1% accuracy in industrial environments with conducted and radiated EMI up to IEC 61000-4-4 Level 3.

✓ Ultra-Compact High-Density Design
11.5mm width enables 8-channel signal acquisition in the footprint of a single traditional I/O card. Deploy 64+ analog inputs in a standard 19-inch control cabinet, reducing panel costs by $200-400 per installation and enabling modular machine designs for OEMs serving packaging, material handling, and assembly automation markets.

→ Hot-Swap Serviceability
Replace failed modules without system shutdown when configured with RSTi-EP redundant power supplies and network adapters. Removable terminal blocks enable pre-wiring of replacement modules, reducing mean time to repair (MTTR) from 45-60 minutes to under 10 minutes for critical measurement loops in 24/7 production facilities.

Application Scenarios

Chemical Batch Processing: Monitor reactor pressure, feed flow rates, and product level transmitters in pharmaceutical API manufacturing and specialty chemical production. The 1ms conversion time supports closed-loop PID control with 100ms update rates, maintaining ±0.5% setpoint accuracy for critical reaction parameters. Wide common mode voltage range (±50V) accommodates ground potential differences between remote reactor skids and central control rooms, preventing measurement errors from ground loops in multi-building facilities.

Municipal Water Treatment: Acquire signals from turbidity analyzers, chlorine residual monitors, pH sensors, and flow totalizers across distributed pump stations and treatment basins. Temperature-compensated accuracy maintains ±0.1% measurement integrity from -20°C to +60°C, ensuring regulatory compliance with EPA Safe Drinking Water Act monitoring requirements. Reverse polarity protection and short-circuit proof design prevent damage during field wiring modifications by municipal maintenance crews.

Building Energy Management: Interface with current transformers, power meters, and BTU meters for LEED-certified commercial buildings and data center infrastructure. The compact 11.5mm width enables high-density metering installations in space-constrained electrical rooms. Average-over-16-values filter smooths noisy signals from variable frequency drives on HVAC equipment, providing stable energy consumption data for demand response programs and utility rebate verification.

Food & Beverage Manufacturing: Connect to CIP (clean-in-place) flow meters, pasteurization temperature transmitters, and carbonation pressure sensors in dairy processing and beverage bottling lines. 500V DC field/system isolation protects control systems from voltage transients during high-pressure washdown procedures. MTBF >500,000 hours at 25°C reduces spare parts inventory requirements and supports 15+ year equipment lifecycles for capital-intensive food processing installations.

Oil & Gas Pipeline Monitoring: Measure pump discharge pressures, custody transfer flow rates, and tank level transmitters across remote pipeline segments and storage terminals. The ±50V common mode voltage range accommodates cathodic protection systems and ground potential differences in long-distance pipeline networks. Per-channel diagnostics enable condition-based maintenance strategies, reducing field service truck rolls by 20-30% through remote fault identification.

Technical Parameters & Selection Guide

Selection Criteria: Choose EP-3468 when you need 8 or fewer 4-20mA inputs per I/O drop. For higher channel counts, combine multiple EP-3468 modules on the same RSTi-EP bus (up to 64 modules per network adapter). Select 0-20mA range for legacy transmitters without NAMUR fault detection; use 4-20mA range with underrange/overrange diagnostics for new installations requiring predictive maintenance capabilities.

Extended Functions

Industrial IoT Integration: RSTi-EP system bus operates at 48 Mbps, enabling real-time data streaming to edge computing gateways for machine learning-based anomaly detection and cloud-based asset performance management platforms. The module's diagnostic data (channel status, overrange/underrange flags, module health) maps directly to OPC UA information models for Industry 4.0 implementations.

Advanced Filtering Options: Disable frequency suppression filters for applications requiring maximum speed (1ms conversion time). Enable 50Hz or 60Hz rejection for installations near power distribution equipment. Activate 16-value averaging for extreme noise environments (arc welding, induction heating, radio transmitters). All filter settings configurable per channel via PACSystems programming software.

Customization for OEMs: Available with custom firmware for specialized signal ranges (0-10mA, 0-50mA) and application-specific diagnostics for machine builders serving niche industries. Consult our application engineering team for minimum order quantities and lead times for custom configurations.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours to US, UK, EU, and Asia-Pacific destinations. Custom configurations require 4-6 weeks for firmware development and factory testing.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Lifetime application engineering assistance including wiring diagram review, noise immunity recommendations, system architecture consultation, and PACSystems programming examples. Remote troubleshooting support via phone, email, and video conference.

Documentation Package: Installation manual, wiring diagrams, PACSystems configuration guide, GSD file for PROFINET integration, and sample ladder logic for common measurement tasks. All documentation available in English, German, French, Spanish, and Mandarin Chinese.

Frequently Asked Questions

Q: What wiring configuration should I use for 2-wire transmitters versus 3-wire sensors?
A: For 2-wire loop-powered transmitters (most common in process industries), connect the transmitter between the module's +IN and -IN terminals - the module supplies 20.4-28.8V loop power. For 3-wire externally powered sensors, connect the sensor's current output to +IN, sensor common to -IN, and sensor power supply to an external 24V DC source. The 3-wire + FE configuration adds a Functional Earth connection for enhanced noise immunity in high-EMI environments.

Q: How many EP-3468 modules can I install on a single RSTi-EP network adapter?
A: Up to 64 I/O modules (any combination of analog, digital, and specialty modules) per RSTi-EP network adapter. The 48 Mbps system bus provides sufficient bandwidth for 512+ analog channels with 10ms update rates. For larger systems, deploy multiple network adapters on separate PROFINET, EtherNet/IP, or Modbus TCP segments.

Q: What energy efficiency improvements can I expect compared to traditional I/O systems?
A: The EP-3468 consumes only 8mA from the system bus plus sensor load current, versus 150-300mA for equivalent rack-based analog input cards. In a typical 64-channel installation, this reduces control cabinet heat dissipation by 40-60 watts, potentially eliminating the need for forced-air cooling and reducing HVAC costs by $200-400 annually in climate-controlled control rooms.

Q: Are there installation requirements for DIN rail mounting in vibration-prone environments?
A: The module's snap-on DIN rail mounting withstands vibration levels up to IEC 60068-2-6 (10-150Hz, 1g amplitude) without additional securing hardware. For extreme vibration applications (mobile equipment, reciprocating compressors), install modules on vibration-isolated DIN rail sections or use supplementary retention clips available from Emerson.

Q: Can I perform remote diagnostics and configuration changes without site visits?
A: Yes - when connected to PACSystems controllers with Ethernet connectivity, you can remotely monitor channel diagnostics, modify filter settings, and adjust signal ranges via VPN or cellular gateway connections. All configuration changes take effect immediately without module power cycling, enabling remote commissioning and troubleshooting for geographically distributed installations.

Q: What preventive maintenance is required to ensure long-term measurement accuracy?
A: The EP-3468 requires no calibration over its service life due to digital signal processing and factory calibration. Annual preventive maintenance should include: (1) verify terminal block screw tightness (2-4 in-lb torque), (2) inspect terminals for corrosion or discoloration, (3) review diagnostic logs for intermittent faults, and (4) verify grounding continuity. In corrosive environments, apply dielectric grease to terminal connections during annual inspections.

Order Your EP-3468 Module Today

Upgrade your process measurement infrastructure with proven RSTi-EP technology. Our automation specialists are ready to assist with system design, I/O point calculations, and integration planning for your specific application. Contact us for volume pricing on project quantities of 10+ modules, or request a technical consultation to evaluate EP-3468 compatibility with your existing control architecture.

Ready to enhance your process control accuracy? Add to cart now for fast global shipping, or reach out to our engineering team for application-specific guidance on sensor selection, wiring configurations, and system optimization strategies.
