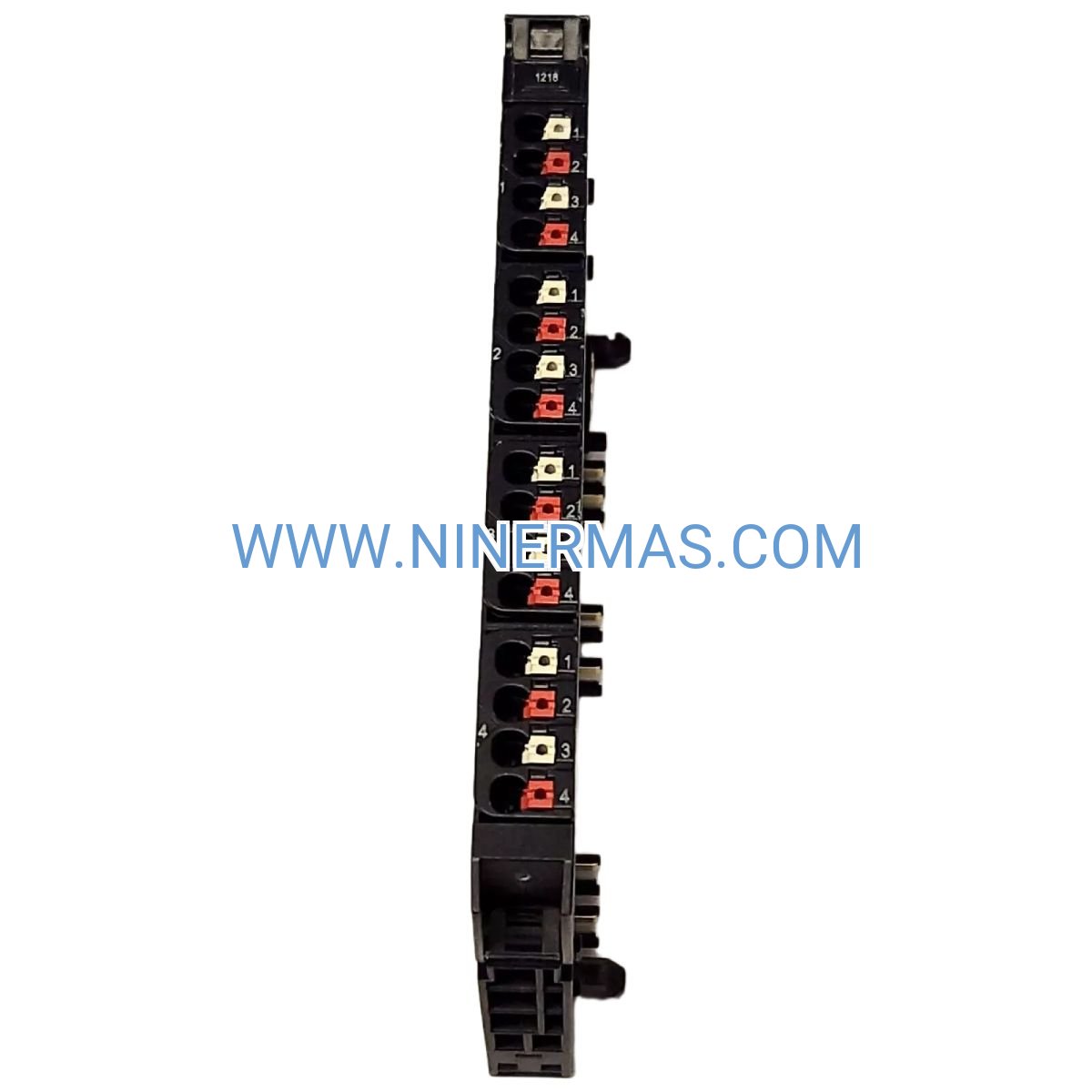

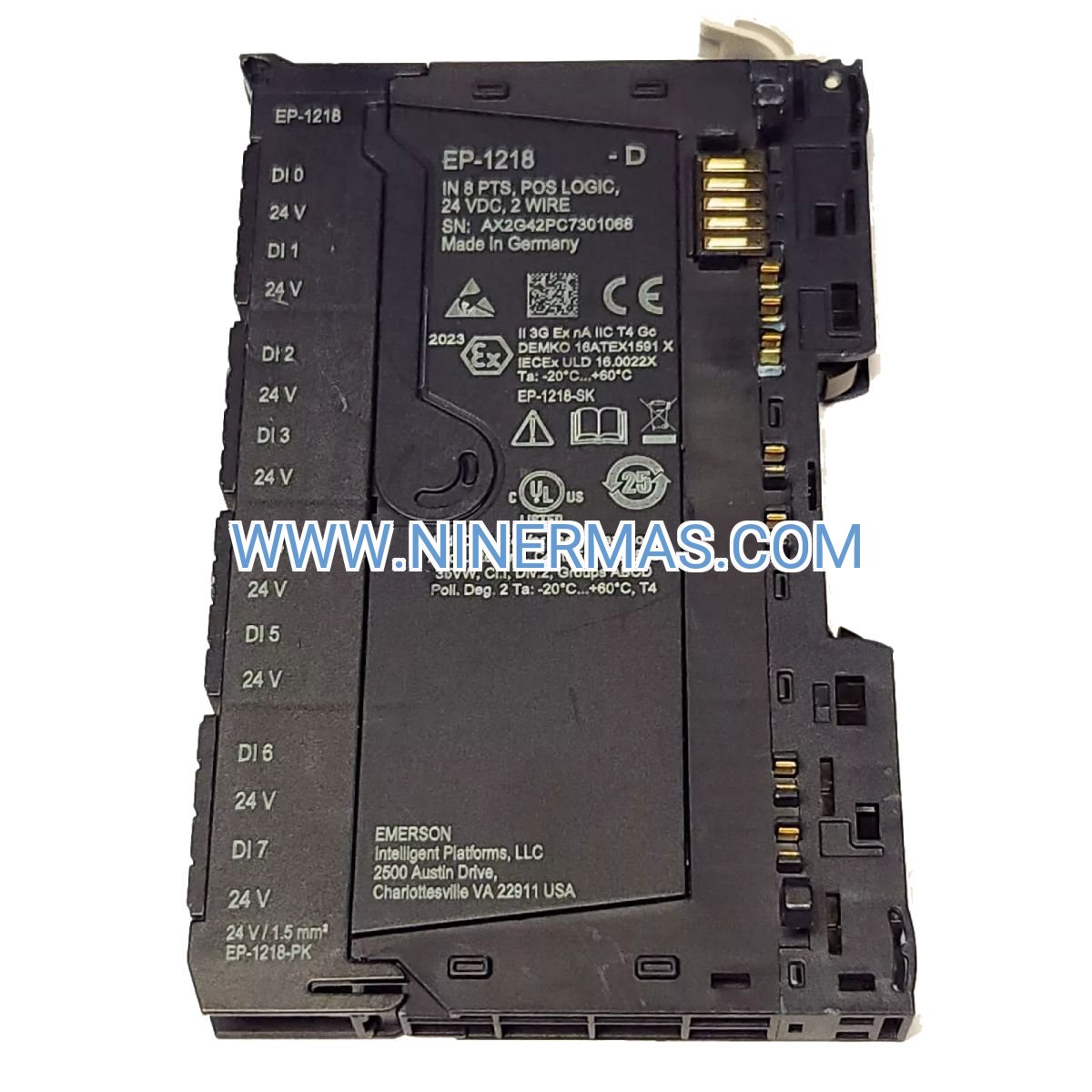

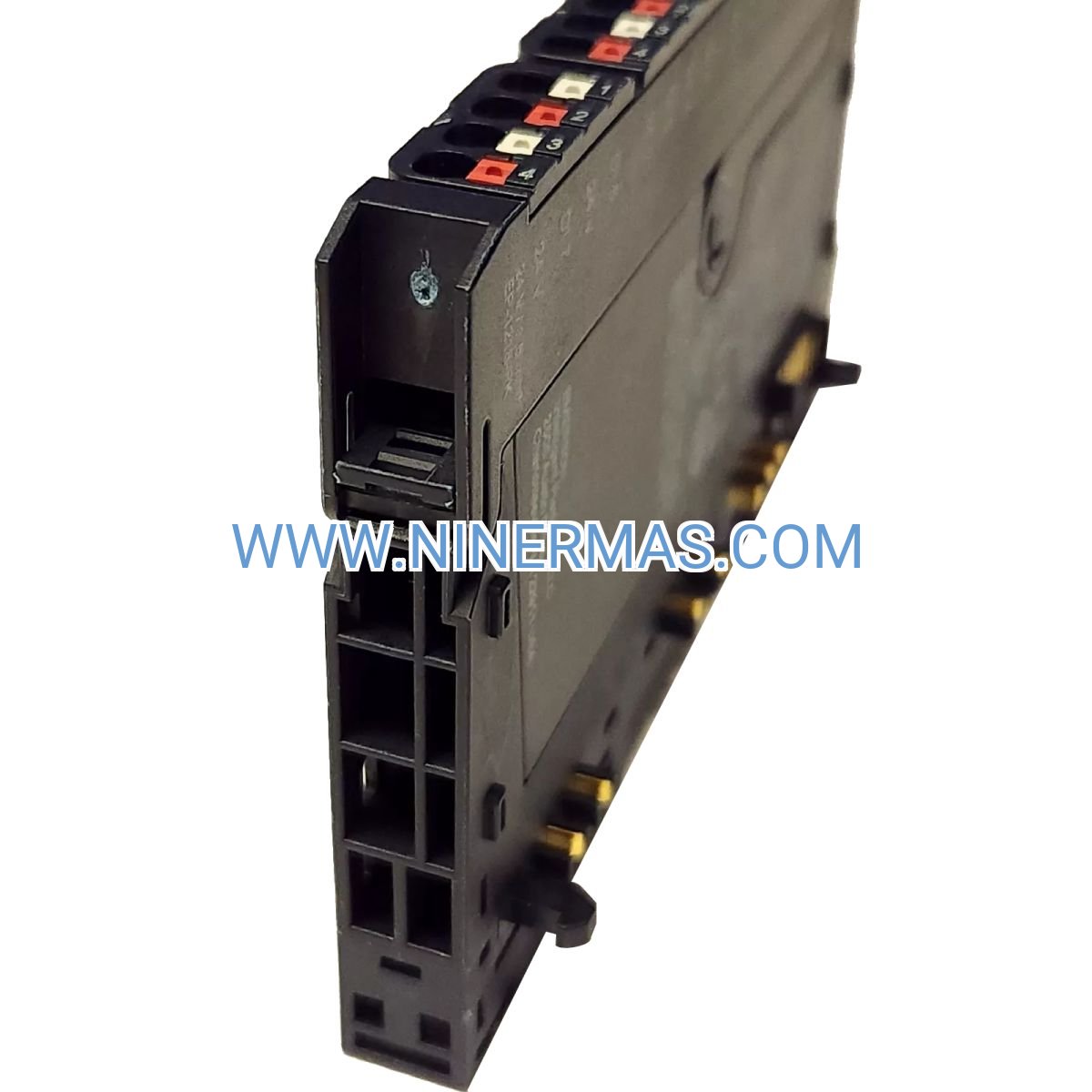

EP-1218 Digital Input Module (Industrial-Grade 8-Channel Discrete Sensing)

Engineered for demanding industrial environments, the EP-1218 represents a proven solution for discrete signal acquisition in distributed control architectures. This 8-channel digital input module integrates seamlessly with RSTi-EP I/O platforms, delivering deterministic performance for proximity sensors, limit switches, and push-button interfaces across manufacturing, process control, and material handling operations.

Built to IEC 61131-2 standards, the module supports positive logic (P-switching) configurations with Type 1 and Type 3 sensor compatibility. The 2-wire connection topology reduces installation complexity while the adjustable input filter (0-40ms) ensures reliable signal processing in electrically noisy industrial settings. Operating across -20°C to +60°C temperature ranges, this module maintains consistent performance in harsh production environments where conventional I/O solutions fail.

Whether you're upgrading legacy control systems or designing new automation infrastructure, the EP-1218 provides the flexibility, reliability, and diagnostic capabilities required for mission-critical discrete input applications. Its hot-swap capability and compact 11.5mm footprint enable rapid deployment and simplified maintenance across global manufacturing facilities.

Key Features & Industrial Benefits

→ High-Speed Deterministic I/O Processing
The 48Mbps RSTi-EP system bus delivers sub-millisecond I/O update cycles, enabling precise synchronization between field devices and control logic. This deterministic performance is critical for high-speed packaging lines, robotic work cells, and coordinated motion control applications where timing accuracy directly impacts product quality and throughput.

✓ Simplified 2-Wire Sensor Integration
Each input channel accepts standard 2-wire PNP sensors, eliminating the need for separate power wiring and reducing cabinet complexity. This architecture cuts installation time by up to 40% compared to 3-wire or 4-wire sensor configurations, while minimizing potential wiring errors during commissioning and maintenance activities.

✓ Adaptive Input Filtering for Noise Immunity
Software-configurable input delays (0-40ms) provide flexible debounce control for mechanical switches and electrical noise rejection in VFD-intensive environments. Set filters to 0ms for high-speed counting applications or extend to 40ms for maximum noise immunity in welding, induction heating, or high-power switching installations.

✓ Hot-Swap Maintenance Without Production Downtime
Replace failed modules during operation without shutting down the entire I/O system or halting production. The RSTi-EP backplane maintains communication with adjacent modules during hot-swap procedures, reducing mean time to repair (MTTR) and maximizing equipment availability in 24/7 manufacturing operations.

✓ Compact High-Density I/O Architecture
At just 11.5mm width, the EP-1218 enables ultra-dense I/O configurations with up to 64 modules per carrier. This space-efficient design reduces control cabinet footprint by 50% compared to traditional terminal block I/O, lowering enclosure costs and simplifying panel layout in space-constrained installations.

✓ Global Certification for Multinational Deployments
CE marking and IEC 61131-2 compliance ensure regulatory acceptance across European, North American, and Asia-Pacific markets. Single-part-number standardization simplifies spare parts inventory and reduces engineering complexity for multinational corporations managing automation standards across multiple facilities.

Application Scenarios & Problem-Solving Capabilities

High-Speed Packaging Line Control
Monitor product presence sensors, carton flap detectors, and label verification systems on packaging lines operating at 300+ units per minute. The adjustable input filter eliminates false triggers from mechanical vibration and sensor chatter, while the 48Mbps backplane ensures real-time coordination between filling stations, capping equipment, and labeling systems. Reduces product rejects by 15-25% through improved sensor signal integrity.

Automated Material Handling Systems
Interface with photoelectric sensors, inductive proximity switches, and limit switches across conveyor networks, sortation equipment, and AS/RS installations. The 2-wire sensor connection simplifies retrofit projects in existing facilities, while hot-swap capability enables maintenance during second-shift operations without disrupting first-shift production schedules. Typical ROI achieved within 8-12 months through reduced installation labor and improved uptime.

Robotic Assembly Cell Integration
Acquire signals from part presence detectors, fixture clamps, tool position switches, and quality inspection sensors in automotive, electronics, and appliance manufacturing. Sub-millisecond I/O response times enable tight synchronization between robotic pick-and-place operations and material transfer systems, increasing cycle rates by 10-15% while maintaining product quality standards.

Process Equipment Status Monitoring
Track valve position limit switches, motor starter auxiliary contacts, and equipment status indicators in chemical processing, food & beverage, and pharmaceutical production. Reverse polarity protection prevents module damage during commissioning, while integrated diagnostics provide early warning of sensor failures before they cause unplanned downtime. Reduces maintenance costs by 20-30% through predictive maintenance capabilities.

Machine Safety System Integration
Connect safety door switches, emergency stop buttons, and light curtain outputs for non-safety-critical monitoring functions adjacent to certified safety systems. While the EP-1218 is a standard I/O module (not safety-rated), it provides reliable discrete input acquisition for machine status indication, operator interface panels, and production tracking systems that complement safety-rated I/O.

Technical Parameters & Selection Guide

Selection Criteria for System Designers:

Choose the EP-1218 when your application requires positive logic (PNP) sensor interfacing with 2-wire connection simplicity. For negative logic (NPN) sensors, specify the EP-1118 variant instead. If your application demands isolated input channels for ground loop elimination, consider the EP-1318 optically isolated version. For applications requiring more than 8 input points, combine multiple EP-1218 modules on a single RSTi-EP carrier to achieve the required I/O density.

Verify that your sensor supply current does not exceed 2A per connector plug (4 channels per plug). For high-current sensor applications exceeding this limit, distribute sensors across multiple modules or specify external sensor power supplies. Confirm that your control network adapter supports the required input filter range—PROFIBUS-DP adapters limit maximum filter time to 20ms, while PROFINET and EtherNet/IP adapters support the full 0-40ms range.

Extended Functionality & System Integration

Multi-Protocol Network Flexibility
The RSTi-EP platform supports interchangeable network adapters for PROFINET IRT, EtherNet/IP, Modbus TCP, and PROFIBUS-DP protocols. Design your I/O configuration once and deploy across different control networks without hardware changes. This protocol independence reduces engineering costs for multinational corporations standardizing on multiple automation platforms across different facilities or geographic regions.

Advanced Diagnostic Capabilities
Integrated health monitoring detects power supply faults, backplane communication errors, and internal failures before they cause system downtime. Diagnostic data propagates to PACSystems controllers and HMI systems for centralized monitoring, enabling predictive maintenance strategies that reduce unplanned downtime by 25-35%. Front-panel LED indicators provide local status visibility for rapid troubleshooting during commissioning and maintenance activities.

Scalable I/O Architecture
Start with a single 8-point module and expand to 512+ I/O points on a single RSTi-EP carrier as your application grows. The modular architecture enables incremental capacity additions without redesigning control cabinets or rewiring field devices. Hot-swap capability allows I/O expansion during production shifts, eliminating the need for costly weekend shutdown windows.

IoT & Industry 4.0 Readiness
Integrate with Emerson's PACSystems Edge controllers and SCADA platforms for cloud connectivity, remote monitoring, and data analytics. The RSTi-EP system provides the deterministic I/O foundation for IIoT applications requiring real-time control combined with enterprise-level data visibility. OPC UA server capabilities enable seamless integration with MES, ERP, and cloud analytics platforms.

Delivery, Warranty & Technical Support

Lead Times & Availability
Standard delivery: 3-5 business days for in-stock items to North American destinations. Express shipping available for urgent requirements with next-day delivery to major metropolitan areas. International shipments typically arrive within 7-10 business days to European and Asia-Pacific locations. Custom configurations and project quantities may require extended lead times—contact our sales team for specific delivery schedules.

Warranty Coverage
24-month manufacturer warranty covers defects in materials and workmanship under normal industrial operating conditions. Warranty includes free replacement of defective modules and technical support for troubleshooting assistance. Extended warranty programs available for critical applications requiring 5-year coverage and advanced replacement services.

Technical Support Services
Our certified automation engineers provide application support for system architecture design, I/O point allocation, network topology planning, and commissioning assistance. Support services include configuration file development, wiring diagram review, and on-site startup assistance for complex distributed I/O implementations. Email and phone support available during business hours with 4-hour response time for technical inquiries.

Documentation Package
Each module ships with installation quick-start guide, safety instructions, and regulatory compliance certificates. Complete technical documentation available for download including detailed installation manuals, wiring diagrams, PACSystems configuration files, and troubleshooting procedures. CAD drawings and 3D models provided for control cabinet design and panel layout planning.

Frequently Asked Questions

What sensor types are compatible with the EP-1218 digital input module?
The EP-1218 accepts PNP (sourcing) proximity sensors, photoelectric sensors, and solid-state switches configured for positive logic operation. It supports Type 1 and Type 3 sensors per IEC 61131-2 standards with 2-wire connection topology. The module is NOT compatible with NPN (sinking) sensors—for NPN applications, specify the EP-1118 negative logic variant instead. Mechanical switches and relay contacts can be interfaced using external pull-up resistors to +24VDC.

How do I configure the input filter delay for my application?
Input filter delay is configured through your PACSystems controller programming software (Machine Edition or Proficy). Navigate to the I/O configuration section, select the EP-1218 module, and adjust the filter time parameter from 0-40ms based on your application requirements. Set to 0ms for high-speed counting applications requiring fast response, or increase to 20-40ms for mechanical switches prone to contact bounce or electrically noisy environments with VFDs and welding equipment. Note that PROFIBUS-DP network adapters limit maximum filter time to 20ms.

Can the EP-1218 reduce energy consumption in my control system?
Yes—the EP-1218 draws only 8mA system current and 30mA input current, significantly lower than traditional relay-based input circuits. The 2-wire sensor connection eliminates separate power wiring, reducing copper consumption and installation costs. When combined with energy-efficient PNP sensors, the module can reduce I/O system power consumption by 40-60% compared to legacy relay-based discrete input systems, contributing to corporate sustainability goals and lower operating costs.

What are the physical installation requirements for the EP-1218?
The module mounts on standard 35mm DIN rail using the RSTi-EP carrier system. Minimum clearance requirements: 50mm above and below the module for adequate ventilation, 25mm on each side for connector access. Operating temperature range is -20°C to +60°C with 5-95% humidity (non-condensing). Install in NEMA 12 or IP54-rated enclosures for industrial environments. Avoid mounting near high-heat sources (VFDs, transformers) or high-vibration equipment without proper isolation.

Does the EP-1218 support remote monitoring and diagnostics?
Yes—diagnostic data from the EP-1218 propagates through the RSTi-EP backplane to your PACSystems controller and can be accessed via HMI, SCADA, or cloud-based monitoring platforms. The module reports power supply status, backplane communication health, and internal fault conditions. When integrated with Emerson's PACSystems Edge controllers, diagnostic data can be transmitted to cloud analytics platforms for predictive maintenance and remote troubleshooting, reducing the need for on-site service visits.

What is the expected service life and maintenance schedule?
The EP-1218 features solid-state electronics with no moving parts, providing MTBF exceeding 500,000 hours at 25°C ambient temperature. Expected service life is 15+ years in typical industrial environments with no scheduled maintenance required. The module is factory-sealed with no user-serviceable components. Hot-swap capability enables replacement during operation without system shutdown. Recommended practice: stock spare modules for critical applications and implement condition-based replacement strategies using integrated diagnostic monitoring.

Order Your EP-1218 Module Today

Ready to upgrade your discrete input infrastructure? Contact our automation specialists for technical consultation, system architecture review, and project quotations. We provide complete RSTi-EP system solutions including network adapters, power modules, DIN rail carriers, and pre-configured I/O assemblies for rapid deployment.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Volume discounts available for project quantities exceeding 10 modules. Same-day shipping for orders placed before 2:00 PM CST.
