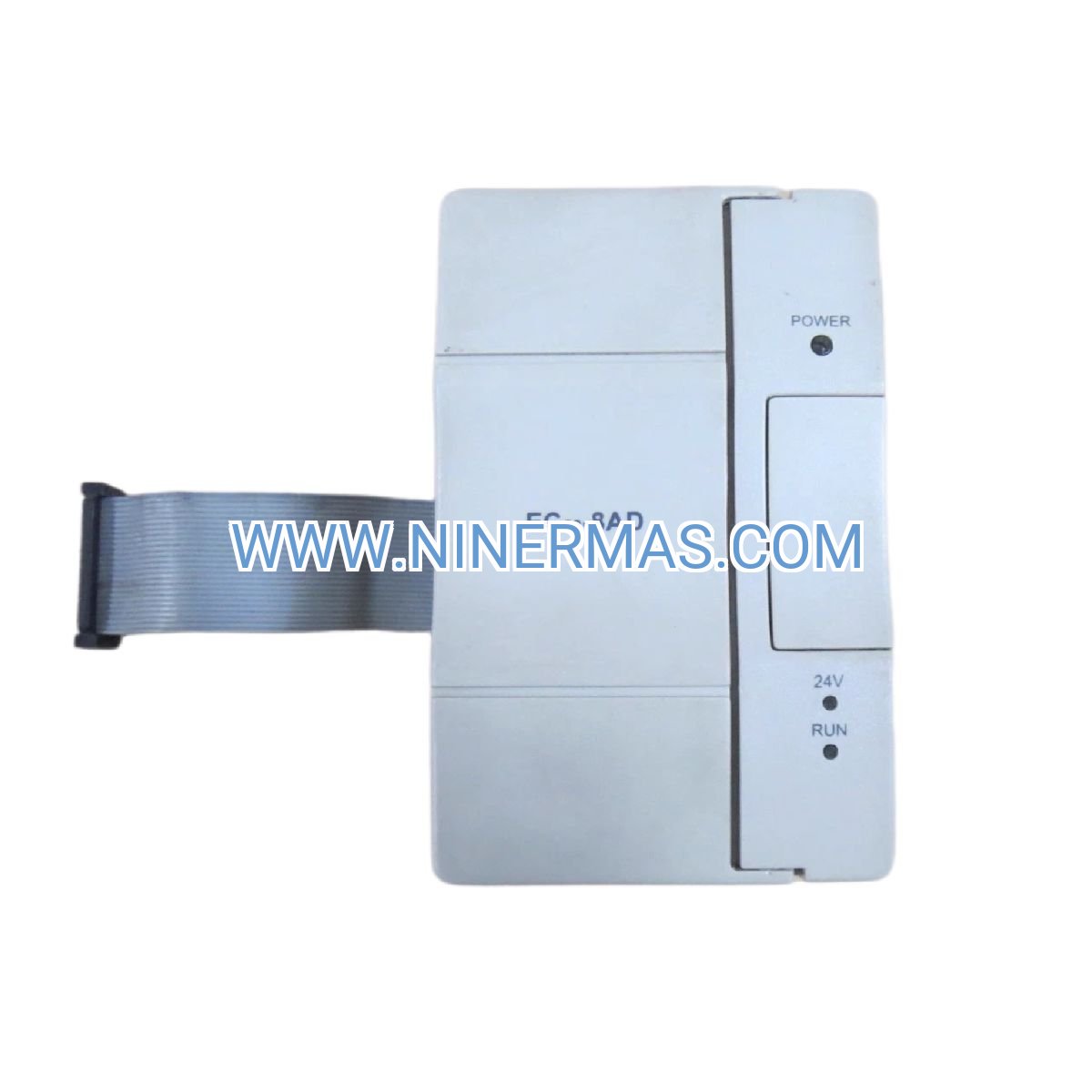

EC20-8AD 8-Channel Analog Input Module (Industrial-Grade Process Control)

The EC20-8AD represents a precision-engineered analog input expansion solution for Emerson DeltaV EC20 programmable logic controllers. Engineered for demanding industrial environments, this 8-channel module delivers reliable signal acquisition from field instrumentation with 12-bit resolution and ±1% full-scale accuracy. Whether you're monitoring pressure transmitters in oil refineries, temperature sensors in pharmaceutical cleanrooms, or flow meters in chemical processing plants, the EC20-8AD provides the measurement fidelity and signal flexibility your critical control applications demand.

Designed for system integrators, automation engineers, and maintenance professionals who require dependable analog data acquisition without compromise. This module seamlessly extends your EC20 PLC's measurement capabilities while maintaining the compact footprint and DIN-rail convenience that modern control panels demand.

With configurable input types (-10V to +10V, 0-20mA, 4-20mA) selectable per channel via software, the EC20-8AD eliminates the need for external signal conditioning in most applications. Deploy it in process automation, machine control, environmental monitoring, or energy management systems where accurate analog measurement drives operational efficiency and product quality.

Key Features & Technical Advantages

→ Multi-Signal Compatibility: Each of the 8 channels independently accepts voltage (-10V to +10V) or current (0-20mA, 4-20mA) inputs, configured through ControlStar software without physical jumpers or switches. This flexibility allows you to interface with diverse field instrumentation using a single module type.

→ High-Resolution Conversion: 12-bit analog-to-digital converter delivers 4096 discrete counts across the full input range, providing sufficient granularity for closed-loop control, trending analysis, and regulatory compliance reporting in process industries.

→ Proven Measurement Accuracy: ±1% full-scale accuracy ensures reliable data acquisition for critical process variables. Combined with the module's low drift characteristics, you can trust the measurements for quality control, batch documentation, and safety interlocks.

✓ Rapid Scan Performance: 15ms conversion time per channel (120ms for all 8 channels) supports real-time control loops and fast-changing process variables in packaging, material handling, and batch manufacturing applications.

✓ Simplified System Integration: Automatic recognition by EC20 main module via internal system bus eliminates manual addressing. The PLC identifies connected expansion modules during power-up, reducing commissioning time and configuration errors.

✓ Industrial Environmental Rating: -5°C to +55°C operating range, IP20 protection, and ISA-S71.04 Class G3 airborne contaminant resistance ensure reliable operation in typical industrial control cabinet environments worldwide.

Application Scenarios & Industry Solutions

Chemical & Petrochemical Processing:
Monitor reactor temperatures, distillation column pressures, and flow rates in continuous chemical production. The EC20-8AD's support for 4-20mA loop-powered transmitters with live-zero detection enables early fault identification in safety-critical measurement loops, reducing unplanned shutdowns and improving process safety.

Pharmaceutical Manufacturing:
Acquire analog signals from cleanroom environmental sensors, bioreactor pH probes, and sterile filtration pressure transmitters. The module's ±1% accuracy meets data integrity requirements for FDA 21 CFR Part 11 compliance, while the 12-bit resolution provides adequate trending data for batch record documentation.

Water & Wastewater Treatment:
Interface with turbidity meters, dissolved oxygen sensors, and chemical dosing flow transmitters in municipal and industrial water treatment facilities. The configurable input types accommodate both legacy 0-20mA instrumentation and modern 4-20mA HART-compatible smart transmitters without requiring separate modules.

Food & Beverage Production:
Collect temperature, pressure, and flow data from pasteurization systems, fermentation vessels, and CIP (clean-in-place) circuits. The module's compact DIN-rail design conserves valuable control panel space in food processing facilities where sanitary design and equipment accessibility are paramount.

Building Automation & HVAC:
Gather analog feedback from VAV damper actuators, chilled water temperature sensors, and outdoor air quality transmitters. The -10V to +10V input range directly accepts signals from BACnet/Modbus-compatible building automation sensors without external signal converters, simplifying system architecture and reducing installation costs.

Technical Specifications & Selection Guide

Selection Criteria: Choose the EC20-8AD when your application requires 8 or fewer analog inputs with standard voltage/current signal types. For applications requiring HART communication, higher channel density, or intrinsically safe inputs, consider Emerson's Ovation or DeltaV distributed I/O alternatives. Consult our application engineers for system architecture guidance on complex multi-loop control projects.

Advanced Integration Capabilities

ControlStar Programming Environment: Configure input scaling, alarm thresholds, and diagnostic parameters through Emerson's intuitive ControlStar development software. The graphical interface displays real-time channel values, min/max statistics, and fault indicators, accelerating commissioning and troubleshooting. Export configuration files for documentation and version control in regulated industries.

Automatic System Bus Recognition: Upon power-up, the EC20 main module scans the internal expansion bus and automatically identifies connected I/O modules by type and position. This plug-and-play architecture eliminates manual module addressing and reduces the risk of configuration errors during system expansion or module replacement.

Flexible Data Mapping: Analog input values appear in dedicated PLC memory registers accessible by ladder logic, function block diagrams, or structured text programs. Apply linearization algorithms for non-linear sensors (thermocouples, RTDs), implement moving-average filters for noisy signals, or create custom scaling functions to convert raw counts into engineering units (bar, °F, m³/h) within your control program.

Diagnostic & Fault Detection: Built-in diagnostics monitor each channel for open-circuit conditions, out-of-range signals, and ADC conversion errors. Diagnostic status bits integrate with your PLC program to trigger alarms, initiate backup control strategies, or notify maintenance personnel via SCADA/HMI systems when measurement faults occur.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock EC20-8AD modules ship within 1-2 business days via DHL, FedEx, or UPS to destinations worldwide. Typical transit times: 3-5 days to North America/Europe, 5-7 days to Asia-Pacific, 7-10 days to other regions. Expedited shipping available upon request for urgent project requirements.

Warranty Coverage: All modules include Emerson's standard 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring long-term parts availability and support.

Technical Support: Our certified automation engineers provide pre-sales application consultation, system design review, wiring diagram verification, and post-installation troubleshooting assistance. Email support typically responds within 4 business hours; phone support available during business hours (GMT+8).

Documentation Package: Each module ships with installation quick-start guide. Complete user manuals, ControlStar programming examples, wiring diagrams, and CAD drawings available for download from our technical library or upon request from our support team.

Frequently Asked Questions

Q: Can I mix voltage and current inputs on the same EC20-8AD module?
A: Yes, each of the 8 channels can be independently configured for voltage (-10V to +10V) or current (0-20mA, 4-20mA) input via ControlStar software. This allows you to connect a pressure transmitter (4-20mA) on channel 1, a potentiometer (-10V to +10V) on channel 2, and a legacy flow meter (0-20mA) on channel 3 using a single module.

Q: What is the maximum number of EC20-8AD modules I can connect to one EC20 main module?
A: The EC20 PLC system supports up to 8 expansion modules total per main module. You can use any combination of analog input, analog output, digital input, and digital output expansion modules, provided the total count does not exceed 8 modules. For larger systems, consider distributed I/O architectures or multiple EC20 controllers networked via Modbus RTU/TCP.

Q: Does the EC20-8AD require external power supply or is it powered by the main module?
A: The module receives 24VDC power automatically from the EC20 main module via the internal system bus. No external power wiring is required. The module consumes approximately 2W, which is supplied by the main module's power budget. Ensure your main module's power supply can support the total current draw of all connected expansion modules.

Q: How do I wire 4-20mA transmitters to the EC20-8AD module?
A: For 2-wire loop-powered transmitters, connect the positive transmitter wire to the channel's positive terminal and the negative wire to the channel's negative terminal. The module provides the loop excitation voltage. For 4-wire transmitters with separate power supply, connect only the current output wires to the module terminals. Always use shielded twisted-pair cable and ground the shield at the module end only to prevent ground loops.

Q: Can the EC20-8AD interface with HART-enabled smart transmitters?
A: The EC20-8AD can read the 4-20mA analog signal from HART transmitters, but it does not support HART digital communication for device configuration or advanced diagnostics. If you require HART communication capabilities, consider Emerson's Ovation 5X00106G02 16-channel HART analog input module, which provides both analog measurement and HART protocol support for asset management and predictive maintenance applications.

Q: What cable specifications are recommended for analog input wiring?
A: Use shielded twisted-pair cable rated for 300V minimum, 14-22 AWG wire gauge. For current inputs (0-20mA, 4-20mA), maximum cable resistance should not exceed 600Ω to maintain measurement accuracy. For voltage inputs, use cable with low capacitance (<100pF/m) to minimize signal degradation. Route analog signal cables separately from AC power wiring, motor cables, and VFD outputs by at least 300mm to reduce electromagnetic interference.

Order Your EC20-8AD Module Today

Expand your DeltaV EC20 PLC system's analog measurement capabilities with confidence. Add the EC20-8AD to your cart now for fast global shipping, expert technical support, and the quality assurance that comes with genuine Emerson automation components. For volume pricing on project quantities (10+ modules), system integration consultation, or application-specific technical questions, contact our sales engineering team at sale@ninermas.com or call +0086 187 5021 5667.
