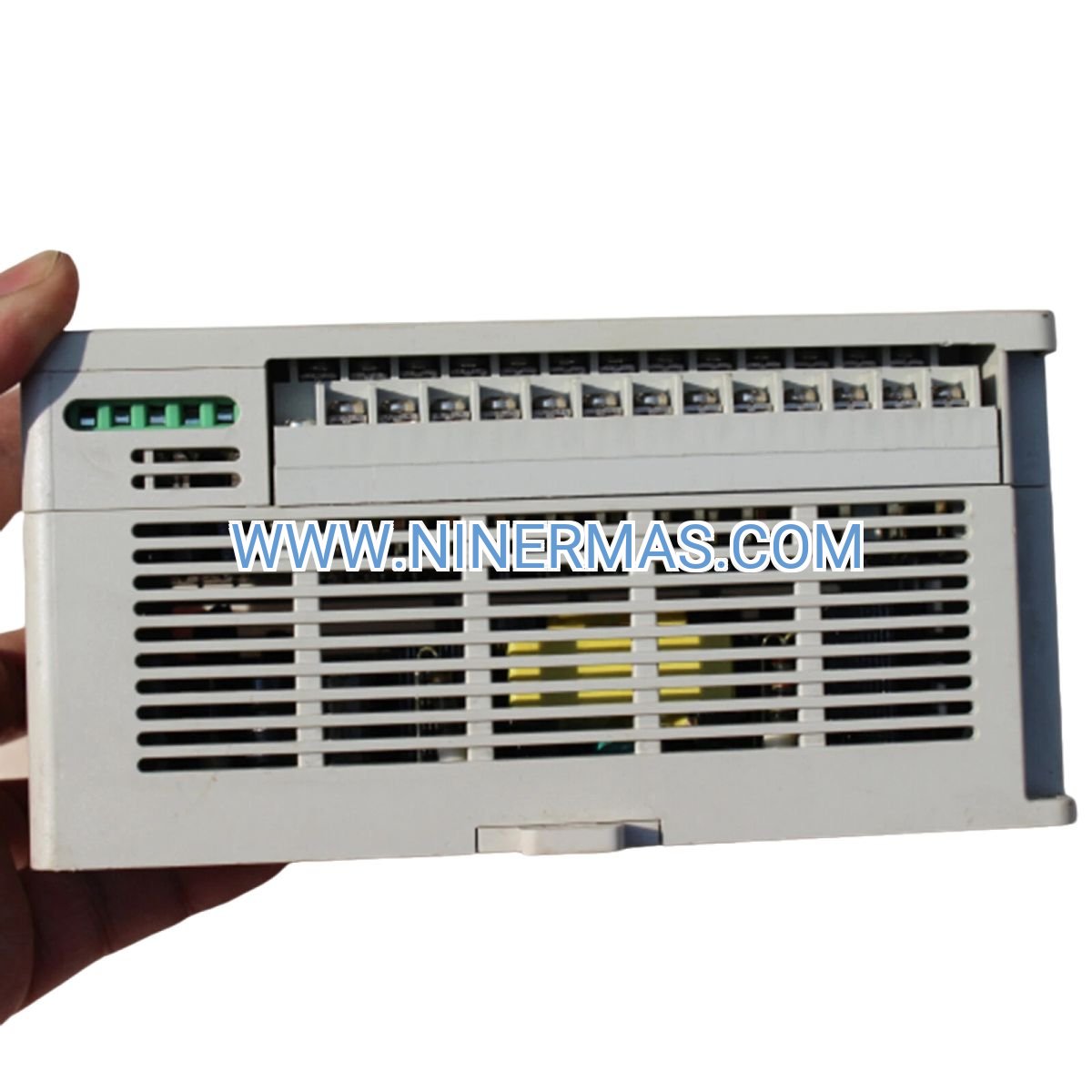

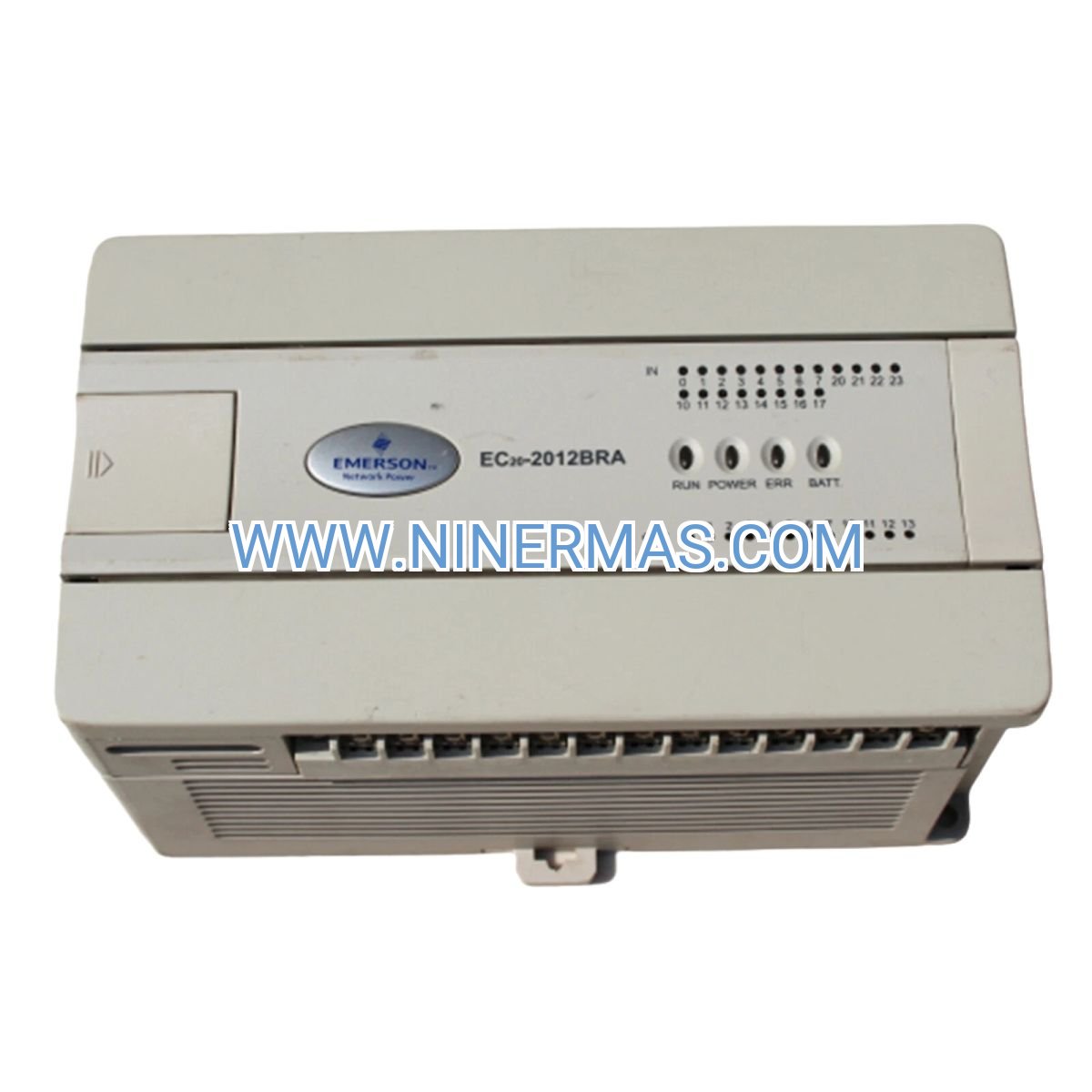

EC20-2012BRA Programmable Logic Controller (Industrial-Grade Discrete I/O Solution)

The EC20-2012BRA represents a robust programmable logic controller engineered for demanding industrial automation environments. This compact yet powerful control module integrates 20 discrete digital inputs with 12 electromechanical relay outputs, delivering comprehensive I/O capabilities within a space-efficient DIN rail package. Designed for machine builders, system integrators, and plant engineers, this controller excels in applications ranging from automated manufacturing lines to critical infrastructure management across water treatment, HVAC, and energy sectors.

Built on a high-performance 32-bit microprocessor architecture, the EC20-2012BRA processes control logic with exceptional speed and reliability. Its dual serial communication ports—RS232 for local programming and RS485 for Modbus networking—enable seamless integration into distributed control systems and SCADA infrastructures. Whether you're retrofitting legacy equipment or designing greenfield automation projects, this controller provides the flexibility, durability, and performance required for mission-critical operations.

Certified to international safety and EMC standards including CE marking and RoHS compliance, the EC20-2012BRA meets global deployment requirements. Its wide operating temperature range (-5°C to +55°C) and rugged construction ensure reliable operation in harsh industrial environments, from outdoor pump stations to high-temperature manufacturing facilities.

Key Features & Technical Advantages

→ 20 Configurable Digital Inputs
Sink/source selectable 24VDC inputs accommodate both PNP and NPN sensor types without external signal conditioning. Opto-isolated channels protect against electrical noise and ground loops, with fast <10ms response times for high-speed event detection and counting applications.

→ 12 High-Current Relay Outputs
Electromechanical relays rated 250VAC/30VDC at 2A per channel provide galvanic isolation for switching inductive loads including motor contactors, solenoid valves, and alarm devices. Field-replaceable relay modules minimize downtime during maintenance.

→ Dual Serial Communication Ports
RS232 port supports direct connection to programming terminals and HMI panels. RS485 Modbus RTU/ASCII interface enables multi-drop networking with up to 32 devices, facilitating distributed control architectures and SCADA integration.

✓ Expandable I/O Architecture
Expansion bus supports additional analog input (EC20-8AD), analog output (EC20-4DA), and discrete I/O modules, scaling system capacity beyond 50 I/O points for complex automation requirements.

✓ 256KB Program Memory
Generous program storage accommodates sophisticated ladder logic applications with thousands of rungs, timers, counters, and function blocks, programmed using IEC 61131-3 compliant ControlStar software.

✓ Compact DIN Rail Design
Space-saving 128mm × 90mm × 82mm footprint mounts to standard 35mm T-type DIN rail, optimizing control panel real estate while maintaining accessibility for wiring and troubleshooting.

Industrial Application Scenarios

Automated Manufacturing & Packaging Lines
The EC20-2012BRA's 20 digital inputs monitor limit switches, proximity sensors, safety interlocks, and product detection sensors across conveyor systems, pick-and-place robots, and packaging machinery. Its 12 relay outputs sequence motor starters, pneumatic actuators, and diverter gates, executing complex material handling logic. Fast scan times ensure precise timing for high-speed operations, while Modbus connectivity enables production data collection for OEE analysis and predictive maintenance programs.

Water & Wastewater Treatment Facilities
Control pump sequencing, valve automation, chemical dosing systems, and level management in municipal water treatment plants and industrial wastewater facilities. The controller's wide temperature range supports outdoor installations in pump houses and lift stations without environmental conditioning. Modbus integration with SCADA systems provides centralized monitoring of flow rates, tank levels, and equipment status across distributed sites.

HVAC & Building Automation Systems
Manage rooftop units, air handling equipment, boiler/chiller plants, and lighting control in commercial buildings and industrial facilities. Relay outputs drive damper actuators, fan contactors, and valve solenoids, while digital inputs monitor temperature switches, occupancy sensors, and safety devices. RS485 networking connects multiple controllers for zone-based climate control and energy optimization strategies.

Oil & Gas Production Equipment
Automate wellhead control, separator operations, tank farm management, and pipeline valve sequencing in upstream production facilities. The rugged design withstands vibration, humidity, and temperature extremes common in oilfield environments. Compact dimensions fit space-constrained field enclosures, while battery-backed memory preserves control programs during power interruptions.

Food & Beverage Processing
Orchestrate batch mixing, material transfer, CIP (clean-in-place) systems, and packaging line coordination in food manufacturing plants. Relay outputs' 2A rating handles standard industrial contactors and solenoid valves without external amplification. Ladder logic programming simplifies recipe management and process sequencing, with online debugging capabilities reducing commissioning time.

Technical Specifications & Selection Guide

Selection Criteria: Choose the EC20-2012BRA when your application requires 15-20 discrete input points and 8-12 relay output channels. For applications needing analog I/O, add EC20-8AD (analog input) or EC20-4DA (analog output) expansion modules. If your output loads exceed 2A per channel or require faster switching than electromechanical relays provide, consider transistor output variants or external solid-state relay interfaces.

Extended Capabilities & System Integration

IoT & Industry 4.0 Connectivity
While the EC20-2012BRA provides traditional Modbus serial communication, it integrates seamlessly with IoT gateways and edge computing devices via RS485 networks. Connect to Modbus-to-Ethernet converters, cellular RTUs, or industrial IoT platforms to enable remote monitoring, cloud-based analytics, and mobile device access to real-time process data.

Advanced Programming Functions
Beyond basic ladder logic, the ControlStar development environment supports structured text programming, function block diagrams, and sequential function charts per IEC 61131-3 standards. Built-in PID control algorithms, math functions, and data manipulation instructions enable sophisticated process control without external computing resources.

Customization & OEM Integration
OEM machine builders can develop standardized control programs and upload them to multiple EC20-2012BRA units for consistent machine performance across production runs. Password protection and program upload restrictions safeguard intellectual property when delivering equipment to end customers.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL, FedEx, UPS). Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days. Expedited same-day shipping available for urgent requirements.

Custom Configuration: Pre-programmed controllers with customer-specific ladder logic and I/O configurations available with 5-10 business day lead time. Contact our application engineering team for project-specific requirements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring long-term support commitments.

Technical Support Services: Complimentary pre-sales application engineering consultation, ladder logic programming assistance, Modbus configuration guidance, and system architecture review. Post-sales support includes troubleshooting, firmware updates, and replacement part identification.

Documentation Package: Each controller ships with user manual, quick start guide, wiring diagrams, Modbus register map, and ControlStar software download instructions. CAD drawings (DXF, STEP) and electrical schematics available upon request for panel design integration.

Frequently Asked Questions

Q: Can the EC20-2012BRA controller interface with both PNP and NPN proximity sensors simultaneously?
A: Yes, the digital inputs are individually configurable for sink or source operation. You can connect PNP (source) sensors to some inputs and NPN (sink) sensors to others within the same controller by setting the appropriate jumper configurations or software parameters. Consult the user manual for specific wiring diagrams and configuration procedures.

Q: What is the maximum I/O capacity when using expansion modules with this PLC?
A: The base EC20-2012BRA provides 20 digital inputs and 12 relay outputs. The expansion bus supports multiple EC20 series modules, enabling systems with 50+ I/O points. Typical configurations include adding EC20-8AD (8 analog inputs), EC20-4DA (4 analog outputs), and additional discrete I/O modules. Maximum expansion depends on power budget and communication bus loading—contact technical support for large system design assistance.

Q: How much energy does the EC20-2012BRA consume during continuous operation?
A: The controller itself consumes approximately 12W (24VDC @ 0.5A) excluding I/O load. Digital input current draw depends on sensor types and quantities connected. Relay output power consumption occurs only when outputs are energized, with each relay coil drawing ~50mA. Total system power requirements should account for all connected field devices and I/O loads.

Q: What are the installation requirements for outdoor or harsh environment applications?
A: The EC20-2012BRA is rated IP20, requiring installation inside a protective enclosure (NEMA 4/4X or IP65 minimum) for outdoor or washdown environments. Ensure the enclosure maintains ambient temperature within the -5°C to +55°C operating range. For extreme temperature locations, consider enclosure heating/cooling accessories. Proper grounding and surge protection devices are recommended for lightning-prone areas.

Q: Does this controller support remote monitoring and control over Ethernet networks?
A: The EC20-2012BRA features RS232 and RS485 serial ports with Modbus RTU/ASCII protocol. For Ethernet connectivity, use a Modbus-to-Ethernet gateway or protocol converter to bridge the serial Modbus network to TCP/IP networks. This enables integration with Ethernet-based SCADA systems, web-based HMIs, and cloud IoT platforms.

Q: Can I program the EC20-2012BRA using third-party software or only ControlStar?
A: The recommended programming environment is ControlStar software, which provides full access to all controller features, online debugging, and firmware updates. While the controller uses standard Modbus communication, ladder logic programming requires ControlStar or compatible IEC 61131-3 development tools that support the EC20 instruction set and memory architecture.

Ready to Automate Your Industrial Processes?

The EC20-2012BRA programmable logic controller delivers proven reliability, flexible I/O configuration, and seamless system integration for your automation projects. Whether you're upgrading legacy relay-based control panels or designing new automated systems, this controller provides the performance and expandability to meet evolving operational requirements.

Contact our automation specialists today for application-specific recommendations, system architecture consultation, and volume pricing for multi-unit projects. We provide complete technical support from initial design through commissioning and ongoing maintenance.
