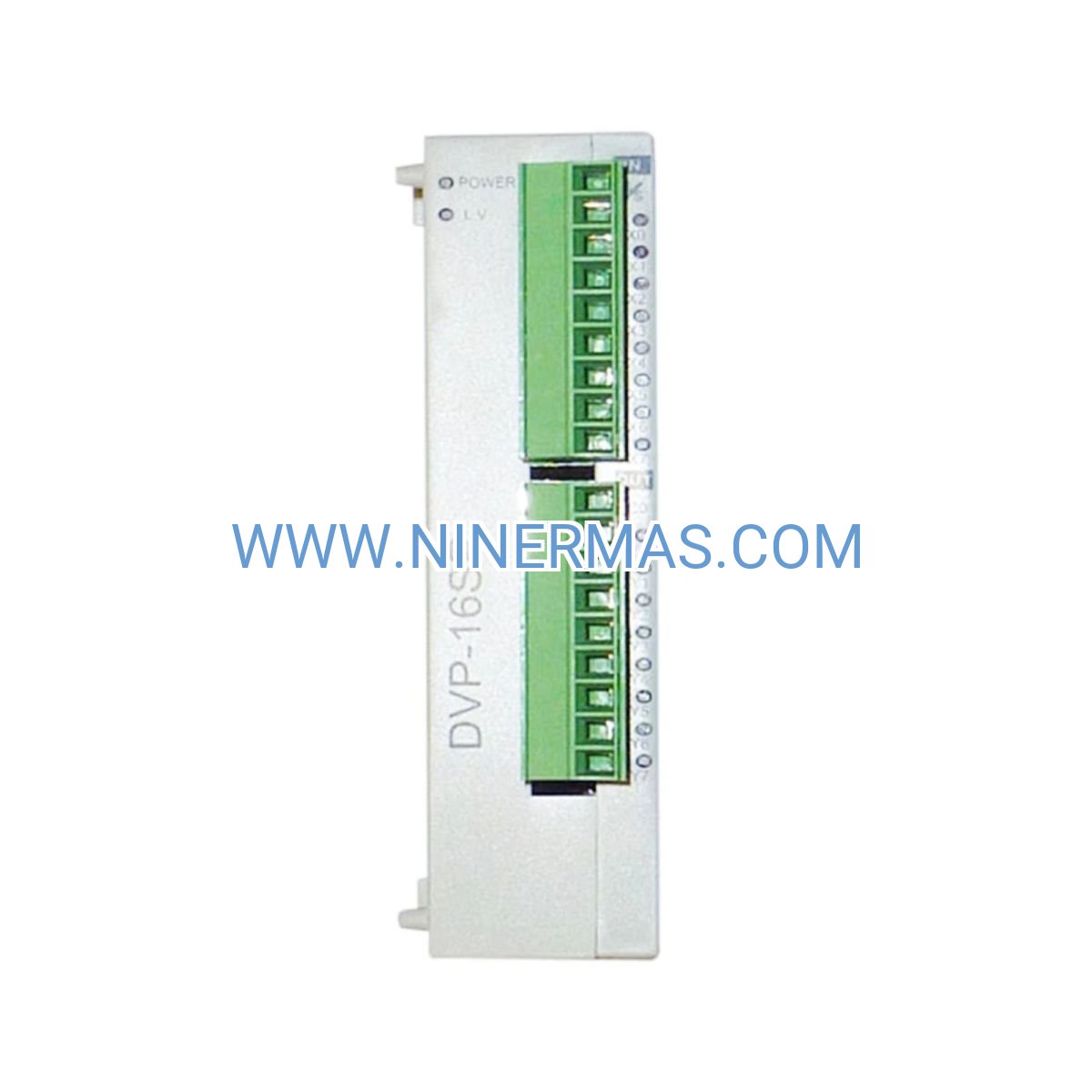

DVP16SP11 Digital I/O Extension Module — Industrial-Grade 16-Point Expansion for DeltaV SP Controllers

Engineered for demanding industrial environments, the DVP16SP11 delivers reliable digital signal acquisition and control through 8 configurable inputs and 8 versatile outputs. This compact extension module integrates seamlessly with Emerson DeltaV SP Series programmable controllers, enabling scalable automation architectures for manufacturing, process control, and infrastructure applications. Built to CE, UL, and RoHS standards, it combines robust construction with flexible I/O configurations to meet diverse field device interfacing requirements.

Designed for system integrators and automation engineers, the DVP16SP11 addresses the critical need for cost-effective I/O expansion without compromising signal integrity or system reliability. Whether you're retrofitting legacy equipment, scaling production lines, or deploying new control systems, this module provides the foundation for responsive, maintainable automation solutions.

With proven compatibility across DeltaV SP controller families and support for both relay and solid-state output variants, the DVP16SP11 adapts to your specific application requirements while maintaining consistent performance across temperature extremes and electrically noisy industrial settings.

Key Features & Technical Advantages

→ Dual-Mode Input Architecture
Sink/source compatible inputs eliminate the need for external signal conditioning when interfacing mixed sensor types. Accept signals from both NPN and PNP proximity sensors, photoelectric switches, and dry contact devices without configuration changes, reducing installation complexity and component costs by up to 30%.

✓ Multi-Variant Output Flexibility
Choose from three factory-configured output types: electromechanical relays (250VAC/1.5A for AC loads), NPN transistors (0.1ms response for high-speed applications), or PNP transistors (European wiring standard compliance). Single part number platform accommodates diverse load requirements without inventory multiplication.

→ Compact High-Density Footprint
60mm width enables 6 modules per standard 400mm DIN rail section, maximizing I/O density in space-constrained control panels. Vertical stacking capability supports up to 480 total I/O points per controller, ideal for complex machine control and process monitoring applications.

✓ Bus-Powered Operation
Draw power directly from the main PLC system bus (100mA internal consumption), eliminating separate power supply wiring and reducing panel complexity. External 24VDC field power (500mA capacity) supports output loads while maintaining electrical isolation from control logic.

→ Industrial Environmental Hardening
Operate reliably across 0°C to +55°C ambient temperatures with ISA-S71.04 Class G3 airborne contaminant protection. IP20-rated enclosure withstands typical control cabinet conditions while maintaining signal accuracy in high-EMI environments near VFDs and welding equipment.

✓ Plug-and-Play System Integration
Automatic I/O mapping upon module installation eliminates manual address configuration. WPLSoft and ISPSoft programming environments provide real-time I/O monitoring, forced I/O testing, and diagnostic capabilities for rapid commissioning and troubleshooting.

Application Scenarios & Problem-Solving Capabilities

Packaging Line Control & Synchronization
Monitor product presence sensors, carton position switches, and reject gate confirmations while controlling pneumatic actuators, conveyor motors, and labeling triggers. The 10ms input scan time captures high-speed events on lines running 120+ packages per minute, while relay outputs handle 24VAC solenoid valve coils common in pneumatic systems. Reduces missed counts and improves OEE by ensuring accurate product tracking.

Chemical Batch Process Monitoring
Interface with level transmitter alarm contacts, agitator motor auxiliary contacts, and valve limit switches across reactor vessels and storage tanks. Sink/source input compatibility accepts signals from existing 3-wire PNP level switches without rewiring, cutting retrofit installation time by 40%. Controls chemical feed pumps, mixer starters, and transfer valves while maintaining complete electrical isolation between hazardous area devices and control logic.

HVAC Equipment Sequencing
Manage chiller staging, boiler lead-lag control, and air handler scheduling in commercial buildings. Monitor flow switches, differential pressure switches, and freeze stats while controlling damper actuators, pump contactors, and fan starters. The compact 90mm height fits standard electrical enclosures, enabling distributed control architecture that reduces copper costs and simplifies troubleshooting compared to centralized I/O racks.

Water Treatment Plant Automation
Track clarifier level switches, filter backwash status, and chemical feed pump run confirmations while controlling dosing pumps, blower motors, and valve actuators. Wide operating temperature range accommodates outdoor installations and non-climate-controlled pump houses. Relay outputs provide fail-safe operation during PLC faults, ensuring critical processes maintain safe states.

Material Handling Safety Interlocks
Implement safety logic for emergency stop circuits, guard door monitoring, and two-hand control stations on conveyors, palletizers, and robotic cells. Galvanic isolation between inputs and outputs prevents ground loop issues in distributed systems spanning multiple electrical panels. Meets machinery directive requirements for Category 1 safety functions when combined with appropriate safety relays.

Technical Specifications & Selection Parameters

Output Type Selection Criteria

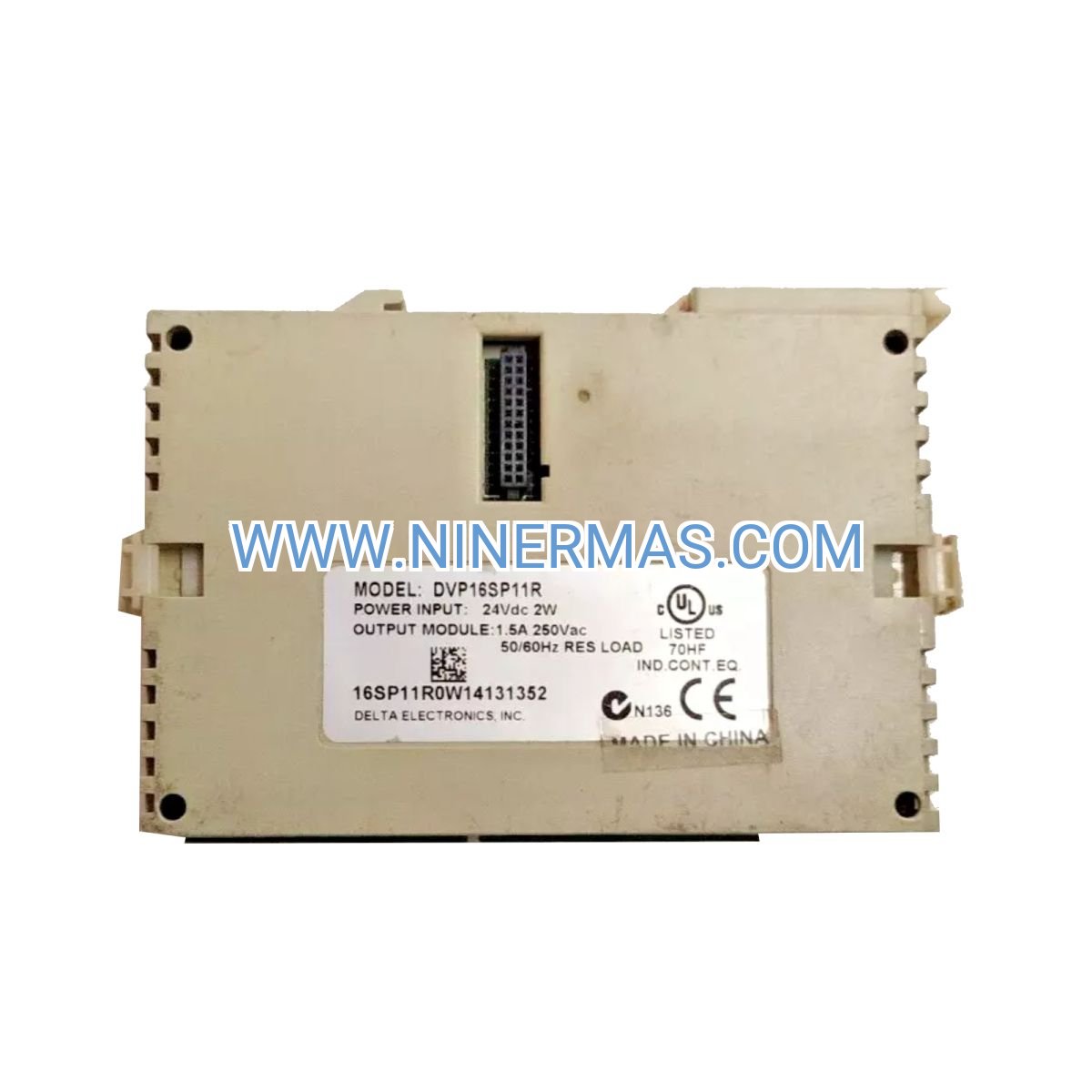

DVP16SP11R — Relay Output Configuration
Best for: AC solenoid valves (24-250VAC), indicator lamps, motor contactors, and applications requiring complete electrical isolation. Form C contacts rated 1.5A resistive, 0.5A inductive. Expected life: 100,000 operations at full load, 500,000+ operations at 25% load. Ideal when switching multiple voltage levels or when fail-safe mechanical contact state is required during power loss.

DVP16SP11T — NPN Transistor Output Configuration
Best for: High-speed pulse outputs, stepper motor drivers, LED indicators, and DC loads requiring <1ms response time. Sinking output topology requires common positive (+24VDC) field power. Unlimited switching cycles make this ideal for applications with frequent state changes (>10 Hz). No contact bounce or arcing, suitable for explosive atmosphere Zone 2 applications when properly installed.

DVP16SP11TS — PNP Transistor Output Configuration
Best for: European machinery compliance, interfacing with PNP input devices, and systems using common negative (0VDC) field wiring. Sourcing output topology matches IEC 61131-2 Type 1 output specifications. Same performance as NPN variant but with reversed polarity requirements. Preferred for CE-marked machinery exported to EU markets.

Advanced Integration & Programming Capabilities

Seamless DeltaV SP Ecosystem Compatibility
The DVP16SP11 auto-configures upon connection to any DeltaV SP Series controller (SS2, SA2, SX2, EH3 models), with I/O points automatically mapped to program memory addresses. No DIP switches, rotary selectors, or software configuration required — simply snap onto DIN rail adjacent to main PLC and power cycle the system.

Multi-Language Programming Support
Develop control logic using ladder diagram (LD), function block diagram (FBD), or structured text (ST) programming languages within WPLSoft or ISPSoft development environments. Access 256 timers, 256 counters, and 10,000+ data registers for complex sequencing, recipe management, and data logging applications.

Real-Time Diagnostics & Forced I/O
Monitor input/output states in real-time during commissioning and troubleshooting. Force individual I/O points to on/off states independent of program logic for valve stroking, sensor verification, and actuator testing without modifying application code. LED indicators on module front panel provide at-a-glance status of all 16 I/O points.

Installation Best Practices & Wiring Guidelines

Mechanical Mounting
Snap module onto T-type 35mm DIN rail with locking tab engaged. Maintain 10mm clearance on both sides for convection cooling. Maximum ambient temperature derate: 2°C per adjacent heat-generating device (VFD, power supply). Vertical orientation preferred for optimal heat dissipation in high-density installations.

Input Circuit Wiring
Use 18-22 AWG shielded twisted-pair cable for input connections. Maximum cable length: 100m for reliable noise immunity in high-EMI environments. Connect shield to cabinet ground at control panel end only (single-point grounding). For dry contact inputs, use external 24VDC supply with current-limiting resistor (4.7kΩ recommended).

Output Circuit Protection
Install suppression diodes (1N4007 or equivalent) across inductive DC loads (solenoid valves, relay coils) with cathode to positive. For AC inductive loads, use RC snubber networks (0.1µF/100Ω) across relay contacts to extend contact life. Size wire gauge per load current: 18 AWG for 1.5A, 16 AWG for runs >10m.

Grounding & EMC Compliance
Connect chassis ground terminal to cabinet ground bus using 14 AWG wire or larger. Maintain separation between I/O wiring and high-voltage AC power cables (minimum 100mm spacing). Route input and output cables in separate wire ducts to prevent crosstalk. Use ferrite cores on I/O cables when operating near VFDs or welding equipment.

Delivery, Warranty & Technical Support

Lead Time & Availability
Standard delivery: 3-5 business days for in-stock items to North America, 5-7 days to Europe/Asia-Pacific. Expedited shipping available for critical downtime situations. Volume orders (10+ units) ship within 7-10 business days with quantity discounts applied automatically at checkout.

Warranty Coverage
24-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement module and return shipping. Extended 60-month warranty available for critical infrastructure applications (water treatment, power generation, healthcare facilities).

Engineering Support Services
Complimentary pre-sales application engineering consultation for system design, I/O mapping, and component selection. Post-sales support includes programming examples, wiring diagrams, and troubleshooting assistance via email/phone. On-site commissioning support available for projects >50 I/O points.

Documentation Package
Every module ships with installation manual, wiring diagrams, I/O specifications, and programming quick-start guide. Downloadable resources include CAD drawings (DWG/DXF), 3D STEP models for panel layout, and sample ladder logic programs for common applications.

Frequently Asked Questions

Q: Can I mix relay and transistor output modules on the same PLC?
A: Yes, the DeltaV SP Series supports mixed I/O configurations. You can combine DVP16SP11R (relay), DVP16SP11T (NPN), and DVP16SP11TS (PNP) modules on the same system bus, with each module independently configured in software. This allows optimizing output type per application zone while maintaining centralized control logic.

Q: What is the maximum I/O expansion capacity for DeltaV SP controllers?
A: Expansion capacity varies by main PLC model: DVP-SS2/SA2 support up to 480 I/O points (30 modules), DVP-SX2 supports 480 points, and DVP-EH3 supports 512 points (32 modules). Each DVP16SP11 consumes 16 I/O points from the total capacity. Consult your PLC datasheet for specific model limitations.

Q: How do I connect 3-wire PNP sensors to the sink/source inputs?
A: Connect sensor brown wire (+24VDC) to external power supply positive, blue wire (0V) to power supply negative and input common terminal, and black wire (signal) to input terminal. The module's sink/source architecture automatically adapts to PNP signal polarity without requiring external interface relays or signal converters.

Q: What is the recommended maintenance schedule for relay outputs?
A: Inspect relay output connections quarterly for signs of arcing or discoloration. Test relay operation annually by forcing outputs and measuring contact resistance (<100mΩ indicates good contact). Replace relay output modules preventively after 80,000 operations at rated load or when contact resistance exceeds 1Ω. Transistor outputs require no preventive maintenance.

Q: Can this module operate in outdoor enclosures without climate control?
A: Yes, provided the enclosure maintains 0°C to +55°C internal temperature and protects against direct water ingress (minimum NEMA 4/IP65 enclosure rating). Install in shaded location to prevent solar heating above 55°C. For extreme climates, consider enclosure heaters (cold) or ventilation fans (hot) to maintain operating range.

Q: Is the DVP16SP11 compatible with legacy DeltaV ES/EX Series controllers?
A: No, the DVP16SP11 is designed exclusively for DeltaV SP Series controllers using the high-speed system bus protocol. For ES/EX Series expansion, use DVP16ES or DVP16EX modules respectively. Contact our technical team for migration strategies when upgrading from legacy platforms to SP Series architecture.

Ready to Expand Your DeltaV Control System?

Add the DVP16SP11 to your cart now and receive free technical documentation, programming examples, and access to our application engineering team. Volume pricing automatically applied for orders of 5+ modules. Questions about compatibility or system design? Contact our automation specialists at sale@ninermas.com or +0086 187 5021 5667 for personalized assistance.
