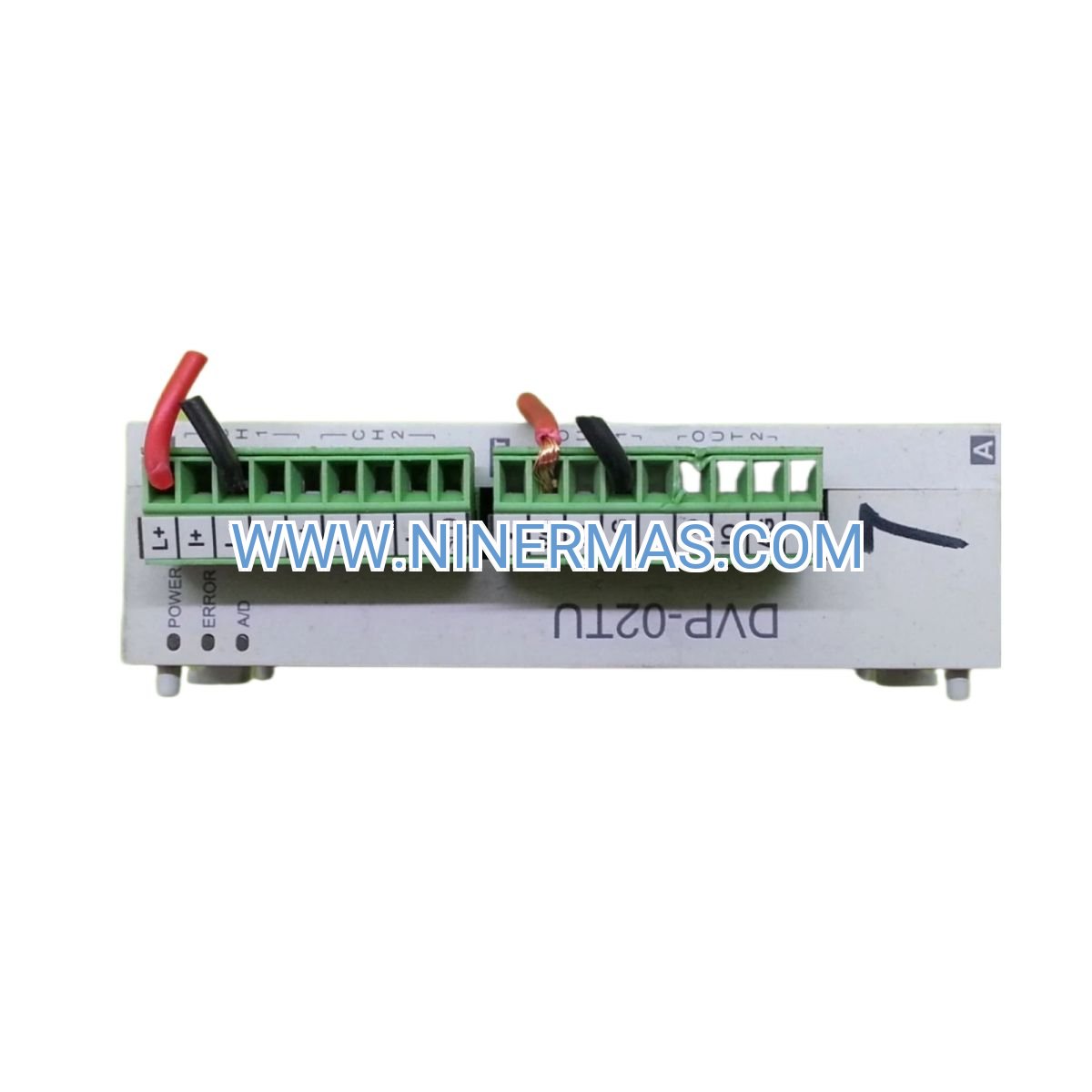

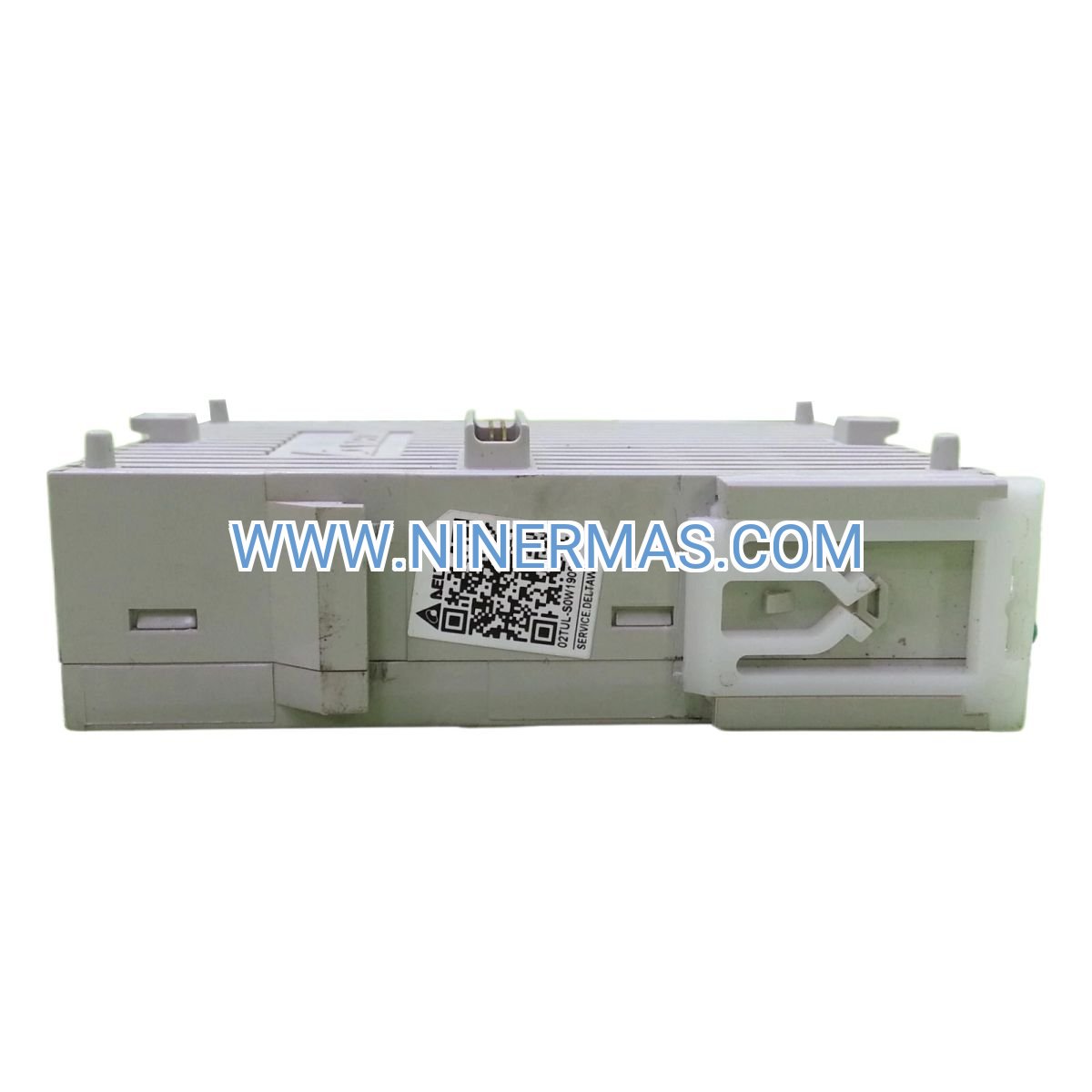

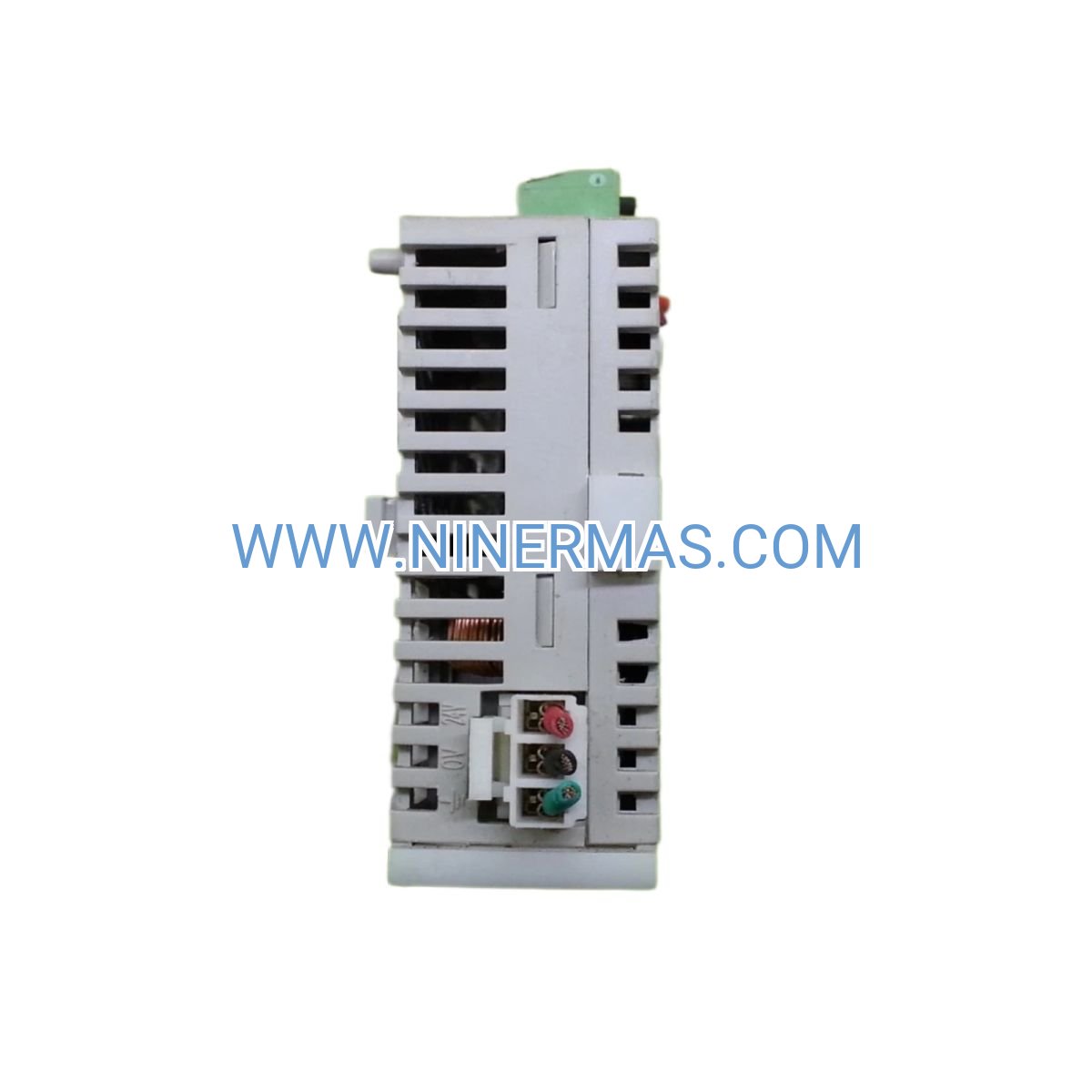

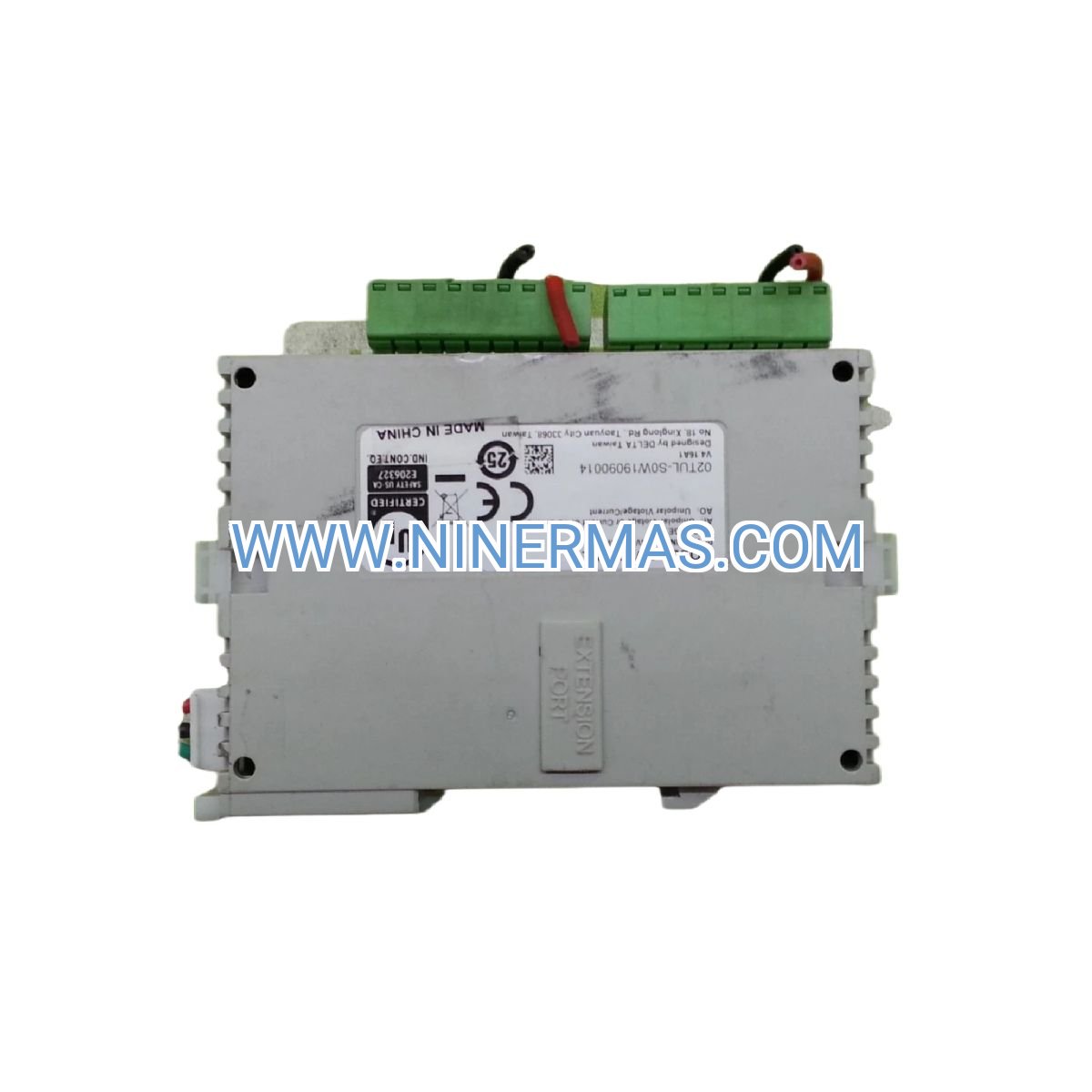

DVP02TUL-S Dual-Mode Analog Output Interface (Industrial-Grade Signal Conditioning)

The DVP02TUL-S represents Emerson's advanced analog signal generation technology for Ovation distributed control platforms. Engineered for mission-critical process automation, this dual-output module seamlessly converts digital control commands into precision voltage (0-10VDC) or current (4-20mA) signals that drive field instrumentation across oil refineries, chemical plants, power stations, and pharmaceutical manufacturing facilities. With 12-bit digital-to-analog conversion and ±0.5% baseline accuracy, the DVP02TUL-S ensures reliable control of valve actuators, variable speed drives, damper positioners, and analog recording systems in harsh industrial environments.

Process engineers and control system integrators choose the DVP02TUL-S when applications demand both signal versatility and measurement integrity. Whether interfacing with legacy 4-20mA loop-powered devices or modern 0-10V high-impedance controllers, this module delivers consistent performance across temperature extremes (-40°C to +70°C ambient) while maintaining electromagnetic compatibility in electrically noisy plant floors. Factory calibration eliminates field adjustment requirements, reducing commissioning time by 40-60% compared to traditional analog output cards.

Designed for rapid deployment in brownfield upgrades and greenfield installations, the DVP02TUL-S integrates seamlessly with Ovation controller racks through hot-swappable I/O chassis mounting. Removable terminal blocks enable maintenance without system shutdown, while LED diagnostics provide instant visibility into channel health and output status. For facilities requiring documented traceability and regulatory compliance, each module ships with calibration certificates and full material genealogy records.

Key Performance Advantages & Technical Capabilities

→ Dual-Output Architecture for Maximum Flexibility
Configurable voltage (0-10VDC) or current (0-20mA/4-20mA) outputs per channel eliminate the need for external signal converters. Voltage mode supports high-impedance loads (1kΩ to 2MΩ) ideal for VFD speed references and local panel instruments, while current mode drives long-distance loops (up to 1000m) with superior noise immunity. This versatility reduces spare parts inventory and simplifies system standardization across multi-unit facilities.

✓ 12-Bit Resolution for Precision Control
4096 discrete output levels deliver 0.024% granularity, enabling smooth valve positioning without hunting or oscillation. Critical for tight-tolerance applications such as pH control, blending operations, and combustion air regulation where traditional 8-bit or 10-bit modules introduce unacceptable dead-band errors. Enhanced linearity across the full span minimizes control loop tuning complexity.

✓ Sub-Millisecond Response Times
600µs voltage output response and 750µs current output response support fast-acting control loops in batch processes, cascade control schemes, and safety-instrumented systems (SIS). Setting times of 100µs (voltage) and 250µs (current) per channel ensure deterministic behavior in time-critical applications where delayed actuation could compromise product quality or process safety.

✓ Industrial-Grade Accuracy Specifications
±0.5% accuracy at normal operating temperatures (0°C to +60°C) and ±1% across full temperature range (-40°C to +70°C) meet or exceed ISA-50.00.01 Class II requirements. Accuracy specifications include linearity, hysteresis, and repeatability errors, providing realistic performance expectations for control system design calculations and loop tuning.

✓ Fail-Safe Current Loop Design
4-20mA output mode provides inherent fault detection through live-zero operation—0mA indicates wire break or module failure, enabling receiving devices to enter safe states. Superior to voltage outputs in safety applications where undetected signal loss could result in runaway conditions or equipment damage. Complies with NAMUR NE43 recommendations for analog signal diagnostics.

✓ Conformal Coating for Harsh Environments
Protective coating shields circuitry from moisture, dust, corrosive gases, and chemical vapors common in process industries. Enables reliable operation in non-climate-controlled enclosures and outdoor installations where condensation and airborne contaminants would degrade unprotected electronics. Extends mean time between failures (MTBF) to 150,000+ hours in typical industrial environments.

Industrial Application Scenarios & Use Cases

Scenario 1: Refinery Crude Unit Control Valve Actuation
A petroleum refinery's atmospheric distillation unit requires precise control of 24 flow control valves regulating crude oil feed, reflux streams, and product draws. The DVP02TUL-S modules drive electro-pneumatic (I/P) positioners via 4-20mA current loops, maintaining ±0.5% accuracy despite 300-meter cable runs through electrically noisy pipe racks. The current loop's immunity to voltage drop and EMI ensures consistent valve positioning, reducing product off-spec incidents by 35% compared to previous voltage-output systems.

Scenario 2: Chemical Batch Reactor VFD Speed Control
A specialty chemicals plant operates 12 agitated reactors with variable-speed mixers controlled by VFDs. The DVP02TUL-S voltage outputs (0-10VDC) provide speed reference signals based on viscosity measurements and reaction phase requirements. The 12-bit resolution enables smooth speed ramping during critical polymerization stages, eliminating the mechanical stress and product quality issues caused by coarse speed steps from lower-resolution analog outputs.

Scenario 3: Power Plant Combustion Air Damper Positioning
A coal-fired power station's boiler control system regulates combustion efficiency through precise damper positioning. DVP02TUL-S modules control 16 forced-draft and induced-draft fan damper actuators via 4-20mA signals, responding to oxygen trim and steam demand changes within 750µs. The fast response time enables tight O₂ control (±0.2%), reducing NOₓ emissions by 12% and improving boiler efficiency by 1.8% compared to slower analog output modules.

Scenario 4: Pharmaceutical Clean Room HVAC Control
A sterile manufacturing facility maintains critical room pressurization through variable air volume (VAV) control. DVP02TUL-S voltage outputs modulate VAV box damper actuators based on differential pressure setpoints, maintaining ±2 Pa accuracy required for ISO Class 5 cleanrooms. The module's conformal coating withstands frequent sanitization cycles and high-humidity conditions without degradation, ensuring 99.97% uptime over 5-year validation periods.

Scenario 5: Water Treatment Plant Chemical Feed Metering
A municipal water treatment facility doses coagulants, pH adjusters, and disinfectants using metering pumps controlled by 4-20mA signals from DVP02TUL-S modules. The ±0.5% accuracy ensures precise chemical dosing ratios, reducing chemical consumption by 8-12% while maintaining regulatory compliance for treated water quality. The live-zero current loop immediately alerts operators to pump failures or wiring faults, preventing under-dosing incidents.

Technical Specifications & Selection Guide

Selection Criteria for Optimal Performance:

1. Signal Type Selection
Choose voltage output (0-10VDC) for short-distance applications (<100m) with high-impedance loads such as VFD analog inputs, chart recorders, and local controllers. Select current output (4-20mA) for long-distance transmission (>100m), electrically noisy environments, or safety-critical applications requiring fault detection through live-zero operation.

2. Load Impedance Calculation
For current outputs, calculate total loop resistance: R_total = R_wire + R_device. Ensure R_total ≤ 550Ω. Example: 300m of AWG 18 wire (6.4Ω/1000ft = 6.3Ω/300m) + 250Ω device input = 256.3Ω total (acceptable). For voltage outputs, verify device input impedance ≥1kΩ to prevent loading errors.

3. Accuracy Budget Analysis
Account for module accuracy (±0.5%), field device accuracy (typically ±0.5-1%), and installation effects (wire resistance, EMI). For control loops requiring ±1% total accuracy, the DVP02TUL-S provides adequate margin. For tighter requirements (±0.25%), consider HART-enabled modules with digital trim capabilities.

4. Response Time Requirements
The 600-750µs response time supports control loop update rates up to 1000 Hz. Suitable for fast processes (flow, pressure) but may be limiting for ultra-fast applications (vibration control, high-speed packaging) requiring <100µs response. Verify loop dynamics against process time constants.

Advanced Integration Features & Capabilities

Hot-Swap Maintenance Without Process Interruption
When properly configured in redundant I/O architectures, the DVP02TUL-S supports online replacement during scheduled maintenance windows. Bumpless transfer protocols ensure output signals maintain last commanded values during module extraction and insertion, preventing process upsets. Reduces mean time to repair (MTTR) from hours to minutes in critical control applications.

Diagnostic LED Indicators for Rapid Troubleshooting
Front-panel LEDs provide instant visual feedback on module status, channel health, and communication integrity. Green LED indicates normal operation, amber LED signals configuration mode or non-critical warnings, red LED alerts to channel faults or calibration errors. Reduces troubleshooting time by 50-70% compared to modules requiring software diagnostics tools.

Removable Terminal Blocks for Simplified Wiring
Field wiring terminates on plug-in terminal blocks that disconnect without tools, enabling rapid module replacement without disturbing field wiring. Color-coded terminal labels and silk-screened pin assignments minimize wiring errors during installation and maintenance. Supports pre-wiring of spare modules for emergency replacements.

Factory Calibration with Traceable Certification
Each module undergoes multi-point calibration against NIST-traceable standards before shipment. Calibration data stored in non-volatile memory enables verification without external test equipment. Eliminates field calibration requirements, reducing commissioning labor costs by $200-400 per module compared to field-calibrated alternatives.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock modules to major industrial centers (Houston, Singapore, Rotterdam, Shanghai). Express shipping available for critical outage situations with 24-48 hour delivery to most global locations.

Custom Configuration: Factory-configured modules with pre-set output ranges, scaling parameters, and diagnostic thresholds available with 7-10 business day lead time. Ideal for large projects requiring standardized configurations across multiple modules.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 5-year coverage with advance replacement guarantees.

Technical Support: Unlimited phone and email support from certified Ovation system engineers. Remote diagnostic assistance, configuration file review, and troubleshooting guidance included at no additional charge. On-site commissioning support available for complex multi-module installations.

Documentation Package: Complete installation manual, wiring diagrams, load calculation worksheets, configuration templates, and commissioning checklists provided with each order. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions (FAQ)

Q1: Can the DVP02TUL-S output both voltage and current signals simultaneously?
No, each output channel is configured for either voltage OR current mode, not both simultaneously. However, multi-channel modules can have different channels configured for different output types. For applications requiring both signal types from a single control point, use two separate channels or install both voltage and current output modules in the same I/O chassis.

Q2: What is the maximum cable distance for 4-20mA current loop applications?
Maximum distance depends on wire gauge and total loop resistance. With AWG 18 wire (6.4Ω/1000ft) and a 250Ω receiving device, maximum distance is approximately 1200 meters before exceeding the 550Ω load limit. For longer distances, use AWG 16 (4.0Ω/1000ft) or AWG 14 (2.5Ω/1000ft) wire. Always calculate total loop resistance to verify compliance.

Q3: Does the module require field calibration after installation?
No, the DVP02TUL-S ships factory-calibrated and requires no field adjustment. Calibration data is stored in non-volatile memory and verified during power-up self-tests. Recalibration is only necessary if the module fails diagnostic checks or if accuracy verification reveals drift beyond specifications (rare occurrence within the 24-month warranty period).

Q4: How do I select between 0-20mA and 4-20mA current output ranges?
Use 4-20mA (live-zero) for safety-critical applications where fault detection is required—0mA indicates wire break or module failure. Use 0-20mA for non-critical applications where the full 0-100% output range is needed without the 20% offset of 4-20mA signals. Configuration is performed through Ovation system software during module setup.

Q5: Is the DVP02TUL-S compatible with HART communication protocols?
No, the DVP02TUL-S provides standard analog voltage and current outputs without HART digital communication capability. For applications requiring HART diagnostics, asset management, or remote configuration, consider the Emerson 5X00062G01 HART Analog Output Module which combines 4-20mA analog signals with HART digital communication on the same two-wire loop.

Q6: What happens to output signals during module power-up or controller restart?
During power-up, outputs default to a safe state (typically 0V or 4mA depending on configuration) until the Ovation controller establishes communication and downloads control values. Power-up time is typically 2-3 seconds. For critical applications requiring bumpless restart, implement redundant I/O configurations or use output hold circuits that maintain last commanded values during brief power interruptions.

Order Your DVP02TUL-S Analog Output Module Today

Upgrade your Ovation DCS with precision analog control capabilities. Whether you're modernizing legacy systems, expanding production capacity, or building new facilities, the DVP02TUL-S delivers the accuracy, reliability, and versatility demanded by today's process industries. Our automation specialists are ready to assist with module selection, system integration planning, and technical support.

Ready to enhance your control system performance? Contact our team for application-specific recommendations, volume pricing, and expedited delivery options. We support projects of all sizes—from single-module replacements to multi-unit plant expansions across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing sectors.
