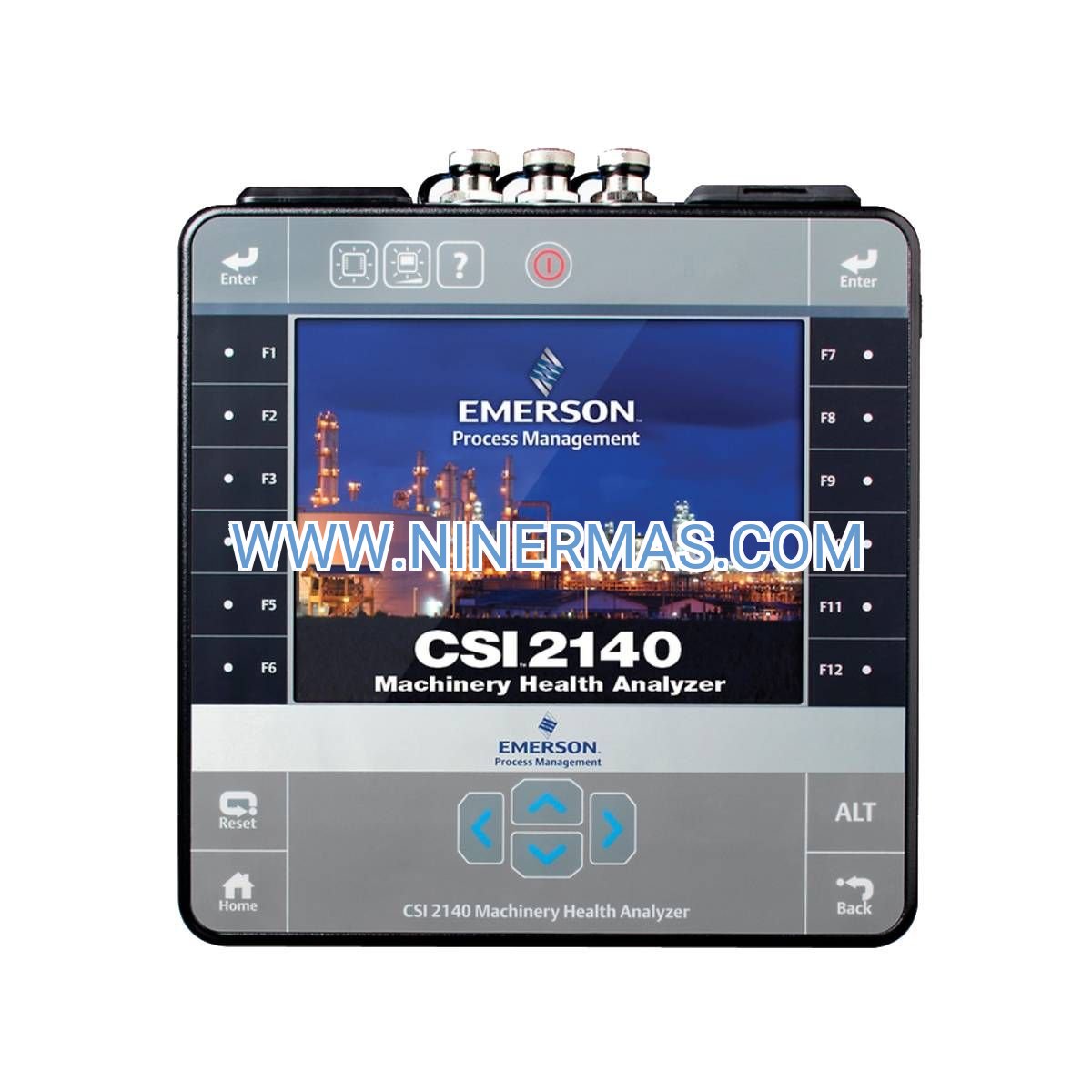

CSI2140 Dual-Channel Vibration Analyzer (Industrial-Grade Diagnostic Platform)

The CSI2140 represents Emerson's flagship solution for machinery health diagnostics in mission-critical industrial environments. Engineered as a portable dual-channel platform, this analyzer transforms complex vibration signatures into actionable intelligence, empowering reliability teams to transition from reactive firefighting to strategic asset optimization. With 40 kHz bandwidth and 12,800-line resolution, the CSI2140 captures subtle fault patterns invisible to conventional monitoring tools.

Designed for maintenance engineers managing high-value rotating assets—turbines, compressors, motors, gearboxes—this instrument addresses the core challenge of unplanned downtime. In process industries where a single equipment failure cascades into $500K+ production losses, the CSI2140 delivers 3-6 month advance warning of bearing degradation, misalignment progression, and resonance conditions. Its ruggedized construction withstands harsh plant floors while maintaining laboratory-grade measurement accuracy.

Key differentiators include seamless AMS Suite integration for enterprise-wide asset visibility, field-proven algorithms that auto-identify 200+ fault frequencies, and intuitive touchscreen workflows that reduce training time by 60%. Whether you're implementing ISO 55000 asset management frameworks or optimizing CMMS work order efficiency, the CSI2140 serves as the cornerstone of world-class reliability programs.

Core Capabilities & Business Value

→ Dual-Channel Simultaneous Acquisition: Capture phase relationships and cross-channel coherence for advanced diagnostics like operating deflection shape analysis and modal testing—critical for complex machinery troubleshooting that single-channel tools cannot resolve.

→ Extended Frequency Bandwidth (0.5 Hz – 40 kHz): Monitor ultra-slow roll speeds in large turbines while simultaneously detecting high-frequency bearing tones in electric motors, eliminating the need for multiple specialized instruments and reducing capital expenditure.

→ Automated Fault Recognition Engine: Built-in expert system compares measured spectra against 200+ defect libraries (BPFI, BPFO, BSF, FTF for bearings; 1X, 2X, 3X harmonics for imbalance), delivering instant severity assessments that accelerate decision-making for technicians at all skill levels.

→ AMS Machinery Manager Connectivity: Wireless data synchronization enables centralized trending across 10,000+ measurement points, automated exception reporting, and ISO 10816/20816 compliance documentation—transforming isolated readings into enterprise asset intelligence.

✓ Sunlight-Readable Touchscreen Interface: 7-inch color display with anti-glare coating ensures spectrum clarity in outdoor substations and brightly lit production areas, while glove-compatible touch controls maintain usability in winter conditions or cleanroom protocols.

✓ 8-Hour Battery Autonomy: Complete full-day route surveys without recharging interruptions, supporting 150+ measurement points per shift in facilities where AC power access is limited or prohibited for safety reasons.

Industry-Specific Application Scenarios

Petrochemical Refining Operations:
Challenge: Critical pump trains in hydrocracker units operate at 3,600 RPM with zero tolerance for unplanned shutdowns during 3-year run cycles.
Solution: CSI2140's envelope demodulation detects outer race spalling in high-temperature bearings 4 months before failure, enabling planned turnaround coordination.
Outcome: Avoided $2.3M production loss by scheduling bearing replacement during planned maintenance window instead of emergency shutdown.

Power Generation Facilities:
Challenge: Steam turbine-generator sets require continuous monitoring per NERC reliability standards, with vibration limits defined by ISO 7919 shaft displacement criteria.
Solution: Dual-channel phase measurement identifies 180° imbalance patterns and thermal bow conditions, while automated trending flags 25% alarm threshold exceedances.
Outcome: Maintained 99.7% availability through early detection of coupling misalignment that would have caused catastrophic thrust bearing failure.

Food Processing Manufacturing:
Challenge: Sanitary design requirements and frequent washdown cycles demand IP65-rated instruments, while FDA compliance necessitates calibration traceability.
Solution: CSI2140's sealed enclosure withstands high-pressure cleaning, and included NIST-traceable calibration certificates satisfy 21 CFR Part 11 audit requirements.
Outcome: Reduced unplanned downtime by 40% on packaging line conveyors through proactive gearbox oil analysis correlation with vibration trending.

Pulp & Paper Mills:
Challenge: Paper machine dryer sections operate 24/7 at speeds exceeding 1,200 m/min, where bearing failures cause web breaks and 12-hour restart sequences.
Solution: Route-based monitoring with CSI2140 establishes baseline signatures for 300+ dryer bearings, with automated alerts when ultrasonic frequencies indicate lubrication breakdown.
Outcome: Extended bearing life by 35% through condition-based lubrication scheduling, eliminating $180K annual waste from premature replacements.

Mining & Mineral Processing:
Challenge: Crushers, SAG mills, and conveyor systems in remote locations require portable diagnostics without reliance on permanent online monitoring infrastructure.
Solution: Bluetooth sensor connectivity and 4GB onboard storage enable walk-around surveys across 2 km conveyor routes, with GPS-tagged measurement points.
Outcome: Identified critical idler bearing failures 6 weeks in advance, preventing conveyor belt damage that would have halted ore transport for 72 hours.

Technical Specifications & Selection Criteria

Selection Guidance: Choose CSI2140 when your program requires portable diagnostics with laboratory-grade accuracy, AMS ecosystem integration, and support for advanced techniques (ODS, modal analysis, transient capture). For facilities with <50 measurement points or basic screening needs, consider entry-level single-channel alternatives. For permanently installed online monitoring of critical assets, evaluate AMS 6500 machinery protection systems as complementary infrastructure.

Advanced Diagnostic Functions

Envelope Demodulation (gSE/Acceleration Envelope): Isolates bearing fault impulses from background noise by high-pass filtering and rectification, enabling detection of outer race defects at 0.1g severity levels—10X more sensitive than conventional velocity analysis.

Order Tracking & Tachometer Synchronization: Locks FFT analysis to shaft speed rather than time, eliminating smearing in variable-speed applications like wind turbines and crushers where traditional fixed-frequency analysis fails.

Transient Capture & Triggered Recording: Automatically saves time waveforms when vibration exceeds preset thresholds, documenting intermittent faults (rubs, impacts) that occur only during startups or load changes.

Two-Plane Field Balancing Calculator: Guides technicians through trial weight procedures with vector diagrams and influence coefficient calculations, reducing balance time from 4 hours to 45 minutes on fans and blowers.

Cepstrum Analysis for Gearbox Diagnostics: Identifies gear mesh families and sideband patterns indicative of eccentric gears, hunting tooth wear, and planetary stage faults in complex multi-stage gearboxes.

Delivery Timeline & Service Commitments

→ Standard Lead Time: 5-7 business days for in-stock units shipped from regional distribution centers (North America, EMEA, APAC)
→ Custom Configurations: 3-4 weeks for factory-direct orders with specialized sensor kits, extended warranties, or AMS software bundles
→ Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship, with optional 60-month extended protection plans
→ Technical Support: Lifetime access to Emerson's global support network—phone/email assistance within 4 hours, on-site service available in 48 hours for critical applications
→ Included Documentation: NIST-traceable calibration certificate, quick-start guide, AMS Machinery Manager Lite software license (USB), sensor cable compatibility matrix

Frequently Asked Questions

Q: How does the CSI2140 integrate with existing CMMS platforms like SAP PM or Maximo?
A: AMS Machinery Manager exports work order triggers via OPC-UA or REST APIs, enabling automated PM generation when vibration alarms exceed ISO severity zones. Pre-built connectors support SAP, IBM Maximo, and Infor EAM with bi-directional asset hierarchy synchronization.

Q: What is the maximum cable length for remote sensor installations?
A: ICP accelerometers support up to 150 meters (500 feet) of standard coaxial cable without signal degradation. For longer runs, use in-line amplifiers or switch to 4-20mA velocity transducers, which reliably transmit over 300+ meter distances.

Q: Can the CSI2140 perform real-time spectrum analysis during machinery startups?
A: Yes—transient capture mode records continuous time waveforms at 51.2 kHz sampling rate, with post-processing tools to generate waterfall plots showing frequency evolution during coast-down or run-up events. Ideal for diagnosing resonance and critical speed issues.

Q: Does the analyzer meet intrinsic safety requirements for hazardous area classifications?
A: The standard CSI2140 is rated for Zone 2 / Division 2 environments. For Zone 1 / Division 1 applications (explosive atmospheres), specify the CSI2140-IS variant with ATEX/IECEx certification and barrier-isolated sensor inputs.

Q: What training resources are available for new users unfamiliar with vibration analysis?
A: Emerson offers 3-day Machinery Health Fundamentals courses (ISO 18436 Category I aligned), plus online modules covering CSI2140 operation, fault diagnosis, and AMS software workflows. Instrument purchase includes 90-day access to e-learning portal with 40+ video tutorials.

Q: How does battery performance degrade in cold environments like outdoor substations?
A: Lithium-ion cells maintain 80% capacity at -10°C. For extreme cold (<-20°C), use the optional heated battery pack or AC adapter. Battery health monitoring displays remaining runtime and triggers low-charge warnings at 15% capacity.

Take the Next Step Toward Reliability Excellence

Transform your maintenance strategy from reactive to predictive. Contact our technical sales team for a personalized demonstration, application-specific sensor recommendations, and ROI analysis based on your asset portfolio. Volume pricing available for multi-site deployments and enterprise AMS licensing agreements.
