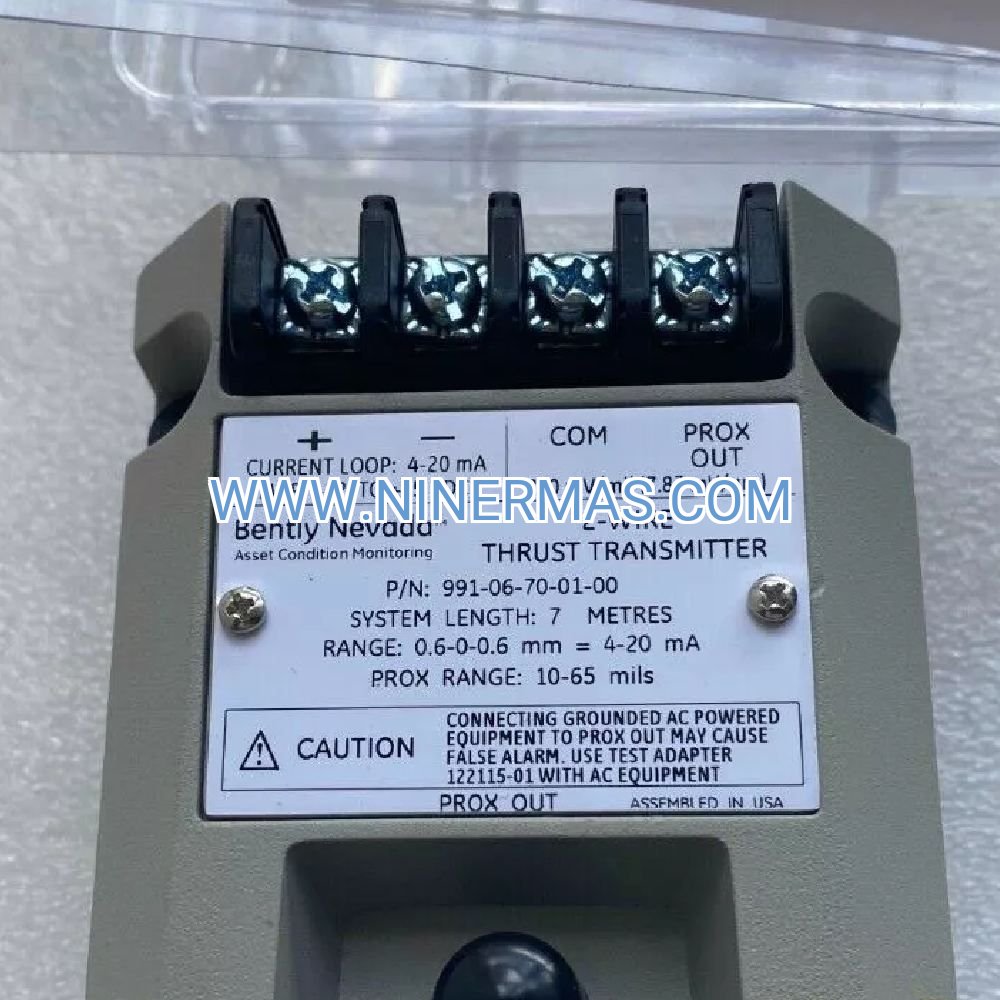

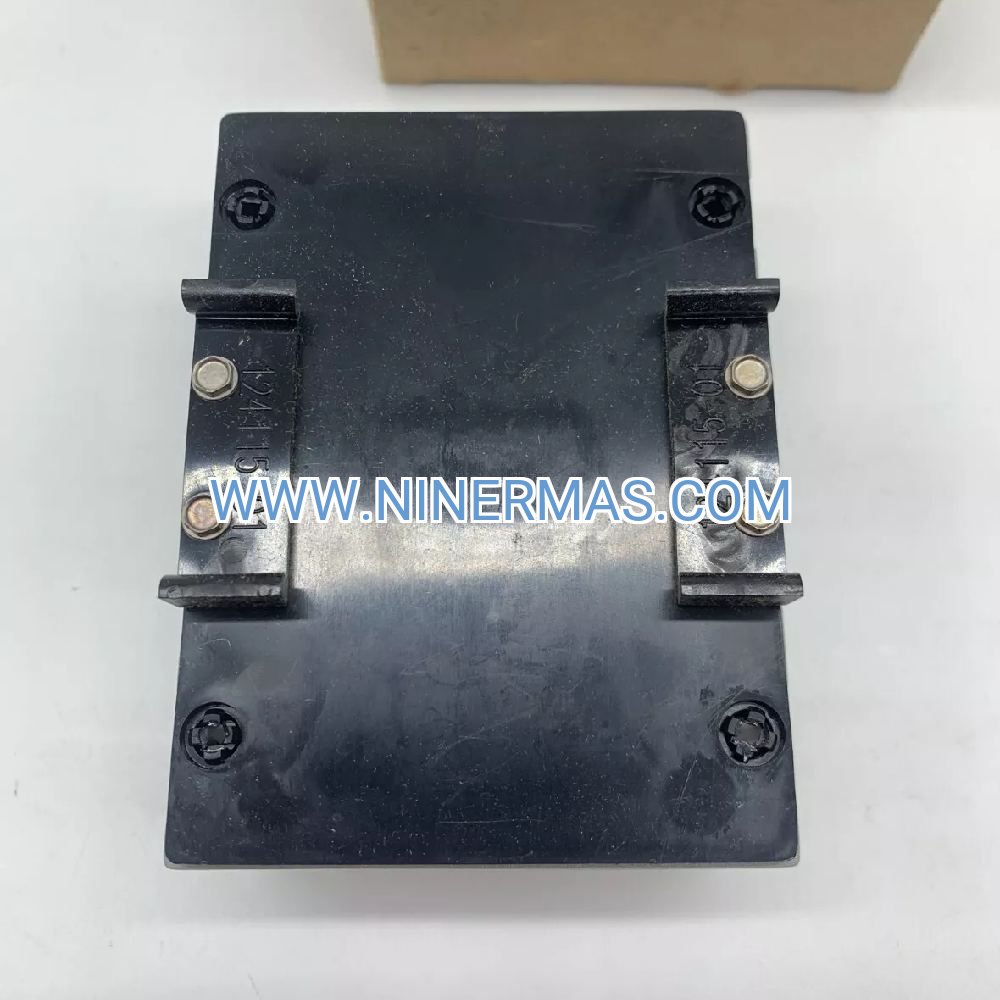

991-06-70-01-00 Thrust Position Transmitter (Industrial-Grade Axial Monitoring Solution)

The 991-06-70-01-00 represents a field-proven solution for continuous axial shaft position measurement in mission-critical rotating machinery. Engineered with dual-channel proximity probe conditioning and 4-20mA current loop output, this transmitter bridges the gap between high-frequency vibration sensors and plant-wide control systems, delivering real-time thrust bearing health data to operators and maintenance teams.

Designed for turbomachinery environments where thrust bearing failure can trigger catastrophic rotor damage, the 991-06-70-01-00 provides early warning of axial displacement anomalies. Its loop-powered architecture eliminates the need for separate power supplies, while temperature-compensated circuitry maintains measurement integrity across -30°C to +65°C operating conditions. Whether protecting steam turbines in power plants or monitoring compressor trains in petrochemical facilities, this transmitter serves as a critical link in machinery protection strategies.

With a 5-meter system length and stainless steel 316L housing rated to IP65, the unit withstands harsh industrial environments including high humidity, dust, and corrosive atmospheres. Factory calibration ensures ±0.25% accuracy at installation, while field-adjustable zero and span controls allow customization for specific machinery clearance requirements. The result: reliable thrust position data that enables condition-based maintenance and prevents unplanned downtime.

Core Capabilities & Technical Advantages

→ Dual-Probe Differential Measurement
Processes two proximity probe inputs simultaneously to calculate net axial position. Automatically compensates for thermal growth and mechanical runout, delivering true thrust bearing displacement data. Eliminates false alarms caused by rotor expansion during startup and shutdown cycles.

→ Loop-Powered 4-20mA Output
Two-wire current loop design simplifies installation and reduces wiring costs by 40% compared to four-wire transmitters. Compatible with any DCS, PLC, or SCADA system accepting industry-standard analog inputs. Maximum 800Ω load resistance at 24 VDC supports long cable runs up to 1,500 meters.

→ Temperature-Stabilized Electronics
Internal compensation algorithms maintain ±0.25% accuracy across full -30°C to +65°C range. Critical for applications where ambient temperature swings affect sensor performance. Eliminates seasonal recalibration requirements, reducing maintenance labor by 60 hours annually per unit.

→ Fast Response Time
Reaches 90% of final value in under 100 milliseconds, capturing transient thrust events during load changes and trip conditions. Essential for emergency shutdown systems requiring sub-second fault detection. Meets API 670 response time requirements for machinery protection systems.

✓ Self-Diagnostic Monitoring
Continuously validates probe health, cable integrity, and power supply voltage. Fault conditions drive output to 3.8mA (low alarm) or 20.5mA (high alarm), triggering immediate operator notification. Reduces troubleshooting time from hours to minutes by pinpointing failure location.

✓ Field-Adjustable Calibration
Zero and span potentiometers allow on-site customization without returning unit to factory. Accommodates machinery-specific thrust clearances ranging from 10 mils to 100 mils. Enables rapid commissioning and reduces spare parts inventory requirements.

Industrial Application Scenarios

Power Generation – Steam Turbine Protection
Challenge: 500 MW steam turbines experience thrust bearing wear from continuous axial loading, with failure costs exceeding $2 million in repairs plus $150,000 daily revenue loss.
Solution: 991-06-70-01-00 monitors thrust collar position 24/7, detecting 0.010" bearing clearance increases that indicate wear progression. Maintenance teams schedule bearing replacement during planned outages rather than emergency shutdowns.
Value: Prevents catastrophic turbine damage, extends bearing life from 3 years to 5 years, reduces forced outage rate by 35%.

Oil & Gas – Pipeline Compressor Monitoring
Challenge: Centrifugal compressors in remote pipeline stations operate unmanned, requiring reliable thrust monitoring to prevent rotor-to-stator contact.
Solution: Transmitter integrates with SCADA systems to provide real-time thrust position data to central control rooms 500 km away. Automated alarms trigger when axial displacement exceeds 0.040" threshold.
Value: Eliminates need for monthly site visits, reduces compressor downtime by 120 hours annually, enables predictive maintenance scheduling.

Chemical Processing – High-Speed Gear Drive Monitoring
Challenge: Reactor feed pumps driven by 10,000 RPM gearboxes require thrust monitoring to detect lubrication failures before catastrophic gear tooth damage occurs.
Solution: 991 transmitter tracks pinion shaft axial float, with 4-20mA output feeding PLC-based protection logic. Excessive thrust triggers automatic pump shutdown and backup unit startup.
Value: Prevents $800,000 gearbox replacements, maintains process continuity, meets API 617 machinery protection standards.

Marine Propulsion – Ship Engine Thrust Monitoring
Challenge: Large marine diesel engines and gas turbines require continuous thrust bearing monitoring to prevent propeller shaft misalignment.
Solution: IP65-rated transmitter withstands saltwater environment and engine room vibration. Output integrates with vessel automation system for bridge display and alarm annunciation.
Value: Complies with classification society requirements, reduces bearing inspection intervals from 2,000 to 4,000 operating hours.

Technical Parameters & Selection Guide

Selection Criteria: Choose 991-06-70-01-00 when machinery thrust clearances fall within 0-100 mils range and control system requires 4-20mA analog input. For applications requiring MODBUS or HART communication, consider 3500 series rack-mounted monitors. Verify proximity probe system voltage (typically -24 VDC) matches transmitter input specifications before ordering.

Extended Functionality & Integration Options

DCS/PLC Integration: 4-20mA output connects directly to Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7, Yokogawa Centum, Allen-Bradley ControlLogix, and Schneider Modicon analog input modules. No signal conditioning required – transmitter output drives 250Ω to 800Ω loads without external barriers.

SCADA Connectivity: Interfaces with Wonderware System Platform, GE iFIX, Ignition, and other supervisory systems via analog input servers. Supports trending, alarming, and historical data logging for condition monitoring and root cause analysis.

Relay Logic Interfacing: Output can drive electromechanical relays or solid-state trip modules for standalone machinery protection. Configure alarm setpoints at 12mA (warning) and 16mA (danger) for two-stage thrust bearing protection.

Customization Options: Factory can configure non-standard measurement ranges (e.g., 0-50 mils), reverse-acting outputs (20-4mA), or special calibration certificates traceable to NIST standards. Lead time for custom configurations: 4-6 weeks.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units shipped from regional distribution centers in Houston, Singapore, and Rotterdam. Express shipping available for critical machinery outages – contact sales for same-day dispatch options.

Custom Configuration: 4-6 weeks for factory-modified units including special calibration ranges, alternative housing materials, or extended temperature ratings. Expedited production available for emergency situations.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes free replacement unit and return shipping. Extended 5-year warranties available for critical applications.

Technical Support: Unlimited phone and email support from application engineers with turbomachinery expertise. Remote troubleshooting assistance within 2 hours during business hours, 4 hours after-hours for emergency situations.

Documentation Package: Each unit ships with installation manual, wiring diagrams, calibration certificate, and dimensional drawings. Digital copies available for download including 3D CAD models (STEP format) for panel layout design.

Frequently Asked Questions

Q: How do I connect the 991-06-70-01-00 to my Allen-Bradley PLC analog input card?
A: Use shielded twisted-pair cable (18-22 AWG) from transmitter terminals to PLC analog input module (e.g., 1756-IF8). Connect positive wire to CH+ terminal, negative to CH- terminal. Ground shield at PLC end only to prevent ground loops. Configure PLC input for 4-20mA range with 250Ω or 500Ω precision resistor if module requires voltage input. Verify 24 VDC loop power supply is enabled on analog input card.

Q: What thrust position range should I specify for a 150 MW steam turbine application?
A: Most steam turbines operate with 0.020" to 0.060" normal thrust bearing clearance. Configure transmitter for 0-100 mils (0-0.100") full scale to provide measurement headroom. Set DCS alarm at 0.040" (8mA) for bearing wear warning and trip at 0.080" (16mA) for emergency shutdown. Consult turbine OEM documentation for specific thrust clearance limits.

Q: Can the 991 transmitter improve energy efficiency in my compressor station?
A: Yes – by monitoring thrust bearing condition, you can optimize compressor loading to minimize axial forces. Excessive thrust indicates aerodynamic imbalance or fouled impellers, both of which reduce efficiency by 5-15%. Trending thrust position data helps identify when compressor cleaning or impeller replacement will restore performance, reducing energy consumption by 50-200 kW per unit.

Q: What are the installation requirements for outdoor mounting in coastal environments?
A: The IP65-rated 316L stainless steel housing withstands saltwater spray and high humidity. Mount transmitter in weatherproof enclosure (NEMA 4X) with desiccant breather to prevent condensation. Use marine-grade cable glands with silicone sealant on all conduit entries. Apply corrosion-inhibiting compound on electrical terminals. Inspect quarterly for salt buildup and clean with fresh water if deposits appear.

Q: How can I verify the transmitter is working correctly after installation?
A: With machinery at rest and rotor in normal position, measure 4-20mA output with calibrated multimeter. Output should read 4-8mA depending on actual thrust position. Manually push rotor axially (if accessible) and verify output increases proportionally. Alternatively, use feeler gauges to simulate probe gap changes – each 0.010" gap increase should produce approximately 1.6mA output change for 0-100 mil range. Compare readings against calibration certificate.

Q: Is remote monitoring possible for unmanned facilities?
A: Absolutely – the 4-20mA output integrates with cellular RTUs, satellite modems, and industrial IoT gateways for remote SCADA connectivity. Systems like Emerson Smart Wireless, Honeywell OneWireless, or third-party LoRaWAN gateways can transmit thrust position data to cloud platforms for 24/7 monitoring from any location. Set up SMS or email alerts when thrust exceeds configurable thresholds.

Request Technical Consultation

Our application engineers are ready to assist with transmitter selection, system integration, and commissioning support. Whether you're protecting a single critical machine or implementing plant-wide condition monitoring, we provide the technical expertise to ensure successful deployment.

Contact us today for:

• Application-specific configuration recommendations
• Integration guidance for your DCS/PLC platform
• Competitive pricing for single units or volume orders
• Expedited delivery for emergency machinery repairs
• On-site commissioning and training services
