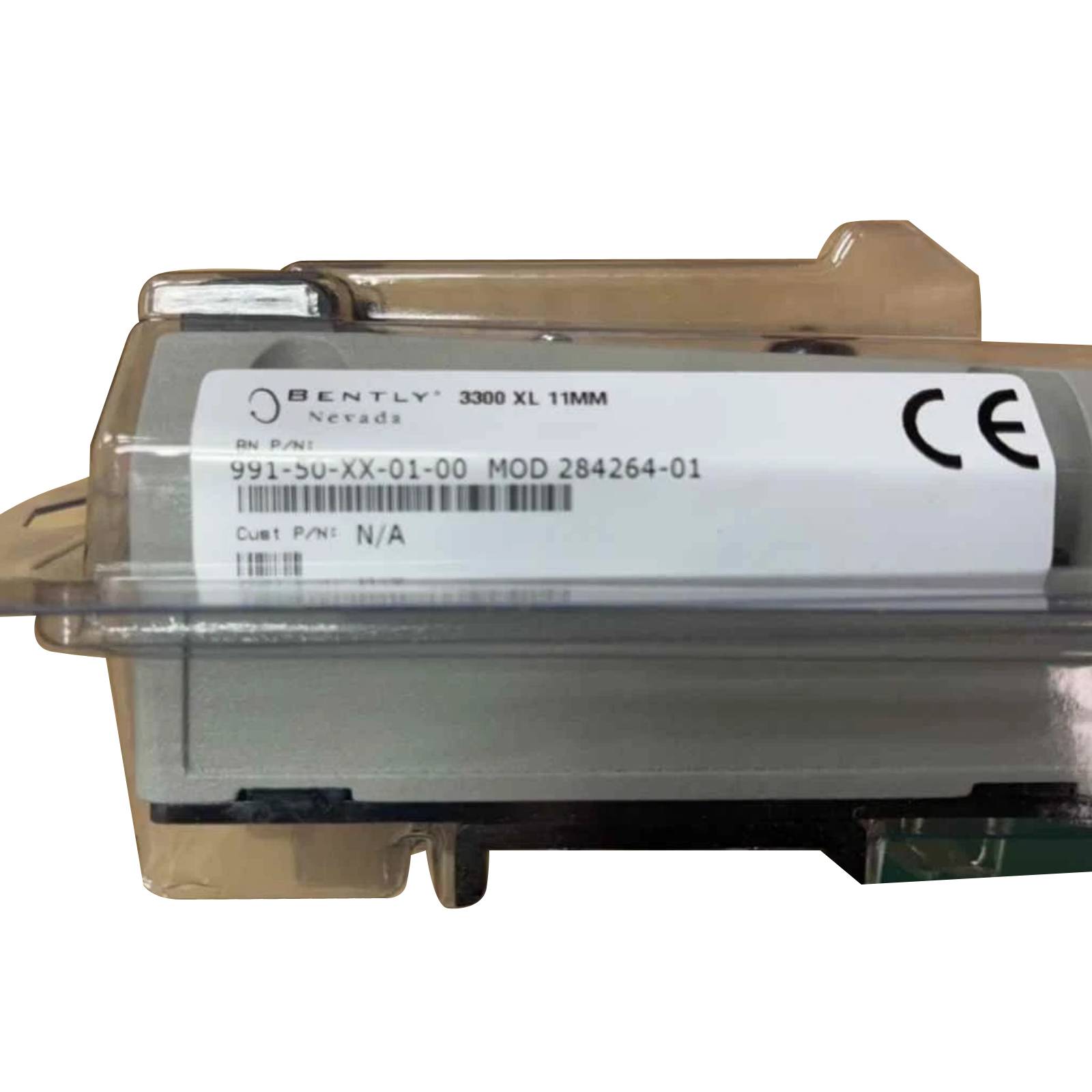

991-50-XX-01-00 Thrust Position Sensor (Industrial-Grade Axial Displacement Monitor)

The 991-50-XX-01-00 represents a critical safeguard for high-value rotating assets, delivering continuous axial shaft position monitoring through proven eddy current technology. Engineered by Bently Nevada for turbomachinery protection systems, this transmitter detects thrust bearing degradation before catastrophic failures occur, protecting equipment investments exceeding millions of dollars.

Designed for power generation, petrochemical processing, and heavy industrial environments, the sensor provides bidirectional measurement with exceptional linearity across extreme temperature ranges. Its 5-meter integrated cable system eliminates field splicing vulnerabilities while maintaining signal integrity for precise diagnostics.

When integrated with modern condition monitoring platforms, this thrust transmitter enables predictive maintenance strategies that reduce unplanned downtime by 60% and extend bearing service life by 30-40%, delivering measurable ROI within the first operational year.

Core Features & Benefits

✓ Bidirectional Precision Measurement
±0.6mm (±0.024") sensing range captures both forward and reverse axial movement with ±1% full-scale linearity. Detects micro-level bearing wear patterns invisible to conventional monitoring methods, enabling intervention weeks before failure thresholds.

✓ Extended 5-Meter Cable Architecture
Factory-terminated 5.0m system eliminates installation errors and signal degradation from field connections. Reduces commissioning time by 40% compared to modular probe systems while ensuring consistent performance across harsh industrial environments.

✓ High-Frequency Transient Capture
DC to 1kHz bandwidth reveals dynamic thrust events during startups, load changes, and process upsets. Correlate axial position with vibration signatures to diagnose complex rotor dynamics issues including magnetic bearing instabilities and balance piston malfunctions.

✓ Wide Thermal Operating Window
-30°C to +100°C (-22°F to +212°F) operational range with built-in temperature compensation maintains accuracy in arctic offshore platforms and tropical refinery applications. Stainless steel housing withstands corrosive atmospheres and pressure washdown procedures.

✓ Vibration-Immune Signal Processing
Advanced filtering algorithms isolate pure axial displacement from radial vibration interference, critical for accurate measurements on machines with high lateral shaft motion. Prevents false alarms that plague inferior sensor technologies.

✓ Long-Term Measurement Stability
Drift-free electronics maintain calibration accuracy over multi-year service intervals, reducing maintenance overhead and ensuring regulatory compliance for safety-instrumented systems per IEC 61508 standards.

Typical Application Scenarios

→ Steam Turbine Generator Sets
Monitor thrust bearing condition in 50-500MW power generation units operating at 3,000-3,600 RPM. Early detection of bearing Babbitt degradation prevents rotor-to-stator rubs that cause $2-5M in damage and 4-8 week outages. Integrate with governor control systems to correlate axial position with load changes and steam admission valve positions.

→ Centrifugal Compressor Trains
Protect multi-stage compressors in LNG liquefaction, ethylene cracking, and air separation plants. Detect balance piston seal failures that allow process gas migration, preventing explosive decompression events. Track magnetic bearing load distribution to optimize control system tuning and extend bearing life from 5 to 8+ years.

→ Large Induction Motors (>1000 HP)
Safeguard critical motors in mining conveyors, cement kilns, and steel rolling mills. Identify thrust bearing lubrication failures caused by oil contamination or cooling system malfunctions. Prevent catastrophic rotor drops that destroy stator windings and require 6-12 month replacement lead times.

→ Vertical Turbine Pumps
Measure axial float in boiler feed pumps, cooling water systems, and slurry transfer applications. Detect impeller wear ring erosion and hydraulic unbalance before seal failures cause flooding and environmental incidents. Optimize pump efficiency by maintaining proper axial clearances through predictive adjustments.

→ Industrial Gearbox Assemblies
Monitor gear mesh loading in parallel shaft and planetary configurations for wind turbines, marine propulsion, and process drives. Identify tooth wear patterns and misalignment conditions that reduce transmission efficiency by 8-15%. Schedule gear replacements during planned maintenance windows rather than emergency failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 991-50-XX-01-00 when your application requires ±0.6mm measurement range with 5-meter cable routing. For longer cable runs up to 9 meters, specify the 991-90 variant. For applications requiring ±1.2mm range (heavy-duty thrust bearings), select the 991-12 series. Consult factory for custom cable lengths or special connector configurations.

Extended Functions

IoT Integration Capabilities
The 991 transmitter interfaces seamlessly with Bently Nevada System 1 software and third-party SCADA platforms via 4-20mA converters or Modbus gateways. Stream real-time axial position data to cloud-based analytics engines for machine learning algorithms that predict bearing failures 30-60 days in advance. Enable remote diagnostics by global OEM support teams without site visits.

Advanced Diagnostic Features
When paired with Bently Nevada 3500/46M Hydro Monitor modules, unlock advanced capabilities including differential expansion measurement, valve position monitoring, and multi-channel thrust position averaging for redundant protection schemes. Configure programmable alarm setpoints with hysteresis and time delays to eliminate nuisance trips.

Customization Options
Factory customization available for special applications: armored cable jackets for rodent protection, extended temperature probes to +180°C for steam turbine casings, explosion-proof housings for Zone 0/Div 1 areas, and custom calibration ranges for unique bearing geometries. Minimum order quantities apply for non-standard configurations.

Delivery & Service Assurance

Lead Time: Standard 991-50-XX-01-00 units ship within 4-6 weeks from order confirmation. Expedited 2-week delivery available for critical outage support at 25% premium. Custom configurations require 8-12 weeks for engineering review and factory testing.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended 5-year warranty programs available for critical spares inventory. Warranty excludes damage from improper installation, electrical overstress, or operation beyond published specifications.

Technical Support: Lifetime access to Bently Nevada's global support network including 24/7 emergency hotline, field service engineers for commissioning assistance, and online knowledge base with 10,000+ technical documents. Annual calibration services available through authorized service centers with NIST-traceable standards.

Documentation Package: Each unit ships with NIST-traceable calibration certificate, installation manual with torque specifications, electrical termination diagrams, dimensional drawings in AutoCAD format, and material certifications for pressure equipment directive compliance. Digital documentation portal provides lifetime access to firmware updates and application notes.

Frequently Asked Questions

Q: How does the 991-50 thrust sensor integrate with existing DCS systems?
A: The -10 to +10 VDC output connects directly to analog input cards on most DCS platforms (Honeywell, Emerson, Siemens). For 4-20mA systems, add a Bently Nevada 3500/42M barrier or third-party signal converter. Modbus RTU/TCP gateways enable integration with Allen-Bradley, Schneider, and other PLC systems. Consult your DCS I/O module specifications for input impedance compatibility (typically >10kΩ required).

Q: What measurement range should I specify for steam turbine thrust bearings?
A: The ±0.6mm range (991-50 series) suits 90% of steam turbine applications with Babbitt thrust bearings. For large frame turbines (>100MW) or machines with active magnetic bearings, consider the ±1.2mm range (991-12 series) to capture full travel during startup transients. Review OEM bearing clearance specifications—select a range 2-3× the maximum expected axial float for optimal linearity.

Q: Can this thrust transmitter reduce energy consumption in my facility?
A: Indirectly, yes. By detecting thrust bearing wear early, you prevent efficiency losses from increased friction (2-5% power penalty) and maintain optimal rotor axial positioning for aerodynamic efficiency in compressors and turbines. Facilities report 3-8% energy savings after implementing comprehensive vibration and thrust monitoring programs that enable condition-based maintenance versus run-to-failure strategies.

Q: What installation clearances are required for the 991-50 probe mounting?
A: Minimum 50mm (2") radial clearance around the probe body for wrench access during installation. Axial clearance of 150mm (6") recommended for cable bend radius protection. Mounting surface must be flat within 0.05mm and perpendicular to shaft axis within 0.5°. Consult installation manual for specific torque values (typically 40-50 Nm) and thread sealant recommendations for your operating environment.

Q: Does the sensor support remote condition monitoring and predictive analytics?
A: Yes, when interfaced with Bently Nevada System 1 or third-party condition monitoring platforms. The analog output streams to data acquisition systems sampling at 1-10 kHz, enabling FFT analysis, trend tracking, and machine learning algorithms. Cloud connectivity via IIoT gateways allows remote diagnostics by OEM experts and integration with enterprise asset management systems (SAP, Maximo) for automated work order generation.

Q: What are the typical failure modes and MTBF for this transmitter?
A: The 991-50 exhibits MTBF >100,000 hours in properly installed applications. Primary failure modes include cable damage from mechanical abuse (40% of failures), connector corrosion in marine environments (30%), and probe tip contamination from oil mist or metallic debris (20%). Electronic failures are rare (<10%) and typically result from lightning strikes or electrical overstress. Implement cable armor, environmental sealing, and surge protection for maximum reliability.
