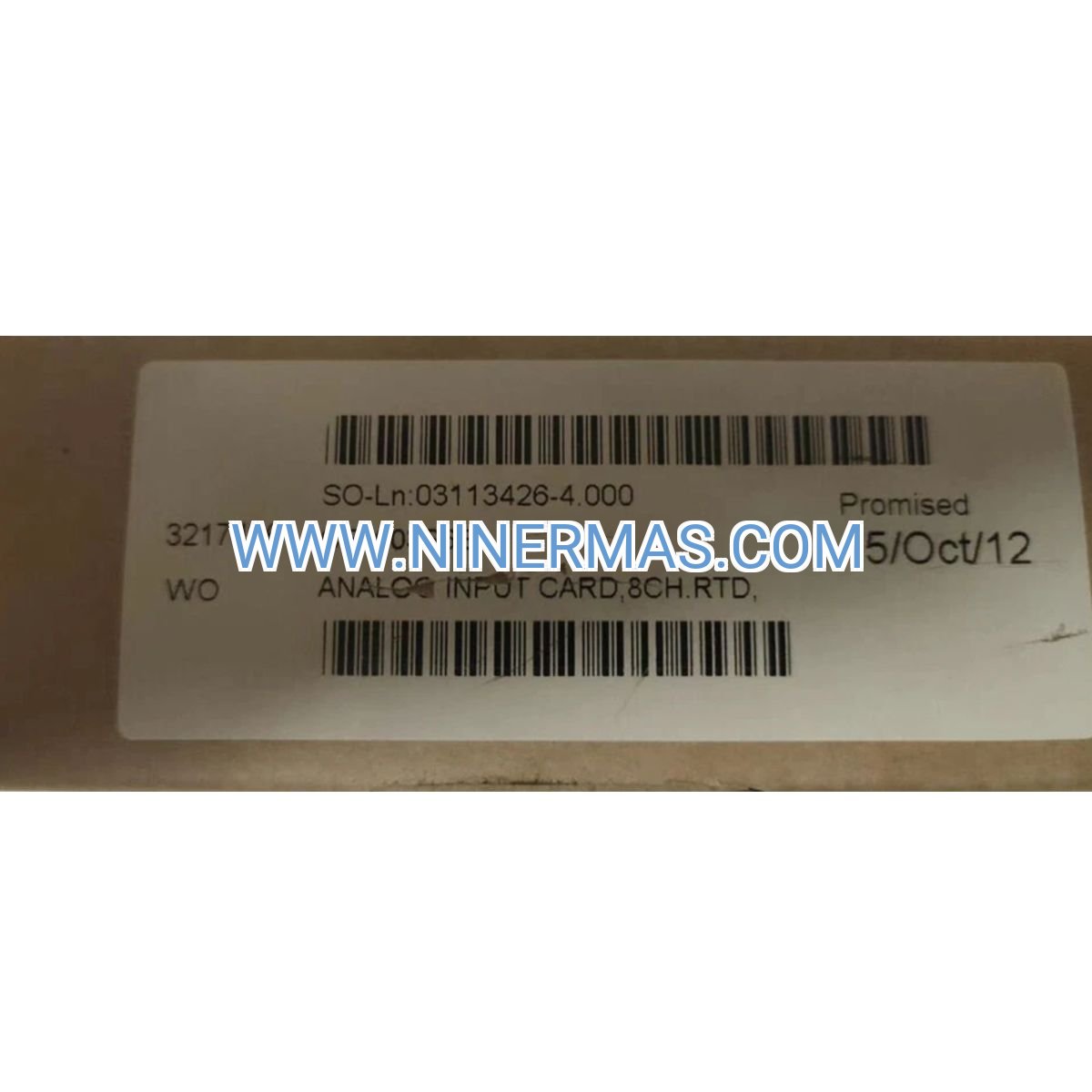

CE4003S6B1 RTD Input Card (Industrial-Grade 8-Channel Temperature Acquisition Module)

The Emerson CE4003S6B1 is a high-precision RTD analog input card engineered for critical temperature monitoring in process automation environments. Designed for seamless integration with DeltaV M-series control systems, this 8-channel module delivers laboratory-grade accuracy (±0.5°C for Pt100) while eliminating manual calibration overhead. Whether you're managing reactor temperature profiles, monitoring heat exchanger performance, or ensuring pharmaceutical cold chain compliance, the CE4003S6B1 transforms raw RTD signals into actionable process data with industrial reliability.

Built for engineers who demand both precision and operational efficiency, this module supports 2/3/4-wire RTD configurations across multiple sensor types (Pt100/200/500, Ni120, Cu10) and features ISA G3 conformal coating for harsh industrial atmospheres. The plug-and-play architecture with C3 terminal block keying prevents installation errors, while online addition capability allows capacity expansion without process interruption. For facilities seeking to modernize legacy temperature measurement infrastructure or scale existing DeltaV deployments, the CE4003S6B1 offers a proven path to enhanced process visibility and control loop performance.

Core Capabilities & Business Value

→ Multi-Sensor Flexibility: Universal compatibility with Pt100, Pt200, Pt500, Ni120, and Cu10 RTDs eliminates the need for multiple card types, reducing spare parts inventory costs by up to 40% while simplifying maintenance procedures.

→ Zero-Calibration Operation: Factory-calibrated 16-bit A/D conversion with onboard calibration data storage delivers ±0.5°C accuracy out-of-the-box, cutting commissioning time by 60% compared to field-calibrated alternatives.

✓ Hot-Swap Capability: Online card addition and replacement in safe areas maintains process continuity during system expansion or maintenance, preventing costly production interruptions that average $5,000-$15,000 per hour in process industries.

✓ Hazardous Area Certification: ATEX 3 G IIC T4 and Class I Div 2 approvals enable deployment in Zone 2/Division 2 environments without expensive explosion-proof enclosures, reducing installation costs by 30-50% in petrochemical and pharmaceutical applications.

✓ Superior Noise Rejection: 120 dB common mode rejection at 50/60 Hz with -25 dB roll-off at 30 Hz filters electrical interference from VFDs and welding equipment, ensuring stable readings in electrically noisy industrial environments.

✓ Corrosion-Resistant Design: ISA G3-compliant conformal coating protects against sulfur dioxide, hydrogen sulfide, and chlorine exposure, extending service life to 15+ years in pulp/paper mills, wastewater treatment plants, and coastal facilities.

Industry-Specific Application Scenarios

Chemical Processing & Refining:
In distillation column temperature profiling, the CE4003S6B1's 8-channel architecture monitors multiple tray temperatures simultaneously, enabling precise separation control. The ±0.5°C accuracy maintains product purity specifications while the 3 Hz bandwidth captures thermal transients during feed composition changes. Facilities report 12-18% energy savings through optimized reflux ratio control and reduced off-spec batches.

Pharmaceutical Manufacturing:
For lyophilization and fermentation processes requiring FDA 21 CFR Part 11 compliance, the module's 0.05% repeatability ensures audit-ready temperature documentation. The open sensor detection (1-second response) triggers immediate alarms for RTD failures, preventing batch losses averaging $50,000-$200,000 in biopharmaceutical production.

Power Generation:
In steam turbine bearing temperature monitoring, the 4-wire RTD configuration eliminates lead resistance errors across 500+ meter cable runs from turbine deck to control room. The -40°C to 85°C storage rating withstands seasonal temperature swings in outdoor junction boxes, while 10g shock resistance survives turbine vibration environments.

Food & Beverage Processing:
Pasteurization and sterilization systems leverage the module's Callendar-Van Dusen linearization for custom Pt RTDs in sanitary tri-clamp assemblies. The 100 µA excitation current prevents self-heating errors in small-diameter sensors, maintaining HACCP compliance for critical control points in dairy, brewing, and canning operations.

Metals & Mining:
Furnace and kiln temperature control benefits from the extended -200°C to 850°C range (Pt100/200), covering both cryogenic gas separation and high-temperature annealing processes. The IP20/NEMA 12 rating suits control room mounting, while the modular design simplifies retrofits of legacy PLC-based systems to modern DeltaV architecture.

Technical Parameters & Selection Guide

Selection Decision Tree:

• If you need <8 channels → Consider VE4003S6B1 (4-channel variant) for cost optimization
• If temperature range exceeds 850°C → Specify thermocouple input cards (KJ3002X1 series)
• If ambient temperature >60°C → Request extended-temperature card variants with -ET suffix
• If redundancy required → Deploy dual cards with separate terminal blocks (simplex mode only)
• If HART communication needed → Select HART-enabled analog input cards (not applicable for RTD)

Extended Functionality & Integration Options

DeltaV Ecosystem Integration: The CE4003S6B1 auto-discovers on the DeltaV FieldBus network, with pre-configured function blocks for PID control, alarming, and trending. Integration with DeltaV Operate HMI provides real-time temperature visualization, while DeltaV Batch interfaces enable recipe-driven setpoint management for pharmaceutical and specialty chemical applications.

Predictive Maintenance Capabilities: Built-in diagnostics monitor open sensor conditions (1-second detection), lead wire integrity (15-second detection), and out-of-range signals. When paired with AMS Device Manager, these diagnostics feed predictive maintenance algorithms that forecast RTD drift and recommend calibration intervals, reducing unplanned downtime by 25-35%.

Cybersecurity Compliance: As part of the DeltaV distributed control system, the module benefits from IEC 62443 security certifications, including role-based access control, encrypted communications, and audit logging. This architecture meets FDA, NERC-CIP, and EU GMP Annex 11 requirements for validated pharmaceutical and critical infrastructure deployments.

Custom Linearization: User-defined RTD curves support proprietary sensor designs and non-standard platinum coefficients through Callendar-Van Dusen equation parameters. This flexibility accommodates specialized applications like cryogenic LNG measurement or high-purity semiconductor processing where standard curves introduce unacceptable errors.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 3-5 business days; custom configurations (extended temperature, special keying) require 4-6 weeks. Expedited delivery available for critical outage situations with 24-hour processing.

Warranty Coverage: 18-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service agreements available, including advance replacement, on-site commissioning support, and annual health checks.

Technical Support: Lifetime access to Emerson Global Technical Support (24/7/365) with guaranteed 4-hour response for Severity 1 issues. Support includes configuration assistance, troubleshooting guidance, firmware updates, and integration consulting.

Documentation Package: Each module ships with installation manual (12P1293/12P2046), wiring diagrams, terminal block keying chart, and DeltaV configuration templates. Online resources include 3D CAD models (STEP/IGES), loop drawing symbols (AutoCAD), and certification documents (ATEX, UL, CSA).

Frequently Asked Questions

Q: Can the CE4003S6B1 interface with third-party DCS systems outside the DeltaV platform?
A: No, this module is DeltaV-proprietary and communicates via the DeltaV FieldBus protocol. For integration with Allen-Bradley, Siemens, or Honeywell systems, consider universal RTD transmitters with 4-20mA HART output or Modbus RTU gateways.

Q: What is the maximum cable distance between RTD sensors and the CE4003S6B1 terminal block?
A: With 4-wire RTD configuration, cable runs up to 1,000 meters are supported using 18 AWG shielded twisted-pair cable. For 3-wire installations, limit runs to 300 meters to maintain ±0.5°C accuracy. Lead resistance compensation automatically corrects for copper resistance variations.

Q: How does the module's energy efficiency compare to legacy RTD input systems?
A: At 1.92W per card (160 mA @ 12 VDC), the CE4003S6B1 consumes 65% less power than equivalent rack-mounted RTD transmitters. An 8-card installation draws just 15.4W total, reducing cooling loads and enabling solar/battery backup for remote installations.

Q: Are there specific installation requirements for hazardous area deployments?
A: In Class I Division 2 environments, field wiring must be de-energized before card insertion/removal per NFPA 70 Article 501. For ATEX Zone 2 installations, follow non-sparking (-nA) procedures in document 12P2046. The module itself requires no special enclosure beyond IP20/NEMA 12 protection.

Q: Can I monitor RTD sensor health remotely without visiting the field?
A: Yes, the DeltaV Operate interface displays real-time diagnostics including open circuit detection, lead resistance values, and signal quality metrics. AMS Device Manager provides trending of these parameters, enabling predictive alerts 2-4 weeks before sensor failure based on drift patterns.

Q: What upgrade path exists for facilities currently using S-series DeltaV controllers?
A: The CE4003S6B1 is M-series exclusive and incompatible with S-series carriers. Migration requires controller upgrade to M-series hardware, though existing RTD field wiring and sensors can be reused. Emerson offers trade-in programs reducing upgrade costs by 20-30% for qualified systems.

Request Your Custom Quote Today

Transform your temperature measurement infrastructure with the CE4003S6B1's proven combination of precision, reliability, and DeltaV integration. Our application engineers are ready to assess your specific requirements, recommend optimal channel configurations, and provide detailed ROI analysis comparing upgrade costs versus ongoing maintenance of legacy systems.
