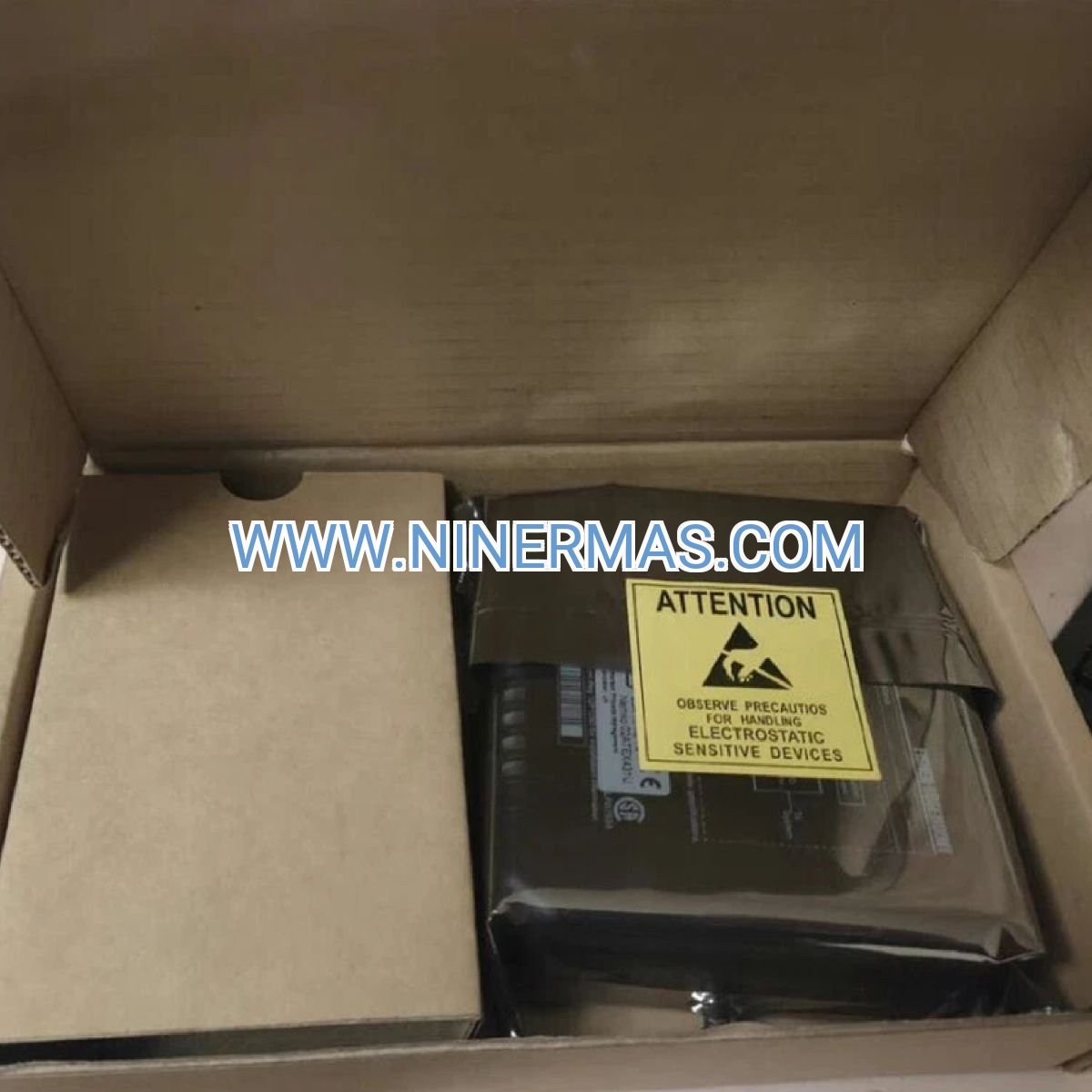

CE4003S2B1 Industrial-Grade Analog Input Termination Assembly

The CE4003S2B1 termination assembly delivers robust field-to-controller connectivity for DeltaV M-series distributed control systems, supporting eight independent 4-20mA analog input channels with integrated HART digital communication. Engineered for mission-critical process industries, this wiring interface combines 1500VDC channel isolation, 16-bit signal resolution, and factory-lifetime calibration to ensure measurement integrity across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing environments.

Built to withstand harsh industrial conditions, the CE4003S2B1 features conformal-coated circuitry meeting ISA-S71.04 Class G3 standards, protecting against corrosive atmospheres, humidity extremes, and airborne contaminants. Global hazardous area certifications (FM/CSA Class I Div 2, ATEX Zone 2) enable deployment in classified locations, while marine approvals (DNV/ABS) support offshore platform installations.

Whether interfacing smart pressure transmitters in refinery units, temperature sensors in reactor vessels, or analytical instruments in water treatment facilities, the CE4003S2B1 provides the reliability and diagnostic capabilities demanded by modern process automation architectures. Contact our DCS specialists for application-specific configuration guidance and volume project pricing.

Key Performance Advantages

→ Optical Isolation Architecture: Each of the eight channels incorporates 1500VDC optical isolation barriers, factory-tested to prevent ground loops and electrical transients from propagating between field circuits and the DCS backplane. This protection is essential in installations with long cable runs, multiple grounding points, or proximity to high-power electrical equipment generating electromagnetic interference.

→ Dual Transmitter Power Modes: Supports both 2-wire loop-powered transmitters (drawing power from the 4-20mA signal loop) and 4-wire externally-powered devices. The integrated 24VDC field power supply delivers up to 300mA per card, accommodating modern smart transmitters while maintaining compliance with intrinsic safety requirements in classified areas.

→ HART Protocol Integration: Transparent pass-through of HART digital signals enables remote transmitter configuration, multi-variable data access, and predictive diagnostics without consuming additional I/O points. Seamlessly integrates with AMS Device Manager for asset performance monitoring and calibration management across distributed field device networks.

→ Precision Measurement Circuitry: 16-bit analog-to-digital conversion delivers 0.0015% signal granularity with 0.1% full-span accuracy and 0.05% repeatability. The -3dB roll-off at 2.7Hz provides effective noise filtering while maintaining response speed for dynamic process variables requiring tight control tolerances.

→ Keyed Installation System: Rotary key position A1 ensures correct termination block matching with compatible analog input cards, preventing commissioning errors and protecting field transmitters from incorrect voltage/current application during system startup or maintenance activities.

✓ No periodic calibration required
✓ Hot-swap capability for online maintenance
✓ Over-range detection (1-22.5mA monitoring)
✓ Channel-to-channel crosstalk immunity

Industrial Application Scenarios

Refinery Process Measurement Networks: In crude distillation units, catalytic crackers, and hydrotreating processes, the CE4003S2B1 interfaces with differential pressure transmitters monitoring column levels, flow orifice plates, and filter pressure drops. The 1500VDC isolation protects against ground potential differences between field junction boxes and the central control room, while HART communication provides access to transmitter diagnostics identifying plugged impulse lines or sensor drift before process upsets occur.

Chemical Reactor Temperature Profiling: Batch and continuous chemical reactors require multi-point temperature monitoring for exothermic reaction control and product quality assurance. Connect RTD-based smart temperature transmitters to track reaction zone temperatures, jacket cooling temperatures, and condenser performance. Access secondary variables (sensor resistance, loop current) via HART for predictive maintenance of aging RTD elements.

Pharmaceutical Clean-in-Place (CIP) Systems: Monitor critical process parameters including cleaning solution temperature, conductivity, and flow rates to ensure validated cleaning cycles meet regulatory requirements. The termination block's conformal coating and sealed construction prevent contamination in washdown environments, while 16-bit resolution captures subtle variations in analytical measurements requiring tight specification limits.

Power Plant Boiler Feedwater Control: Interface with smart pressure, flow, and level transmitters controlling boiler drum levels, feedwater flow, and steam header pressures. The CE4003S2B1's vibration tolerance (0.7g, 13.2-150Hz) and shock resistance (10g) ensure reliable operation in high-vibration environments near turbines, pumps, and compressors.

Water Treatment SCADA Integration: Acquire signals from pH analyzers, turbidity meters, chlorine residual sensors, and dissolved oxygen probes in municipal water treatment and industrial wastewater facilities. HART variable reporting automatically polls secondary measurements (temperature compensation, sensor impedance) without requiring separate analog inputs, reducing I/O card count and cabinet space requirements.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify that your DeltaV M-series analog input card requires A1-keyed termination blocks. For intrinsically safe (IS) applications in Zone 0/1 or Class I Division 1 areas, specify IS-rated termination assemblies with appropriate entity parameters. Consider optional 2.0A fuse protection for field circuits exposed to lightning strike risk or frequent maintenance activities.

Advanced HART Communication Features

Modern process transmitters embed rich diagnostic and operational data accessible via HART digital protocol. The CE4003S2B1 termination assembly provides transparent HART signal coupling, enabling DeltaV control strategies and AMS Device Manager to leverage these advanced capabilities:

Multi-Variable Data Access: Automatically poll secondary process variables (temperature, pressure, density) from multi-parameter transmitters without consuming additional analog input channels. A single Coriolis mass flowmeter can provide mass flow, volumetric flow, density, and temperature simultaneously, reducing I/O requirements by 75% compared to discrete measurement approaches.

Predictive Diagnostics: Monitor transmitter health indicators including sensor drift, electronics temperature, power supply voltage, and communication error rates. Configure DeltaV alarms triggered by HART device status changes, enabling proactive maintenance before measurement failures impact product quality or process safety.

Remote Configuration: Modify transmitter damping, range settings, engineering units, and alarm thresholds from the DeltaV operator interface or AMS Device Manager workstation without field visits. This capability is particularly valuable for transmitters in hazardous areas, elevated locations, or remote facilities requiring confined space entry permits.

Calibration Management: Access transmitter calibration dates, adjustment history, and sensor trim records through HART communication. Integrate with computerized maintenance management systems (CMMS) to schedule calibration activities based on actual drift trends rather than fixed time intervals, optimizing maintenance resource allocation.

Installation Best Practices & Wiring Standards

Cable Specification: Use twisted-pair shielded instrumentation cable (Belden 8761, Alpha 6412, or equivalent) for all 4-20mA field connections. The twisted-pair construction provides common-mode noise rejection, while the shield (grounded at one end only) prevents electromagnetic interference from VFDs, welders, and radio transmitters. Maintain minimum 12-inch separation from AC power cables; use separate conduit or cable tray compartments where possible.

Shield Grounding Strategy: Ground cable shields at the DCS cabinet (termination block end) only. Grounding both ends creates ground loops that inject noise currents into the 4-20mA signal path. In installations with severe EMI, consider using isolated shield grounding bars with high-frequency bypass capacitors to drain interference currents while blocking low-frequency ground loop currents.

Fuse Protection Considerations: The CE4003S2B1 supports optional 2.0A fast-acting fuses for each channel. Install fuses in applications where field wiring is exposed to lightning strikes, accidental contact with AC power circuits, or frequent maintenance activities that could cause wiring faults. Fuses protect both the termination block and field transmitters from overcurrent damage.

Terminal Torque Specifications: Tighten field wiring terminals to manufacturer-specified torque values (typically 0.5-0.6 N⋅m) using a calibrated torque screwdriver. Under-torqued connections create high-resistance joints that generate measurement errors and heat; over-torqued connections damage terminal blocks and wire insulation, creating future reliability issues.

Documentation Requirements: Label all field cables with transmitter tag numbers, signal types, and loop numbers matching DeltaV I/O channel assignments. Maintain as-built wiring diagrams showing terminal block positions, fuse locations, and shield grounding points. This documentation is essential for troubleshooting, modifications, and regulatory compliance audits.

Delivery Timeline & Quality Assurance

Standard Lead Time: In-stock CE4003S2B1 units ship within 1-2 business days via DHL, FedEx, or UPS with full tracking and insurance. Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days depending on customs clearance and destination accessibility.

Project Quantities: For orders exceeding 10 units or complete DeltaV system expansions, contact our project sales team for expedited delivery scheduling, volume pricing, and coordinated shipment with associated I/O cards, power supplies, and chassis components.

Warranty Coverage: All CE4003S2B1 termination blocks include Emerson's standard manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical process applications requiring maximum uptime assurance.

Technical Support: Complimentary pre-sales application engineering assistance including loop diagram review, HART configuration guidance, and system integration planning. Post-sales support includes commissioning assistance, troubleshooting consultation, and AMS Device Manager integration guidance.

Documentation Package: Each shipment includes installation manuals, wiring diagrams, terminal block keying charts, and hazardous area certification documents. Additional resources (HART device descriptions, AMS configuration files, AutoCAD symbols) available via download portal.

Frequently Asked Questions

Q: What is the difference between 2-wire and 4-wire transmitter connections with the CE4003S2B1?
A: 2-wire transmitters draw operating power from the 4-20mA signal loop provided by the termination block's 24VDC field power supply (300mA maximum per card). This configuration minimizes field wiring costs and is standard for most modern smart transmitters. 4-wire transmitters use separate power and signal circuits, with power supplied externally. This eliminates loop resistance voltage drop concerns and supports high-power transmitters or those requiring AC power. The CE4003S2B1 accommodates both configurations through flexible terminal assignments.

Q: How does the A1 terminal block keying system prevent installation errors?
A: The rotary keying mechanism uses a physical key position (A1 for this termination block) that must match the corresponding slot on the DeltaV M-series analog input card. Attempting to insert a termination block with incorrect keying (e.g., B1, C1) into an A1-keyed card slot is mechanically prevented. This ensures field wiring always connects to the correct card type, preventing damage to transmitters from incorrect voltage/current application and eliminating commissioning errors in large systems with multiple I/O card types.

Q: Can the CE4003S2B1 support HART communication with all field transmitters simultaneously?
A: Yes, the termination block provides transparent HART signal coupling for all eight channels concurrently. The DeltaV M-series analog input card and controller handle HART protocol communication scheduling, allowing simultaneous access to device diagnostics, secondary variables, and configuration parameters across all connected smart transmitters. Communication speed depends on HART polling rates configured in DeltaV control strategies and AMS Device Manager scan groups.

Q: What maintenance activities are required for the CE4003S2B1 termination block?
A: The CE4003S2B1 requires no periodic calibration or preventive maintenance under normal operating conditions. Factory calibration is permanent and does not drift over the product's 15+ year service life. Recommended maintenance includes annual visual inspection for terminal corrosion or physical damage, verification of terminal screw tightness (thermal cycling can loosen connections), and functional testing of optional fuses if installed. The termination block supports hot-swap replacement while the system is energized, following proper safety procedures.

Q: Is the CE4003S2B1 compatible with legacy DeltaV systems or only newer M-series controllers?
A: The CE4003S2B1 is specifically designed for DeltaV M-series (M3, M5, M8) distributed controllers and is compatible with VE4003S2B1/B2/B3 analog input cards. For legacy DeltaV systems using S-series controllers or earlier generations, different termination block models are required. Contact our application engineers with your DeltaV system version and controller serial numbers for compatibility verification and correct part number selection.

Q: How does the 1500VDC optical isolation protect against ground loops and electrical transients?
A: Each channel incorporates an optical isolator (LED/phototransistor pair) that transmits the 4-20mA signal as modulated light across a physical air gap, breaking the electrical connection between field circuits and the DCS backplane. This prevents ground potential differences (which can reach hundreds of volts in large facilities) from creating circulating currents that add noise to measurements. The isolation also protects the DCS from voltage transients caused by lightning strikes, motor starter switching, or welding operations in the field, which could otherwise damage sensitive electronics or create safety hazards.

Order Your CE4003S2B1 Termination Assembly Today

Ensure reliable analog signal acquisition for your DeltaV M-series control system with genuine Emerson CE4003S2B1 termination blocks. Our automation specialists are ready to assist with application-specific configuration, volume project pricing, and coordinated delivery scheduling. Request a quote now or contact our technical sales team at sale@ninermas.com | +0086 187 5021 5667 for immediate assistance.
