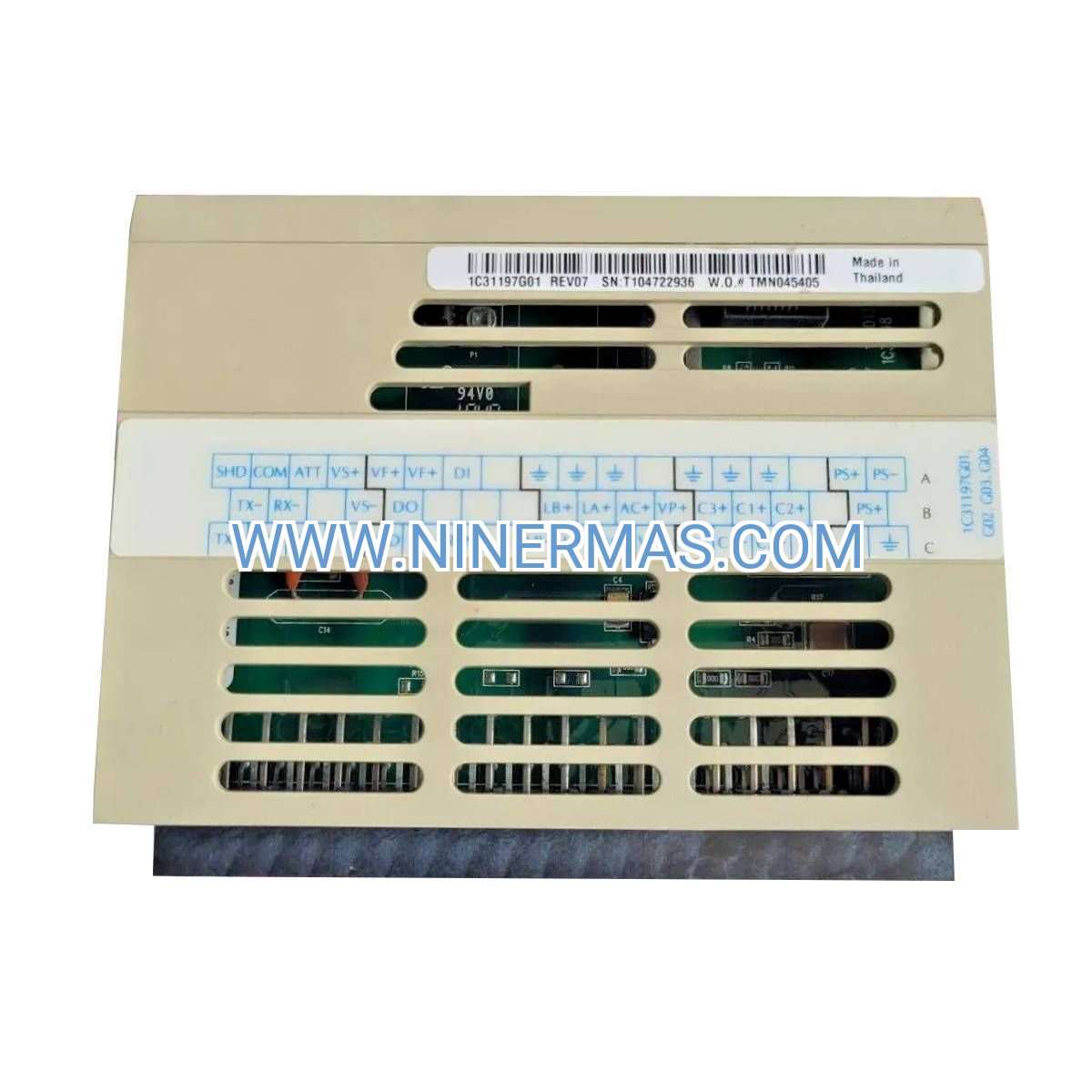

C31197G01 Ovation I/O Base Platform (Industrial-Grade Mounting System)

The C31197G01 represents Emerson's engineered solution for distributed I/O deployment in process automation environments. This base platform delivers mechanical stability, electrical backplane integration, and field termination infrastructure for Ovation 1C31xxx series modules. Designed for facilities requiring scalable signal management—from 16-point configurations to multi-rack installations—the C31197G01 eliminates traditional wiring complexity while maintaining industrial-grade reliability in harsh operating conditions.

Process engineers and system integrators deploy this base across refineries, power plants, and manufacturing facilities where signal integrity, maintenance accessibility, and system uptime directly impact operational efficiency. The platform addresses three critical challenges: reducing installation labor through pre-engineered backplane connections, enabling live module replacement without process interruption, and providing diagnostic visibility through integrated status indicators.

With certifications spanning UL, CE, and ATEX Zone 2 compliance, the C31197G01 serves as the foundation for control architectures managing thousands of I/O points across geographically distributed assets. Whether retrofitting legacy systems or designing greenfield installations, this base platform delivers the mechanical precision and electrical performance demanded by mission-critical applications.

Core Features & Technical Advantages

→ Hot-Swap Module Architecture: Replace or add I/O modules during live operation without disrupting active control loops—critical for continuous process industries where unplanned downtime costs exceed $50,000 per hour.

→ Integrated Backplane Communication: High-speed serial bus routes power, data, and diagnostics between controller and field modules, eliminating 200+ individual wire terminations per rack compared to traditional marshalling systems.

→ Dual Mounting Options: Install on standard 35mm DIN rail for cabinet integration or panel-mount with grounding lug for outdoor enclosures—flexibility that reduces engineering redesign during project execution.

→ Field-Proven Environmental Tolerance: Operates reliably across 0°C to 60°C temperature range with vibration resistance meeting IEC 60068-2-6 standards—validated in offshore platforms and desert installations.

→ Tool-Free Module Insertion: Snap-lock mechanism secures I/O cards with audible confirmation, reducing installation errors and enabling technician-level maintenance without specialized training.

→ Visual Diagnostic System: Multi-color LED arrays display module status, communication health, and field fault conditions at 10-meter visibility—accelerating troubleshooting during emergency response scenarios.

Application Scenarios Across Industries

✓ Petrochemical Refining: Deploy in crude distillation units managing 300+ temperature, pressure, and flow measurements. The C31197G01's compact footprint consolidates signals from heat exchangers, fractionation columns, and pump stations into centralized control rooms—reducing cable tray requirements by 40% compared to distributed marshalling cabinets.

✓ Combined-Cycle Power Generation: Integrate with gas turbine control systems requiring sub-10ms response times for vibration monitoring and combustion optimization. Hot-swap capability enables sensor calibration and module upgrades during scheduled outages without extending maintenance windows.

✓ Pharmaceutical Manufacturing: Support batch reactor control in FDA-regulated environments where audit trails and change management protocols demand documented I/O configurations. Removable terminal blocks with serialized labels maintain 21 CFR Part 11 compliance during validation activities.

✓ Water/Wastewater Treatment: Connect chlorine analyzers, turbidity sensors, and actuator feedback across multi-stage treatment trains. Modular expansion accommodates facility growth from 5 MGD to 20 MGD capacity without controller replacement—protecting capital investment over 15-year asset lifecycles.

✓ Metals & Mining: Withstand high-vibration environments in grinding mills, flotation circuits, and conveyor systems. Conformal-coated electronics resist dust ingress and humidity fluctuations common in mineral processing facilities operating 24/7/365 schedules.

Technical Specifications & Selection Criteria

Selection Guidance: Determine required I/O density by counting field devices per control loop. For applications exceeding 128 points, consider multiple bases with network distribution. Specify spring-cage terminals for high-vibration environments or frequent wiring changes. Verify power supply compatibility with Ovation system voltage (typically 24VDC redundant).

Extended Capabilities & System Integration

Redundancy Support: Pair with dual controllers and redundant power supplies for SIL 2-rated safety instrumented systems. Automatic failover maintains control continuity during primary controller faults.

Network Connectivity: Integrate with Ovation OCR controllers via fiber-optic or copper Ethernet links supporting distances up to 2 km between I/O racks and control rooms—ideal for distributed facilities like pipeline compressor stations.

Third-Party Protocol Gateways: Connect legacy 4-20mA devices, HART communicators, and Foundation Fieldbus segments through compatible I/O modules—enabling phased migration from older DCS platforms without forklift upgrades.

Cybersecurity Features: When deployed with Ovation 3.5+ firmware, supports encrypted backplane communication and role-based access controls meeting IEC 62443 industrial cybersecurity standards.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items shipping from regional distribution centers. Expedited same-day dispatch available for critical outage support (contact sales for eligibility).

Custom Configurations: 10-15 business days for factory-configured assemblies with pre-installed terminal blocks, custom labeling, or integrated power distribution—ideal for large projects requiring consistent documentation.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended service agreements available including advance replacement and on-site technical support.

Technical Resources: Each shipment includes installation manual, wiring diagrams, and dimensional drawings. Access to Ovation configuration software, firmware updates, and application notes provided through Emerson support portal (registration required).

Compliance Documentation: CE declarations of conformity, UL certification letters, and material safety data sheets (MSDS) available upon request for project submittal packages.

Frequently Asked Questions

Q: How does the C31197G01 base connect to existing Ovation controllers?
A: The base integrates via Ovation's proprietary backplane network, which links to OCR400/800 series controllers through shielded communication cables. Maximum cable run is 100 meters using standard copper; fiber-optic extenders support up to 2 km for remote I/O applications. Configuration occurs through Ovation Developer Studio software—no manual addressing required as modules auto-discover upon insertion.

Q: What is the maximum I/O density achievable per control cabinet?
A: Density depends on module selection and cabinet thermal management. Typical installations achieve 256-512 I/O points per cabinet using mixed analog/digital modules. High-density digital modules can push counts to 1,024 points, but require forced-air cooling and power budget analysis. Consult Emerson's cabinet design guidelines for heat load calculations.

Q: Can I mix different I/O module types on the same base platform?
A: Yes—the C31197G01 accepts any combination of Ovation 1C31xxx series modules including analog input (AI), analog output (AO), digital input (DI), digital output (DO), and specialty modules like RTD or thermocouple. The backplane automatically routes signals based on module type. Ensure total power consumption remains within base supply capacity (verify using Ovation configuration tools).

Q: What maintenance procedures are required for long-term reliability?
A: Quarterly inspections should verify terminal block tightness (torque to 0.5 Nm), clean dust accumulation from ventilation slots, and check LED status indicators. Annual tasks include backplane connector inspection and firmware version verification. No lubrication or consumable replacement required. Typical service life exceeds 20 years in controlled environments.

Q: Is the base platform compatible with hazardous area installations?
A: The C31197G01 itself is not intrinsically safe but achieves ATEX Zone 2 compliance when paired with approved galvanic isolators or zener barriers for field wiring. For Zone 1/Division 1 applications, install the base in a purged enclosure meeting NFPA 496 standards, or use Emerson's remote I/O solutions with intrinsically safe field modules.

Q: How do I migrate from a legacy DCS to Ovation using this base?
A: Phased migration strategies typically involve: (1) installing C31197G01 bases alongside existing I/O, (2) transferring field wiring in planned outage windows, (3) parallel-running old and new systems during commissioning, and (4) cutover by control loop. Emerson Professional Services offers migration planning tools and on-site support to minimize production risk during transitions.

Secure Your Ovation I/O Infrastructure Today

The C31197G01 base platform delivers the mechanical precision, electrical reliability, and operational flexibility required for modern process control systems. Whether expanding existing Ovation installations or designing new automation architectures, this foundation component ensures signal integrity and maintenance efficiency across decades of service life.

Ready to configure your I/O system? Contact our application engineers for module compatibility verification, cabinet layout assistance, and project-specific technical support. Stock availability and volume pricing available for multi-site deployments.
