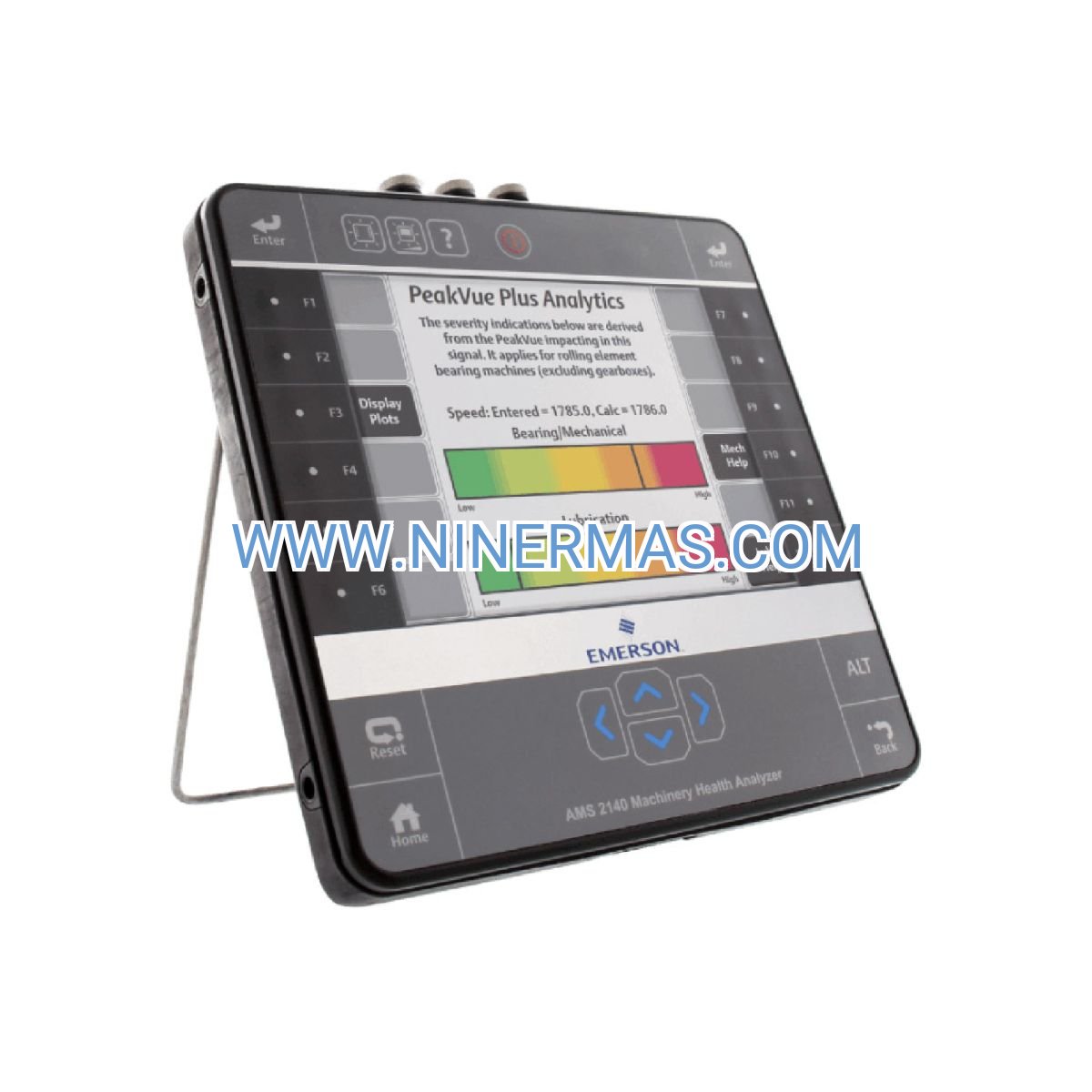

AMS2140 Portable Vibration Analyzer (Industrial-Grade Machinery Diagnostics)

The AMS2140 delivers field-proven vibration analysis for rotating equipment across oil & gas, chemical processing, power generation, and heavy manufacturing sectors. Engineered with 24-bit measurement precision and IP-65 environmental protection, this portable analyzer enables maintenance teams to detect bearing defects, misalignment, unbalance, and resonance conditions before catastrophic failures occur.

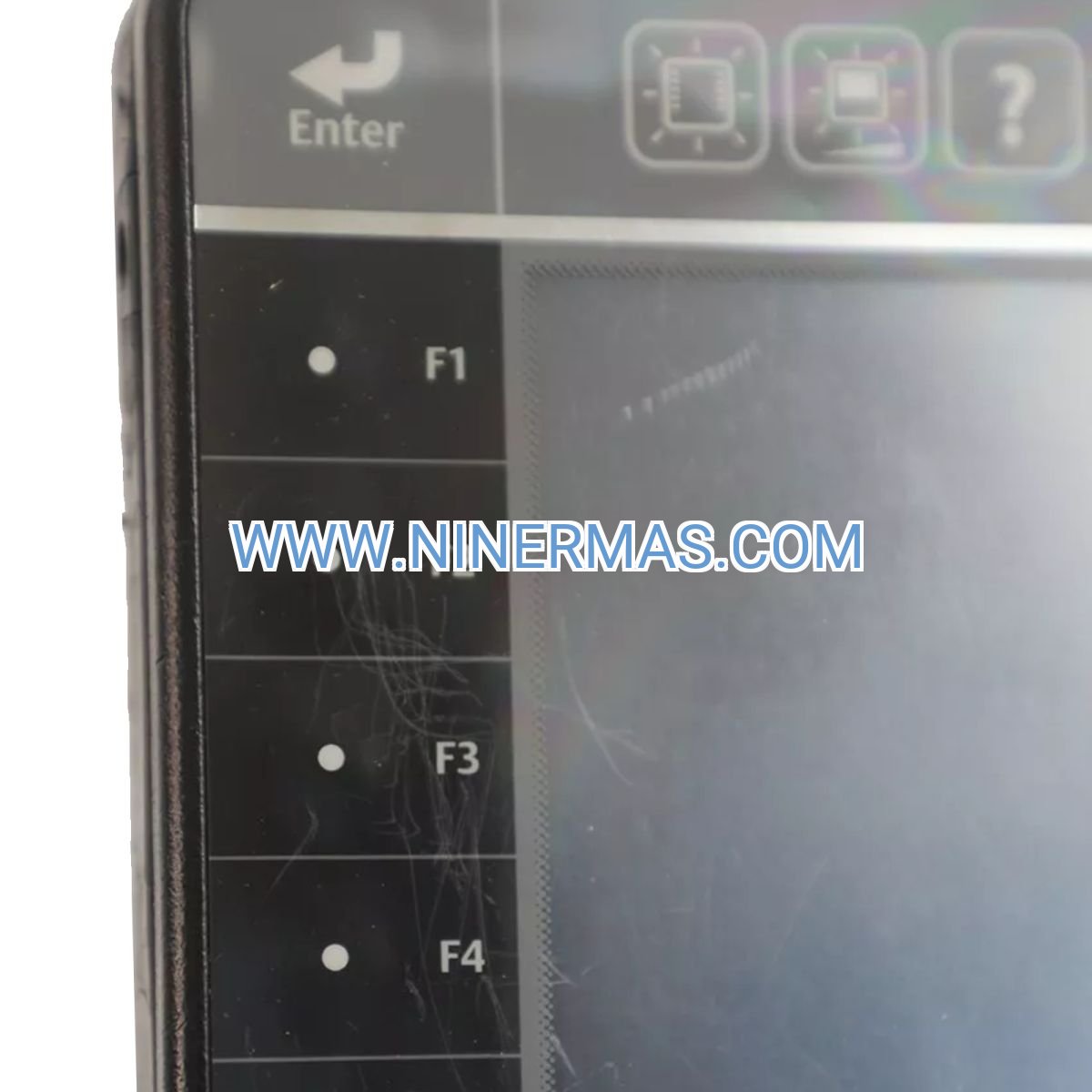

Designed for reliability engineers and vibration analysts, the AMS2140 combines touchscreen simplicity with advanced diagnostic capabilities—from route-based data collection covering hundreds of measurement points to precision balancing and high-frequency bearing fault detection. Whether you're implementing ISO 18436-compliant condition monitoring programs or troubleshooting critical process equipment, this analyzer provides the measurement accuracy and rugged construction demanded by industrial environments.

With 10+ hours of battery life, 1GB internal storage, and seamless integration with AMS Machinery Manager software, the AMS2140 transforms vibration data into actionable maintenance decisions that reduce unplanned downtime, extend asset life, and optimize maintenance budgets.

Key Features & Business Value

→ 24-Bit A/D Conversion with 120dB Dynamic Range
Captures both subtle early-warning signatures and high-amplitude fault conditions in a single measurement. This exceptional sensitivity enables detection of bearing defects at incipient stages—weeks or months before visible damage—allowing scheduled repairs during planned outages rather than emergency shutdowns that cost $50,000-$500,000 per event in lost production.

→ IP-65 Sealed Enclosure for Harsh Environments
Dust-tight and water-jet protected construction withstands offshore platforms, cement plants, mining operations, and chemical facilities where moisture, dust, and temperature extremes destroy consumer-grade instruments. Operates reliably from -10°C to 50°C, eliminating the need for protective housings or measurement delays waiting for suitable weather conditions.

→ True Zoom Resolution up to 300,000 Lines
Resolves closely-spaced gear mesh frequencies, sideband patterns, and harmonic families that indicate specific failure modes. In multi-stage gearboxes, this capability identifies which gear stage contains damaged teeth, reducing diagnostic time from hours to minutes and preventing unnecessary disassembly of healthy components.

✓ Route-Based Monitoring with 5,000 Average Storage
Execute pre-programmed measurement routes covering entire facilities, automatically comparing current readings against baseline data and alarm thresholds. GPS tagging ensures measurements are taken at correct locations, eliminating human error. One analyst can monitor 500+ machines per shift, reducing labor costs by 60% compared to manual data recording methods.

✓ Integrated Balancing Module
Perform single-plane and two-plane balancing without external software or calculators. The analyzer computes correction weights and angular positions, guiding technicians through the balancing process step-by-step. Eliminating mass imbalance reduces bearing loads by 40-70%, extends bearing life by 2-5x, and cuts energy consumption by 3-8% on large rotating equipment.

✓ High-Frequency Envelope Analysis (DC to 80 kHz)
Demodulation techniques isolate ultrasonic bearing signatures from background vibration, detecting lubrication breakdown, contamination ingress, and surface spalling invisible to conventional velocity measurements. This early detection capability provides 4-12 weeks of advance warning before bearing temperatures rise or audible noise develops.

Industrial Application Scenarios

Petrochemical Refinery Rotating Equipment Programs
Monitor critical pumps, compressors, and turbines handling flammable/toxic fluids where unplanned failures create safety hazards and environmental risks. The AMS2140's route-based monitoring enables quarterly or monthly data collection on 800+ measurement points across process units, with automatic alarm generation when vibration levels exceed API 610/617 acceptance criteria. Maintenance planners receive prioritized work lists identifying machines requiring attention, optimizing technician deployment and spare parts inventory.

Power Generation Turbine-Generator Sets
Diagnose steam turbine blade fouling, generator rotor eccentricity, coupling misalignment, and bearing wear on units generating 50-500 MW. The analyzer's synchronous time averaging isolates vibration from specific turbine stages, while phase measurements guide alignment corrections to within 0.001" TIR. Preventing forced outages on baseload units avoids $100,000-$1,000,000 per day in replacement power costs and lost revenue.

Pulp & Paper Machine Reliability
Analyze paper machine dryer sections, press rolls, and calendar stacks operating at 3,000-6,000 FPM web speeds. High-resolution spectra reveal roll eccentricity, bearing defects, and drive train issues that cause web breaks costing $15,000-$50,000 per hour in lost production. Predictive maintenance based on AMS2140 data reduces unplanned downtime by 35-50% and extends roll bearing life from 18 months to 36+ months.

Mining Conveyor & Crusher Systems

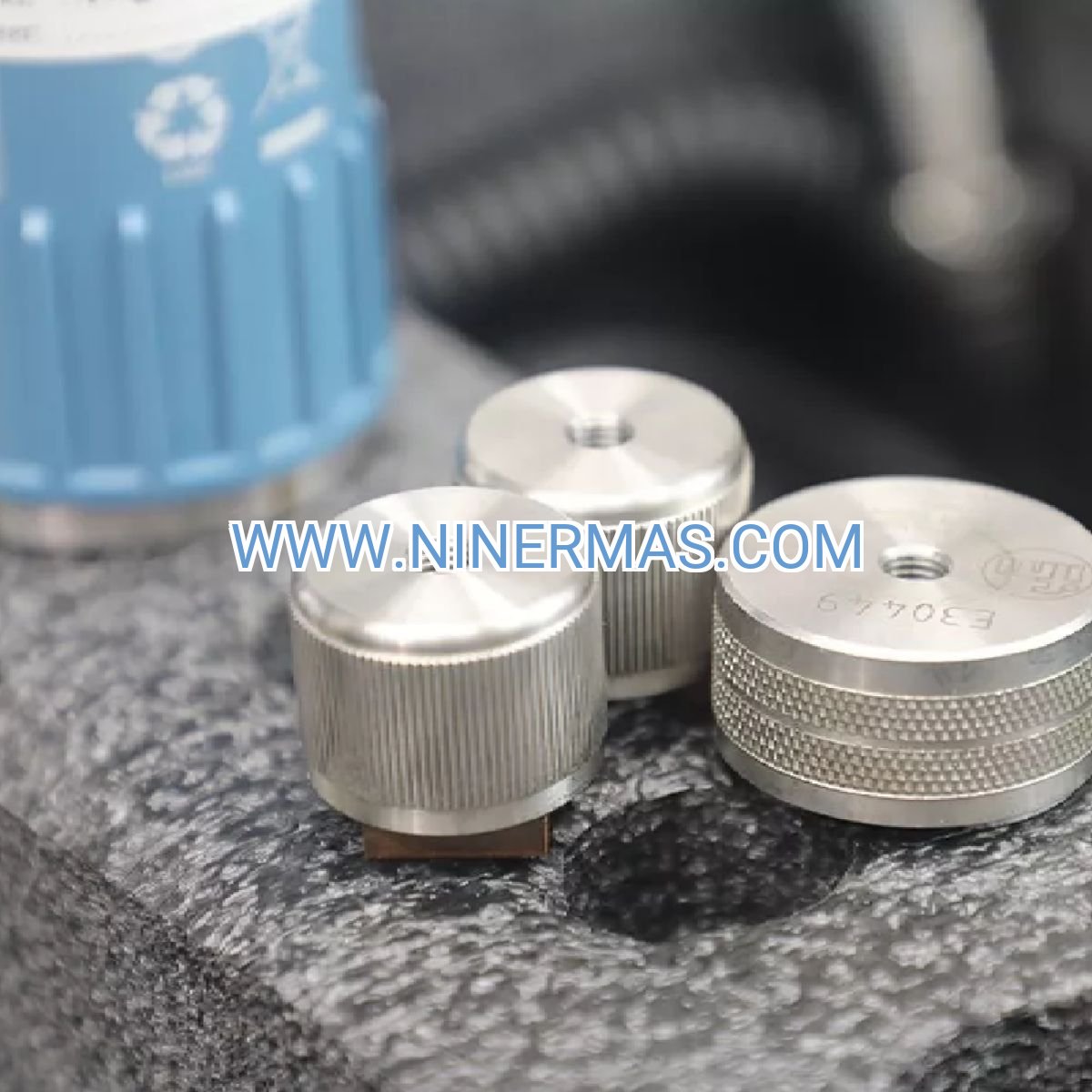

Monitor belt conveyors, gyratory crushers, and SAG mills in dusty, high-vibration environments where equipment accessibility is limited. The IP-65 rating and magnetic sensor mounting enable rapid measurements on structures covered in ore dust and process residue. Detecting gearbox tooth wear or motor bearing faults prevents catastrophic failures that halt entire production lines for 12-72 hours while replacement components are sourced and installed.

HVAC & Building Systems Optimization
Balance centrifugal chillers, cooling tower fans, and air handling units to reduce energy consumption and extend equipment life in commercial facilities. The AMS2140's balancing module achieves residual vibration levels below 0.1 IPS, cutting bearing replacement frequency by 50% and reducing electrical consumption by 4-7% on large fan arrays—savings of $5,000-$25,000 annually per 100-HP motor.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AMS2140 when you need portable diagnostics with laboratory-grade accuracy for route-based programs covering 100-2,000 measurement points. For permanent online monitoring of critical assets, consider AMS 6500 rack-mounted systems. For basic screening without advanced diagnostics, the CSI 2130 offers lower-cost alternative. The AMS2140 represents the optimal balance of capability, portability, and total cost of ownership for facilities with 50-500 rotating assets requiring quarterly or monthly monitoring.

Extended Capabilities

IoT Integration & Remote Diagnostics: Built-in Ethernet and web server enable wireless data upload to AMS Machinery Manager cloud platform. Analysts review measurements from office locations, eliminating travel time to remote sites. Automated email alerts notify maintenance planners when alarm thresholds are exceeded, reducing response time from days to hours. Integration with SAP PM, Maximo, and other CMMS platforms creates automatic work orders when vibration trends indicate impending failures.

Advanced Analysis Functions: Orbit analysis for journal bearing diagnostics, transient capture for startup/shutdown events, order tracking for variable-speed machinery, cross-channel phase for misalignment detection, impact testing for resonance identification, and coast-down analysis for natural frequency mapping. These specialized tools address complex diagnostic scenarios beyond routine route-based monitoring.

Customization Options: Configure custom measurement templates, alarm limits, and report formats for specific equipment types. Create facility-specific route databases with GPS coordinates, equipment photos, and measurement history. Develop standardized procedures for ISO 18436 certification compliance and regulatory audits. Training packages available for Cat I/II/III analyst certification preparation.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days to North America, Europe, and Asia-Pacific regions. Custom configurations with specific sensor packages or software bundles require 7-10 business days. Expedited shipping available for emergency replacements of failed analyzers—next-day delivery to major industrial centers.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for 36-60 month coverage including annual calibration services. Loaner units provided during warranty repairs to maintain route schedule continuity.

Technical Support: Unlimited phone and email support from factory-trained vibration specialists. Remote desktop assistance for software configuration and data interpretation. On-site commissioning services available for initial route setup and analyst training. Annual health checks recommended to verify calibration accuracy and firmware currency.

Documentation Package: Complete user manual (350+ pages), quick start guide, application notes for common machinery types, video tutorials for measurement techniques, and ISO 10816/20816 compliance guidelines. Calibration certificates traceable to NIST/PTB standards included with each unit.

Frequently Asked Questions

Q: How does the AMS2140 interface with existing CMMS systems for automated work order generation?
A: The analyzer uploads measurement data to AMS Machinery Manager software via USB or Ethernet. Machinery Manager integrates with SAP PM, IBM Maximo, Infor EAM, and other enterprise systems through standard APIs (OPC-UA, REST, ODBC). When vibration levels exceed alarm thresholds, the software automatically creates work orders with equipment ID, fault description, and recommended corrective actions. This closed-loop integration eliminates manual data entry and reduces response time from fault detection to repair execution by 60-80%.

Q: What measurement capacity and route execution speed can I expect for large facilities?
A: The AMS2140 stores 5,000 averaged spectra in route mode, sufficient for facilities with 500-1,000 measurement points (assuming 5-10 measurements per machine). At 400-line resolution, the analyzer captures 6 averages per second, enabling 10-15 second measurement times per point including sensor placement. Experienced analysts complete 100-150 measurement points per hour, allowing coverage of 800-1,200 points per 8-hour shift. For facilities exceeding this capacity, deploy multiple analyzers or transition to online monitoring for highest-priority assets.

Q: Can the analyzer achieve energy savings through precision balancing of HVAC equipment?
A: Yes—mass imbalance creates parasitic radial loads on bearings and shaft deflection that increases friction losses. Balancing large fans, pumps, and chillers to residual vibration below 0.1 IPS typically reduces electrical consumption by 3-8% depending on initial imbalance severity. On a 100-HP motor operating 8,000 hours annually at $0.10/kWh, this represents $1,800-$4,800 in annual energy savings. Additional benefits include 50-70% reduction in bearing replacement frequency and 30-50% extension of motor winding life due to reduced vibration-induced insulation degradation.

Q: What installation requirements exist for field deployment in hazardous areas?
A: The standard AMS2140 is rated for general industrial use (non-hazardous locations). For Class I Division 2 / Zone 2 hazardous areas common in petrochemical facilities, use intrinsically-safe accelerometers with barrier modules or specify the AMS2140 EX variant with ATEX/IECEx certification. Installation requires no permanent mounting—the analyzer is fully portable with magnetic sensor bases for temporary attachment. Ensure accelerometer cables are routed away from high-voltage conductors (maintain 12" separation from 480V+ circuits) to prevent electromagnetic interference affecting low-level vibration signals.

Q: How does remote monitoring capability reduce travel costs for multi-site operations?
A: The built-in Ethernet interface and web server enable wireless data upload to centralized AMS Machinery Manager servers. Analysts at headquarters review measurements from 10-50 remote facilities without site visits, reducing travel expenses by $50,000-$200,000 annually for organizations with geographically-dispersed assets. The analyzer's GPS tagging verifies measurements were taken at correct locations, maintaining data quality despite reduced on-site supervision. Critical alarms trigger email/SMS notifications to local maintenance teams, enabling rapid response without analyst travel for routine issues.

Q: What training investment is required for maintenance staff to achieve diagnostic proficiency?
A: Basic route data collection requires 8-16 hours of training covering sensor placement, measurement setup, and data upload procedures. Diagnostic interpretation for common faults (imbalance, misalignment, bearing defects) requires 40-80 hours of classroom and hands-on training aligned with ISO 18436 Category I/II standards. Advanced diagnostics (gearbox analysis, resonance testing, transient capture) demand 80-120 hours of training and 6-12 months of supervised field experience for Category III proficiency. Emerson offers certification-aligned training programs, and many technical colleges provide vibration analysis courses using AMS equipment as the instructional platform.

Request Your Quote Today

Transform your maintenance strategy from reactive to predictive with the AMS2140 vibration analyzer. Our technical team will assess your equipment population, recommend optimal sensor configurations, and provide ROI projections based on your current failure rates and maintenance costs. Contact us for detailed specifications, application assistance, or volume pricing for fleet deployments.
