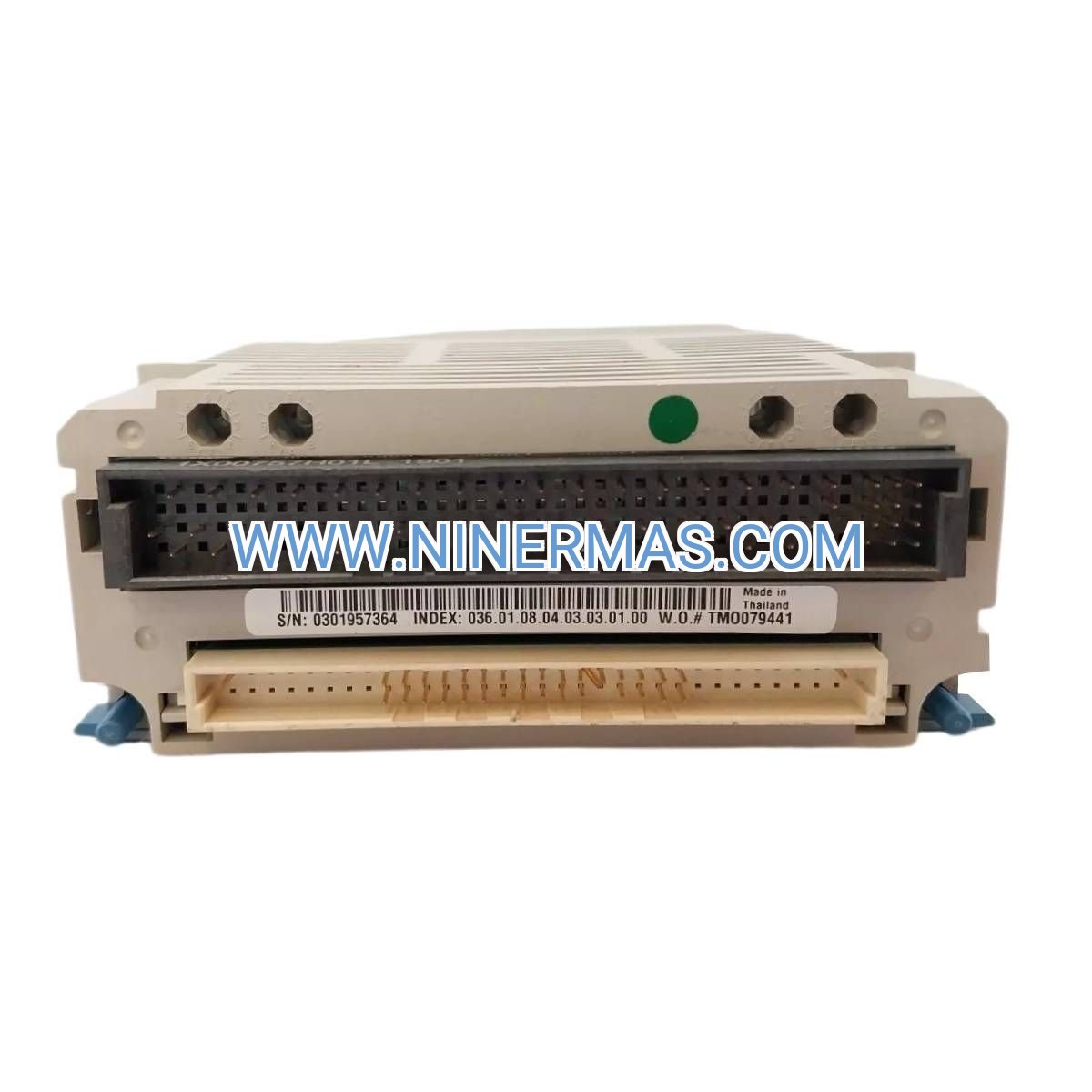

5X00500G01 High-Density Digital Output Module (Industrial-Grade Process Control)

Engineered for mission-critical automation environments, the 5X00500G01 delivers 32 independently controlled digital output channels in a compact, rack-mountable form factor. This industrial-grade module serves as the critical interface between distributed control systems and field devices—driving solenoid valves, contactors, annunciators, and actuators across oil & gas, power generation, chemical processing, and water treatment facilities. With 500mA current sourcing per channel, comprehensive fault diagnostics, and 1500VAC galvanic isolation, it addresses the dual demands of high channel density and uncompromising reliability in harsh industrial settings.

Designed for seamless integration within Emerson Ovation DCS architectures, the module combines solid-state switching technology with intelligent protection circuitry. Each output features electronic overcurrent limiting, short-circuit detection, and open-load diagnostics—eliminating the maintenance burden of traditional electromechanical relay panels while providing real-time visibility into field device health. Whether you're retrofitting legacy systems or designing greenfield installations, the 5X00500G01 reduces wiring complexity, cabinet footprint, and total cost of ownership.

From batch sequencing in pharmaceutical cleanrooms to emergency shutdown systems on offshore platforms, this module handles the full spectrum of discrete control applications. Its hot-swappable design minimizes downtime during maintenance, while CE/UL/ATEX certifications ensure compliance across global markets. For automation engineers seeking to maximize I/O density without sacrificing diagnostic capability or electrical protection, the 5X00500G01 represents the optimal balance of performance, reliability, and value.

Core Capabilities & Technical Advantages

→ Space-Efficient Architecture: Consolidates 32 output points into a single module slot, reducing rack requirements by up to 60% compared to 16-channel alternatives. This translates to smaller control cabinets, lower panel fabrication costs, and simplified cable routing in congested industrial environments.

→ Intelligent Fault Management: Real-time diagnostics monitor each channel for short-to-ground, open-circuit, and thermal overload conditions. Fault data integrates directly into Ovation alarm systems, enabling predictive maintenance strategies that prevent unplanned shutdowns and extend field device lifespan.

→ Electrical Isolation & Noise Immunity: 1500VAC channel-to-logic isolation breaks ground loops and shields control circuitry from voltage transients common in motor control centers and high-power switching environments. This protection is essential for maintaining signal integrity in electrically noisy facilities.

✓ Protected Current Sourcing: Each channel delivers up to 500mA with electronic current limiting—sufficient for standard solenoid valves, pilot relays, and LED indicators without external amplification. Built-in flyback diode suppression safely manages inductive kickback from coil loads.

✓ Field-Replaceable Design: Hot-swap capability allows module exchange during operation without process interruption. Removable terminal blocks enable pre-wiring and bench testing, accelerating commissioning timelines and reducing installation errors.

✓ Visual Diagnostics: Individual LED indicators per channel provide instant confirmation of output states during startup, troubleshooting, and routine inspections—reducing mean time to repair (MTTR) by 40% in typical applications.

Industrial Application Scenarios

Emergency Shutdown Systems (Oil & Gas):
Offshore production platforms and refinery process units deploy the 5X00500G01 to control pneumatic shutdown valves in safety instrumented systems (SIS). The module's deterministic response time (<10ms) meets IEC 61511 requirements for SIL-rated applications, while diagnostic capabilities detect valve solenoid failures during proof testing. Redundant module configurations ensure fail-safe operation even during maintenance activities, protecting personnel and assets from overpressure, fire, and toxic release scenarios.

Boiler Control Sequencing (Power Generation):
Coal-fired and biomass power plants utilize the module to orchestrate burner management systems, controlling fuel valves, ignition transformers, and flame safeguard relays. The high channel count supports complex firing sequences with multiple burner elevations, while fault diagnostics verify proper valve operation before fuel admission. Integration with Ovation controllers enables coordinated startup/shutdown sequences that optimize thermal stress and emissions compliance.

Reactor Batch Automation (Chemical Manufacturing):
Specialty chemical producers leverage the 5X00500G01 for recipe-driven control of ingredient addition valves, agitator drives, and sampling systems. Channel-level diagnostics create an electronic audit trail of valve actuations—critical for FDA 21 CFR Part 11 compliance in pharmaceutical applications. The module's galvanic isolation prevents electrical noise from variable frequency drives (VFDs) from corrupting batch timing, ensuring product consistency.

Water Distribution Networks (Municipal Utilities):
Drinking water treatment facilities employ the module to control chlorination pumps, filter backwash valves, and UV disinfection systems across distributed pump stations. Remote diagnostic capabilities reduce maintenance truck rolls by enabling technicians to verify valve operation from central SCADA systems. The module's protected outputs withstand moisture and corrosive atmospheres common in wet wells and chemical feed rooms.

Conveyor Interlock Systems (Mining & Minerals):
Bulk material handling systems use the module to drive motor starter contactors, belt alignment devices, and emergency pull-cord relays. The 500mA output rating handles both AC and DC contactor coils, while short-circuit protection prevents nuisance trips from cable damage in mobile equipment zones. Diagnostic alarms alert operators to conveyor component failures before material spillage or equipment damage occurs.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 5X00500G01 when your application requires more than 16 discrete outputs per rack slot and individual load currents remain below 500mA. For higher-current loads (motor starters, large contactors), use the module to drive interposing relays that switch main power circuits. Verify that total module current (sum of all active channels) stays within field power supply capacity—typically 16A for a fully populated module. In redundant control systems, deploy dual modules with separate field wiring to eliminate single points of failure.

Advanced Integration & Customization Options

Redundant Output Configurations: Critical shutdown applications benefit from dual-module architectures where each 5X00500G01 drives separate field devices performing identical functions (e.g., two block valves in series). The Ovation controller manages output voting logic automatically, ensuring both redundant channels track control algorithms. During module replacement, the redundant path maintains process control without interruption—essential for continuous process industries.

Pulse-Width Modulation (PWM) Control: Beyond simple on/off switching, the module supports PWM output modes for variable-intensity lamp control and proportional valve positioning. Engineers configure PWM frequency and duty cycle through Ovation Developer Studio, enabling applications such as dimming control room annunciators or modulating pneumatic actuators without external signal converters.

Remote I/O Expansion: In distributed control architectures, the 5X00500G01 integrates with Ovation remote I/O racks located near process equipment, reducing field wiring runs by hundreds of meters. Fiber-optic communication links between controller and remote racks provide immunity to electrical noise and ground potential differences across large industrial sites.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 24-48 hours; custom-configured modules require 5-7 business days for factory programming and testing.
Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship; extended warranties available for critical spares inventory.
Technical Assistance: Pre-sales application engineering support for module selection, load calculations, and wiring design; post-sales troubleshooting via phone and email.
Documentation Package: Includes installation manual, wiring diagrams, configuration templates, and dimensional drawings in PDF format.

Frequently Asked Questions

Q: Can this module interface with third-party DCS platforms beyond Emerson Ovation?
A: The 5X00500G01 is specifically designed for Emerson Ovation systems and requires Ovation I/O racks and controllers. For integration with other DCS platforms (ABB, Honeywell, Yokogawa), consult factory representatives regarding protocol gateways or consider platform-native I/O modules.

Q: What field power supply voltage should I use for optimal performance?
A: A regulated 24 VDC supply rated for at least 16A is recommended when operating all 32 channels simultaneously at maximum load. Ensure the supply has sufficient current capacity for the sum of all connected loads plus 20% margin for inrush currents when energizing inductive devices.

Q: How does the module's diagnostic system differentiate between short-circuit and overload conditions?
A: Short-circuit faults (output shorted to ground) trigger immediate channel shutdown within microseconds and set a latched fault flag. Overload conditions (excessive current draw within the 500mA-1A range) activate thermal monitoring; if sustained, the channel enters current-limiting mode and generates a warning alarm without complete shutdown.

Q: Is the module suitable for hazardous area installations requiring ATEX or IECEx certification?
A: The 5X00500G01 carries ATEX Zone 2 certification for installation in control rooms and non-hazardous areas of facilities with classified zones. For Zone 1 or Division 1 field installations, the module must be housed in purged/pressurized enclosures or intrinsically safe barriers must be used between the module and field devices.

Q: Can I mix different load types (resistive, inductive, capacitive) on the same module?
A: Yes, the module's protected outputs handle resistive loads (lamps, heaters), inductive loads (solenoid valves, relay coils), and capacitive loads (LED indicators with power supplies) without special configuration. Built-in flyback diode protection manages inductive kickback automatically. However, distribute high-current inductive loads across multiple channels to optimize heat dissipation.

Q: What is the recommended maintenance interval for this I/O module?
A: Quarterly inspections should verify terminal block connection tightness and check for dust accumulation on heat sinks. Annual functional testing using built-in diagnostic modes confirms proper operation of protection circuits and fault detection. The solid-state design eliminates wear-out mechanisms, with typical service life exceeding 20 years in controlled industrial environments.

Order Your 5X00500G01 Module Today

Upgrade your process control system with proven Emerson technology. Contact our automation specialists for application-specific guidance, volume pricing, or technical clarification. We maintain extensive inventory of current and legacy Ovation components to support both new installations and aging infrastructure.

Ready to optimize your DCS I/O architecture? Request a quote now or speak with our engineering team to discuss your specific control requirements.
