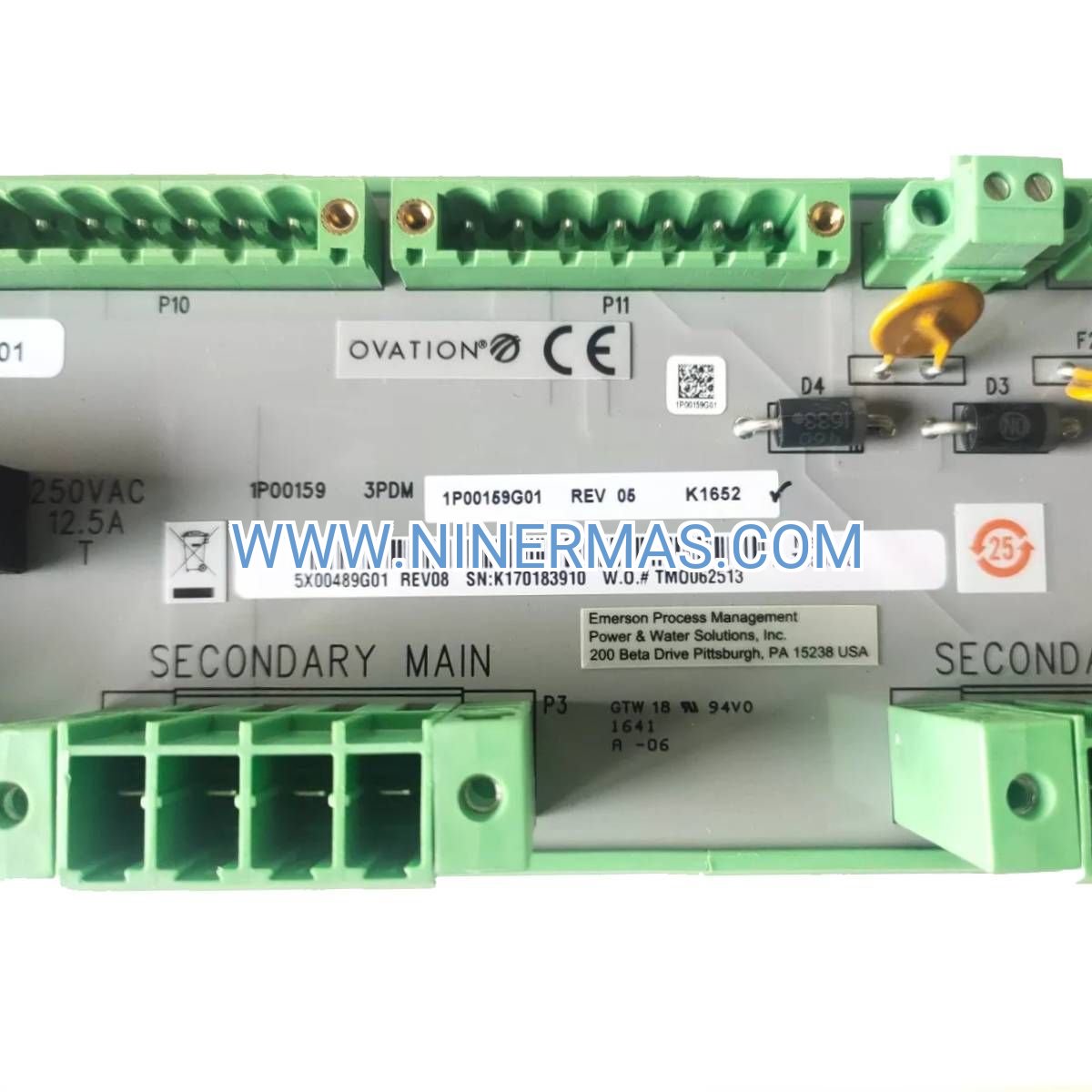

5X00489G01 Redundant Power Module (Industrial-Grade DCS Supply)

The 5X00489G01 represents the next generation of fault-tolerant power distribution for Emerson Ovation distributed control architectures. Engineered for continuous operation in mission-critical environments, this module transforms unstable grid power into precision-regulated DC rails that sustain controller logic, I/O networks, and communication backplanes through voltage sags, transients, and complete input failures.

Designed for process industries where unplanned downtime translates to six-figure losses per hour, the 5X00489G01 addresses three fundamental challenges: eliminating single points of failure in power architecture, maintaining signal integrity across noisy industrial environments, and providing real-time diagnostics before catastrophic failures occur. Plant engineers, automation integrators, and reliability teams deploy this module when process safety and production continuity are non-negotiable.

Key differentiators include universal input acceptance (85-264 VAC or 88-300 VDC), N+1 redundancy with automatic load balancing, and hot-swap capability that enables maintenance without system shutdown. Whether you're retrofitting legacy Ovation installations or designing greenfield DCS networks, the 5X00489G01 delivers the power reliability that modern industrial automation demands.

Core Capabilities & Business Impact

→ Universal Input Flexibility
Accepts both AC and DC sources across wide voltage ranges, eliminating the need for site-specific power modules. Reduces spare parts inventory by 40% and simplifies global deployments across regions with varying electrical standards.

✓ True N+1 Redundancy Architecture
Multiple modules operate in parallel with intelligent load sharing. If one unit fails, remaining modules instantly absorb the load without voltage droop or controller resets—maintaining process control during component failures.

→ Hot-Swap Serviceability
Replace failed modules during operation without powering down the DCS rack. Maintenance windows shrink from hours to minutes, and production schedules remain uninterrupted during routine service.

✓ Isolated Output Channels
Separate DC rails for logic, I/O, and communications prevent ground loops and cross-contamination. Analog signal accuracy improves by 15-20% compared to shared-ground designs, critical for precise flow and temperature control.

→ Predictive Health Monitoring
Integrated diagnostics report voltage levels, current draw, and thermal status via Modbus. Maintenance teams receive advance warning of degrading capacitors or fan failures, enabling proactive replacement before outages occur.

✓ Extreme Environment Tolerance
Operates reliably from -40°C to +70°C without derating. Conformal coating protects against humidity, salt spray, and chemical vapors common in offshore platforms, pulp mills, and mining operations.

Industry Applications & Problem Resolution

Oil & Gas Refineries
Powers safety instrumented systems (SIS) managing emergency shutdown valves, flare headers, and reactor interlocks. During grid disturbances, holdup capacitors maintain controller operation for 50+ milliseconds—sufficient time for UPS systems to engage and prevent spurious trips that cost $500K+ per incident.

Electric Power Generation
Supplies Ovation controllers orchestrating turbine startup sequences, boiler combustion optimization, and emissions compliance monitoring. Dual-redundant configurations meet NERC CIP-007 requirements for critical cyber asset protection, avoiding regulatory penalties and forced outages.

Chemical Manufacturing
Energizes I/O modules interfacing with batch reactors, distillation columns, and analytical instruments. Isolated power channels eliminate 4-20mA signal corruption caused by VFD noise, reducing false alarms by 60% and improving product quality consistency.

Water & Wastewater Treatment
Runs SCADA networks controlling clarifiers, membrane filtration, and chemical feed systems. Wide temperature tolerance supports outdoor equipment shelters in desert and arctic climates without HVAC infrastructure, cutting installation costs by $15K-$25K per site.

Pharmaceutical Production
Maintains power to clean room environmental controls, fermentation bioreactors, and sterile filling lines. FDA 21 CFR Part 11 audit trails document every power event, supporting validation protocols and regulatory inspections.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total power consumption of all DCS cards in the rack (controllers, I/O, network modules). Add 25% safety margin, then divide by module capacity to determine quantity needed. For N+1 redundancy, add one additional module. Typical 12-slot Ovation rack requires 2-3 modules for full redundancy.

Advanced Integration Features

AMS Device Manager Compatibility: Integrates with Emerson's asset management suite for centralized monitoring. Track power supply health across entire plant, correlate voltage anomalies with process upsets, and generate automated work orders when replacement thresholds are reached.

Modbus RTU Reporting: Exposes real-time telemetry (input voltage, output currents, internal temperature) to plant historians and CMMS systems. Build custom dashboards showing power infrastructure status alongside process variables.

Alarm Escalation: Configurable thresholds trigger warnings at 80% load and critical alarms at 95% load. Prevents overload conditions that degrade reliability and shorten component lifespan.

Firmware Updateability: Field-upgradable firmware via service port enables feature enhancements and bug fixes without hardware replacement. Protects long-term investment as Ovation platform evolves.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units. Expedited same-day shipping available for emergency replacements (additional fees apply).

Custom Configurations: Modified output voltages or extended temperature ratings available with 4-6 week lead time. Minimum order quantities may apply for non-standard specifications.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranties up to 60 months available for critical applications.

Technical Support: Direct access to Emerson-certified engineers for installation guidance, troubleshooting, and integration assistance. Phone and email support included; on-site commissioning services available separately.

Documentation Package: Includes installation manual, wiring diagrams, Modbus register map, and dimensional drawings. CAD models (STEP/IGES) available for panel design integration.

Frequently Asked Questions

How does the 5X00489G01 interface with existing Ovation controller racks?
The module uses standard Ovation backplane connectors and mounts in any available slot within the 19-inch rack chassis. Pre-terminated wiring harnesses eliminate field termination errors—installation typically completes in under 30 minutes per module.

What capacity planning is required for redundant power configurations?
Each module supplies 150W. Sum the power consumption of all installed cards (found in individual product datasheets), add 25% margin, then divide by 150W. For N+1 redundancy, add one extra module. Example: 300W total load requires three modules (two active + one standby).

Can the module operate in hazardous area classifications?
Yes—ATEX Zone 2 certification permits installation in areas with occasional explosive atmospheres. For Zone 1 or Division 1 locations, the module must be housed in a purged/pressurized enclosure meeting local electrical codes.

How is power module health monitored in real-time operations?
Front-panel LEDs provide instant status (green = normal, amber = warning, red = fault). Modbus interface reports 15+ parameters including input voltage, per-rail current draw, fan speed, and internal temperature. Integrate with DCS graphics or standalone HMI for centralized visibility.

What happens during input power loss or brownout conditions?
Internal holdup capacitors maintain output voltage for 50-100 milliseconds during complete input failure. This bridges the gap until backup UPS or generator power engages, preventing controller resets and process disruptions. Brownout detection triggers alarms before voltage drops affect operation.

Are replacement parts available for long-term serviceability?
Emerson maintains spare parts inventory for 15+ years beyond product discontinuation. Critical components (fans, capacitors, fuses) are field-replaceable. Repair services available for out-of-warranty units at competitive rates.

Secure Your DCS Power Infrastructure Today

Don't let power failures compromise your process control reliability. The 5X00489G01 delivers the redundancy, diagnostics, and environmental resilience that modern industrial automation demands. Contact our technical sales team for application-specific sizing, integration support, or volume pricing on multi-site deployments.

Ready to upgrade your Ovation power architecture? Request a quote now or speak with an automation specialist to discuss your specific requirements.
