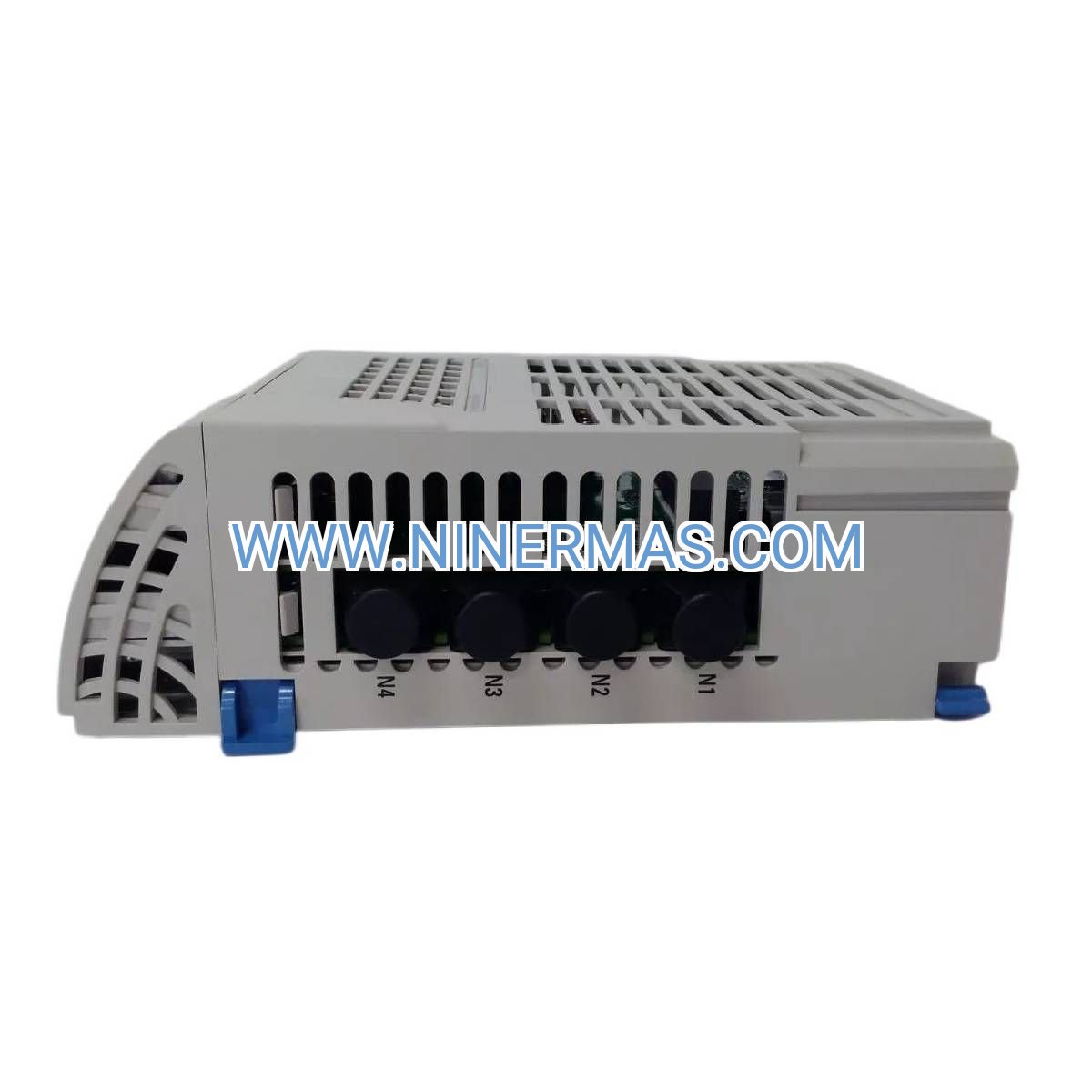

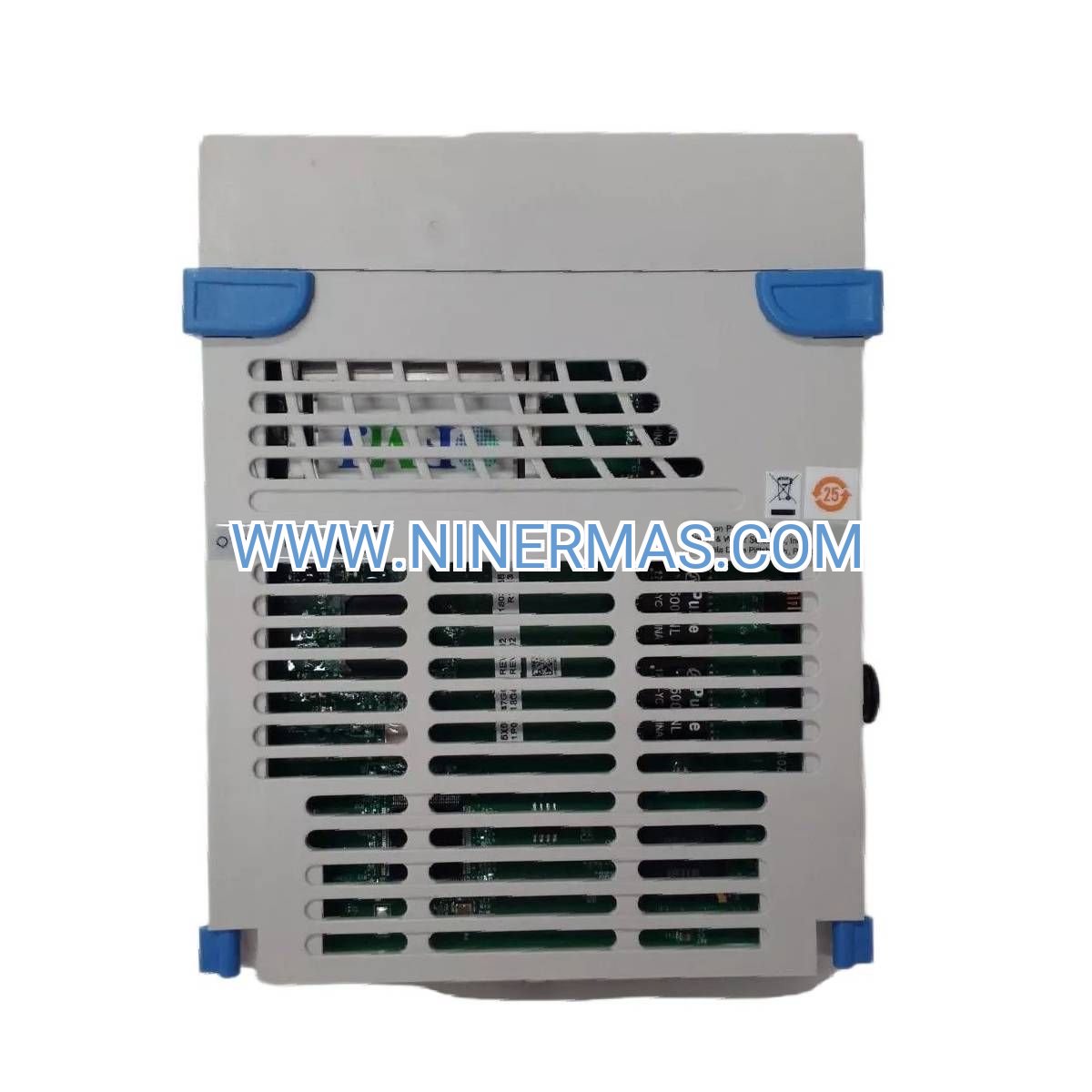

A6500-SR Machinery Protection Rack (Industrial-Grade Monitoring Infrastructure)

The A6500-SR represents a field-proven monitoring platform engineered for continuous protection of high-value rotating assets across power generation, petrochemical, and heavy industrial sectors. This 19-inch rack-mount chassis consolidates multi-channel vibration, temperature, and speed data into a unified diagnostic ecosystem, enabling predictive maintenance strategies that prevent unplanned downtime and catastrophic equipment failures.

Designed for environments where machinery uptime directly impacts production revenue, the A6500-SR addresses the critical challenge of real-time condition monitoring for turbines, compressors, pumps, and motor-driven systems. Plant engineers and reliability teams rely on this infrastructure to detect bearing degradation, shaft misalignment, and resonance issues before they escalate into costly repairs or safety incidents.

With modular card slots supporting up to 16 monitoring channels, redundant power architecture, and hot-swap serviceability, this system delivers enterprise-class reliability for mission-critical applications. Seamless integration with AMS Suite software provides advanced FFT spectrum analysis, trend visualization, and alarm management—transforming raw sensor data into actionable intelligence for maintenance decision-making.

Core Capabilities & Business Value

→ Modular 16-Slot Architecture
Expand monitoring coverage incrementally as your asset portfolio grows. Each slot accepts vibration, temperature, speed, or position cards, allowing customized configurations for diverse machinery types—from 3,600 RPM steam turbines to variable-speed centrifugal compressors.

✓ Hot-Swap Card Replacement
Replace or upgrade monitoring cards without powering down the rack or interrupting data collection from other channels. This zero-downtime maintenance capability is essential for 24/7 operations where continuous protection cannot be compromised during service activities.

→ Redundant Power Supply System
Dual hot-swappable PSU modules (100-240VAC) ensure uninterrupted operation even during primary power source failures. Automatic failover protects against data loss and maintains alarm functionality during electrical disturbances or maintenance events.

✓ Network-Ready Diagnostics Platform
Ethernet/IP connectivity enables real-time data streaming to AMS Machinery Health Manager, DeltaV DCS, or third-party SCADA systems. Centralized monitoring across multiple racks reduces operator workload and accelerates fault diagnosis through unified dashboards.

→ Industrial-Hardened Construction
Operates reliably in harsh environments (0-60°C ambient) with EMI shielding, conformal-coated electronics, and vibration-resistant card retention. UL/cUL, CE, and ATEX Zone 2 certifications validate suitability for hazardous area installations.

✓ Dual-Rack Redundancy Support
Configure primary and backup racks for critical machinery where single-point failures are unacceptable. Automatic switchover ensures continuous protection even if one rack experiences hardware faults or requires offline maintenance.

Application Scenarios Across Industries

Power Generation – Turbine-Generator Protection
Monitor steam turbine bearing temperatures, shaft vibration, and rotor eccentricity on 500MW+ generating units. Early detection of blade fouling, bearing wear, or coupling misalignment prevents forced outages that cost $500K-$2M per day in lost generation capacity.

Oil & Gas – Compressor Train Monitoring
Protect multi-stage centrifugal compressors in LNG facilities and gas processing plants. Real-time tracking of thrust bearing loads, seal temperatures, and anti-surge valve positions prevents catastrophic failures that trigger emergency shutdowns and flaring events.

Chemical Processing – Pump Reliability Programs
Implement condition-based maintenance for critical process pumps handling corrosive or high-temperature fluids. Vibration trending identifies cavitation, impeller imbalance, or mechanical seal degradation weeks before failure—reducing emergency repairs by 60%.

Pulp & Paper – Continuous Digester Drives
Monitor large AC motors and gearboxes driving digesters, refiners, and paper machines. Detect gear tooth wear, motor rotor bar cracks, and coupling deterioration to schedule maintenance during planned outages rather than reactive shutdowns.

Steel Manufacturing – Rolling Mill Equipment
Track high-speed spindle bearings, roll neck vibration, and gearbox health on hot strip mills and cold reduction lines. Predictive analytics reduce unplanned downtime by 40% while extending bearing life through optimized lubrication intervals.

Technical Parameters & Selection Guide

Selection Criteria: Choose the A6500-SR when monitoring 4-16 measurement points per machine train. For smaller applications (1-4 channels), consider standalone transmitters. For large turbine-generator sets requiring 32+ channels, deploy dual racks with redundant configurations. Ensure compatibility with existing 3300 XL proximity probes, accelerometers, or RTD temperature sensors before ordering monitoring cards.

Extended Integration & Customization

AMS Suite Connectivity: Native integration with Machinery Health Manager software unlocks advanced diagnostics including waterfall plots, orbit analysis, Bode plots, and automated fault detection algorithms. Historical trending enables root cause analysis and reliability engineering studies.

DCS/SCADA Integration: Export critical alarm states and 4-20mA analog outputs to DeltaV, PlantWeb, or third-party control systems. Configure custom alarm setpoints, hysteresis bands, and time delays to match specific machinery protection philosophies.

Custom Card Configurations: Mix vibration (proximity probe, accelerometer), temperature (RTD, thermocouple), speed (magnetic pickup, optical), and position (LVDT, eddy current) cards within a single rack. Factory-configured systems available for turnkey installations.

Hazardous Area Deployment: ATEX Zone 2 certification permits installation in classified areas with appropriate intrinsic safety barriers for sensor wiring. Consult application engineers for Zone 1 or Division 1 requirements.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock chassis; 2-3 weeks for factory-configured systems with pre-installed monitoring cards and tested configurations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical applications requiring 4-hour response times.

Technical Support: Access to application engineers with turbomachinery expertise for system design, sensor selection, and troubleshooting assistance. Remote diagnostics support via secure VPN connections.

Documentation Package: Includes installation manual, card configuration guides, AutoCAD rack layout drawings, and AMS software integration procedures. Sensor wiring diagrams and calibration certificates provided with monitoring cards.

Frequently Asked Questions

How does the A6500-SR interface with existing DCS or PLC systems?
The rack communicates via Ethernet/IP or Modbus TCP through optional communication cards. Critical alarm outputs can be hardwired as dry contacts (Form C relays) directly to your safety instrumented system or emergency shutdown logic. Analog 4-20mA outputs provide continuous vibration or temperature values to DCS trend recorders.

What is the maximum number of machines I can monitor with one rack?
With 16 card slots, you can monitor 4-8 machines depending on measurement point density. A typical steam turbine requires 4-6 channels (2 radial vibration + 1 thrust position + 1-3 bearing temperatures). Smaller pumps may need only 2 channels (1 vibration + 1 temperature), allowing 8 pumps per rack.

Can I upgrade from legacy AMS 2140 or 3500 systems to the A6500 platform?
Yes, the A6500-SR accepts the same 3300 XL proximity probes and accelerometers used in older systems. Migration typically involves rack replacement and AMS software updates while retaining existing field wiring and sensors—reducing upgrade costs by 40-60% compared to complete system replacements.

What environmental conditions affect rack reliability and sensor accuracy?
Excessive ambient temperatures (>60°C) require forced-air cooling or rack relocation. High humidity environments need dehumidification to prevent condensation on electronics. Electrical noise from VFDs or welding equipment may require shielded sensor cables and isolated power sources for optimal signal integrity.

Does the system support wireless vibration sensors or battery-powered transmitters?
The A6500-SR is designed for hardwired sensors providing continuous real-time data. For wireless applications, consider AMS Wireless Vibration Monitors that transmit to separate gateways. Hybrid architectures combining wired critical machinery protection with wireless general-purpose monitoring are common in modern plants.

How do I configure alarm setpoints for different machinery types and operating speeds?
Alarm thresholds are programmed through AMS Machinery Health Manager software using ISO 10816 or API 670 guidelines as baselines. The system supports speed-dependent alarm bands that automatically adjust as machinery ramps up or down. Custom setpoints can be tailored based on historical baseline data and OEM recommendations.

Secure Your Machinery Assets Today

Protect your critical rotating equipment with proven monitoring infrastructure trusted by Fortune 500 industrial operators worldwide. Contact our application engineers to discuss your specific machinery protection requirements, sensor compatibility, and system sizing. Request a detailed quotation including monitoring cards, sensors, and AMS software licensing tailored to your asset portfolio.
