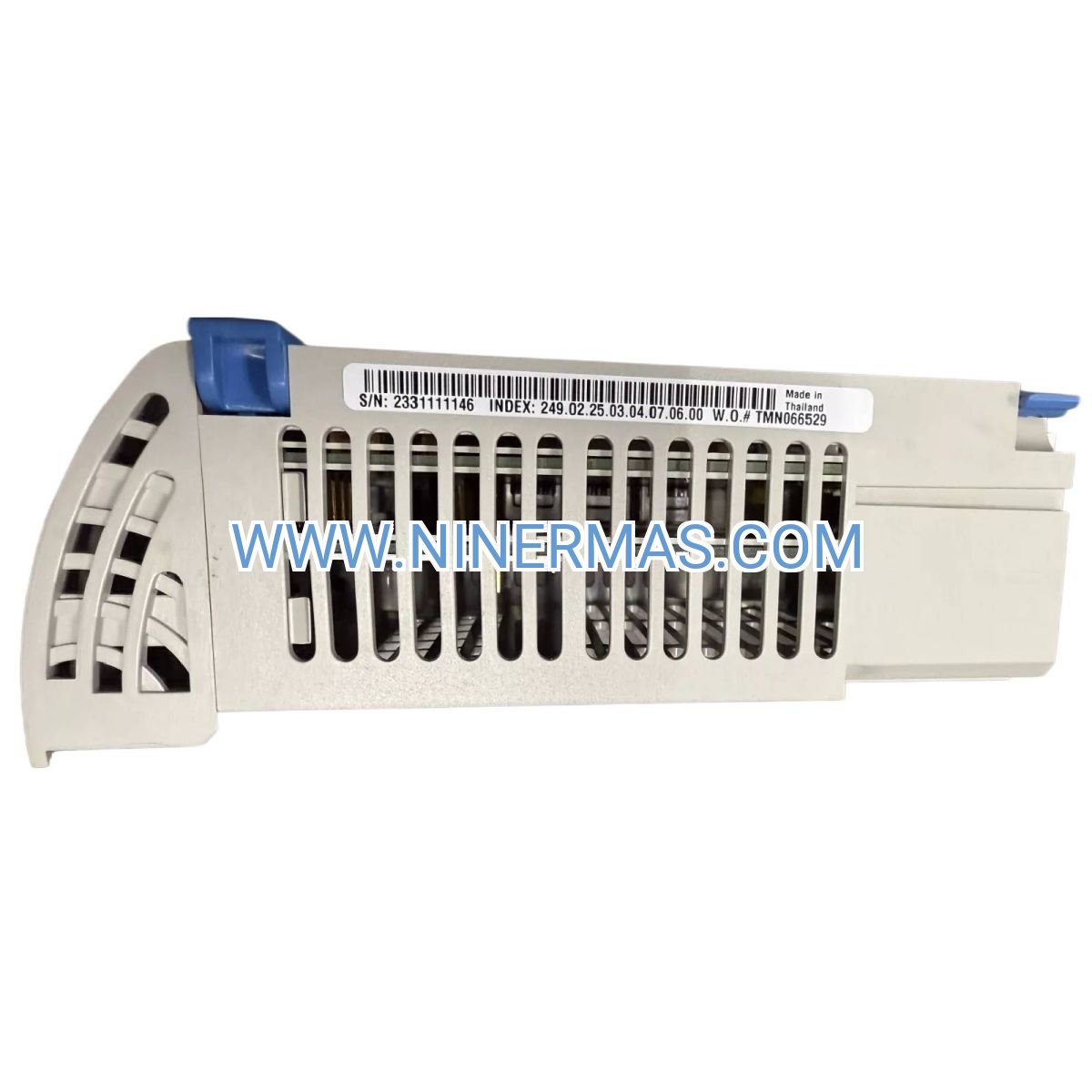

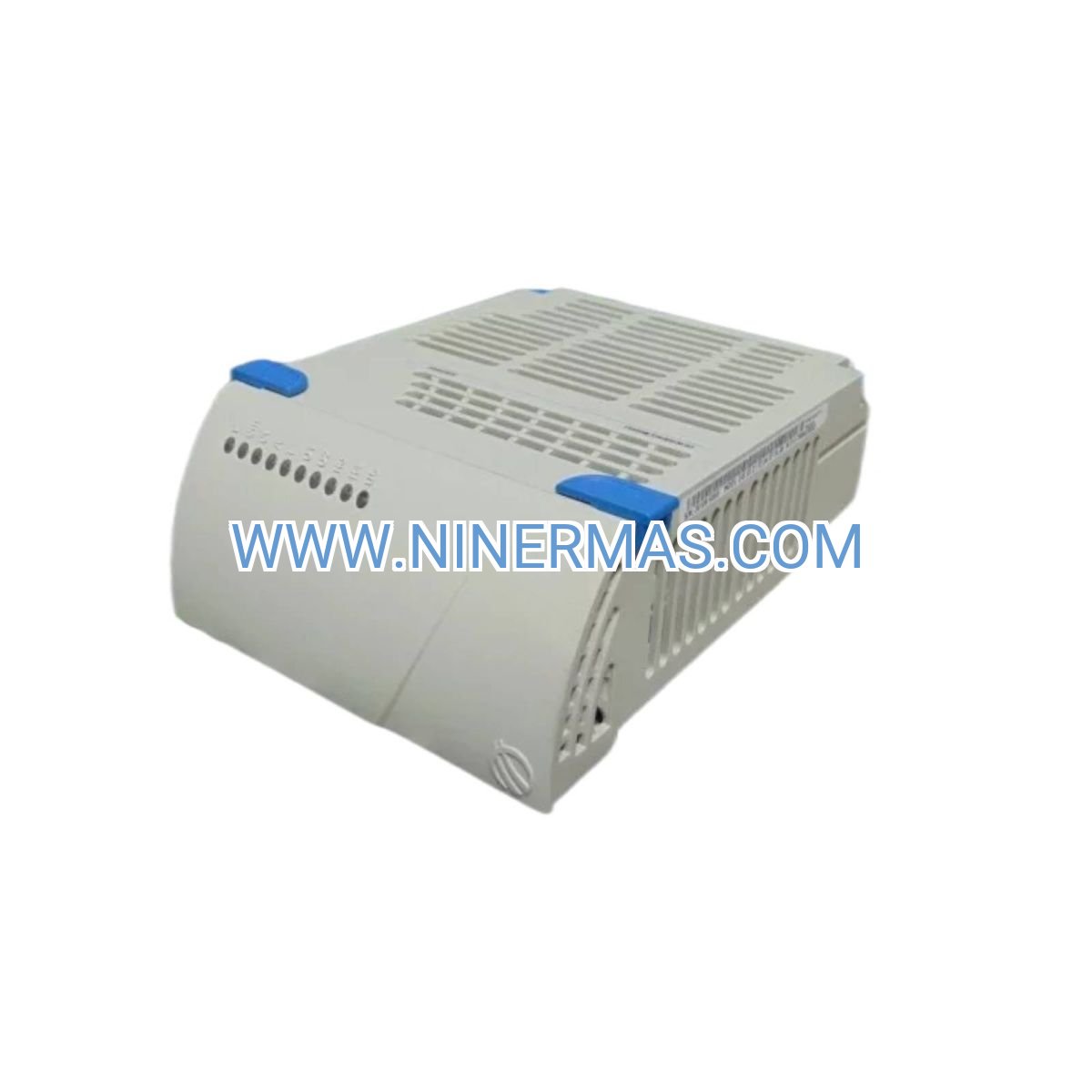

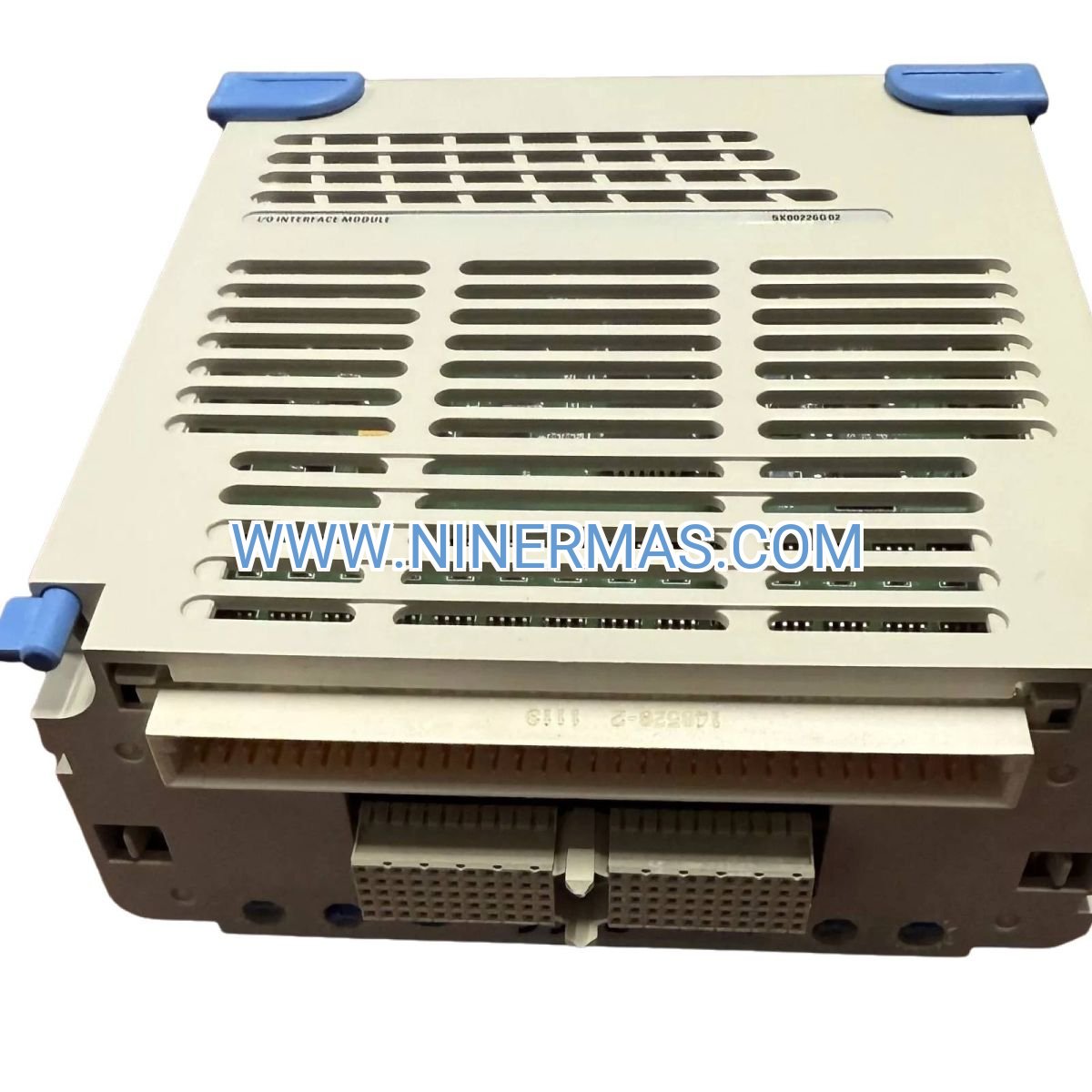

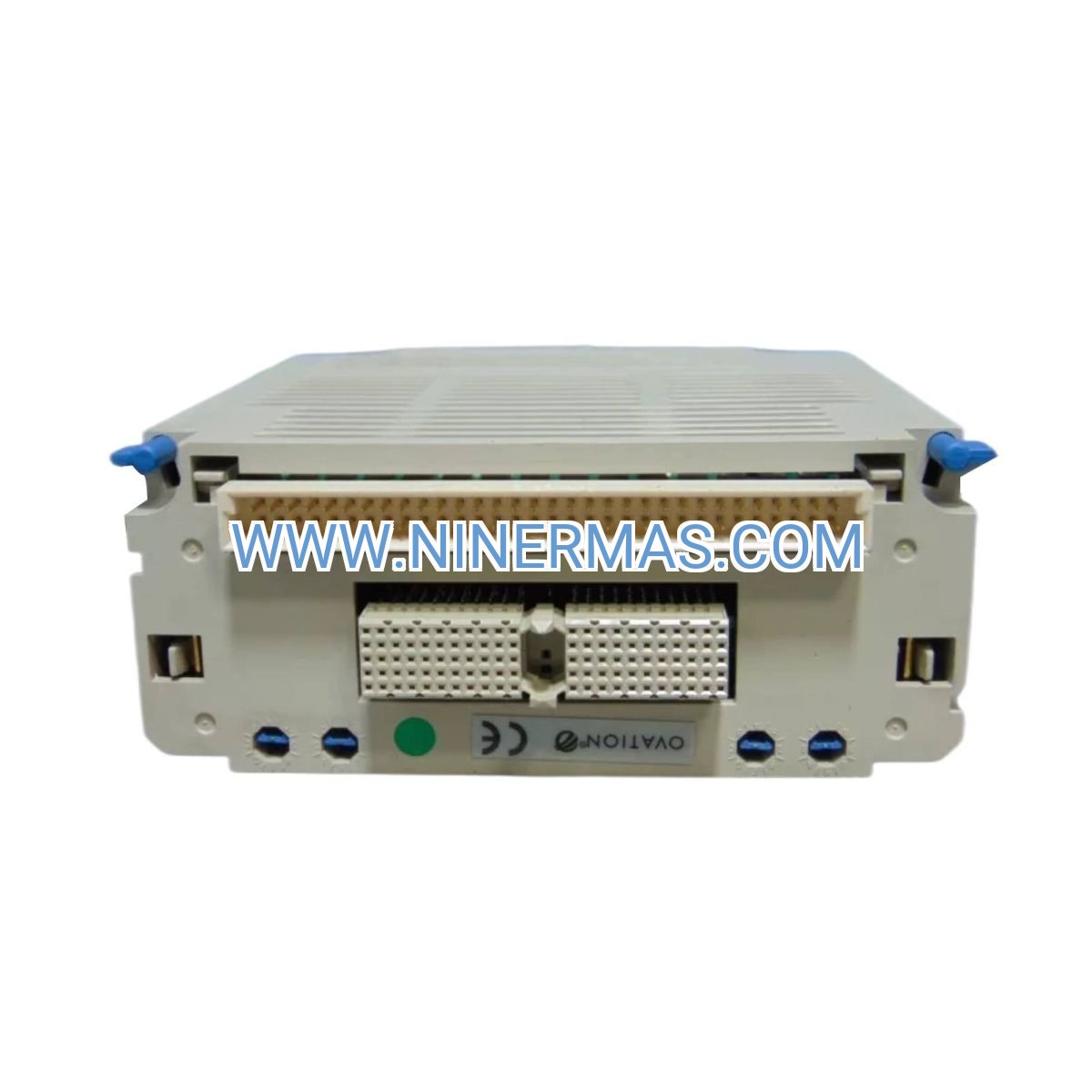

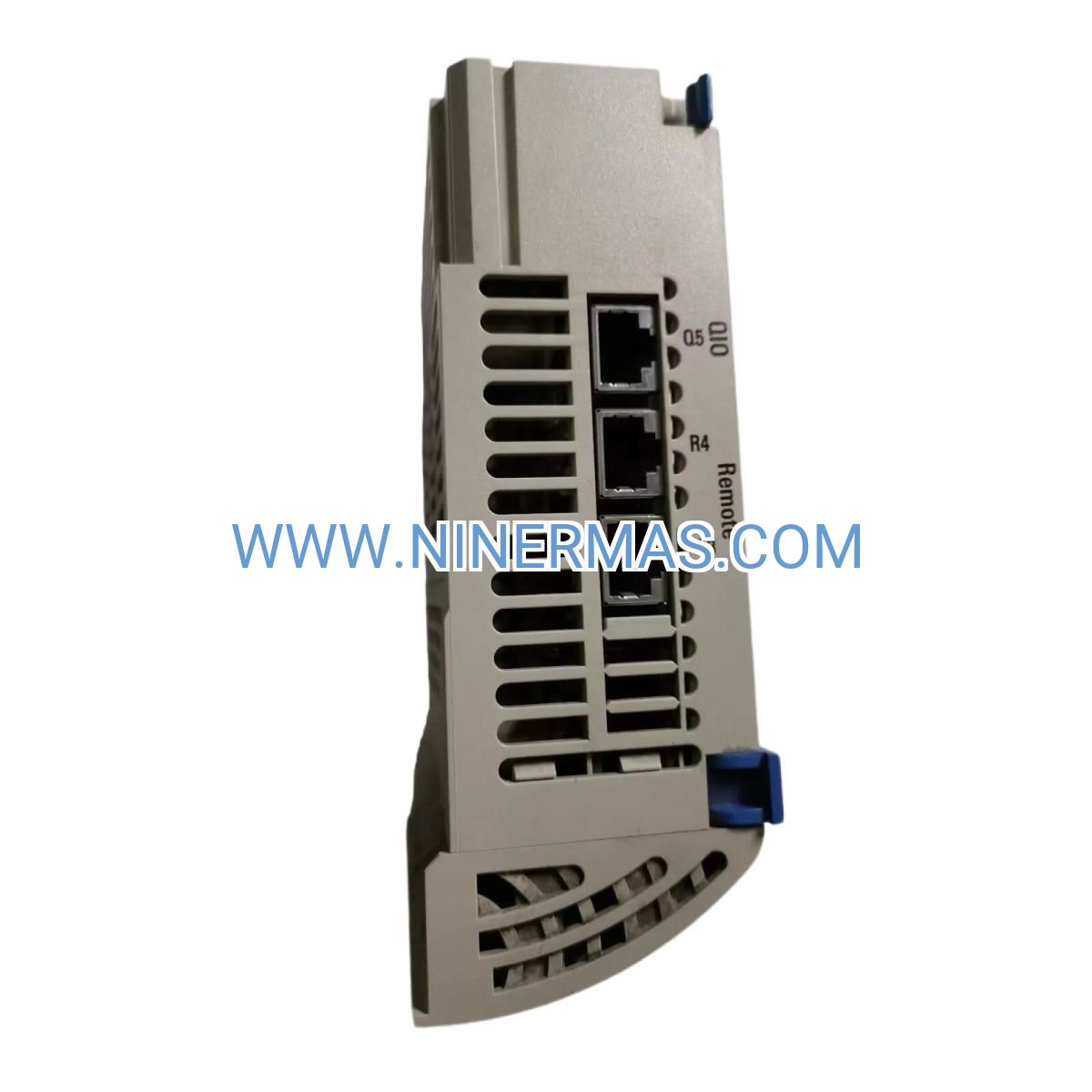

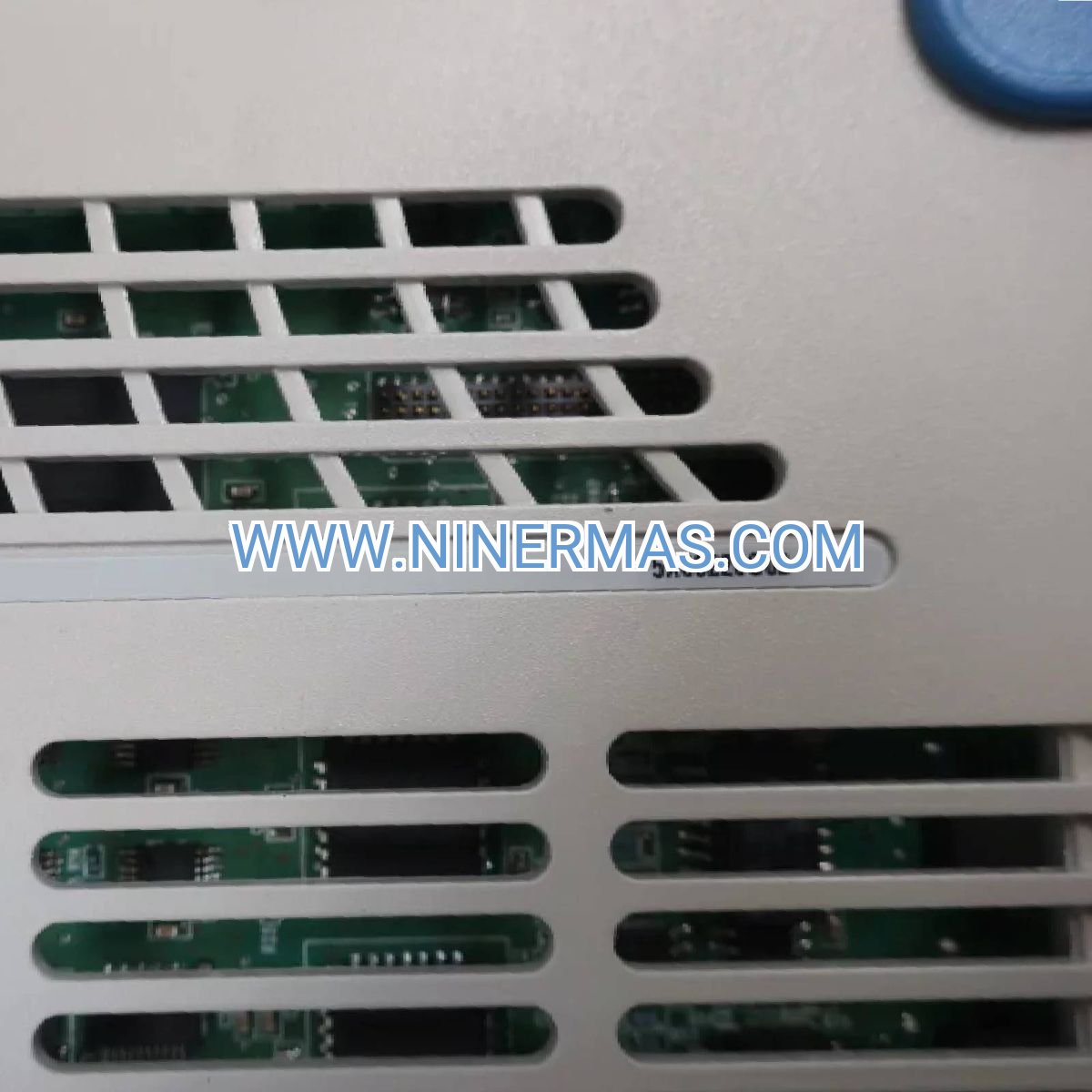

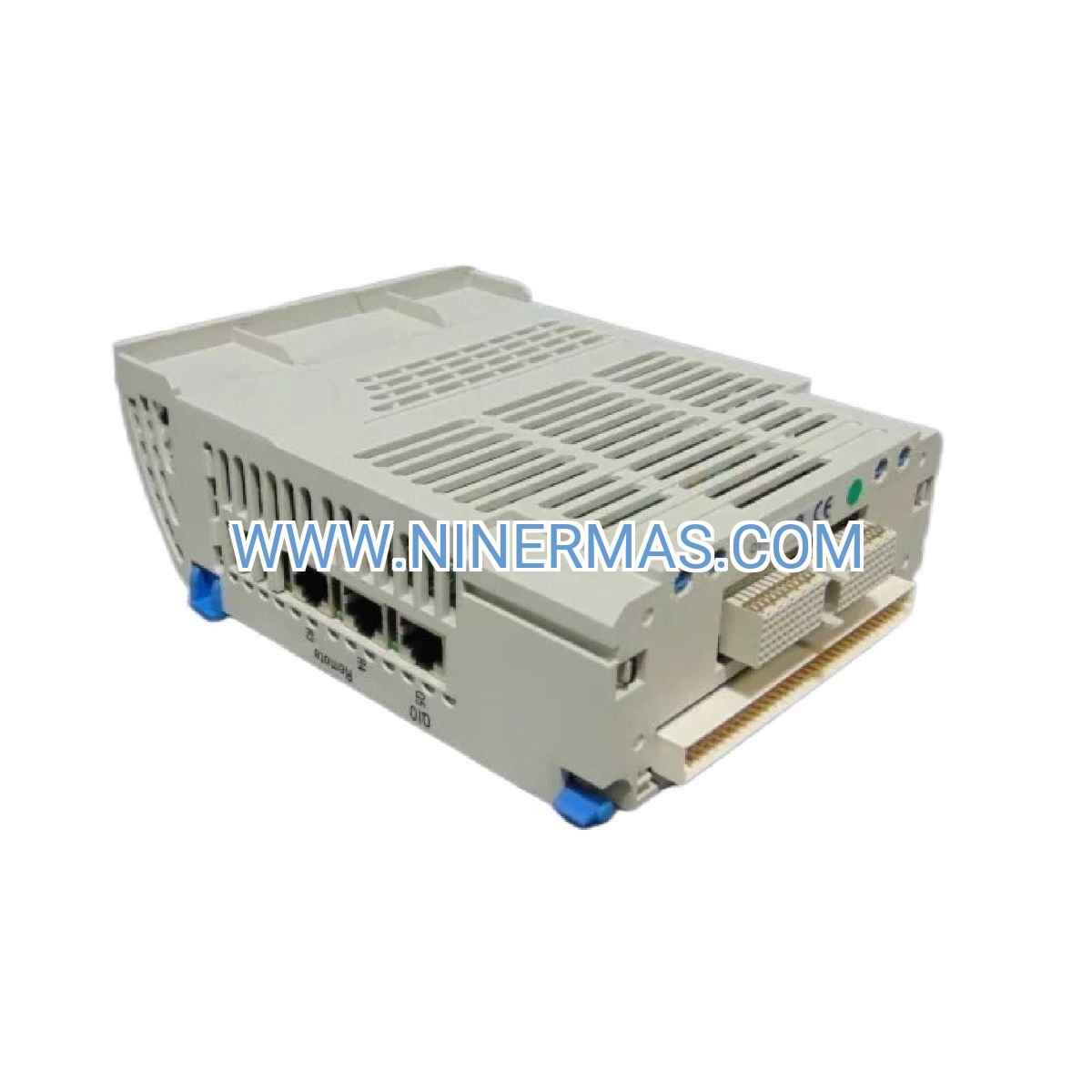

5X00226G02 Ovation I/O Interface Module (Industrial-Grade Communication Gateway)

The 5X00226G02 serves as a mission-critical communication gateway within Emerson Ovation distributed control systems, orchestrating real-time data exchange between central controllers and remote I/O infrastructure. This interface module translates controller logic into fieldbus-compatible protocols, enabling synchronized process monitoring and control across geographically dispersed industrial facilities.

Designed for process industries demanding zero-downtime operation—refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing—this module addresses the challenge of maintaining deterministic communication under high network loads while supporting legacy system integration during phased modernization projects.

Core advantages include hot-swappable redundancy for fault-tolerant architectures, auto-discovery capabilities that reduce commissioning time by 40%, and backward compatibility with legacy Ovation generations, protecting capital investments while enabling incremental system expansion.

Core Features & Benefits

→ Deterministic Communication Protocol
Proprietary Ovation I/O bus delivers sub-10ms scan cycles for hundreds of I/O points, ensuring predictable response times critical for closed-loop process control and safety interlocks.

→ Redundant Architecture Support
Hot-standby pairing enables seamless failover during module faults or maintenance, maintaining process continuity in critical applications where downtime costs exceed $50,000/hour.

→ Multi-Generation Compatibility
Bridges legacy Ovation I/O families with current-generation controllers, allowing phased upgrades without forklift replacements—typical migration projects save 30-50% versus full system overhauls.

✓ Environmental Resilience
Conformal-coated circuitry withstands -40°C to +70°C ambient temperatures, humidity extremes, and corrosive atmospheres common in offshore platforms and heavy industrial environments.

✓ Integrated Diagnostics
Built-in self-test routines and network health monitoring provide early fault detection, reducing mean time to repair (MTTR) by 60% through predictive maintenance alerts.

✓ Scalable I/O Capacity
Supports mixed analog, digital, HART, and specialty I/O types on unified network segments—single module handles 256+ I/O points, eliminating bottlenecks during capacity expansions.

Typical Application Scenarios

Distributed Process Control
Chemical refineries deploy centralized Ovation controllers with 5X00226G02 modules linking to remote I/O racks positioned near reactor vessels, distillation columns, and storage tanks. This architecture reduces field wiring costs by 70% in facilities spanning 50+ acres while maintaining <5ms control loop response times.

Power Generation Systems
Combined-cycle power plants utilize redundant 5X00226G02 pairs to coordinate turbine control, boiler management, and emissions monitoring across multiple control zones. Dual-module configurations ensure uninterrupted operation during scheduled maintenance or unexpected hardware failures.

Legacy System Modernization
Pharmaceutical manufacturers integrate new Ovation controllers with existing I/O infrastructure via 5X00226G02 interfaces, preserving validated field devices and wiring while upgrading control logic and HMI systems—critical for maintaining FDA 21 CFR Part 11 compliance during technology transitions.

Multi-Site Coordination
Water treatment facilities synchronize multiple pump stations and filtration plants through fiber-optic networks, with 5X00226G02 modules managing I/O communication at each site while central SCADA systems coordinate regional operations.

Hazardous Area Deployments
Offshore oil platforms install 5X00226G02 modules in climate-controlled equipment rooms, extending I/O networks to explosion-proof junction boxes in Zone 1/Division 1 areas—conformal coating and wide temperature range ensure reliability in salt-fog and hydrocarbon vapor environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose single-module configurations for non-critical monitoring applications; specify redundant pairs for safety-instrumented systems (SIL 2/3) or processes where unplanned downtime exceeds $10,000/hour. Verify controller firmware compatibility—modules require Ovation 3.5 or later for full feature support. For fiber-optic networks exceeding 2km, specify long-haul transceivers.

Extended Functions

IoT Integration: OPC UA server functionality enables secure data bridging to cloud analytics platforms and enterprise MES/ERP systems without compromising control network security—ideal for Industry 4.0 initiatives requiring real-time production visibility.

Advanced Diagnostics: Embedded web server provides network traffic analysis, I/O health trending, and predictive failure alerts accessible via standard browsers—reduces troubleshooting time by 50% compared to legacy diagnostic tools.

Custom I/O Profiles: User-configurable scan groups and priority levels optimize bandwidth allocation for mixed-criticality applications—assign 2ms updates to safety loops while batching non-critical data at 100ms intervals.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours; custom-configured modules (redundant pairs, specialized firmware) deliver in 5-7 business days. Expedited same-day shipping available for emergency outages.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available for critical spares programs.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system optimization. Remote diagnostic services available 24/7 for urgent issues.

Documentation: Each module includes installation manual, configuration guide, wiring diagrams, and firmware release notes. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

What communication protocols does the 5X00226G02 I/O interface support?
The module uses Emerson's proprietary Ovation I/O bus protocol, optimized for deterministic performance in DCS applications. It does not support Modbus, PROFIBUS, or other third-party protocols—use Ovation gateway modules for multi-protocol integration.

Can I mix different I/O types on the same 5X00226G02 network segment?
Yes. The interface supports simultaneous operation of analog input/output, discrete I/O, HART-enabled transmitters, and specialty modules (RTD, thermocouple, pulse counters) on unified network drops—simplifying system architecture and reducing spare parts inventory.

How much energy efficiency improvement can I expect versus older I/O systems?
The 5X00226G02 consumes 12W typical versus 25-30W for legacy interface cards—a 50-60% reduction. In large systems with 50+ modules, annual energy savings exceed $2,000 while reducing cooling loads in equipment rooms.

What are the installation requirements for redundant configurations?
Redundant setups require dual 5X00226G02 modules installed in adjacent controller chassis slots, separate network cables to remote I/O racks, and synchronized firmware versions. Total installation time: 2-3 hours including configuration and failover testing.

Does the module support remote monitoring and diagnostics?
Yes. Embedded diagnostics accessible via Ovation Developer Studio provide real-time network statistics, I/O health status, and historical fault logs. Optional OPC UA connectivity enables integration with third-party SCADA and analytics platforms.

Is the 5X00226G02 compatible with legacy Ovation controllers from 2010-2015?
The module supports Ovation 3.5 and later firmware releases. Controllers running Ovation 3.0-3.4 require firmware upgrades (typically completed in 4-6 hours during planned maintenance windows) to ensure full compatibility and access to advanced features.

Take the Next Step

Enhance your Ovation DCS reliability and scalability with the 5X00226G02 I/O interface module. Contact our automation specialists for application-specific configuration guidance, redundancy planning, or migration roadmaps from legacy systems.

Request a technical consultation: Our engineers will assess your current architecture, recommend optimal module quantities, and provide detailed ROI analysis for system upgrades.
