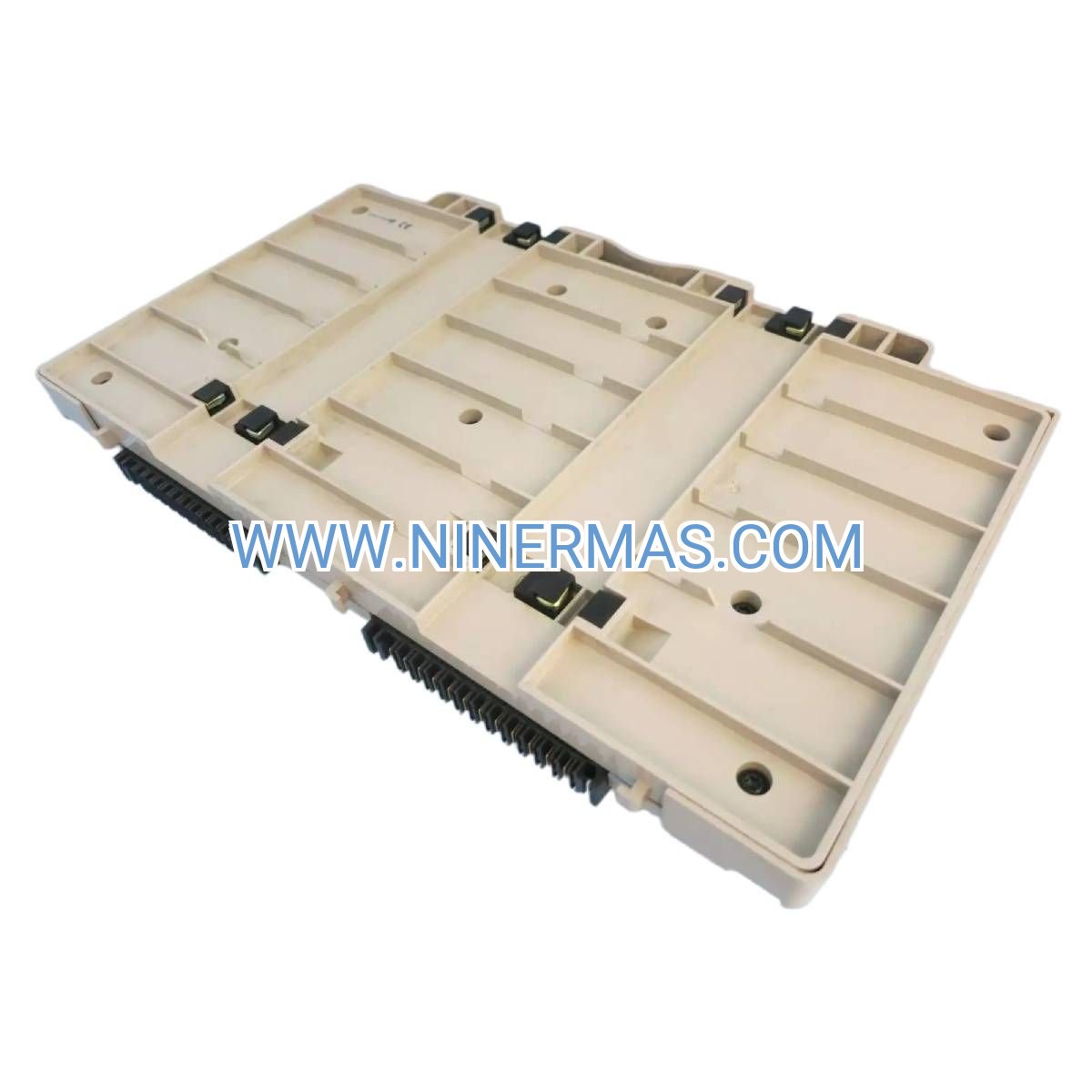

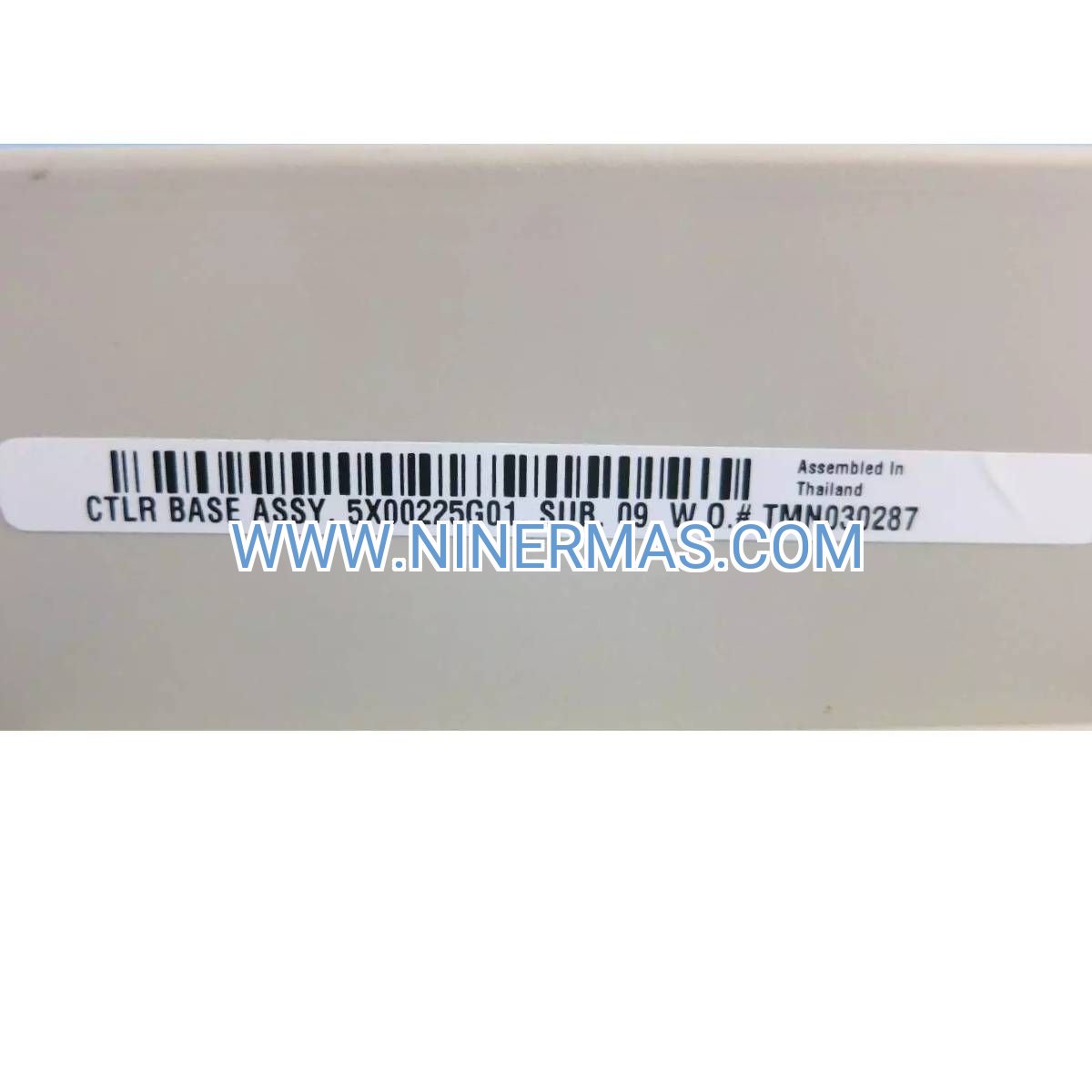

5X00225G01 Ovation Base Assembly (Industrial-Grade DCS Foundation)

The Emerson 5X00225G01 represents a precision-engineered mounting platform designed specifically for Ovation distributed control system deployments. This base assembly provides the critical mechanical framework and electrical backbone required for high-availability process automation in mission-critical industrial facilities.

Engineered to address the challenges of continuous operation environments, this controller base eliminates single points of failure through redundant power architecture while enabling zero-downtime maintenance via hot-swap capability. Target users include process engineers, control system integrators, and plant maintenance teams managing refineries, chemical plants, power stations, and pharmaceutical manufacturing facilities.

Key advantages include field-proven reliability across 10,000+ global installations, backward compatibility with legacy Westinghouse WDPF migrations, and guaranteed spare parts availability through 2035—protecting long-term capital investments in industries where system lifecycles span 20-30 years.

Core Features & Benefits

→ Dual Redundant Power Distribution
Independent 24 VDC supply paths ensure continuous operation during power source failures, eliminating unplanned shutdowns that cost $100K+ per hour in process industries.

→ Hot-Swap Controller Modules
Replace processor cards without de-energizing the base assembly—critical for 24/7 operations requiring 99.99% uptime in pharmaceutical batch processing and continuous refining operations.

→ High-Speed Deterministic Backplane
Precision-machined connectors maintain signal integrity for real-time control bus protocols, supporting scan rates down to 10ms for fast-loop regulatory control applications.

→ Per-Slot Diagnostic Indicators
Individual LED status displays accelerate fault isolation, reducing mean-time-to-repair by 40% compared to systems requiring external diagnostic tools.

→ EMI-Hardened Construction
Shielded design meets EN 61000-6-2 industrial immunity standards, ensuring reliable operation in electrically noisy environments with VFD drives, arc welders, and high-power switching equipment.

→ Flexible Mounting Options
Supports both DIN rail and 19-inch rack installation via optional adapter kits, accommodating diverse panel configurations in new builds and retrofit projects.

Application Scenarios

Refining & Petrochemical Processing
Controls distillation column sequencing, reactor temperature cascades, and blending ratio management in facilities requiring SIL 2/3 safety integrity levels. Addresses the challenge of maintaining product quality during feedstock transitions while meeting API and OSHA PSM compliance requirements. Delivers value through reduced off-spec production and improved batch-to-batch consistency.

Combined-Cycle Power Generation
Manages turbine startup sequences, boiler drum level control, and emissions monitoring in natural gas and coal-fired plants. Solves the pain point of coordinating multiple control loops during load-following operations while maintaining NOx/SOx compliance. Provides value via improved heat rate efficiency and faster response to grid demand fluctuations.

Pharmaceutical Batch Manufacturing
Executes recipe-driven processes for API synthesis, fermentation control, and clean-in-place automation with full audit trail capability per FDA 21 CFR Part 11. Addresses validation documentation burdens and batch record integrity challenges. Brings value through accelerated regulatory submissions and reduced batch failure rates.

Municipal Water Treatment
Orchestrates multi-stage filtration, chemical dosing proportional control, and SCADA telemetry for drinking water and wastewater facilities. Tackles the challenge of maintaining treatment efficacy across varying influent conditions and seasonal demand. Delivers value via reduced chemical consumption and improved compliance with EPA discharge limits.

Food & Beverage Processing
Automated pasteurization temperature profiling, CIP cycle management, and packaging line coordination in dairy, brewing, and beverage production. Solves traceability requirements and allergen cross-contamination prevention. Provides value through enhanced food safety documentation and reduced product recalls.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5X00225G01 when migrating from Westinghouse WDPF systems or expanding existing Ovation installations. Verify compatibility with your specific controller module series (1C31 vs. 5X00) and confirm power supply capacity for fully populated configurations. For hazardous area installations, ensure ATEX/IECEx certification aligns with your zone classification requirements.

Extended Functions

OPC UA Integration: Native support for OPC UA server connectivity enables seamless data exchange with MES/ERP systems, historian databases, and third-party analytics platforms without proprietary gateways.

Cybersecurity Hardening: Supports role-based access control (RBAC), encrypted communications, and audit logging aligned with IEC 62443 industrial cybersecurity standards—critical for facilities subject to NERC CIP or TSA pipeline security directives.

Redundancy Configurations: Pair with redundant controller modules and I/O subsystems to achieve fault-tolerant architectures meeting SIL 3 requirements per IEC 61508 for safety instrumented systems.

Custom Engineering: Factory customization available for specialized environmental enclosures (NEMA 4X, explosion-proof), extended temperature ratings (-20°C to 70°C), and application-specific backplane configurations.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom-engineered variants require 4-6 weeks factory lead time.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to Emerson's global support network includes 24/7 emergency hotline, remote diagnostics via secure VPN, and on-site field service engineering in 100+ countries.

Documentation Package: Each unit ships with installation manual, dimensional drawings, wiring diagrams, and digital certificate of conformity. CAD models (STEP/IGES) and EPLAN macros available via Emerson Engineering Portal.

Training Resources: Complimentary access to Ovation system fundamentals e-learning modules. Hands-on training courses available at Emerson Education Centers in Austin, Singapore, and Rotterdam.

Frequently Asked Questions

What communication protocols does the 5X00225G01 base assembly support for integration with SCADA systems?
The base assembly itself provides the physical backplane infrastructure. Communication protocols (Modbus TCP, OPC DA/UA, DNP3) are implemented through the controller modules installed in the base. Ovation controllers support industry-standard protocols for seamless SCADA integration.

Can this base assembly accommodate mixed controller types in a single chassis?
Yes, the 5X00225G01 supports heterogeneous configurations mixing processor, I/O, and communication modules from the Ovation 1C31xxx and 5X00xxx families within the same base assembly, subject to backplane slot compatibility.

What energy efficiency improvements does this platform offer compared to legacy relay-based control panels?
Ovation DCS platforms typically reduce energy consumption by 15-25% through optimized control algorithms, real-time process optimization, and elimination of pneumatic actuators. The base assembly's low-power electronics (150mA draw) contribute to overall panel efficiency gains.

Are there specific installation clearance requirements for proper ventilation and maintenance access?
Maintain minimum 100mm (4 inches) clearance above and below the base assembly for convection cooling. Allow 300mm (12 inches) front access for module insertion/removal. Side clearances depend on cable routing—consult installation manual for panel layout guidelines.

Does the system support remote monitoring and predictive maintenance capabilities?
When paired with Ovation controllers running firmware v3.5+, the platform supports remote diagnostics via Emerson's AMS Device Manager and integration with Plantweb Insight predictive analytics for condition-based maintenance scheduling.

How does this base assembly perform in high-vibration environments like offshore platforms?
The 5X00225G01 meets IEC 60068-2-6 vibration resistance standards (10-150 Hz, 1g acceleration). For severe offshore or mobile equipment applications, specify shock-mounted enclosures and conformal-coated modules for enhanced environmental protection.

Take the Next Step

Ready to modernize your process control infrastructure? Contact our automation specialists for application-specific sizing, system architecture review, and migration planning from legacy platforms. Request a detailed quotation including controller modules, I/O subsystems, and engineering services tailored to your facility requirements.
