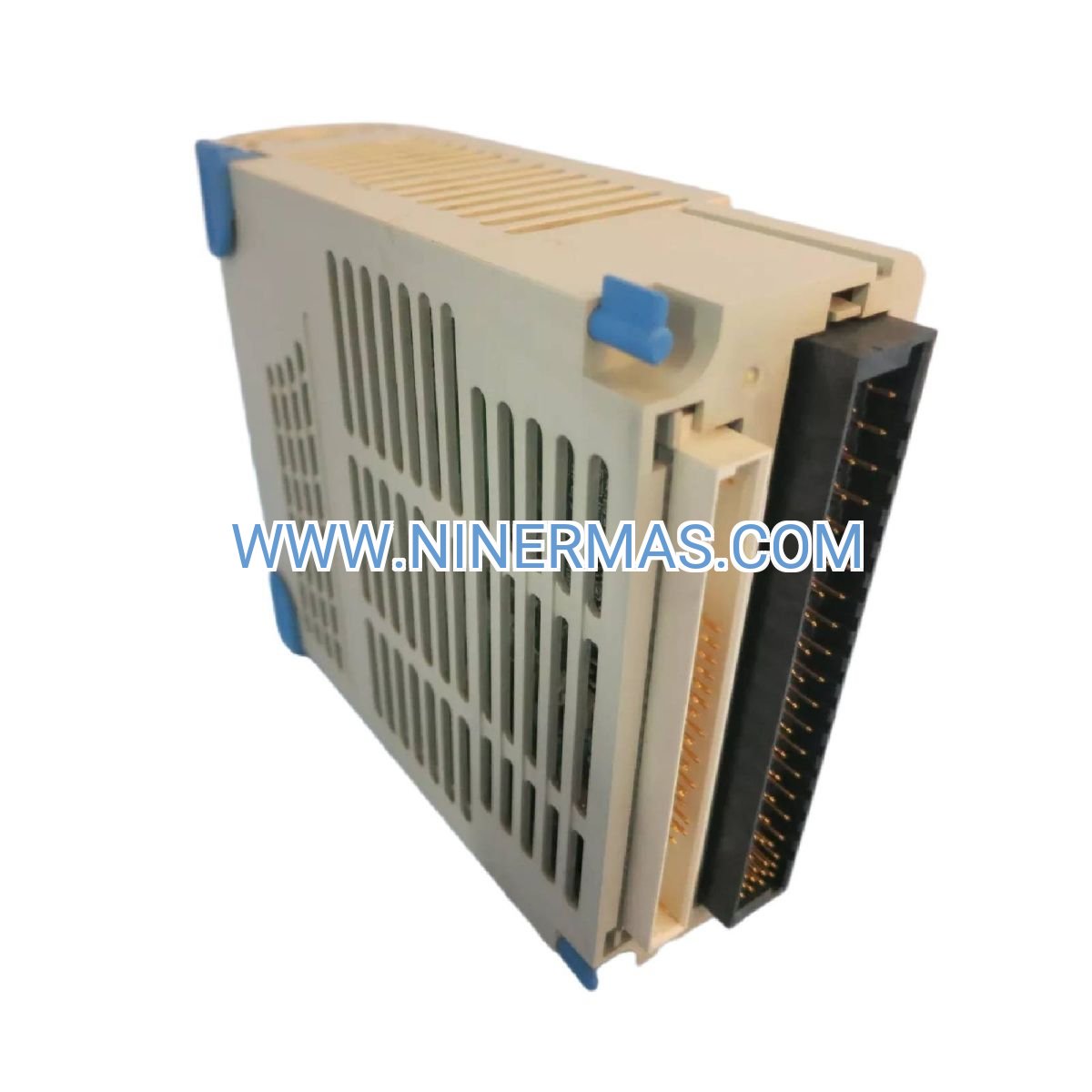

5X00167G01 High-Density Thermocouple Input Card (Industrial-Grade Precision)

The 5X00167G01 is a professional 16-channel thermocouple acquisition module purpose-built for Emerson Ovation distributed control architectures. Engineered to deliver sub-degree accuracy across demanding thermal monitoring applications, this input card serves as the critical interface between field sensors and your control infrastructure in power generation facilities, chemical processing plants, and heavy manufacturing operations.

Designed for system integrators and plant engineers who demand reliability, the module eliminates single-point temperature measurement bottlenecks while maintaining the signal integrity required for regulatory compliance and process optimization. Its universal thermocouple compatibility and automatic cold junction compensation ensure consistent performance across diverse industrial environments.

Whether you're retrofitting legacy systems or designing greenfield installations, the 5X00167G01 provides the channel density and diagnostic capabilities needed to reduce installation costs while improving thermal process visibility.

Core Capabilities & Business Value

→ 16 Isolated Differential Inputs
Consolidate multiple temperature zones into a single module footprint, reducing panel space requirements by up to 60% compared to traditional 4-channel designs while simplifying wiring harnesses and junction box layouts.

✓ Universal Thermocouple Compatibility
Field-configurable support for J, K, T, E, R, S, B, and N sensor types eliminates inventory complexity—one module handles diverse process requirements from ambient monitoring to high-temperature furnace applications (up to 1800°C with Type B sensors).

✓ Integrated Diagnostics & Fault Detection
Real-time sensor health monitoring identifies open circuits, short circuits, and out-of-range conditions before they impact process quality, enabling predictive maintenance strategies that reduce unplanned downtime by 25-40%.

✓ 16-Bit Resolution with Auto CJC
Achieve ±0.1°C measurement accuracy through high-resolution analog-to-digital conversion paired with per-channel cold junction compensation—critical for pharmaceutical batch processes, food safety compliance, and energy efficiency optimization.

✓ Ovation-Native Protocol Integration
Seamless communication with Ovation controllers and operator workstations via proprietary high-speed backplane—no protocol converters or middleware required, reducing commissioning time from days to hours.

✓ Industrial Hardening & EMI Immunity
Channel-to-channel isolation (500V) and reinforced shielding protect against electrical noise in VFD-heavy environments, ensuring stable readings even in proximity to high-power switchgear and motor control centers.

Industry-Specific Application Scenarios

Power Generation & Cogeneration
Monitor steam drum temperatures, economizer inlet/outlet zones, and turbine bearing RTDs across combined-cycle plants. The module's high channel count supports comprehensive boiler tube mapping for early detection of hot spots that could lead to catastrophic failures, while integration with Ovation's advanced control algorithms enables real-time combustion optimization for NOx reduction.

Petrochemical & Refining Operations
Track multi-zone reactor temperatures in catalytic cracking units, distillation column tray profiles, and heat exchanger performance metrics. Differential temperature measurements between catalyst bed layers enable precise control of exothermic reactions, preventing thermal runaway conditions while maximizing yield efficiency in continuous processes.

Metals & Heat Treatment
Control annealing furnace zones, quench bath temperatures, and induction heating profiles with millisecond-level response times. The module's ability to handle both low-temperature tempering (200°C) and high-temperature forging operations (1200°C+) within the same system reduces equipment redundancy and simplifies operator training.

Food & Beverage Processing
Ensure HACCP compliance through continuous monitoring of pasteurization temperatures, autoclave sterilization cycles, and cold chain storage conditions. Built-in data logging capabilities support FDA 21 CFR Part 11 audit trail requirements without third-party recorders.

Pharmaceutical Manufacturing
Validate clean-in-place (CIP) thermal cycles, lyophilization chamber profiles, and API synthesis reactor temperatures with the precision required for GMP documentation. The module's deterministic scan rates enable synchronization with batch recipe management systems for automated process validation.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5X00167G01 when your application requires more than 8 temperature points within a 10-meter radius, when sensor types vary across zones, or when diagnostic feedback is critical for safety-instrumented systems (SIL-capable when paired with certified Ovation controllers). For RTD-based measurements, consider the companion 5X00070G04 module; for millivolt signals, specify the 5X00121G01 analog input card.

Advanced Integration & Customization Options

SCADA & Historian Connectivity: Native OPC UA server support enables direct data streaming to PI System, Wonderware, or Ignition platforms without polling delays. Configurable deadband filtering reduces historian storage requirements by 30-50% while preserving critical process excursions.

Redundancy Configurations: Deploy in dual-redundant pairs with automatic failover for critical safety applications—module health monitoring triggers seamless switchover within 200ms, maintaining control loop integrity during maintenance or component failures.

Custom Linearization Tables: Upload proprietary thermocouple calibration curves for specialized sensors (e.g., tungsten-rhenium for vacuum furnaces) or apply polynomial corrections for aging sensor compensation in long-term installations.

Wireless Sensor Integration: Pair with Emerson Smart Wireless gateways to combine wired high-speed control loops with battery-powered monitoring points, ideal for rotating equipment or hazardous area installations where conduit runs are cost-prohibitive.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (ships from regional distribution centers in Houston, Singapore, or Rotterdam)
Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific channel assignments and alarm setpoints
Warranty Coverage: 24-month manufacturer defect protection with advance replacement option (RMA processed within 4 hours)
Technical Support: Lifetime access to Emerson Global Support Network—phone/email assistance plus remote diagnostics via secure VPN
Documentation Package: Includes installation manual, wiring diagrams, Ovation configuration database templates, and IEC 61850 GOOSE mapping guides

Frequently Asked Questions

Q: Can the 5X00167G01 interface with third-party DCS platforms like Honeywell Experion or ABB 800xA?
A: The module is designed exclusively for Emerson Ovation backplane architecture and cannot communicate with non-Ovation controllers. For multi-vendor integration, consider using an Ovation gateway with Modbus TCP or FOUNDATION Fieldbus outputs.

Q: What is the maximum thermocouple extension wire length supported without signal degradation?
A: Up to 300 meters (1000 feet) using shielded extension-grade wire with proper grounding. For runs exceeding 150 meters, we recommend installing junction boxes with surge protection to minimize EMI pickup in industrial environments.

Q: Does the module support simultaneous mixed thermocouple types, or must all 16 channels use the same sensor?
A: Each channel is independently configurable—you can monitor Type K on channels 1-8, Type J on 9-12, and Type T on 13-16 within the same module, ideal for multi-process applications with varying temperature ranges.

Q: How does the 5X00167G01 compare to legacy 1C31116G03 modules in terms of energy efficiency?
A: The 5X00167G01 consumes 35% less power (4.5W vs. 7W) while offering twice the channel density, resulting in 60% lower heat dissipation per measurement point—critical for reducing HVAC loads in control room environments.

Q: Is hot-swapping supported during live process operations, or does replacement require system shutdown?
A: Full hot-swap capability with bumpless transfer—the Ovation controller maintains last-known-good values during the 2-3 second module exchange window, preventing false alarms or control loop upsets during maintenance.

Q: What cybersecurity features protect against unauthorized configuration changes or data tampering?
A: Role-based access control (RBAC) via Ovation Developer Studio, encrypted backplane communications (AES-256), and audit logging of all parameter modifications with timestamp and user ID tracking—compliant with NERC CIP and IEC 62443 standards.

Ready to Optimize Your Thermal Monitoring Infrastructure?

Contact our industrial automation specialists for application-specific sizing, integration planning, and volume pricing. We provide complimentary system architecture reviews for projects requiring 10+ modules, including CAD panel layout assistance and commissioning support.

Request a quote today or schedule a technical consultation to discuss your Ovation system expansion requirements.
