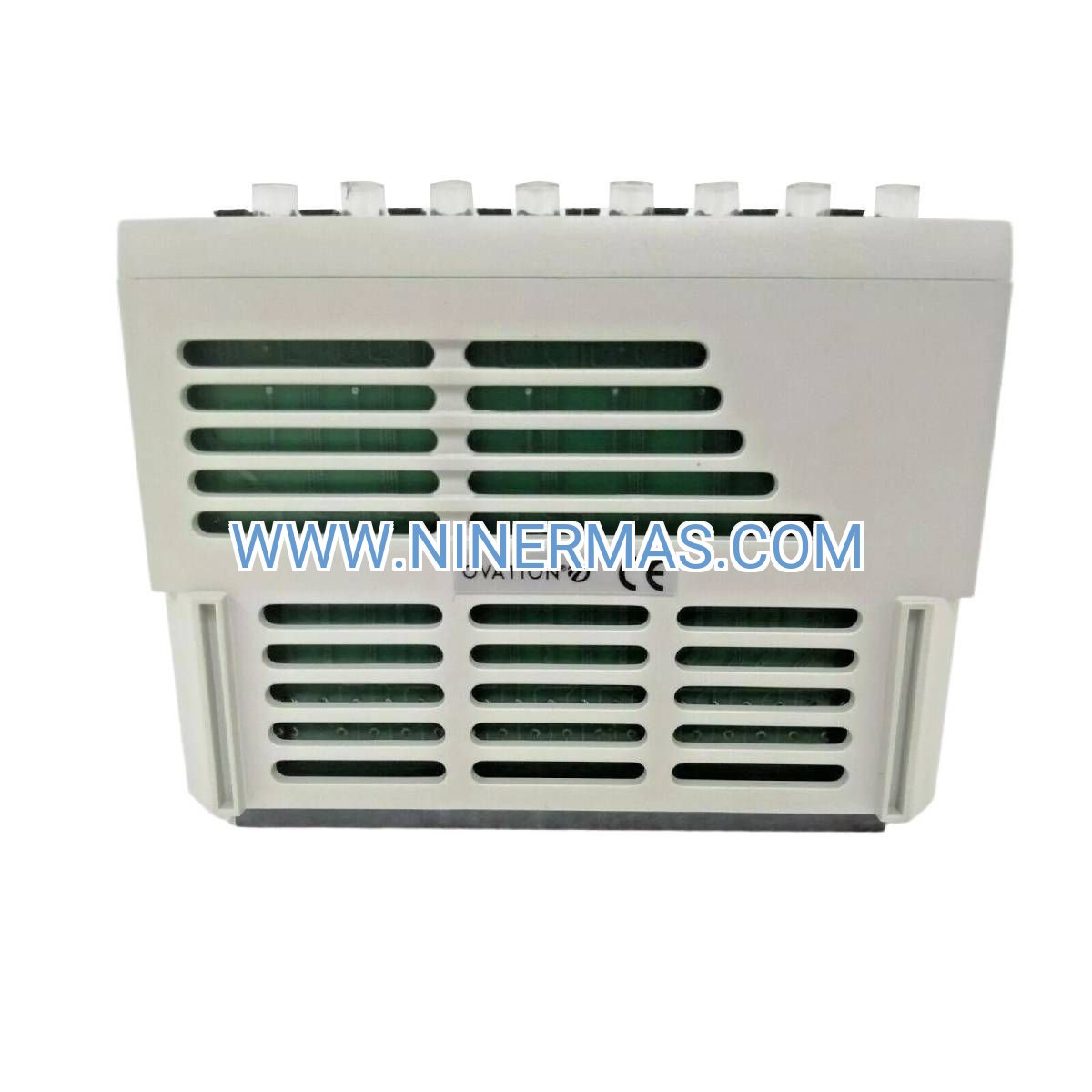

1X00102H01 Ovation DCS Power Module (High-Efficiency 24VDC Supply)

The Emerson 1X00102H01 is a switch-mode power supply engineered for continuous operation in Ovation distributed control systems. This module converts fluctuating AC mains into stable 24VDC output, ensuring uninterrupted power to controllers, I/O racks, and communication interfaces across industrial facilities.

Designed for process industries requiring 99.9%+ uptime, the 1X00102H01 addresses voltage instability, harmonic distortion, and transient events that compromise automation reliability. Target users include instrumentation engineers, plant maintenance teams, and system integrators managing refineries, chemical plants, power generation facilities, and manufacturing operations.

Key advantages include wide-range AC input acceptance (85-264VAC), active power factor correction exceeding 0.95, and built-in protection against overvoltage, overcurrent, and thermal overload. The module's 20ms holdup time bridges momentary power interruptions without triggering system resets, while >200,000-hour MTBF ensures long-term operational continuity.

Core Features & Benefits

✓ Universal Input Range (85-264VAC): Operates on global power grids without voltage selection switches, simplifying international deployments and eliminating mis-wiring risks during installation.

✓ Precision Voltage Regulation (±2%): Maintains tight DC output tolerance across 0-100% load variations, preventing logic errors in sensitive microprocessor-based controllers.

✓ High Power Factor (>0.95): Reduces reactive power consumption and utility demand charges, lowering total cost of ownership in large-scale installations.

✓ Extended Temperature Range (-20°C to +70°C): Supports outdoor enclosures, unheated equipment shelters, and tropical climates without derating or forced cooling.

✓ Redundancy-Ready Architecture: Parallel two units with diode-OR configuration for N+1 failover, achieving fault-tolerant power distribution in critical applications.

✓ Diagnostic LED Indicators: Front-panel status lights (AC OK, DC OK, Fault) enable rapid troubleshooting during commissioning and reduce mean time to repair (MTTR).

Application Scenarios

→ Petrochemical Refineries: Powers Ovation controllers managing distillation columns, reactor temperature loops, and emergency shutdown systems. The module's ATEX/IECEx certification permits installation in Zone 2 hazardous areas, while conformal coating resists corrosive H₂S and chlorine environments.

→ Water Treatment Plants: Energizes SCADA systems controlling chemical dosing pumps, filtration sequencers, and UV disinfection units. Wide input range accommodates rural utility grids with ±15% voltage variation, preventing nuisance trips during peak demand periods.

→ Pulp & Paper Mills: Supplies 24VDC to digester pressure controls, bleaching stage sequencers, and paper machine drive coordination systems. High efficiency (>90%) reduces heat dissipation in densely packed control cabinets, lowering HVAC requirements.

→ Power Generation Facilities: Backs Ovation turbine control systems, boiler management units, and emissions monitoring equipment. The 20ms holdup time prevents controller resets during generator synchronization transients or switchgear operations.

→ Automotive Manufacturing: Powers robotic welding cell controllers, paint booth environmental systems, and conveyor interlocks. UL508 listing and CE compliance meet North American and European machinery safety directives.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total DC load current by summing all connected devices (controllers, I/O modules, transmitters). Add 20% safety margin for inrush currents and future expansion. For loads exceeding 8A continuous, implement redundant configuration using two 1X00102H01 modules with diode-OR coupling. Verify ambient temperature does not exceed +70°C; use forced ventilation if cabinet temperature approaches this limit.

Extended Functions

Remote Monitoring Integration: The module's DC OK relay contact (normally open, 1A @ 30VDC) interfaces with building management systems or SCADA platforms for centralized power status monitoring. Connect to Ovation alarm inputs for automated notification of power supply degradation.

Parallel Operation: Install multiple units in current-sharing mode to distribute thermal stress and extend service life. Each module's independent overcurrent protection prevents single-point failures from cascading across the DC bus.

Customization Options: Factory-configurable output voltage (12VDC, 48VDC variants available on request). Extended temperature models (-40°C to +85°C) for Arctic or desert installations. Consult factory for lead times on custom specifications.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (additional fees apply).

Custom Orders: 4-6 weeks for non-standard voltage outputs or extended temperature ratings.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Warranty excludes damage from overvoltage transients, improper wiring, or operation beyond rated specifications.

Technical Support: Access to Emerson-certified application engineers via email (sale@ninermas.com) or phone (+0086 187 5021 5667). Support includes wiring diagrams, load calculations, and redundancy configuration guidance.

Documentation Package: Each unit ships with installation manual, dimensional drawings, terminal wiring diagrams, and CE/UL compliance certificates. Downloadable CAD models (STEP, DXF formats) available for panel layout design.

Frequently Asked Questions

Q: Can the 1X00102H01 interface directly with Ovation controller racks?
A: Yes, the module's 24VDC output connects to standard Ovation power distribution terminals. Use 14 AWG copper wire for runs up to 50 feet; upsize to 12 AWG for longer distances to minimize voltage drop.

Q: What is the maximum combined load capacity when paralleling two units?
A: Two 1X00102H01 modules in redundant configuration provide 10A continuous (not 20A). Each unit operates at 50% load for thermal stress reduction. For 20A total capacity, use four modules in 2×2 redundant array.

Q: Does this power supply reduce energy costs compared to linear regulators?
A: Switch-mode topology achieves >90% efficiency versus 50-60% for linear designs. A 240W load (10A @ 24VDC) wastes only 24W as heat, compared to 160W+ in linear supplies—reducing cooling requirements and utility bills.

Q: Are special tools required for DIN rail installation?
A: No tools needed. Slide the module onto 35mm DIN rail until the spring clip engages. To remove, insert flathead screwdriver into release slot and pull module forward.

Q: How do I enable remote monitoring of power supply status?
A: Connect the DC OK relay contact (terminals 7-8) to your SCADA digital input or Ovation alarm module. The contact closes when output voltage is within specification and opens during fault conditions.

Q: Can the 1X00102H01 operate in explosive atmospheres?
A: ATEX/IECEx certification permits installation in Zone 2 (gas) and Zone 22 (dust) hazardous locations when mounted in approved enclosures. Consult local electrical codes for specific installation requirements.

Secure Your Ovation DCS Uptime Today

Eliminate power-related downtime with the 1X00102H01's proven reliability. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 for application-specific sizing, volume pricing, and integration support. Request a quote now to receive detailed load calculations and redundancy recommendations tailored to your facility.
