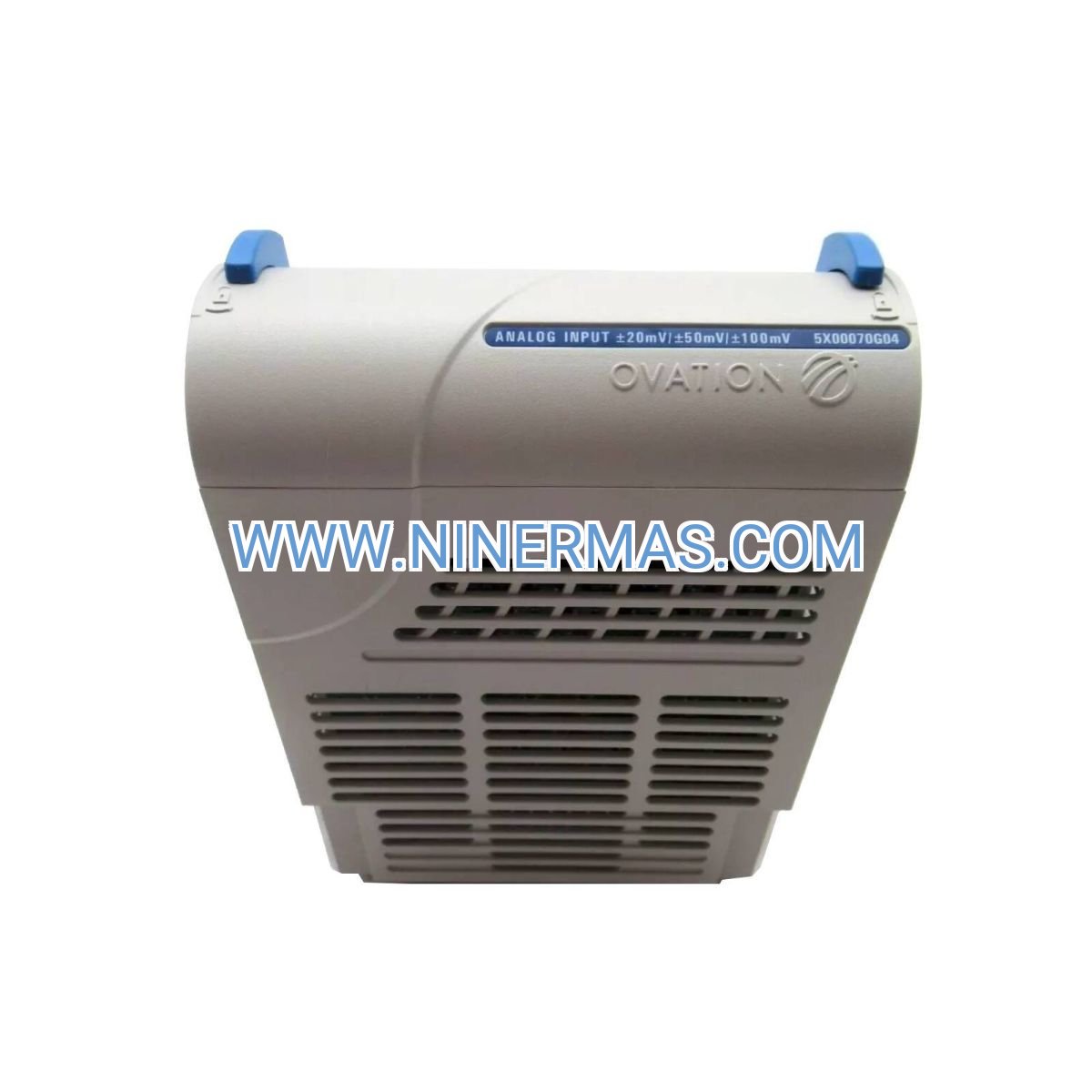

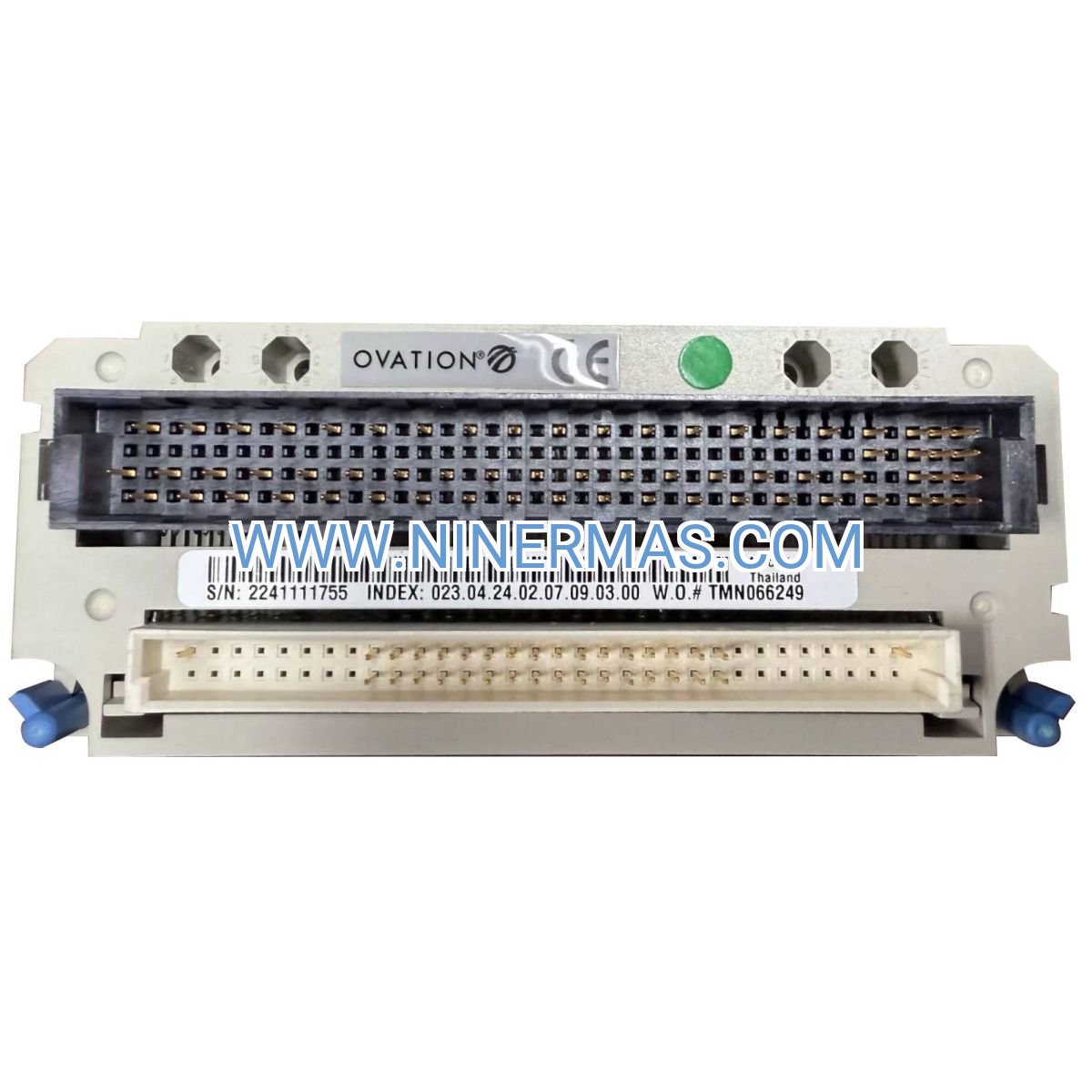

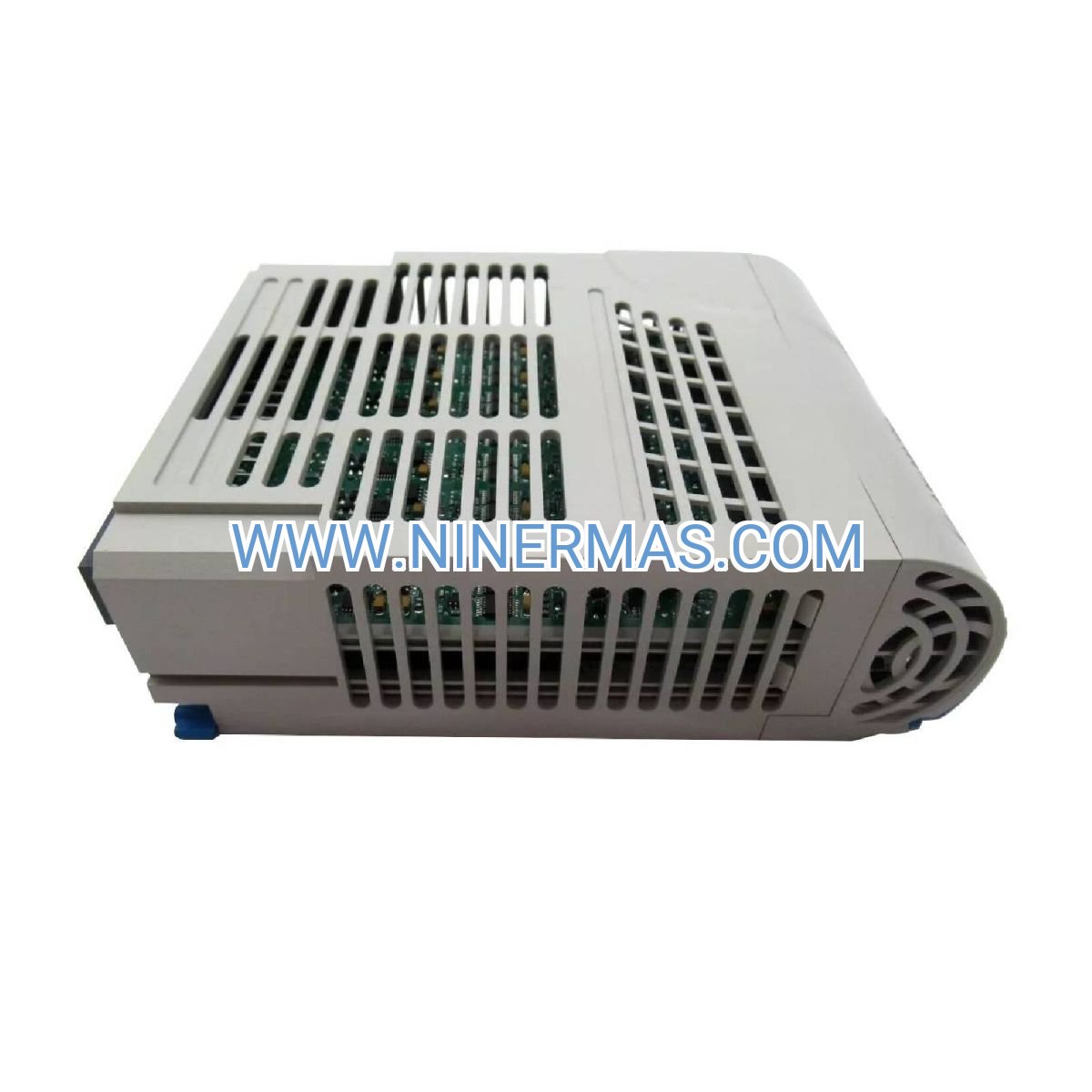

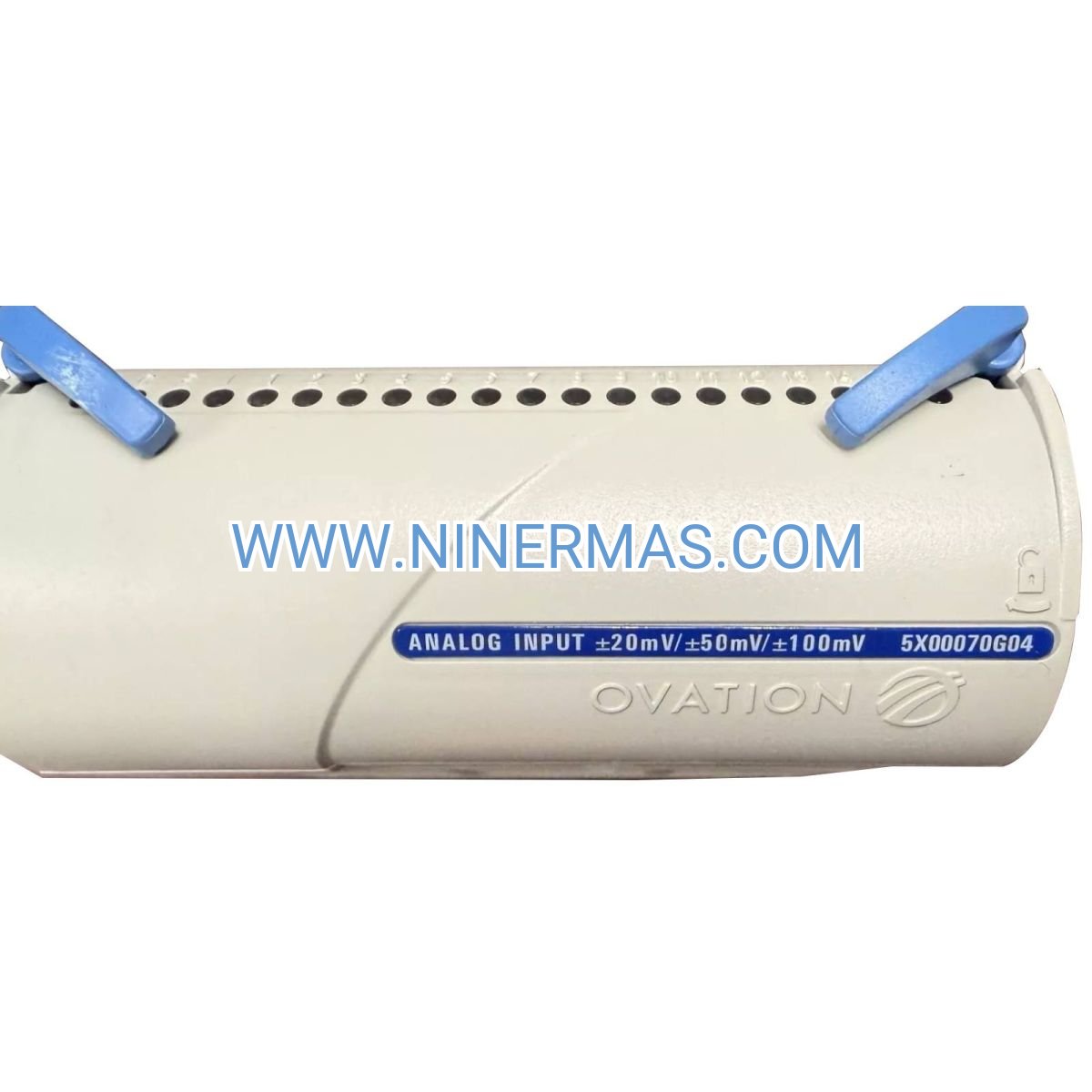

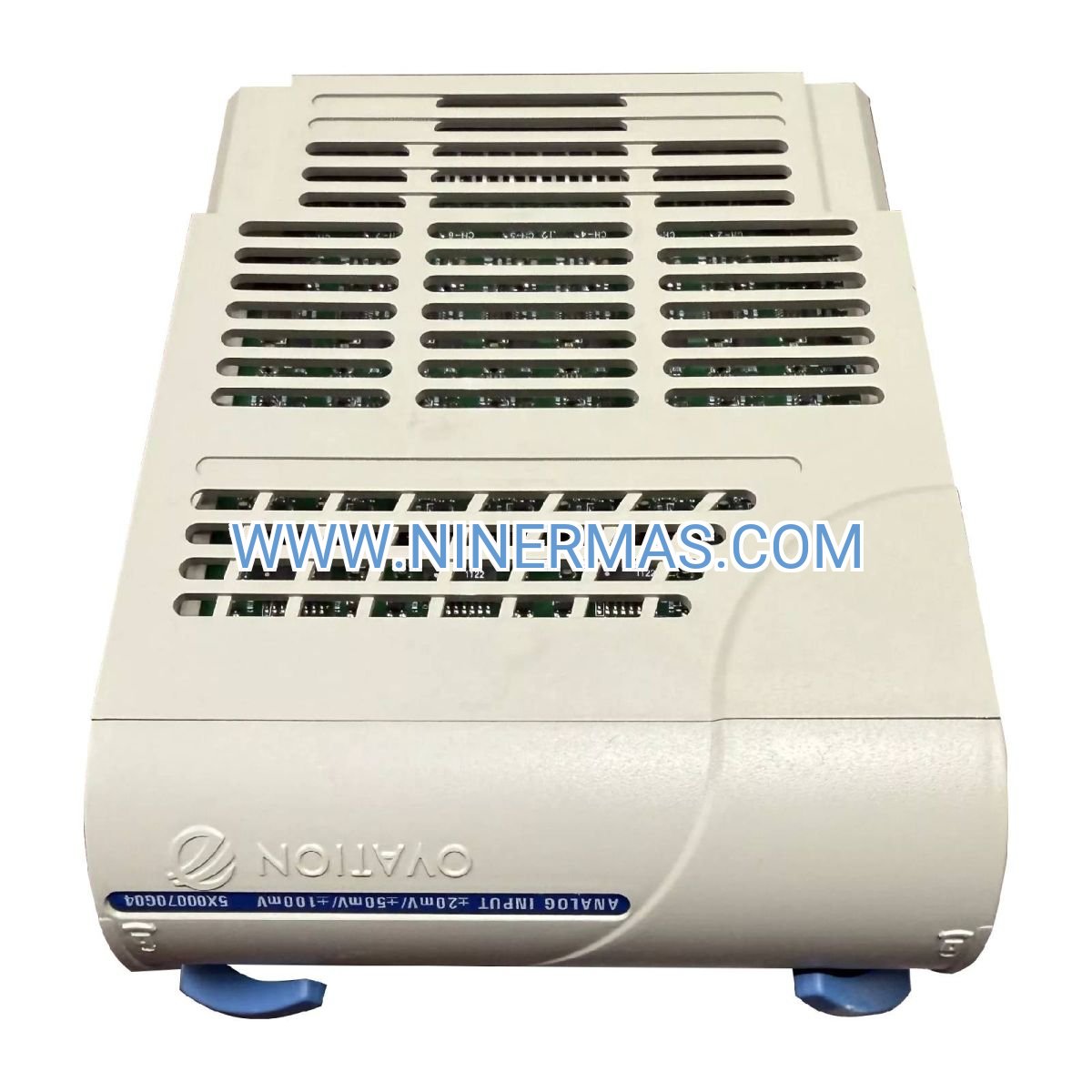

5X00070G04 Analog Input Module (Industrial-Grade Signal Acquisition)

The Emerson 5X00070G04 represents a field-proven solution for high-fidelity analog signal acquisition in Ovation distributed control environments. Engineered to interface directly with 4-20 mA transmitters, voltage sources, and RTD temperature sensors, this 8-channel module transforms raw field signals into calibrated digital data streams that drive critical process decisions across refining, power generation, and chemical manufacturing operations.

Designed for engineers who demand measurement integrity under harsh industrial conditions, the 5X00070G04 combines 16-bit resolution with robust electrical isolation and intelligent diagnostics. Whether you're retrofitting legacy systems or scaling new installations, this module delivers the accuracy and uptime required for regulatory compliance and operational excellence.

From reactor temperature monitoring to turbine vibration analysis, the 5X00070G04 serves as the data foundation for automated control strategies that optimize yield, reduce energy consumption, and protect capital equipment investments.

Core Capabilities & Business Value

→ Multi-Signal Versatility: Accepts 4-20 mA current loops, 0-10 VDC voltage inputs, RTD sensors (Pt100/Pt1000), and thermocouple types J/K/T/E—eliminating the need for external signal converters and reducing panel space requirements by up to 40%.

→ Measurement Precision: 16-bit A/D conversion delivers 1:65,536 resolution with ±0.1% full-scale accuracy, enabling tighter process control bands that translate to 2-5% improvements in product consistency and reduced raw material waste.

→ Electrical Isolation: 1500 VAC channel-to-backplane and 250 VAC channel-to-channel isolation protects against ground loops and electrical noise—critical in high-voltage environments where signal integrity determines safety system reliability.

→ Hot-Swap Architecture: Field-replaceable design allows module exchange during live operations without process interruption, reducing planned maintenance windows from hours to minutes and supporting 99.5%+ system availability targets.

→ Integrated Diagnostics: Continuous self-monitoring detects open circuits, sensor failures, and out-of-range conditions with sub-second response times, enabling predictive maintenance strategies that cut unplanned downtime by 30-50%.

→ Scalable I/O Density: Mount up to 16 modules per Ovation I/O rack for 128-channel capacity in a single chassis, optimizing cabinet footprint and simplifying wiring infrastructure for large-scale DCS expansions.

Industry-Specific Deployment Scenarios

Chemical Processing: Monitor distillation column temperatures, reactor pressures, and flow rates in batch and continuous operations. The module's fast 100 ms update rate supports cascade control loops that maintain ±0.5°C setpoint accuracy during exothermic reactions, preventing thermal runaway incidents and ensuring batch-to-batch reproducibility.

Power & Utilities: Track steam header pressures, turbine bearing temperatures, and boiler feedwater levels in combined-cycle plants. Dual-redundant configurations with automatic failover ensure uninterrupted data acquisition during generator synchronization and load-following operations where measurement gaps could trigger protective shutdowns.

Oil & Gas Refining: Acquire crude tower temperature profiles, catalyst regenerator pressures, and product quality analyzer signals. SIL 2-capable architecture integrates with safety instrumented systems (SIS) to provide independent protection layers for overpressure and high-temperature scenarios.

Water/Wastewater Treatment: Measure pH, dissolved oxygen, turbidity, and chlorine residuals across clarification, filtration, and disinfection stages. SCADA integration enables remote monitoring and automated chemical dosing adjustments that maintain regulatory compliance while reducing operator intervention by 60%.

Metals & Mining: Capture furnace temperatures, hydraulic pressures, and conveyor speeds in smelting and material handling systems. Rugged 0-60°C operating range withstands foundry environments where ambient temperatures fluctuate 20°C+ during production cycles.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5X00070G04 when your application requires multi-signal flexibility and high channel density. For RTD-only applications exceeding 8 points, consider pairing with dedicated RTD modules. Voltage-only installations may benefit from higher-density 16-channel variants. Consult Ovation I/O planning tools to optimize rack slot allocation and power budgets.

Advanced Integration Features

Ovation Developer Studio Compatibility: Auto-discovery and configuration via Ethernet-based commissioning tools eliminate manual address assignment and reduce startup time by 70%. Drag-and-drop function block programming maps analog inputs directly to PID controllers, alarms, and trending displays without custom scripting.

OPC UA Connectivity: Native support for OPC UA server functionality enables seamless data exchange with third-party MES, historian, and analytics platforms—critical for Industry 4.0 initiatives that aggregate process data across enterprise networks.

Redundancy Options: Deploy in dual-redundant controller configurations with automatic bumpless transfer during primary controller failures. Redundant I/O ensures continuous signal acquisition even during module replacement or backplane maintenance.

Cybersecurity Hardening: Firmware signed with cryptographic certificates prevents unauthorized modifications. Role-based access controls restrict configuration changes to authorized personnel, supporting ISA/IEC 62443 compliance requirements.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (additional fees apply).

Custom Configurations: Factory-programmed modules with pre-loaded channel assignments and calibration certificates ship within 10-15 business days.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service plans available with advance replacement and on-site sparing options.

Technical Support: Access to Emerson-certified application engineers for configuration assistance, troubleshooting, and system optimization. Phone/email support included; on-site commissioning services quoted separately.

Documentation Package: Includes installation manual, wiring diagrams, Ovation Developer Studio configuration files, and calibration test reports. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

Q: Can the 5X00070G04 interface with HART-enabled transmitters?
A: Yes, the module passes HART digital signals transparently when connected to 4-20 mA HART devices. Use Ovation's HART interface modules for bi-directional communication and remote transmitter configuration.

Q: What is the maximum cable length for 4-20 mA inputs?
A: Up to 1000 meters (3280 feet) with 18 AWG shielded twisted-pair cable. Longer runs require loop-powered isolators to maintain signal integrity and comply with voltage drop limits.

Q: Does this module support FOUNDATION Fieldbus or Profibus signals?
A: No, the 5X00070G04 is designed for conventional analog signals only. For digital fieldbus integration, specify Ovation's dedicated FF H1 or Profibus DP interface modules.

Q: How do I configure RTD sensor types and temperature ranges?
A: Use Ovation Developer Studio to select RTD type (2-wire/3-wire/4-wire), sensor curve (Pt100/Pt1000), and engineering units. Software automatically applies linearization and cold-junction compensation.

Q: Is the module suitable for hazardous area installations?
A: The 5X00070G04 is rated for Zone 2/Division 2 locations when installed in approved enclosures. For Zone 1/Division 1 applications, use intrinsically safe barriers or Ovation's ATEX-certified I/O modules.

Q: Can I mix different signal types on a single module?
A: Absolutely. Each of the 8 channels is independently configurable—channel 1 could monitor a 4-20 mA pressure transmitter while channel 2 reads an RTD temperature sensor, providing maximum flexibility for diverse measurement requirements.

Secure Your Process Data Foundation

Ready to upgrade your analog signal acquisition infrastructure? Contact our automation specialists to discuss your Ovation DCS expansion, receive application-specific configuration recommendations, and obtain volume pricing for multi-module orders. Our team provides pre-sales engineering support to ensure seamless integration with your existing control architecture.

Request a quote today and discover how the 5X00070G04 delivers the measurement precision and operational reliability that modern process industries demand.
