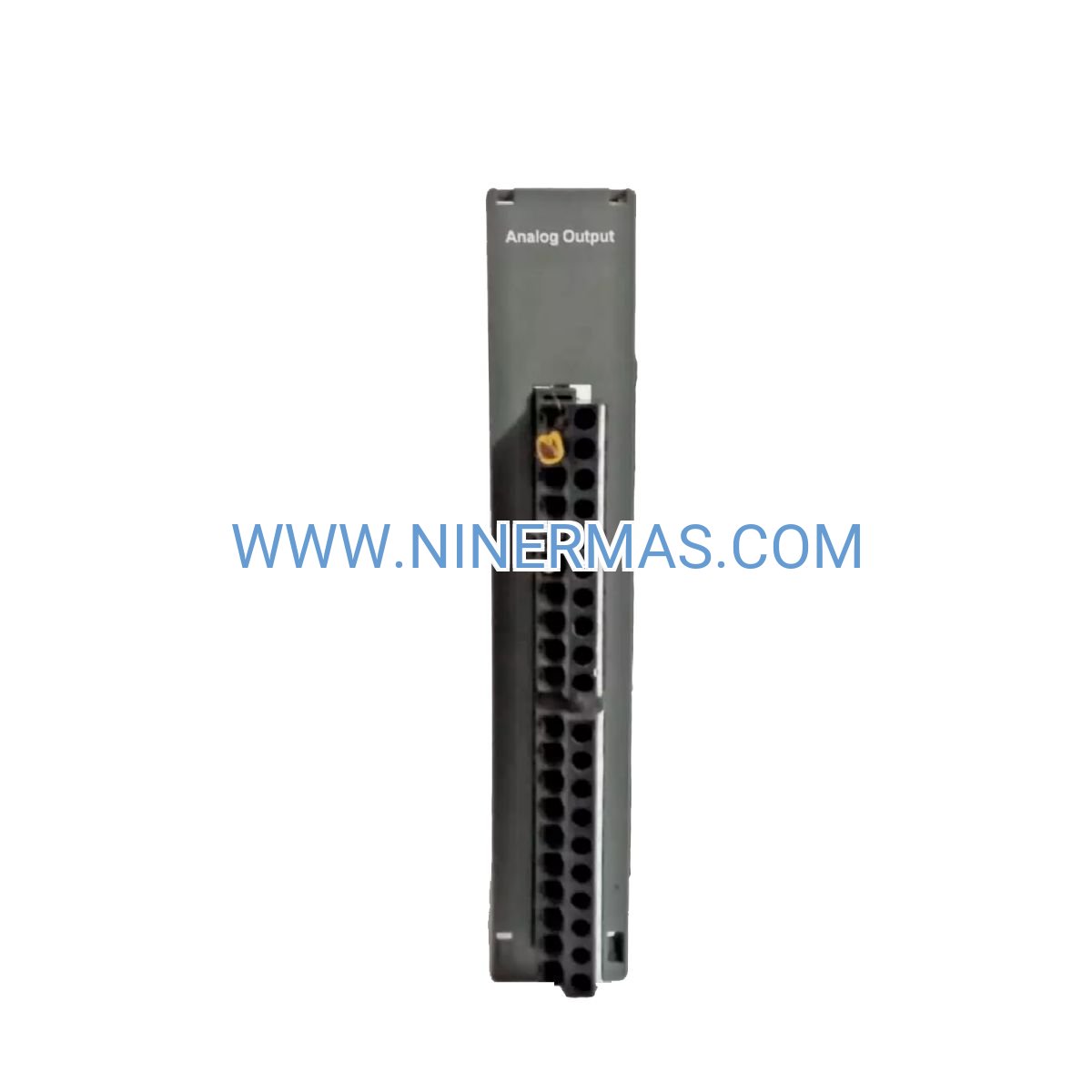

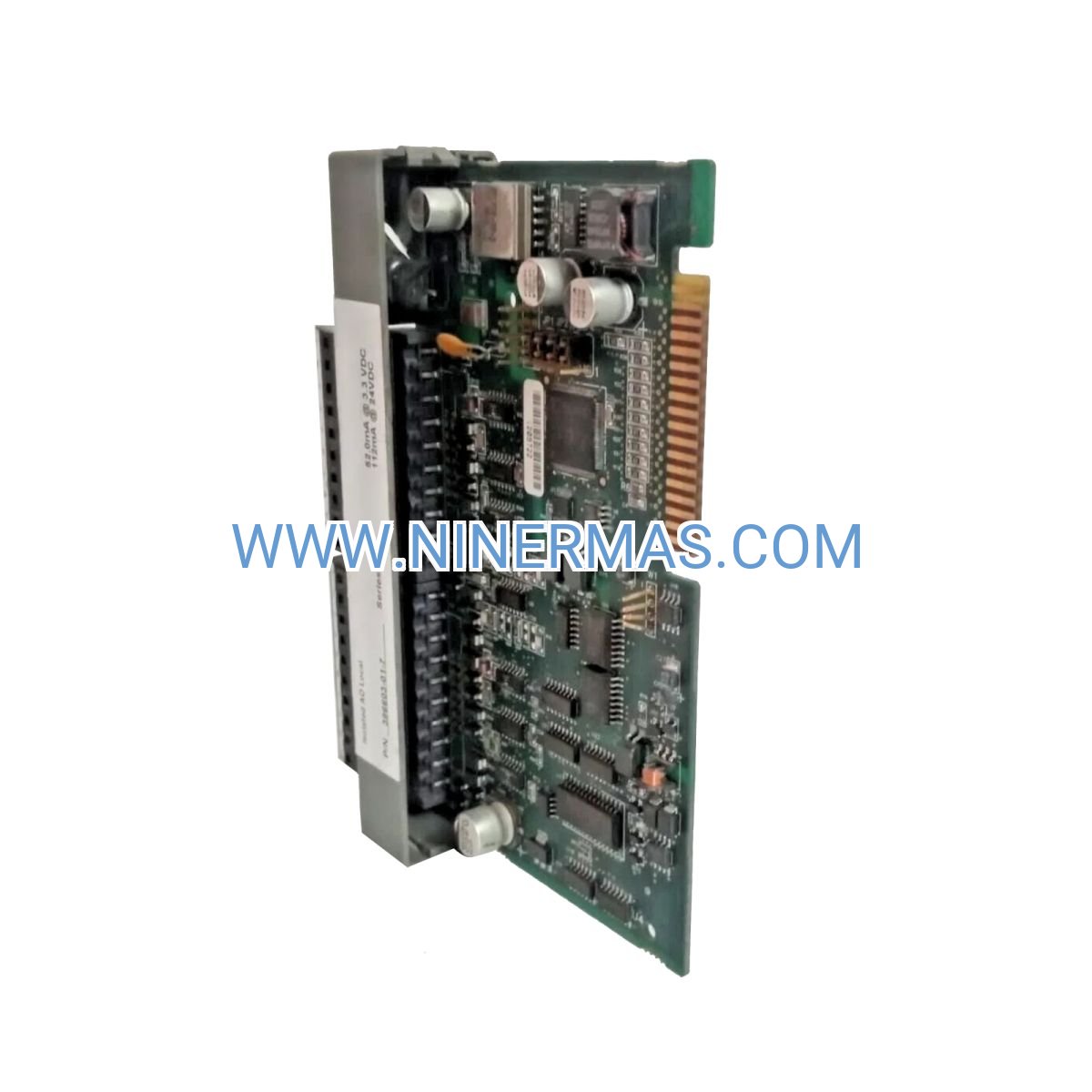

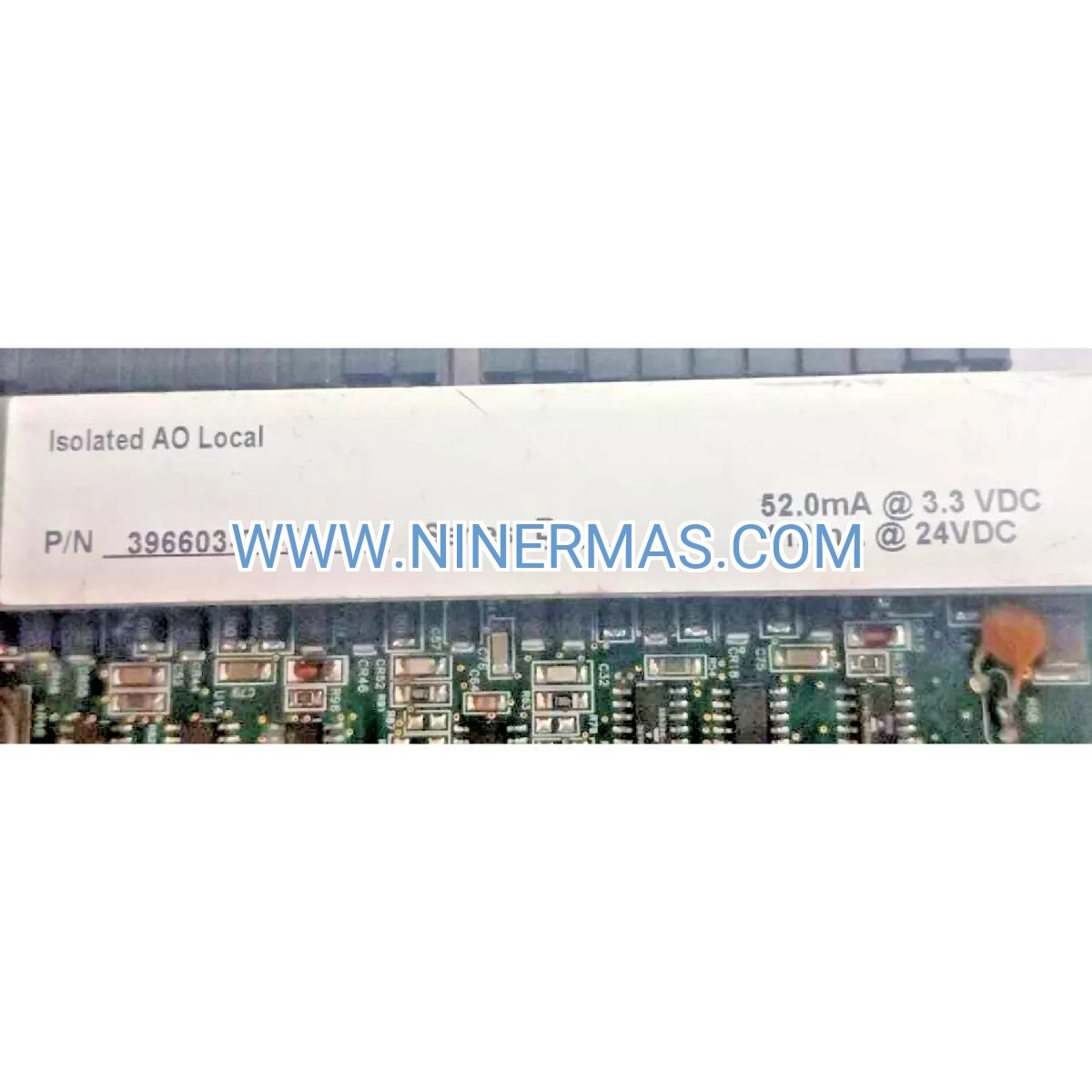

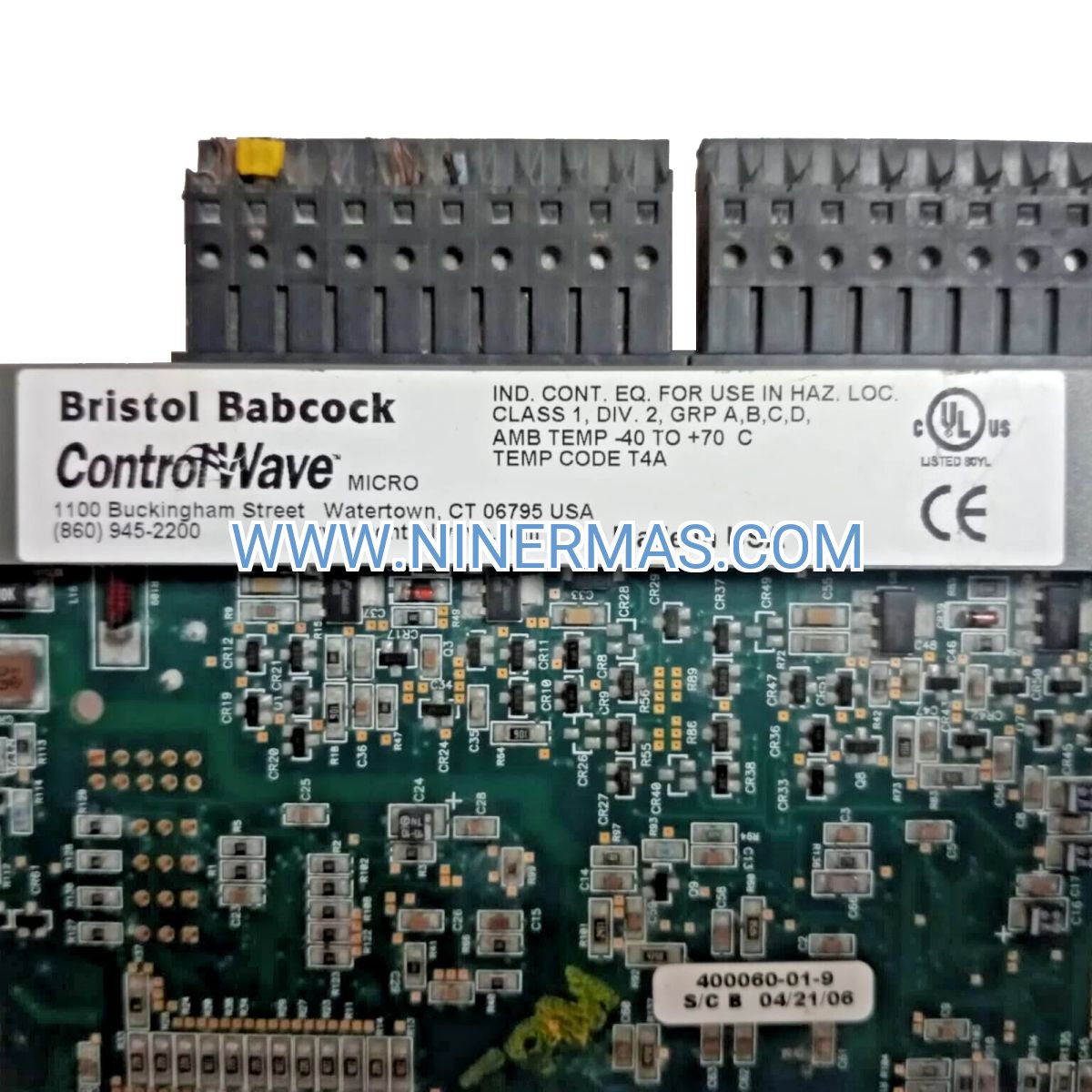

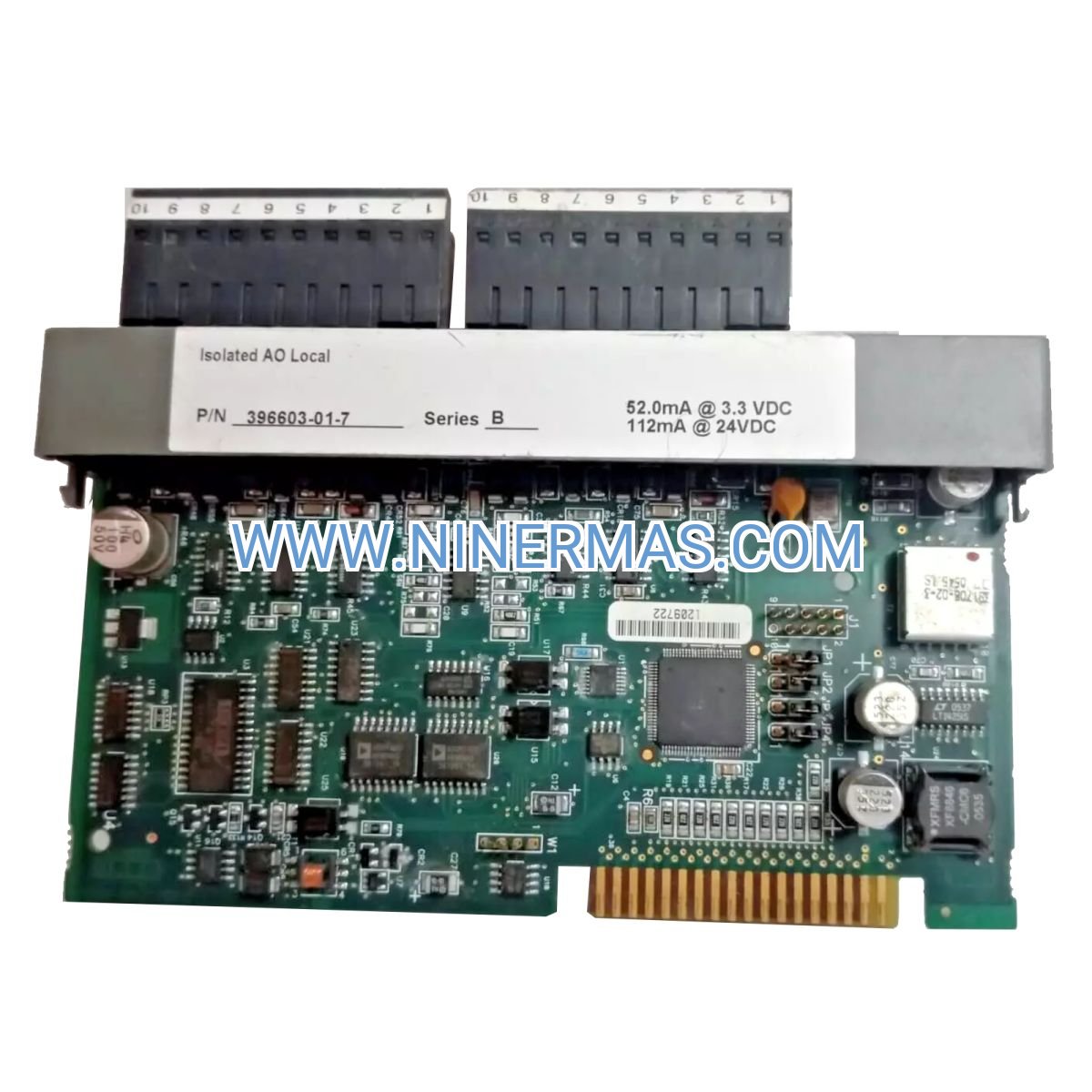

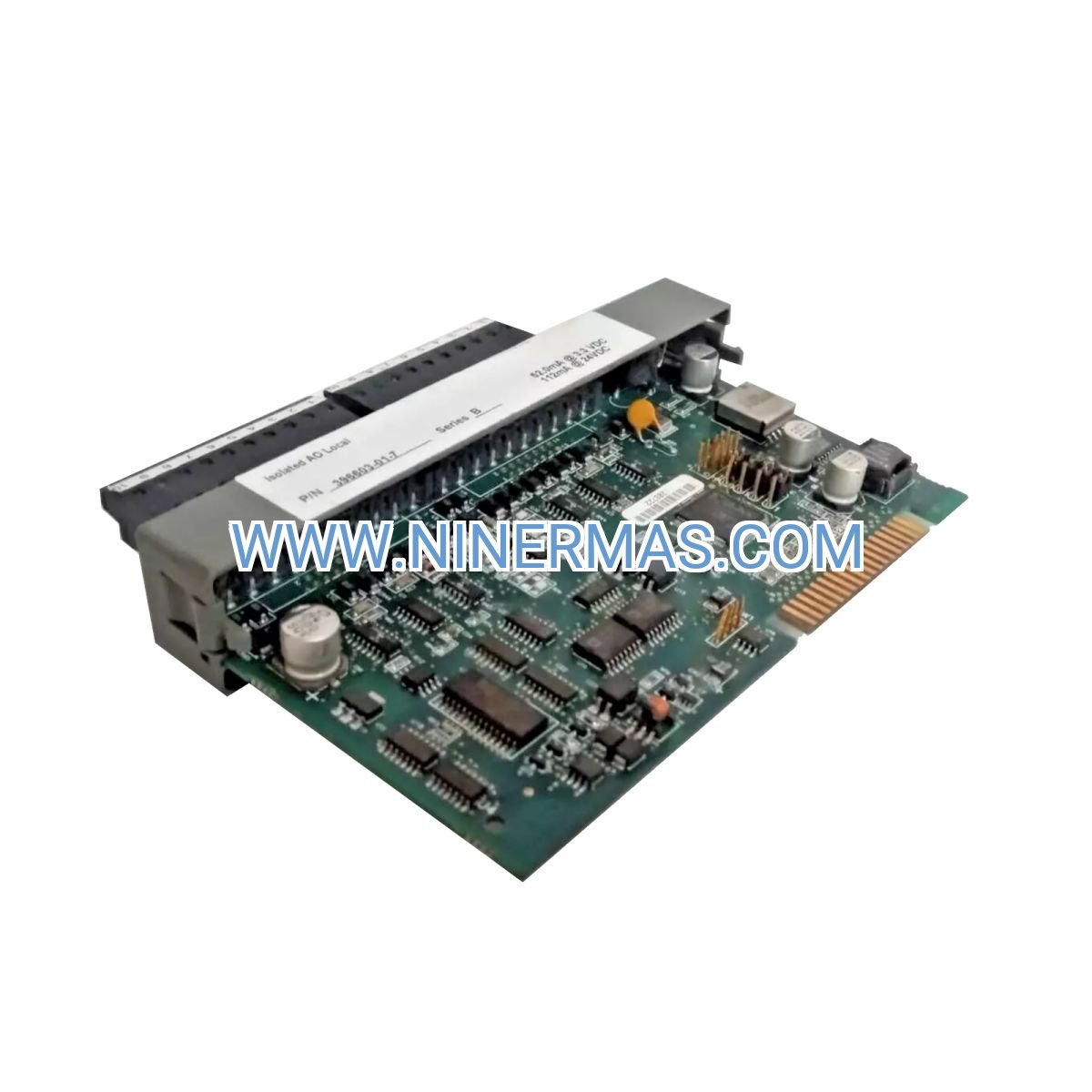

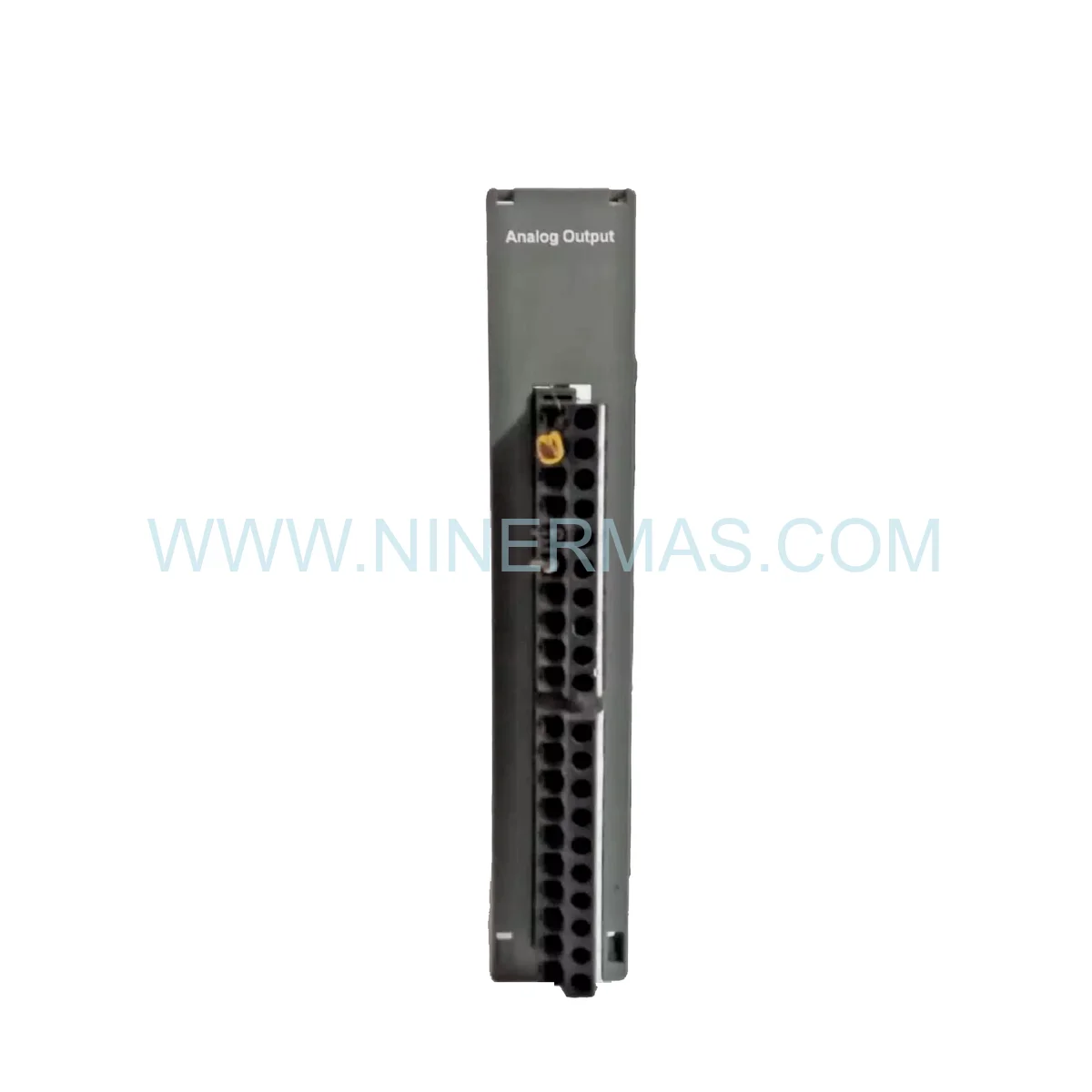

396603-01-7 Industrial-Grade Isolated Analog Output Module

The Emerson 396603-01-7 represents a specialized I/O solution engineered for ControlWave remote terminal units operating in electrically challenging industrial environments. This four-channel isolated analog output module transforms digital control signals into precise 4-20 mA current loops or 1-5 VDC voltage outputs, enabling direct interface with field instrumentation across oil & gas infrastructure, water treatment facilities, and distributed process control networks.

Designed for system integrators and automation engineers managing geographically dispersed assets, the 396603-01-7 addresses critical challenges in SCADA deployments: ground loop elimination, transient protection, and signal integrity preservation over extended cable runs. Each output channel operates independently with 1500 VDC galvanic isolation, preventing electrical faults in one circuit from cascading to adjacent channels or compromising backplane electronics.

Whether you're retrofitting legacy control systems, expanding existing ControlWave installations, or designing new remote monitoring stations, this module delivers the reliability and configurability required for mission-critical analog control applications where downtime translates to operational losses.

Technical Capabilities & Performance Metrics

→ Dual-Mode Output Flexibility: Software-selectable 4-20 mA current sourcing or 1-5 VDC voltage generation per channel eliminates the need for external signal conditioners when interfacing with mixed instrumentation types.

✓ Superior Isolation Architecture: 1500 VDC channel-to-channel and channel-to-backplane barriers block ground potential differences up to 1.5 kV, protecting sensitive control electronics in multi-grounded industrial power systems.

→ Precision Signal Conversion: 12-bit digital-to-analog resolution delivers 4096 discrete output levels with ±0.1% full-scale accuracy, ensuring precise control of valve positioners, VFD speed references, and dosing pumps.

✓ Rapid Update Performance: 10 ms typical channel refresh rate supports dynamic process control applications requiring fast setpoint adjustments without introducing control lag.

→ Extended Environmental Range: -40°C to +70°C operational capability enables outdoor installation in Arctic pipelines, desert compressor stations, and tropical offshore platforms without climate-controlled enclosures.

✓ Hot-Swap Serviceability: Field-replaceable design allows module extraction and insertion during live system operation, minimizing maintenance windows and eliminating scheduled downtime for I/O upgrades.

Industry-Specific Deployment Scenarios

Midstream Pipeline Operations: In natural gas transmission networks spanning hundreds of kilometers, the 396603-01-7 drives pneumatic control valves and pressure regulators at remote compressor stations. The module's isolated outputs prevent ground loops caused by cathodic protection systems, while the 4-20 mA current loop mode ensures signal integrity over 1000+ meter cable runs between RTU cabinets and field devices.

Municipal Water Distribution: Water utilities deploy this module to control variable frequency drives regulating booster pump speeds across elevated storage tank sites. The 1-5 VDC output mode directly interfaces with legacy VFD analog inputs, eliminating costly signal conversion hardware while maintaining ±0.1% setpoint accuracy for energy-efficient pump operation.

Chemical Batch Processing: In automated dosing systems for water treatment plants, isolated analog outputs command metering pump stroke rates based on real-time pH and chlorine residual measurements. Channel-to-channel isolation prevents one malfunctioning pump circuit from disrupting adjacent chemical feed loops, maintaining process safety.

Offshore Production Platforms: The module's conformal-coated construction and wide temperature tolerance make it suitable for wellhead control panels exposed to salt spray, humidity, and temperature swings. Isolated outputs protect against electrical noise from high-power motor starters and welding equipment common in offshore environments.

Renewable Energy Installations: Solar farms and wind turbine arrays use the 396603-01-7 to transmit setpoint commands to inverter systems and grid-tie controllers. The module's diagnostic capabilities enable predictive maintenance by detecting open-circuit conditions before they cause generation losses.

Configuration Parameters & Selection Criteria

Selection Guidance: Choose the 396603-01-7 when your application requires channel-to-channel isolation to prevent ground loops, when field devices are located more than 100 meters from the RTU, or when interfacing with equipment operating at different ground potentials. For non-isolated applications with shorter cable runs, consider standard analog output modules to reduce system cost.

Advanced Integration Features

Configurable Slew Rate Limiting: Programmable output ramp rates prevent sudden setpoint changes that could cause process upsets, water hammer, or mechanical stress on actuators. Engineers define maximum change rates in engineering units per second through ControlWave Designer software.

Fail-Safe Output States: Each channel supports user-defined safe states (hold last value, go to zero, go to maximum, or custom value) activated upon communication loss, ensuring predictable system behavior during network failures or controller faults.

Real-Time Diagnostics: Embedded self-test routines monitor D/A converter linearity, isolation barrier integrity, and output loop continuity. Diagnostic flags integrate with SCADA alarm systems for proactive maintenance scheduling before failures impact operations.

Modbus & DNP3 Protocol Support: The module's output registers are accessible via ControlWave's native Modbus RTU/TCP and DNP3 protocol stacks, enabling seamless integration with third-party HMI platforms, historians, and enterprise asset management systems.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units shipped from our regional distribution centers. Expedited same-day dispatch available for emergency replacements in critical infrastructure applications.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for high-reliability applications requiring 5-year coverage.

Technical Assistance: Pre-sales application engineering support includes I/O count calculations, wiring diagrams, and configuration file templates. Post-installation troubleshooting via phone, email, and remote desktop sessions ensures rapid issue resolution.

Documentation Package: Each module ships with installation manual, dimensional drawings, terminal block wiring diagrams, and sample ControlWave Designer configuration files. Certification documents (CE, UL, ATEX where applicable) provided upon request.

Frequently Asked Questions

Q: Can the 396603-01-7 drive 4-20 mA devices located 2000 meters from the ControlWave RTU?
A: Yes, the module's 24 VDC loop compliance voltage supports cable runs up to 2 km with standard 18 AWG instrumentation cable (approximately 20 ohms loop resistance). For longer distances, use lower-resistance cable or install a loop-powered isolator at the midpoint.

Q: What is the maximum capacitive load the voltage output mode can drive?
A: The 1-5 VDC output mode supports up to 10 µF capacitive loading, sufficient for most analog input cards and chart recorders. Devices with higher input capacitance may require series resistance to prevent oscillation.

Q: How does the module perform in high-vibration environments like compressor skids?
A: The 396603-01-7 meets IEC 60068-2-6 vibration specifications (10-150 Hz, 1g acceleration) and is suitable for skid-mounted installations. For extreme vibration applications (offshore drilling rigs, mobile equipment), consider shock-mount the entire ControlWave chassis.

Q: Can I mix 4-20 mA and 1-5 VDC outputs on the same module?
A: Absolutely. Each of the four channels is independently configurable via software, allowing simultaneous operation of current and voltage outputs on a single module without hardware modifications.

Q: What happens to the outputs during ControlWave CPU module replacement?
A: Outputs enter their configured fail-safe states (typically hold last value) during CPU hot-swap operations. Once the new CPU boots and loads the application, outputs resume normal operation within 5-10 seconds.

Q: Does the module support HART communication over the 4-20 mA outputs?
A: No, the 396603-01-7 provides analog output only and does not support HART protocol. For HART-enabled analog I/O, consider Emerson's DeltaV or AMS-compatible I/O modules.

Secure Your Critical Control Infrastructure

Ensure uninterrupted operation of your remote automation systems with factory-certified Emerson 396603-01-7 modules backed by full traceability and technical support. Contact our application engineers today for system design assistance, volume pricing, or expedited delivery options.
