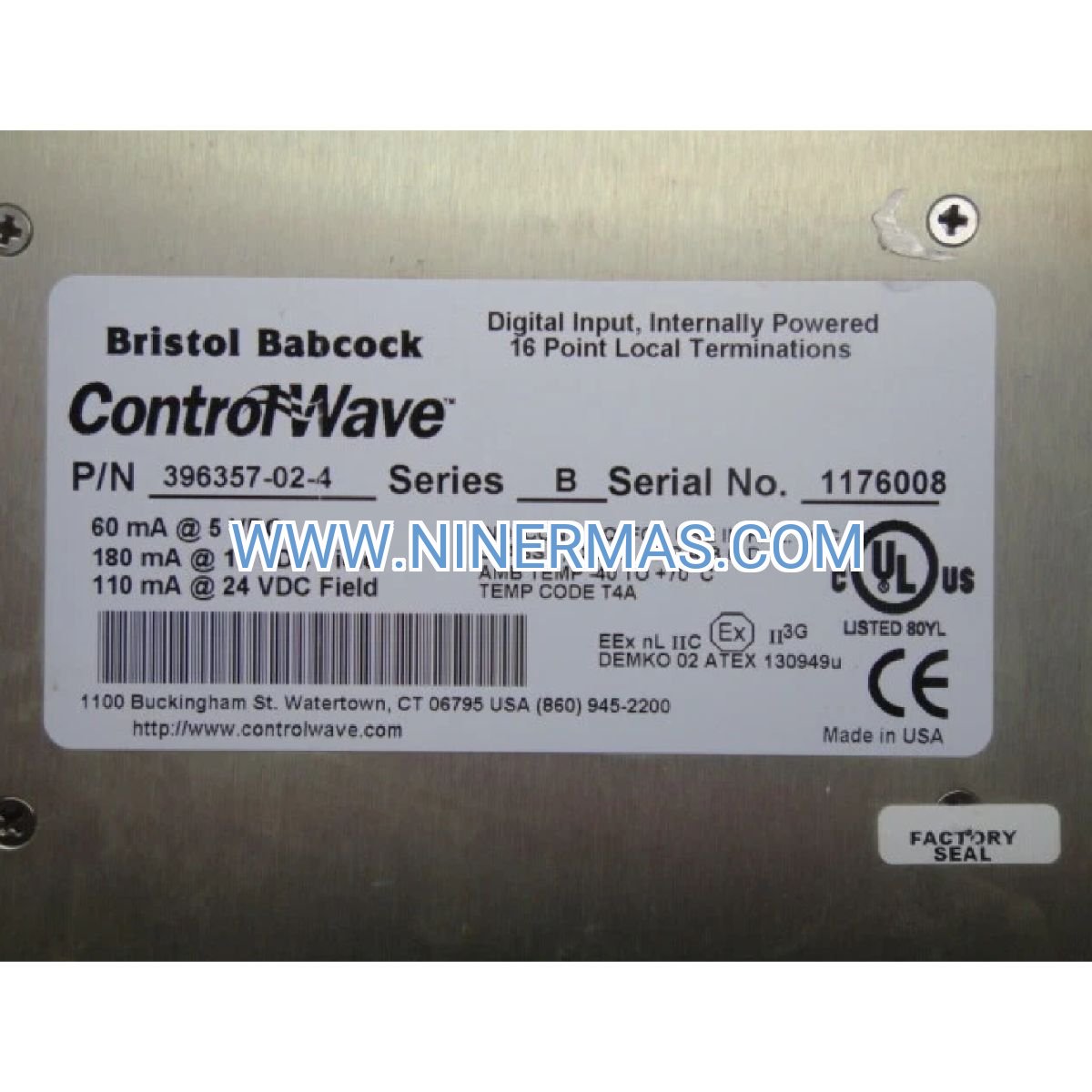

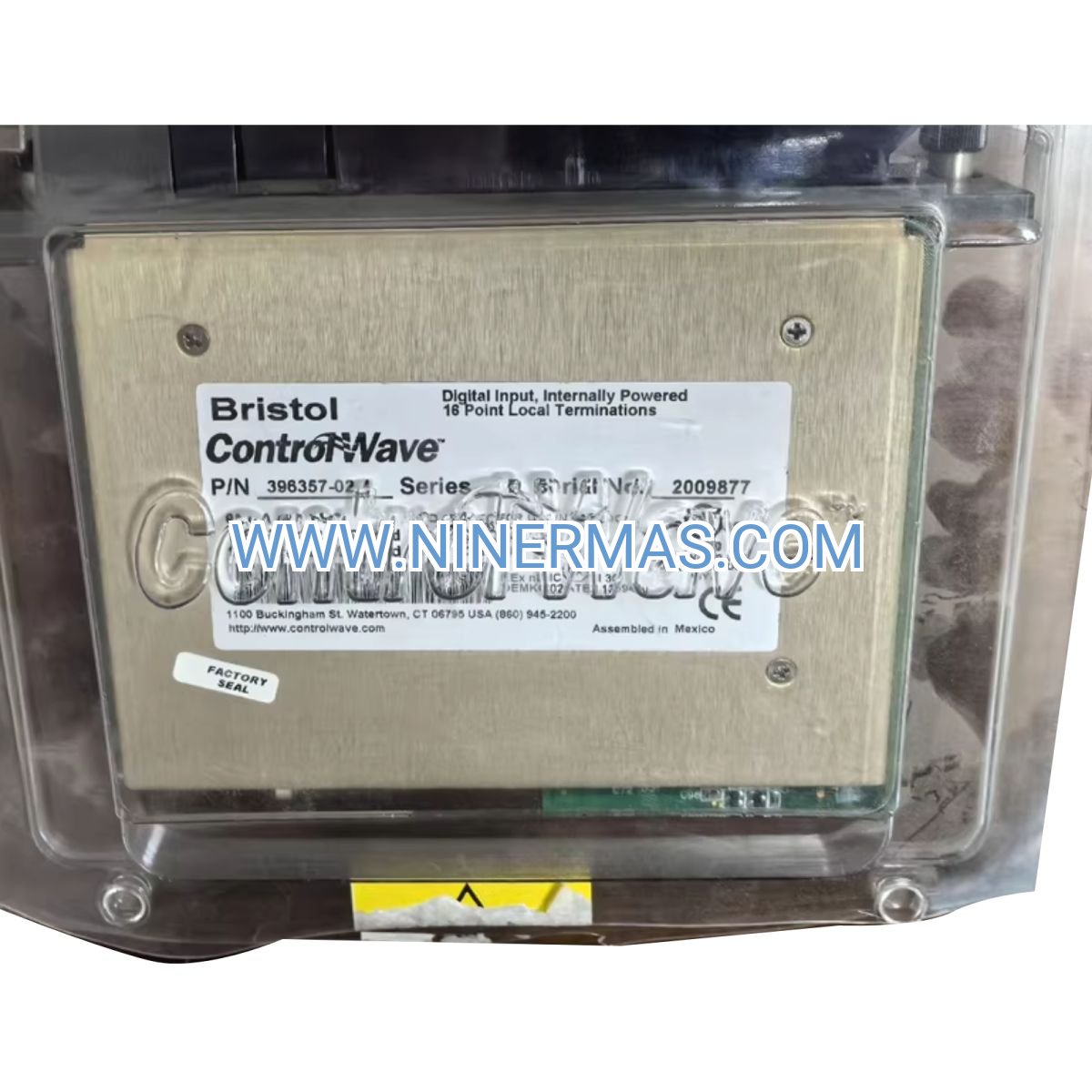

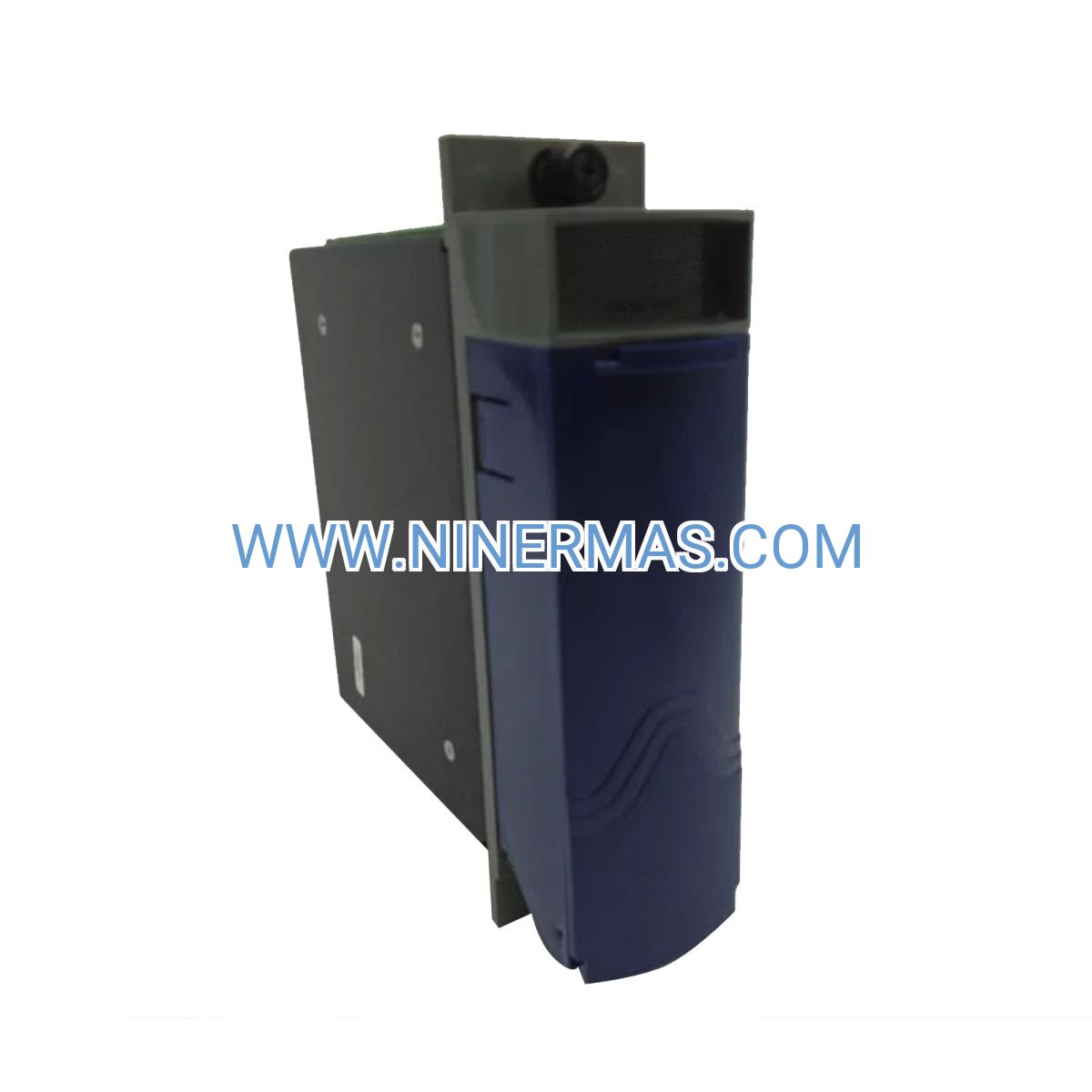

396357-02-4 Digital Input Module (Industrial-Grade 16-Channel ControlWave Interface)

The Emerson 396357-02-4 is a high-density digital input module engineered for ControlWave programmable automation controllers and remote terminal units. Featuring 16 non-isolated input channels, this module captures discrete signals from field-mounted switches, sensors, relay contacts, and alarm devices across SCADA, pipeline monitoring, and process control installations. Built for harsh industrial environments with -40°C to +70°C operation and global hazardous area certifications, it serves as the critical interface between field instrumentation and supervisory control systems.

Designed for oil & gas wellhead monitoring, water/wastewater lift stations, and pipeline leak detection networks, the 396357-02-4 combines robust construction with low power consumption (1.2W typical) to enable solar-powered remote site deployments. Its non-isolated common ground architecture simplifies wiring in single-site RTU applications while maintaining compatibility with Modbus RTU, DNP3, and BSAP communication protocols.

Whether you're expanding an existing ControlWave system or designing a new SCADA network, this 16-channel module delivers the reliability and environmental resilience required for mission-critical industrial automation. Contact our automation specialists today for technical consultation and volume pricing.

Key Features & Industrial Benefits

→ High-Density Signal Acquisition: 16 discrete input channels per module reduce chassis space requirements and lower per-point costs in multi-point monitoring applications. Ideal for wellhead battery monitoring (8-12 wells per RTU) and tank farm alarm consolidation.

✓ Wide Input Voltage Tolerance: Accepts 10.7 to 30 VDC signals, accommodating voltage drops in long cable runs (up to 500m) common in oilfield and pipeline installations. Eliminates need for signal conditioning in most applications.

→ Extreme Temperature Performance: -40°C to +70°C operating range supports outdoor installations in arctic and desert climates without environmental enclosures. Proven in Alberta oil sands (-35°C winter) and Middle East gas fields (+65°C summer).

✓ Hazardous Area Certified: ATEX Zone 2 and IECEx certifications enable deployment in classified gas/vapor environments. CSA approval covers North American Class I Division 2 installations, reducing certification costs for multi-region projects.

→ Low Power Consumption: 1.2W typical draw enables solar-powered RTU deployments at remote sites without AC power. Extends battery runtime in backup power applications, critical for pipeline valve sites and water reservoir monitoring.

✓ Conformal Coating Protection: ISA-S71.04-1985 Class G3 coating resists corrosive atmospheres containing H2S, chlorine, and hydrocarbon vapors. Extends service life to 15-20 years in tank farms, wastewater plants, and offshore platforms.

Application Scenarios & Problem-Solving Capabilities

Oil & Gas Wellhead Monitoring Networks
Challenge: Remote wellhead sites require monitoring of safety shutdown valves, pressure switches, and ESD contacts across multiple wells, but installing individual RTUs per well is cost-prohibitive.
Solution: The 396357-02-4's 16-channel capacity allows a single ControlWave RTU to monitor 8-12 wells (2 inputs per well for high/low pressure alarms). The wide input voltage range (10.7-30 VDC) tolerates voltage drops in 300-500m cable runs from wellheads to central RTU location. Low power consumption (1.2W) enables solar-powered operation in areas without grid power.
Value: Reduces hardware costs by 60-75% compared to individual RTUs, simplifies SCADA polling (one IP address vs. multiple), and cuts installation time by eliminating trenching for AC power distribution.

Pipeline Leak Detection & Valve Monitoring
Challenge: Crude oil and natural gas pipelines require continuous monitoring of leak detection sensors, valve position switches, and pump station alarms along hundreds of kilometers, with RTUs located in remote valve sites sharing common ground references.
Solution: The non-isolated common ground architecture simplifies wiring when all field devices share the same negative reference, typical in pipeline SCADA systems. The module's -40°C to +70°C range supports outdoor installations in unheated valve shelters. ATEX/IECEx certifications allow installation in Zone 2 hazardous areas near pipeline vents.
Value: Reduces wiring costs by 40% (common negative eliminates half the wire runs), accelerates commissioning (no isolation testing required), and ensures 24/7 operation in extreme climates without HVAC systems.

Water/Wastewater Lift Station Automation
Challenge: Municipal wastewater networks include hundreds of remote lift stations requiring monitoring of pump run status, high water alarms, and intrusion detection, but many sites lack AC power and cellular coverage is intermittent.
Solution: The 1.2W power consumption enables solar-powered ControlWave RTU installations with 3-5 day battery backup. The module interfaces with pump starter auxiliary contacts (run confirmation), float switches (high water alarm), and door contacts (intrusion detection). ControlWave's DNP3 protocol support enables integration with existing SCADA master stations.
Value: Eliminates monthly AC power costs ($50-100/site), enables deployment at sites without grid access, and provides reliable alarm reporting even during cellular outages (store-and-forward capability).

Tank Farm Overfill Protection Systems
Challenge: Crude oil storage terminals and refined product distribution facilities require monitoring of tank level switches (high/high-high, low/low-low), overfill protection contacts, and vapor recovery unit status across 10-50 tanks, with electronics exposed to corrosive hydrocarbon vapors.
Solution: The ISA-S71.04 Class G3 conformal coating protects electronics from H2S, benzene, and other airborne contaminants common in tank farm atmospheres. The module's 16-channel capacity consolidates signals from multiple tanks to a single RTU. ATEX Zone 2 certification allows installation in classified areas near tank vents and loading racks.
Value: Extends module service life from 5-7 years (uncoated) to 15-20 years in corrosive environments, reduces spare parts inventory, and ensures compliance with API 2350 overfill protection standards.

Natural Gas Compressor Station Safety Systems
Challenge: Transmission compressor stations require monitoring of vibration switches, bearing temperature alarms, lube oil pressure contacts, and ESD system status, with installations in outdoor enclosures subject to -30°C to +50°C temperature swings.
Solution: The -40°C to +70°C operating range eliminates need for enclosure heating/cooling systems, reducing installation costs and improving reliability (no HVAC failures). The 5mA typical input current per channel minimizes loading on safety system contacts, ensuring compatibility with SIL-rated shutdown systems. ControlWave's BSAP protocol support enables integration with legacy Bristol Babcock systems.
Value: Reduces enclosure costs by $2,000-5,000 (no HVAC required), improves system availability (eliminates HVAC as failure point), and maintains compatibility with existing SCADA infrastructure during phased upgrades.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 396357-02-4 when all field devices share a common ground reference (typical in single-site RTU applications). For multi-site installations with different ground potentials, consider isolated input modules. The 16-channel density is optimal for wellhead monitoring (8-12 wells), tank farm alarm consolidation (10-16 tanks), and lift station automation (pump status + alarms + intrusion detection).

Advanced Integration & IoT Capabilities

Protocol Flexibility: ControlWave systems support Modbus RTU/TCP, DNP3 Level 2, BSAP, and OPC protocols, enabling integration with SCADA master stations from Emerson, Schneider Electric, GE, Siemens, Rockwell, and Honeywell. Digital input points are automatically mapped to protocol data objects for seamless polling and unsolicited event reporting.

ACCOL III Programming: Configure input debounce times (10-5000ms), alarm limits, and logic functions using ControlWave Designer software. Pre-built function blocks for digital input conditioning, alarm detection with hysteresis, and event logging with timestamps accelerate application development and reduce commissioning time by 40-60%.

Cybersecurity Features: ControlWave platforms support DNP3 Secure Authentication (SAv5), TLS 1.2 encryption, role-based access control, and audit logging to meet NERC CIP, API 1164, and IEC 62443 cybersecurity standards for critical infrastructure protection.

Cloud Connectivity: Integrate with Emerson's Ovation Green cloud platform for remote monitoring, predictive maintenance analytics, and mobile alarm notifications. Digital input data streams to cloud dashboards for real-time visualization and historical trending without custom SCADA development.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations (special voltage ranges, extended temperature testing) require 4-6 weeks. Expedited shipping available for emergency replacements and project deadlines.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage and advance replacement service.

Technical Support: Our certified automation engineers provide pre-sales system architecture consultation, wiring diagram review, ACCOL III programming assistance, protocol configuration support, and post-installation troubleshooting. Remote diagnostic services available via secure VPN connections.

Documentation Package: Each module includes installation manual, wiring diagrams, terminal block layouts, ACCOL III function block examples, and ControlWave Designer configuration templates. Additional resources include protocol implementation guides, cybersecurity hardening checklists, and hazardous area installation procedures.

Frequently Asked Questions

Q: Can the 396357-02-4 interface with 12VDC or 48VDC field devices?
A: Yes, the 10.7 to 30 VDC input voltage range accommodates 12VDC battery-backed systems and 24/48VDC industrial power supplies. For 48VDC applications, verify that field device contacts can handle the 5mA input current without requiring external pull-down resistors.

Q: What is the maximum cable length for reliable digital input detection?
A: Cable length depends on wire gauge and voltage drop tolerance. For 24VDC systems using 18 AWG wire, maximum recommended length is 500m (1640 ft) with voltage drop to 18-20 VDC at the module terminals. For longer runs, use 14-16 AWG wire or increase field device supply voltage to 28-30 VDC.

Q: Does this module support high-speed pulse counting for flow meters?
A: No, the 396357-02-4 is designed for discrete on/off signal monitoring with typical scan rates of 10-100ms. For high-speed pulse counting (>100 Hz) or frequency input applications, use ControlWave pulse input modules (396352 series) with dedicated counter/timer hardware.

Q: How do I configure input debounce times to eliminate contact bounce?
A: Use ControlWave Designer software to set debounce times in the ACCOL III function block configuration. Typical values: 10-50ms for solid-state relay contacts, 50-200ms for mechanical relay contacts, 200-500ms for float switches with mechanical hysteresis. Longer debounce times reduce nuisance alarms but increase alarm response delay.

Q: Can I mix 12VDC and 24VDC field devices on the same module?
A: No, all 16 input channels share a common positive supply terminal. All field devices must use the same supply voltage (12VDC, 24VDC, or 48VDC). For mixed voltage applications, use separate modules or external voltage converters to normalize field device outputs to a common voltage level.

Q: What is the typical service life in corrosive H2S environments?
A: The ISA-S71.04 Class G3 conformal coating extends service life to 15-20 years in moderate H2S concentrations (10-100 ppm). For severe environments (>100 ppm H2S, high humidity), install modules in purged enclosures with positive pressure air supply and replace every 10-12 years as preventive maintenance.

Order Your 396357-02-4 Digital Input Module Today

Expand your ControlWave SCADA system with proven 16-channel digital input technology trusted by oil & gas operators, water utilities, and pipeline companies worldwide. Our automation specialists are ready to assist with system design, protocol configuration, and volume pricing for multi-site deployments.

? Contact our technical sales team: +0086 187 5021 5667
? Email inquiries: sale@ninermas.com
? Online resources: Technical datasheets, wiring diagrams, and ACCOL III programming examples available at https://ninermas.com

Request a quote today and receive complimentary ControlWave system architecture consultation for projects requiring 10+ modules. Volume discounts available for integrators and OEM partners.
