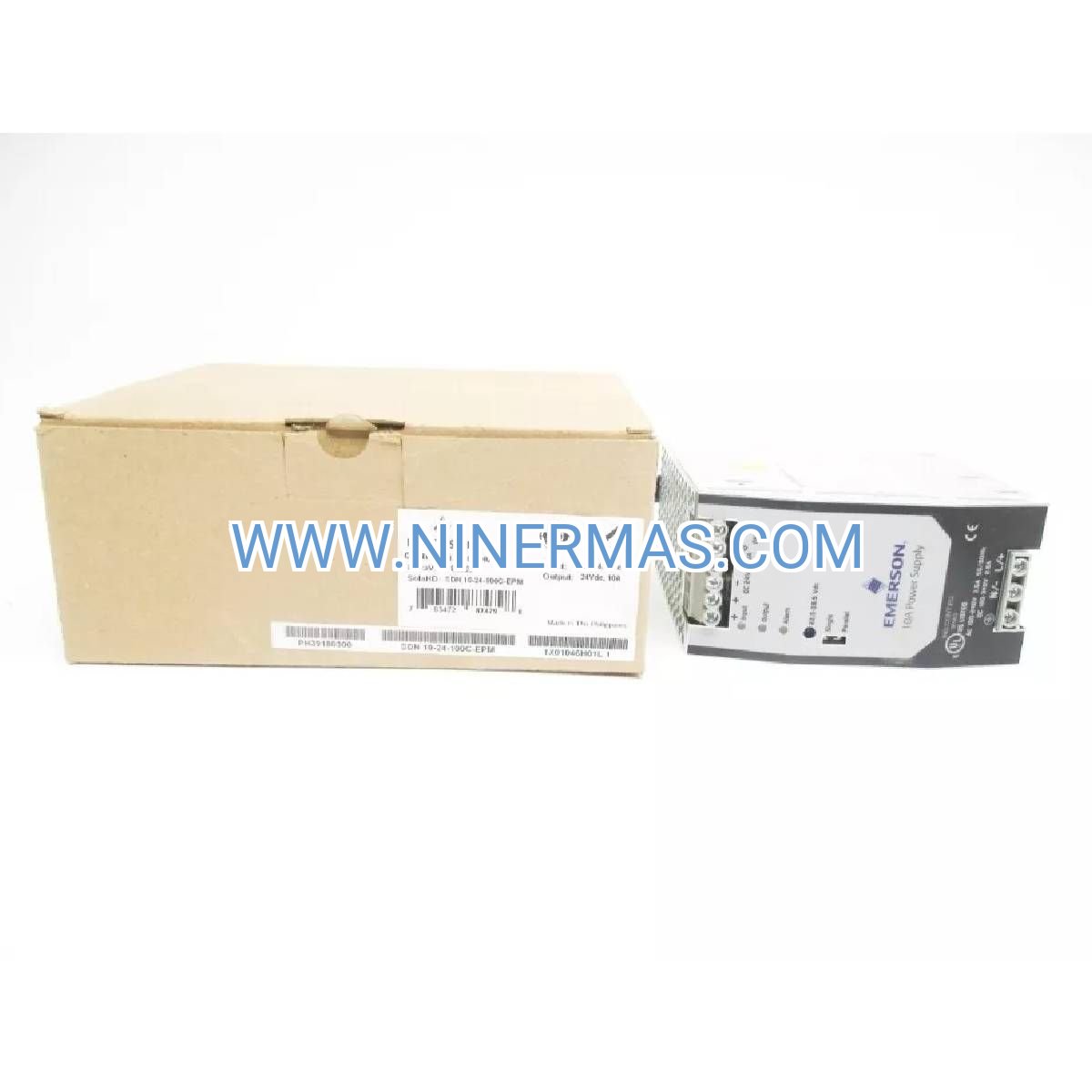

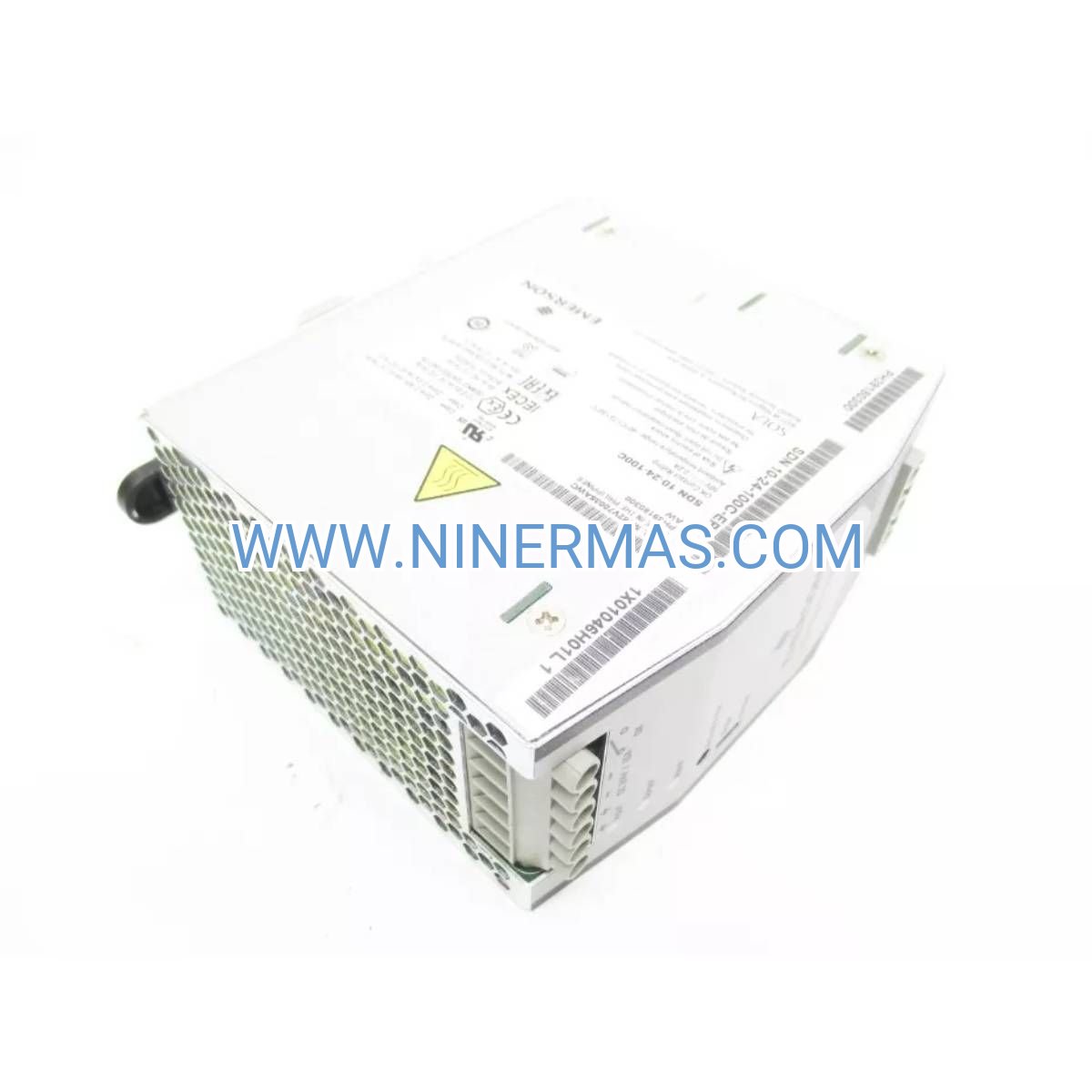

1X01046H01L Bulk Power Module (Industrial-Grade Redundant Supply)

The 1X01046H01L represents Emerson's advanced approach to industrial power distribution, specifically engineered for DeltaV distributed control environments where continuous operation is non-negotiable. This dual-output power module combines 12V and 24V DC rails in a compact, DIN-mountable package that integrates seamlessly into process automation cabinets across chemical processing, refining, pharmaceutical manufacturing, and water treatment facilities.

Designed for engineers who demand zero-compromise reliability, this bulk power supply addresses the critical challenge of maintaining stable voltage rails during grid disturbances, load transients, and component failures. Its hot-swappable architecture enables field replacement without process interruption, while built-in diagnostics provide real-time visibility into power system health through front-panel LED indicators and system-level alarms.

Whether you're commissioning a greenfield DeltaV installation or modernizing legacy control infrastructure, the 1X01046H01L delivers the power density, thermal performance, and fault tolerance required for mission-critical automation applications. With universal input voltage acceptance and comprehensive protection circuits, this module simplifies global deployments while reducing spare parts inventory.

Performance Advantages & Technical Capabilities

→ Dual-Rail Architecture with Independent Regulation
Simultaneous 12V (8A) and 24V (4A) outputs eliminate the need for multiple power supplies in mixed-voltage systems. Each rail features independent current limiting and fold-back protection, preventing cascade failures when individual loads fault. This design reduces panel space requirements by 40% compared to separate single-output units while improving overall system efficiency.

→ Universal Input Voltage Range (85-265 VAC)
Adapts automatically to global power standards from 100VAC to 240VAC without manual switching or configuration. Wide input tolerance compensates for brownout conditions and voltage sag during motor starts, maintaining regulated outputs even when line voltage drops to 85VAC. This capability proves essential in facilities with aging electrical infrastructure or unreliable utility feeds.

→ Hot-Swap Redundancy for Zero-Downtime Maintenance
ORing diode circuitry enables parallel operation of multiple modules in N+1 redundant configurations. Field technicians can replace failed units during live operation without interrupting control system power, eliminating costly production shutdowns for routine maintenance. Load-sharing algorithms automatically balance current distribution across active modules.

→ Extended Temperature Operation (-25°C to +70°C)
Conformal-coated electronics and high-temperature capacitors ensure reliable operation in extreme environments from Arctic outdoor enclosures to tropical process areas. Derating curves allow continuous operation at 80% capacity even at maximum ambient temperature, providing safety margin for unexpected thermal conditions.

→ Comprehensive Fault Protection Suite
Multi-layer protection includes input surge suppression (2kV), output overvoltage shutdown (130% threshold), short-circuit current limiting, and thermal overload cutoff. Automatic restart after fault clearance minimizes operator intervention, while latching shutdown modes prevent damage during persistent fault conditions.

✓ High-Efficiency Switching Topology (≥88%)
Reduced heat generation lowers cooling requirements and extends component lifespan. At typical 75% loading, efficiency exceeds 90%, translating to lower operating costs and smaller thermal footprint in densely packed control cabinets.

Industrial Application Scenarios

Distributed Control System Power Backbone
In large-scale DeltaV installations spanning multiple process units, the 1X01046H01L serves as the primary power source for controller racks, I/O carriers, and communication modules. A typical refinery crude unit deployment might utilize six modules in 4+2 redundant configuration, powering 200+ I/O points across analog input cards, digital output modules, and HART multiplexers. The dual-voltage capability supports both legacy 24VDC field devices and newer 12VDC smart transmitters without requiring voltage conversion.

Safety Instrumented System (SIS) Power Supply
When configured with certified redundancy modules, the 1X01046H01L meets SIL 2/3 requirements for safety logic solver power in emergency shutdown systems. Pharmaceutical batch reactors commonly deploy this module to power safety PLCs, flame detection systems, and emergency valve actuators. The ATEX Zone 2 certification permits installation in control rooms adjacent to classified areas, while the wide operating temperature range accommodates outdoor analyzer shelters.

Retrofit & Capacity Expansion Projects
Backward compatibility with DeltaV systems dating to version 6.3 makes the 1X01046H01L ideal for phased modernization programs. A chemical plant expanding from 500 to 800 control loops can add new I/O subsystems powered by this module without replacing existing power infrastructure. The standardized DIN-rail mounting integrates with legacy panel layouts, while the compact 125mm width preserves valuable cabinet space for additional equipment.

Mobile & Skid-Mounted Control Packages
Packaged equipment manufacturers specify the 1X01046H01L for modular process skids due to its vibration resistance (IEC 60068-2-6) and wide input voltage tolerance. Offshore oil platforms, mining operations, and temporary production facilities benefit from the module's ability to operate reliably despite poor power quality and harsh environmental conditions. Conformal coating protects against salt spray, humidity, and corrosive gases.

Critical Infrastructure & Utilities
Water treatment plants, power generation facilities, and pipeline control stations deploy this module in SCADA systems requiring 24/7/365 availability. The >200,000-hour MTBF rating and predictive maintenance indicators enable condition-based replacement strategies, reducing unplanned downtime. Municipalities often standardize on this platform across multiple sites to simplify spare parts management and technician training.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total load current for each voltage rail, adding 20% safety margin. For redundant configurations, size each module to carry 100% of system load. Verify ambient temperature does not exceed 50°C without forced ventilation. In applications requiring SIL certification, consult Emerson for approved redundancy architectures and diagnostic coverage calculations.

Advanced Integration & Connectivity

The 1X01046H01L integrates into DeltaV power distribution schemes through standardized terminal blocks accepting 12-22 AWG wire (torque: 0.5-0.6 Nm). Output terminals support parallel connection of up to four modules using external ORing diodes or active redundancy controllers. Status relay contacts (Form C, 2A @ 30VDC) provide remote alarm signaling to SCADA systems or building management platforms.

For predictive maintenance programs, monitor output voltage ripple and case temperature as leading indicators of capacitor aging. Trending these parameters through DeltaV's asset management tools enables condition-based replacement before failure occurs. Typical service life exceeds 10 years in controlled environments, with electrolytic capacitor refresh recommended at 7-year intervals in high-temperature applications.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory orders during peak seasons
Warranty Coverage: 12 months from shipment date, covering manufacturing defects and component failures
Technical Support: Pre-sales application engineering, post-sales troubleshooting, and integration assistance via phone/email
Documentation Package: Installation manual, wiring diagrams, CAD drawings (DWG/STEP), and compliance certificates included

Expedited shipping available for emergency replacements. Extended warranty programs and on-site commissioning support can be arranged for large-scale projects. All modules undergo 100% factory testing including burn-in, hi-pot, and load regulation verification before shipment.

Frequently Asked Questions

What wire gauge should I use for output connections in high-current applications?
For 8A loads on the 12V rail, use minimum 14 AWG (2.5mm²) copper wire with 90°C insulation rating. Keep wire runs under 10 meters to minimize voltage drop below 2%. For 24V/4A circuits, 16 AWG (1.5mm²) suffices for runs up to 20 meters. Always terminate with ferrules to prevent strand breakage.

Can I parallel multiple modules without external ORing diodes?
No—direct paralleling without isolation will cause cross-conduction and potential damage. Use Schottky diodes rated for 10A minimum (12V rail) or 6A (24V rail) with appropriate heatsinking. Alternatively, specify Emerson's redundancy controller module (part KJ3001X1-BC1) for active load sharing and automatic failover.

How do I calculate derating for high-altitude installations?
Reduce maximum output current by 10% for each 1000 meters above 2000m elevation. At 3000m (9800 ft), limit 12V output to 7.2A and 24V to 3.6A. Reduced air density impairs convective cooling—consider forced ventilation above 2500m or when ambient exceeds 45°C.

Is this module compatible with DeltaV M-series and MD Plus controllers?
Yes, the 1X01046H01L powers all DeltaV controller generations including legacy S-series, current M-series, and MD Plus platforms. Voltage regulation meets the stringent ±2% tolerance required by high-resolution analog I/O modules. Verify total power budget when mixing controller types in the same rack.

What maintenance procedures extend operational lifespan?
Quarterly: Inspect terminal tightness (re-torque to 0.5 Nm), verify LED status, clean ventilation slots. Annually: Measure output voltage/ripple under load, check case temperature, inspect for capacitor bulging. Every 5 years: Thermal imaging scan, insulation resistance test (500VDC megger). Replace electrolytic capacitors at 7-10 year intervals based on operating temperature history.

Does the module support remote monitoring via Modbus or Ethernet?
The base 1X01046H01L provides only relay contact outputs for alarm signaling. For digital communication, integrate with DeltaV's power monitoring modules or third-party power management gateways that accept dry contact inputs. Some system integrators add external current transducers (0-10V) to monitor load trends via SCADA analog inputs.

Order Your Industrial Power Solution Today

Secure your process control infrastructure with the proven reliability of Emerson's 1X01046H01L bulk power module. Our application engineers are available to assist with system sizing, redundancy architecture design, and integration planning. Contact us for volume pricing, custom testing protocols, or technical specifications tailored to your project requirements.
