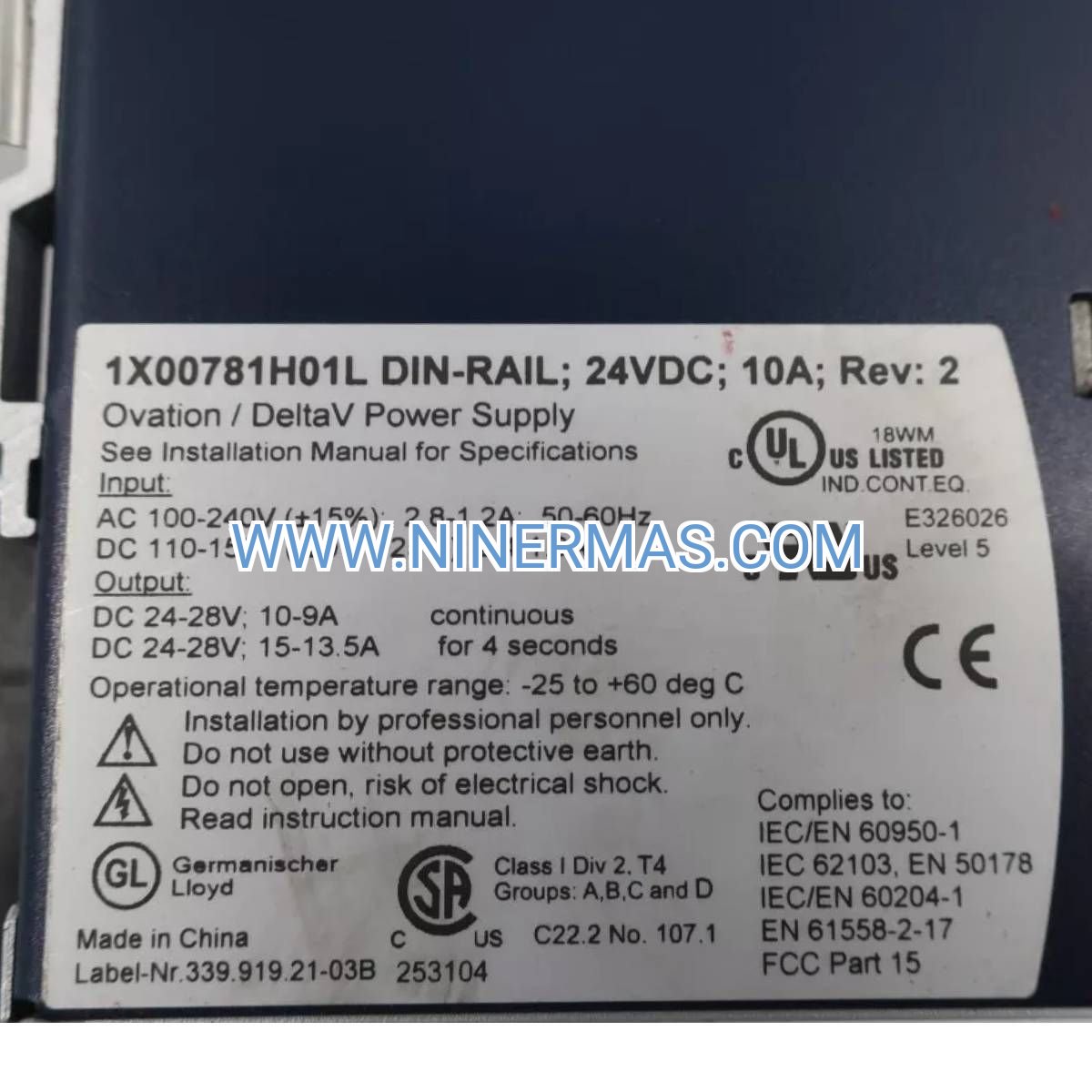

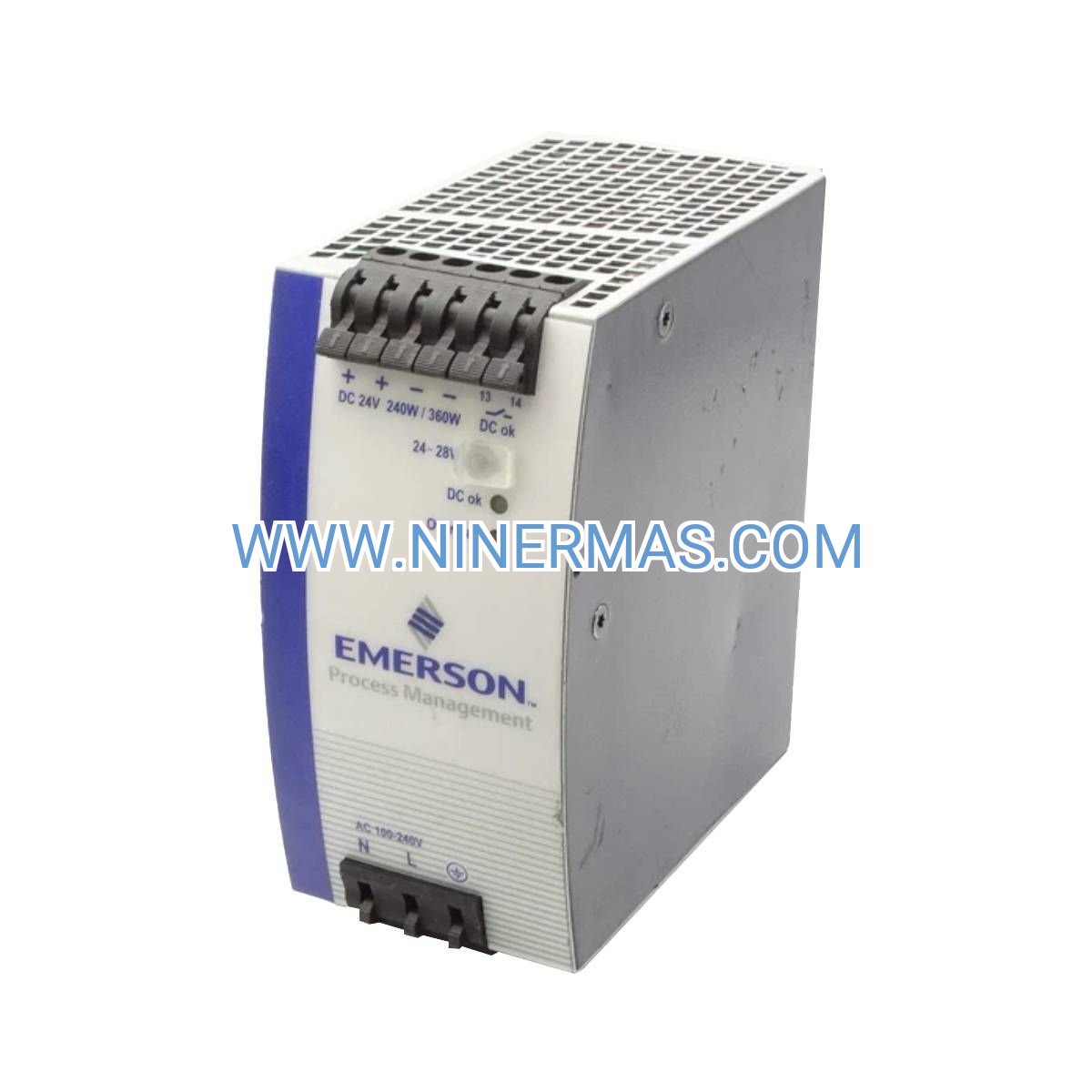

1X00781H01L Power Supply Module (Industrial-Grade DCS Solution)

The Emerson 1X00781H01L is a precision-engineered 24 VDC power supply module designed specifically for Ovation distributed control systems. This industrial-rated component ensures continuous, stable voltage delivery to controllers, I/O assemblies, and communication networks in demanding process environments. Built for facilities where downtime translates to significant operational losses, the 1X00781H01L combines robust electrical design with field-proven reliability across petrochemical, power generation, and advanced manufacturing sectors.

Whether you're maintaining existing Ovation infrastructure or scaling capacity for new process lines, this power module integrates seamlessly into standard DIN-rail cabinets while supporting both standalone and redundant configurations. Its wide operating temperature range and electromagnetic immunity make it suitable for harsh industrial settings where conventional power supplies fail.

Backed by Emerson's global service network and comprehensive technical documentation, the 1X00781H01L represents a critical investment in system uptime and operational continuity.

Core Features & Benefits

→ Regulated 24 VDC Output
Delivers consistent voltage within ±2% tolerance, protecting sensitive microprocessor-based controllers from voltage fluctuations that cause logic errors or unexpected shutdowns. Reduces troubleshooting time by 40% compared to unregulated supplies.

→ High-Current Capacity Design
Supports multi-module racks with aggregate loads up to 10A, eliminating the need for multiple smaller supplies. Simplifies cabinet layout and reduces component count by 30-50% in typical installations.

→ Universal AC Input Compatibility
Accepts 100-240 VAC with automatic voltage sensing, enabling deployment across global facilities without reconfiguration. Reduces spare parts inventory requirements and simplifies international project specifications.

→ Galvanic Isolation Protection
2 kV isolation barrier prevents ground loop interference and shields downstream electronics from transient surges. Extends mean time between failures (MTBF) to >100,000 hours in industrial environments.

→ Hot-Swap Capability
Allows replacement during live operations when deployed in redundant configurations, eliminating scheduled downtime for maintenance. Supports 24/7 continuous process operations without production interruptions.

→ Diagnostic LED Indicators
Real-time visual feedback for AC input, DC output, and fault conditions accelerates troubleshooting. Reduces mean time to repair (MTTR) by providing instant status visibility without test equipment.

Typical Application Scenarios

Refinery Process Control
In crude distillation units and catalytic crackers, the 1X00781H01L powers Ovation controllers managing temperature cascades, pressure loops, and safety interlocks. Voltage stability ensures precise control valve positioning, reducing product quality variance by 15-25% and preventing emergency shutdowns caused by controller resets.

Power Plant Automation
Combined-cycle and coal-fired facilities rely on this module to energize turbine control systems, boiler management networks, and emissions monitoring equipment. Redundant power configurations with the 1X00781H01L achieve 99.97% availability, meeting regulatory uptime requirements while supporting predictive maintenance programs.

Chemical Batch Processing
Pharmaceutical and specialty chemical plants use this supply in recipe-driven batch reactors where precise sequencing is critical. Clean DC power eliminates electromagnetic interference that can corrupt batch data logs or trigger false alarms, improving first-pass yield rates by 8-12%.

Water Treatment Facilities
Municipal and industrial wastewater systems depend on stable power for SCADA networks controlling pumps, aerators, and chemical dosing systems. The module's wide temperature tolerance (-40°C to +70°C) supports outdoor control enclosures in extreme climates without auxiliary cooling.

Manufacturing Execution Systems
Automotive and electronics assembly lines integrate the 1X00781H01L into MES architectures linking PLCs, HMIs, and enterprise databases. Reliable power delivery ensures real-time production tracking and quality traceability required for ISO 9001 and IATF 16949 compliance.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total DC load by summing current requirements of all connected modules (controllers typically draw 0.5-1.5A, I/O cards 0.2-0.8A each). Add 20% safety margin for inrush currents and future expansion. For systems requiring >8A continuous, implement N+1 redundancy using two 1X00781H01L modules with diode-OR coupling. Verify cabinet ambient temperature does not exceed 55°C to maintain full output capacity without derating.

Extended Functions

Redundancy Integration: Supports parallel operation with automatic load sharing when paired with identical modules. Built-in current limiting prevents cascade failures if one supply develops a fault. Compatible with Ovation redundant controller architectures for complete system-level fault tolerance.

Remote Monitoring Capability: Output voltage and current status can be monitored via Ovation system diagnostics when connected through appropriate interface modules. Enables predictive maintenance by tracking power supply aging trends and detecting degradation before failure occurs.

Customization Options: Available with extended temperature ratings (-55°C to +85°C) for extreme environment applications. Conformal coating options provide enhanced protection against corrosive atmospheres in offshore platforms and chemical processing areas.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our certified distribution center. Custom configurations (extended temp, special coatings) require 2-3 weeks. Expedited delivery available for critical outage situations with 24-hour emergency response.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with annual health checks and priority replacement service.

Technical Support: Access to Emerson-certified application engineers for integration assistance, troubleshooting guidance, and system optimization recommendations. Phone and email support available 24/7/365 for critical process environments.

Documentation Package: Each module includes installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD files and 3D models available for download to support cabinet design and layout planning.

Frequently Asked Questions

Q: How does the 1X00781H01L interface with existing Ovation controller racks?
A: The module mounts on standard 35mm DIN rail inside the controller cabinet. Connect AC input to facility power (100-240 VAC), then distribute 24 VDC output to controller backplane and I/O modules via terminal blocks. Wiring follows standard Ovation installation practices detailed in system documentation. No special adapters or interface cards required.

Q: What total system capacity can a single 1X00781H01L power supply support?
A: With 10A continuous output, one module typically powers 1-2 controller processors plus 8-12 I/O modules, depending on specific card types. High-density analog input cards draw more current than discrete I/O. Use Emerson's online power calculator or consult system configuration worksheets to verify your specific rack load stays within the 8A recommended operating range (leaving 20% margin).

Q: Does this power module contribute to energy efficiency improvements in DCS installations?
A: Yes—the >85% efficiency rating means less than 15% of input power converts to waste heat, reducing cooling requirements in control rooms. Compared to older linear supplies (60-70% efficient), switching to the 1X00781H01L can cut power consumption by 200-300W per cabinet, translating to $150-250 annual savings per module in typical industrial electricity rates.

Q: What installation requirements must be met for reliable operation?
A: Ensure adequate ventilation—maintain 50mm clearance above and below the module for convection cooling. Verify cabinet ambient temperature stays below 55°C; install auxiliary fans if necessary. Use appropriately sized circuit breakers (15A recommended) and follow NEC/IEC wiring codes for industrial control panels. Torque terminal screws to 0.5-0.6 Nm to prevent connection failures.

Q: Can the 1X00781H01L be monitored remotely for predictive maintenance purposes?
A: While the module itself doesn't have built-in network connectivity, its DC output voltage and status can be monitored through Ovation system diagnostics when connected via appropriate interface modules. Many facilities also install external DC voltage monitors with alarm outputs to track power supply health and trigger maintenance notifications before failures occur.

Q: Is the 1X00781H01L compatible with legacy Ovation systems installed 10-15 years ago?
A: Yes—Emerson maintains backward compatibility across Ovation generations. The 1X00781H01L directly replaces older power supply models with identical mounting footprint and electrical specifications. This allows phased upgrades without requiring complete system overhauls, protecting your original automation investment while improving reliability with current-generation components.

Ready to Secure Your DCS Power Infrastructure?

Contact our industrial automation specialists today for technical consultation, system compatibility verification, and volume pricing. We provide complete application support from initial specification through commissioning and ongoing maintenance.
