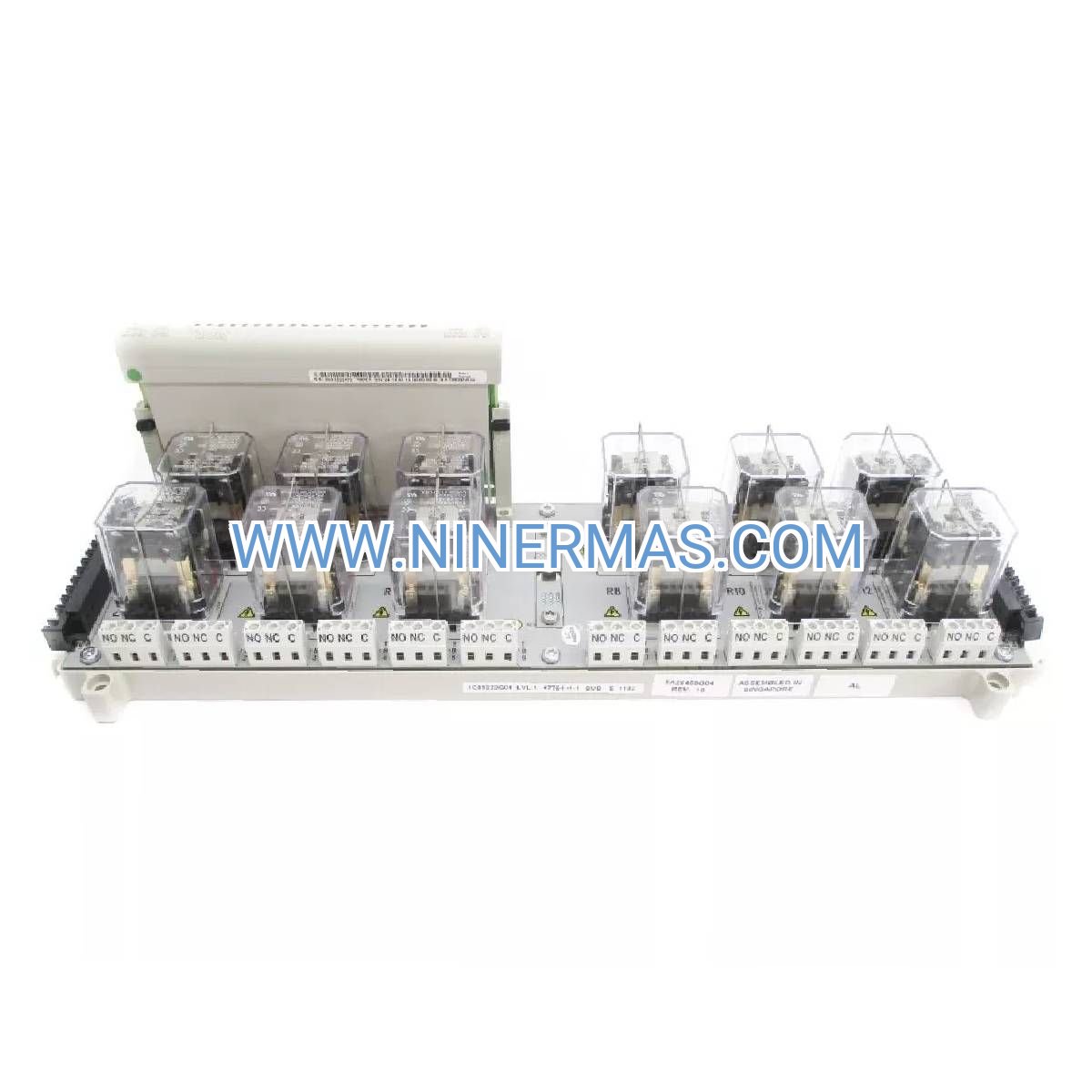

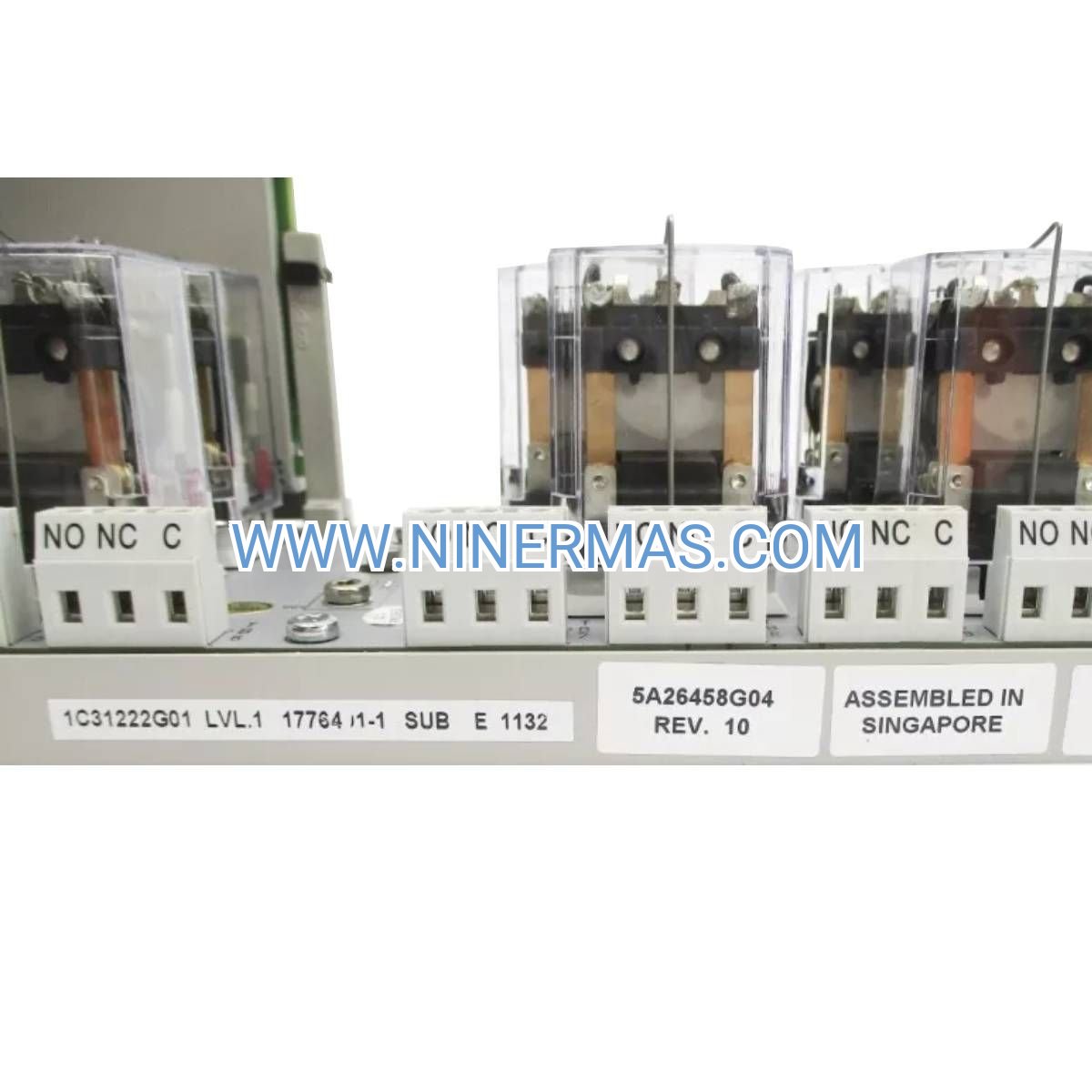

1C31222G01 Ovation Relay Output Module Base (Industrial-Grade Foundation Platform)

The 1C31222G01 serves as the critical mounting infrastructure for Emerson Ovation relay output modules within distributed control architectures. This precision-machined base delivers mechanical stability and electrical continuity for relay-driven actuation signals across process automation environments.

Designed for facilities requiring fail-safe discrete control—refineries, chemical plants, power stations—this base addresses the challenge of maintaining signal integrity while enabling rapid module replacement during scheduled maintenance or emergency repairs. Plant engineers and automation technicians rely on the 1C31222G01 to minimize unplanned downtime in mission-critical control loops.

Key advantages include tool-free module insertion, pre-wired terminal blocks that preserve field connections during swaps, and channel-level isolation that prevents cross-talk between independent control circuits. The result: reduced mean time to repair (MTTR) and enhanced system availability in 24/7 operations.

Core Features & Benefits

→ Hot-Swap Architecture: Replace relay output cards without de-energizing the base or disturbing field wiring—critical for maintaining process continuity during component failures.

→ Galvanic Isolation: Each relay channel operates independently with electrical separation from controller logic, protecting sensitive microprocessors from voltage spikes and ground loops.

→ Universal Compatibility: Accepts all Ovation 1C31xxx-series relay modules, allowing standardized spares inventory across multiple control cabinets.

→ Removable Terminal Blocks: Spring-cage connectors enable quick field wire transfers when upgrading or relocating modules—no wire stripping or re-termination required.

→ Diagnostic LEDs: Per-channel status indicators (when paired with compatible modules) provide instant visual confirmation of relay states during commissioning and troubleshooting.

→ Ruggedized Construction: Conformal-coated PCB and reinforced mounting tabs withstand vibration, temperature cycling, and corrosive atmospheres typical of heavy industrial settings.

Typical Application Scenarios

✓ Pump Sequencing in Water Treatment: Municipal wastewater facilities use relay outputs to stage multiple lift pumps based on sump levels. The 1C31222G01 base ensures reliable start/stop commands even in high-humidity environments where condensation threatens electrical connections.

✓ Emergency Shutdown Systems (ESD): Petrochemical plants implement hard-wired relay logic for safety-instrumented functions per IEC 61511. This base provides the physical layer for fail-safe valve closures and equipment trips that cannot depend solely on software logic.

✓ Conveyor Interlock Networks: Material handling systems in mining and aggregate processing require coordinated motor control across dozens of belt drives. Relay bases distribute start/stop permissives while maintaining isolation between high-current motor circuits and low-voltage PLC outputs.

✓ Boiler Control in Power Generation: Coal-fired and gas-turbine plants use relay outputs to actuate dampers, igniters, and fuel valves. The 1C31222G01's thermal stability ensures consistent operation in control rooms subject to ambient temperatures exceeding 50°C.

✓ Pharmaceutical Batch Processing: Clean-room environments demand relay-based interlocks for ingredient addition, agitator control, and CIP (clean-in-place) valve sequencing. The base's sealed terminal design prevents particulate ingress that could compromise product purity.

Technical Parameters & Selection Guide

Selection Criteria: Verify that your existing Ovation controller supports the relay module you intend to install. Consult Emerson's I/O configuration tool to confirm channel count, contact ratings (typically 2A @ 250VAC for general-purpose relays), and whether normally-open or form-C contacts are required for your application. For hazardous area installations (Class I Div 2, ATEX Zone 2), pair this base with intrinsically-safe barrier modules.

Extended Functions

Modbus Integration: When used with Ovation controllers featuring Modbus TCP gateways, relay states can be monitored remotely via SCADA systems—enabling predictive maintenance based on contact cycle counts.

Redundant Configuration: Deploy dual 1C31222G01 bases in parallel for critical control points; automatic failover logic in the Ovation controller ensures uninterrupted operation if one relay path fails.

Custom Labeling: Terminal blocks accept adhesive or clip-on labels compatible with Brady, Panduit, and Phoenix Contact marking systems—streamlining as-built documentation and reducing commissioning errors.

Delivery & Service

Lead Time: In-stock units ship within 1-2 business days via DHL/FedEx. Custom configurations (e.g., pre-labeled terminal blocks) require 5-7 business days.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended coverage available through Emerson's PlantWeb service agreements.

Technical Support: Access to Emerson-certified application engineers for configuration assistance, wiring diagrams, and troubleshooting guidance. Phone and email support included with purchase.

Documentation: Each base ships with installation manual, terminal wiring diagrams, and compliance certificates (UL, CE, RoHS). CAD models (STEP/IGES) available for panel layout design.

FAQ

Q: Can I use this base with non-Emerson relay modules?
A: No. The 1C31222G01 is engineered exclusively for Ovation 1C31xxx-series cards. Connector pinouts and backplane signaling are proprietary to Emerson's architecture.

Q: What's the maximum switching capacity per relay channel?
A: Contact ratings depend on the installed module, not the base. Typical Ovation relay cards handle 2A @ 250VAC resistive loads. Consult the specific module datasheet for inductive load derating curves.

Q: Does the base require external power, or is it backplane-powered?
A: The base itself is passive; it derives power from the Ovation controller's backplane. Relay coil excitation and field power for switched loads come from the installed module.

Q: How do I verify proper seating after installing a relay module?
A: Listen for an audible click when the module engages the base's edge connector. Then check that retention clips on both sides are fully latched. Power-on diagnostics in the Ovation controller will flag communication errors if the module isn't properly seated.

Q: Is this base suitable for SIL-rated safety applications?
A: The base itself is not SIL-certified. However, when paired with SIL 2-rated Ovation relay modules and configured per IEC 61508 guidelines, it can form part of a safety-instrumented system. Consult Emerson's safety manual for detailed requirements.

Q: Can I mount multiple bases side-by-side on the same DIN rail?
A: Yes. The base's width allows for compact spacing—typically 10-12 bases per meter of rail. Ensure adequate ventilation between modules if ambient temperatures exceed 50°C.

Take the Next Step

Enhance your Ovation DCS reliability with the 1C31222G01 relay output base. Contact our automation specialists today for compatibility verification, volume pricing, or technical consultation on your control system upgrade.
