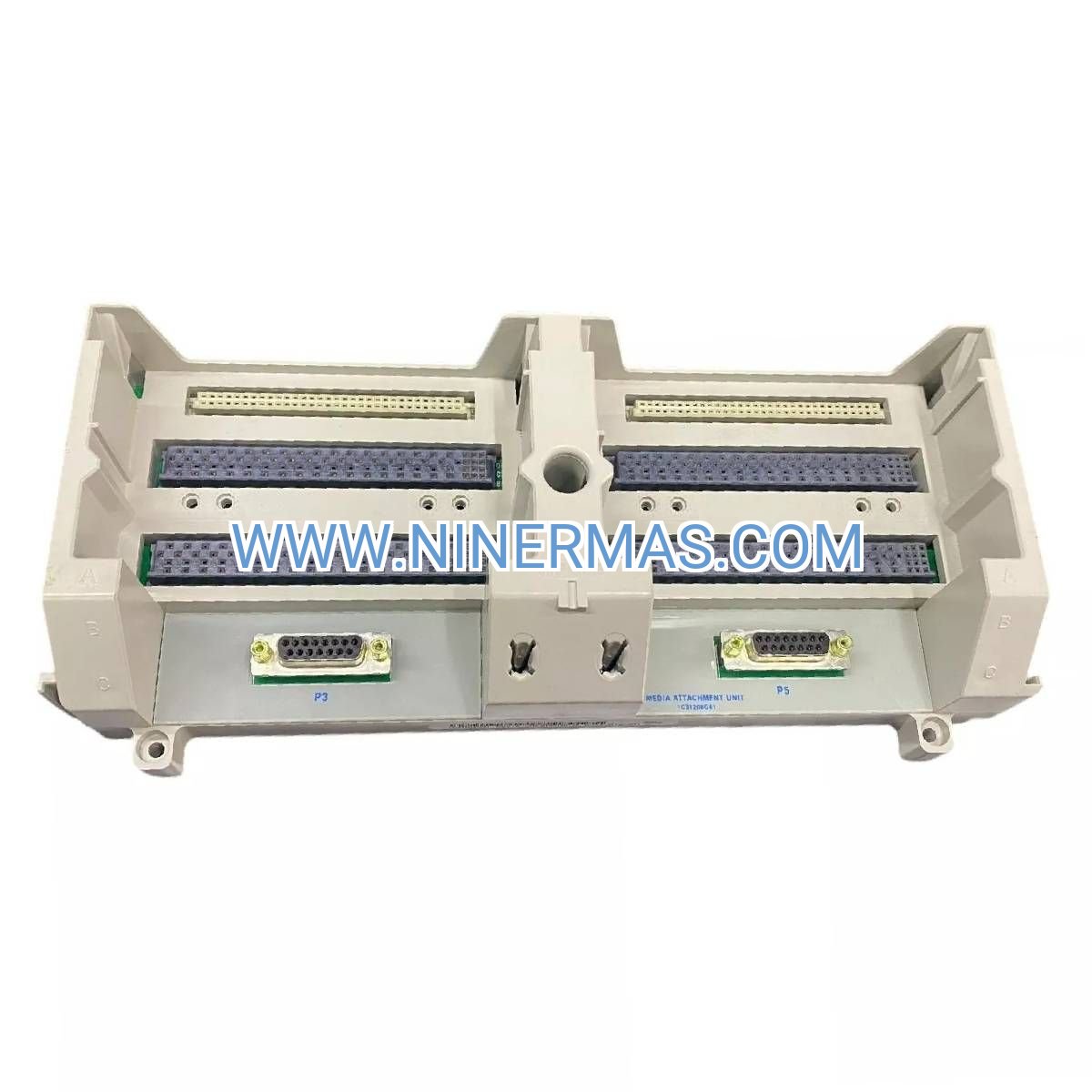

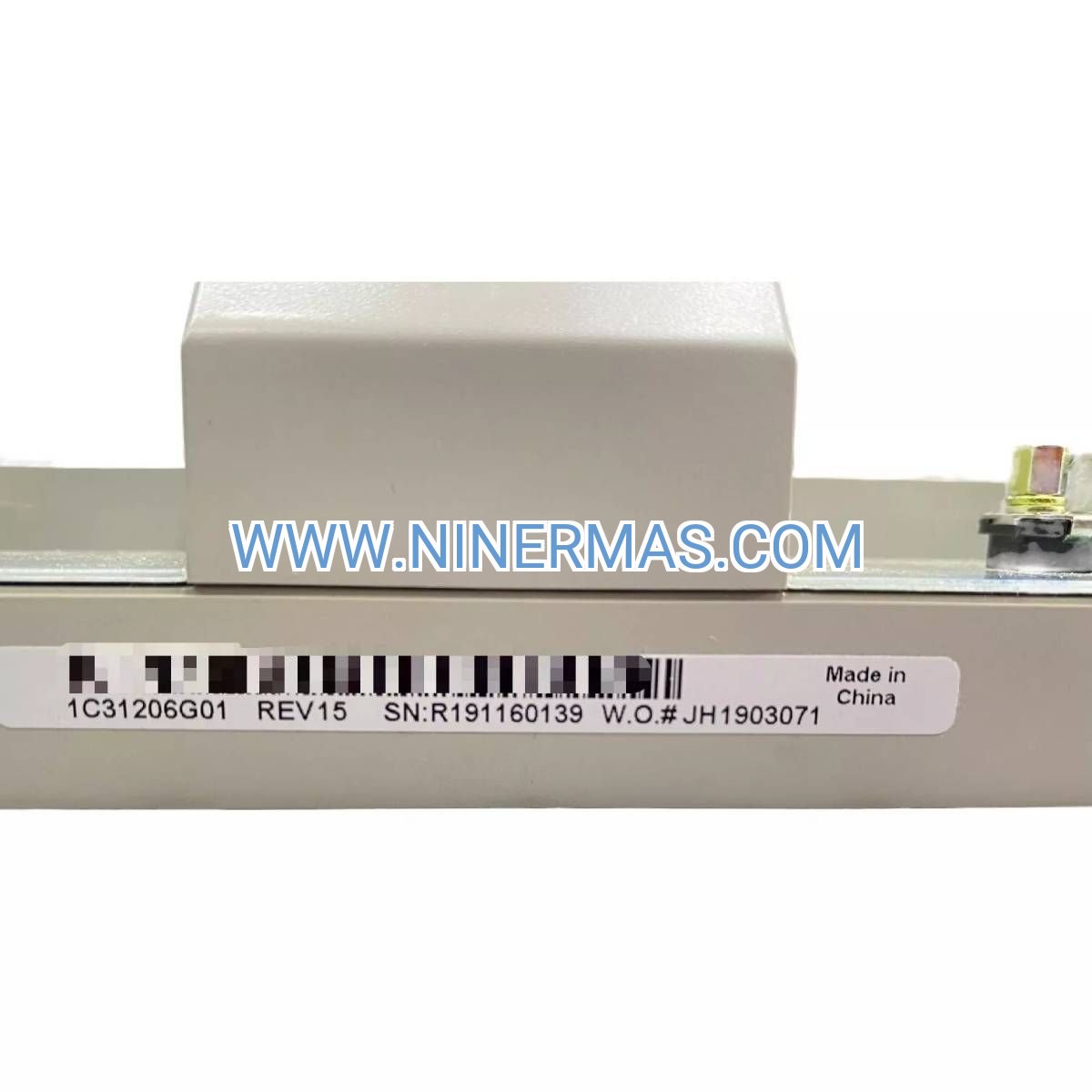

1C31206G01 Ovation Module Base Assembly (Industrial-Grade 4-Slot DCS Rack)

The Emerson 1C31206G01 is a precision-engineered mounting platform designed for Ovation distributed control system (DCS) I/O modules. This 4-slot base assembly combines mechanical stability with integrated backplane connectivity, enabling seamless power distribution and high-speed communication across installed modules. Built for industrial environments where reliability and scalability are non-negotiable.

Process engineers and automation teams rely on this base assembly to expand I/O capacity in power generation, refining, chemical processing, and water treatment facilities. Whether you're retrofitting legacy systems or building new control architectures, the 1C31206G01 provides the foundation for flexible, future-proof automation infrastructure.

Key differentiators include hot-swap capability for zero-downtime maintenance, universal DIN-rail/panel mounting options, and full backward compatibility with earlier Ovation generations—ensuring your investment protects existing assets while supporting growth.

Core Features & Business Value

→ 4-Slot Modular Architecture: Install only the I/O modules you need today, expand incrementally as process demands evolve—eliminates over-provisioning costs while maintaining upgrade flexibility.

→ Integrated Electrical Backplane: Pre-wired power and communication bus reduces installation time by 40% compared to discrete wiring, minimizing human error and commissioning delays.

→ Hot-Swap Module Support: Replace or add I/O cards without system shutdown—critical for continuous process industries where unplanned downtime costs $10,000+ per hour.

→ Dual Mounting Options: DIN-rail clip or direct panel mount adapts to existing cabinet layouts, reducing retrofit complexity and hardware costs.

→ Diagnostic LED Indicators: Real-time backplane health monitoring accelerates troubleshooting—technicians identify power or communication faults in seconds, not hours.

→ Industrial-Grade Construction: Operates reliably in -40°C to +70°C environments with vibration resistance to IEC 60068-2-6 standards—proven in harsh field installations worldwide.

Typical Application Scenarios

Distributed I/O Expansion in Power Plants: Deploy remote I/O racks near turbine control panels or boiler systems, reducing cable runs by up to 300 meters. Eliminates signal degradation and voltage drop issues while cutting copper costs by 60%.

Refinery Process Unit Upgrades: Replace obsolete DCS racks during planned turnarounds without re-engineering control logic. Maintains compatibility with existing Ovation controllers and HMI systems, reducing migration risk and retraining requirements.

Chemical Batch System Scalability: Add I/O capacity as production lines expand—install a 4-slot base today, upgrade to 8 or 12 slots tomorrow using identical mounting footprints and wiring standards.

Water Treatment SCADA Networks: Build cost-effective remote terminal units (RTUs) by combining the base assembly with analog input modules for pH, flow, and level monitoring. Supports redundant network connections for high-availability applications.

Pharmaceutical Clean Room Automation: Compact footprint fits space-constrained environments while meeting FDA 21 CFR Part 11 audit trail requirements through integrated diagnostics and module serialization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 4-slot base for applications requiring 4-16 I/O points per location. For higher density needs (17-32 points), consider the 8-slot variant. Ensure your Ovation controller firmware supports the module types you plan to install—consult Emerson's compatibility matrix for legacy system integrations.

Extended Functions & Integration

Redundant Network Connectivity: Supports dual Ethernet links for fault-tolerant communication with Ovation controllers—automatic failover maintains process visibility during network disruptions.

HART Protocol Pass-Through: When paired with HART-enabled analog I/O modules, the backplane transparently routes digital device data to asset management systems for predictive maintenance.

Mixed I/O Configurations: Combine analog inputs (4-20mA, 0-10V), digital outputs (relay, solid-state), and specialty modules (thermocouple, RTD) in a single rack—eliminates need for separate subsystems.

Cybersecurity Features: Integrated with Ovation's secure-by-design architecture, supporting encrypted communications and role-based access controls per IEC 62443 standards.

Delivery & Service Assurance

✓ Lead Time: Standard configurations ship within 3-5 business days. Custom-configured racks with pre-installed modules available in 7-10 days.

✓ Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for mission-critical applications.

✓ Technical Support: Access to Emerson's global support network—phone, email, and remote diagnostics available 24/7/365. Average response time under 2 hours for critical issues.

✓ Documentation Package: Includes installation manual, wiring diagrams, dimensional drawings (DXF/PDF), and configuration software utilities. Compliance certificates (UL, CE, ATEX) provided upon request.

Frequently Asked Questions

Q: Can I mix different I/O module types in the same 4-slot base assembly?
A: Yes, the backplane supports heterogeneous configurations—combine analog inputs, digital outputs, and specialty modules as needed. Ensure total power consumption stays within the base assembly's 50W budget.

Q: What's the maximum cable distance between the base assembly and Ovation controller?
A: Ethernet-based communication supports up to 100 meters per segment using Cat5e/Cat6 cable. For longer distances, use fiber optic media converters or industrial Ethernet switches with extended range modes.

Q: Does the 1C31206G01 support redundant power supplies?
A: The base assembly accepts power from redundant 24 VDC sources via diode-OR circuitry. Automatic switchover occurs within 20ms if the primary supply fails—no process interruption.

Q: How do I migrate from an older Ovation base assembly to the 1C31206G01?
A: The 1C31206G01 maintains pin-compatible backplane connections with legacy modules. Follow Emerson's migration guide to transfer modules one at a time during a controlled shutdown, or use hot-swap procedures if your system supports it.

Q: What environmental certifications does this base assembly hold for hazardous areas?
A: ATEX Zone 2 (gas) and IECEx certified for installation in non-hazardous and safe areas adjacent to classified zones. For Zone 1/Division 1 applications, use Emerson's intrinsically safe I/O barriers.

Q: Can I monitor base assembly health remotely through the Ovation HMI?
A: Yes, backplane diagnostics (power status, communication errors, module presence) are accessible via Ovation Developer Studio and displayed on operator workstations. Configure alarms for proactive maintenance.

Get Your Ovation System Expansion Started

Ready to scale your DCS infrastructure with proven Emerson technology? Contact our automation specialists for application-specific guidance, compatibility verification, and volume pricing. We'll help you design the optimal I/O architecture for your process requirements.

Request a quote today or reach out with technical questions—our team responds within 4 business hours.
