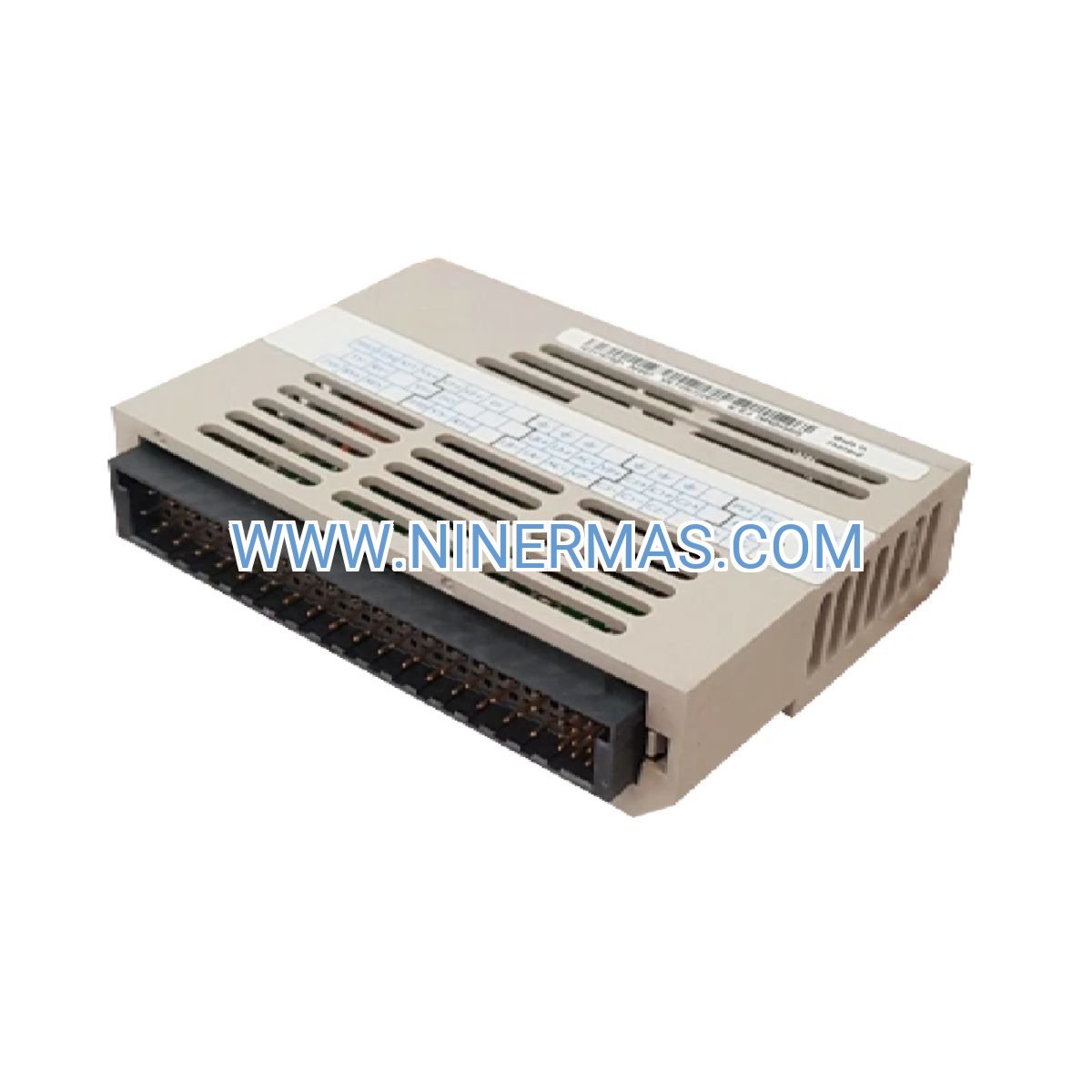

1C31197G01 Ovation Valve Positioner Module (Industrial-Grade Precision Control)

The 1C31197G01 represents Emerson's advanced approach to valve positioning within distributed control architectures. Designed as a personality module for Ovation platforms, this component translates digital control commands into precise mechanical valve movements, enabling operators to maintain tight process parameters across oil & gas, power generation, and chemical manufacturing environments.

Industrial facilities demand positioning accuracy that responds to millisecond-level setpoint changes while withstanding temperature extremes, electrical noise, and mechanical vibration. The 1C31197G01 addresses these challenges through ruggedized circuitry, adaptive feedback algorithms, and field-proven reliability metrics exceeding 100,000 operational hours.

Whether you're upgrading legacy control systems, expanding production capacity, or maintaining critical spares inventory, this module delivers the performance consistency required for 24/7 process operations. Compatible with standard Ovation I/O racks and terminal assemblies, it integrates seamlessly into existing infrastructure without custom engineering.

Core Features & Benefits

→ Adaptive Positioning Algorithms
Maintains ±0.5% accuracy across varying supply pressures and process loads, reducing product quality variance and energy waste in flow-critical applications.

→ Hot-Swap Architecture
Enables module replacement during live operations without process interruption, cutting maintenance windows from hours to minutes and preserving production schedules.

→ Integrated Diagnostics Engine
Continuously monitors signal integrity, calibration drift, and communication health, triggering predictive alerts before failures impact process stability.

→ Extended Temperature Range
Operates reliably from -40°C to +70°C, supporting installations in unheated enclosures, outdoor cabinets, and high-ambient industrial zones.

→ Multi-Certification Compliance
CE, UL, and CSA approvals streamline regulatory documentation for global projects and reduce procurement lead times across international sites.

→ Redundancy-Ready Design
Supports dual-controller configurations with automatic failover, ensuring continuous valve control during planned maintenance or unexpected hardware faults.

Typical Application Scenarios

✓ Upstream Oil & Gas Production
Challenge: Wellhead pressure control requires rapid valve response to prevent flaring and optimize separator efficiency.
Solution: The 1C31197G01's fast-acting feedback loop adjusts choke valves in real-time, maintaining optimal backpressure and maximizing hydrocarbon recovery rates.

✓ Combined-Cycle Power Plants
Challenge: Steam turbine efficiency depends on precise feedwater flow regulation during load-following operations.
Solution: Millisecond-level positioning accuracy enables smooth load transitions, reducing thermal stress on turbine components and improving heat rate performance.

✓ Petrochemical Reactor Control
Challenge: Exothermic reactions demand exact coolant flow to prevent runaway conditions and maintain product specifications.
Solution: Tight valve control minimizes temperature excursions, reducing batch rejection rates and enhancing operator safety margins.

✓ Municipal Water Treatment
Challenge: Chemical dosing systems require proportional valve control to meet discharge permit limits.
Solution: Linear positioning response ensures accurate coagulant and disinfectant addition, preventing regulatory violations and chemical waste.

✓ Pulp Digester Operations
Challenge: Cooking liquor flow must track production rate changes while maintaining chip-to-liquor ratios.
Solution: Coordinated valve positioning across multiple streams preserves pulp quality consistency and reduces chemical consumption variability.

Technical Parameters & Selection Guide

Selection Criteria: Verify compatibility with your Ovation controller generation and confirm that existing base assemblies (1C31205G01) and terminal blocks (5A26137G03) are available. For redundant systems, order modules in matched pairs to ensure firmware consistency. Consult actuator datasheets to confirm signal range compatibility (4-20mA or 0-10VDC).

Extended Functions

Remote Calibration Capability: Technicians can perform zero/span adjustments and stroke tests from the Ovation operator interface, eliminating field trips for routine tuning and reducing commissioning time by up to 40%.

Valve Signature Diagnostics: The module captures position-versus-time profiles during stroke cycles, enabling predictive maintenance teams to detect packing wear, actuator air leaks, and positioner mechanical degradation before failures occur.

Custom Characterization: Non-linear valve flow characteristics can be compensated through configurable gain curves, improving control loop performance for quick-opening, equal-percentage, and butterfly valve applications.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours to North America, Europe, and Asia-Pacific destinations. Custom configurations or bulk orders typically require 5-7 business days.

Warranty Coverage: All modules include a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available for critical spares programs.

Technical Support: Our engineering team provides pre-sales application assistance, installation guidance, and post-delivery troubleshooting via phone, email, and remote desktop sessions.

Documentation Package: Each shipment includes product datasheet, installation manual, calibration procedures, and dimensional drawings. Firmware release notes and compatibility matrices available upon request.

Frequently Asked Questions

Q: How does the 1C31197G01 interface with existing Ovation controller racks?
A: The module inserts directly into any available I/O slot within Ovation racks, drawing power and communication from the backplane. No external wiring or configuration tools are required beyond standard Ovation Developer Studio software.

Q: What valve actuator types are compatible with this positioner module?
A: It supports pneumatic spring-return and double-acting actuators with 4-20mA or 0-10VDC control signals. Verify actuator input impedance matches module output specifications (typically 250-1000 ohms for current loops).

Q: Can this module reduce energy consumption in throttling valve applications?
A: Yes—precise positioning minimizes valve hunting and overshooting, which reduces compressed air consumption in pneumatic actuators by 15-25% compared to less accurate positioners.

Q: What installation clearances are required for proper cooling and maintenance access?
A: Maintain 50mm (2 inches) above and below the module for convection cooling. Allow 150mm (6 inches) in front of the rack for module extraction and connector access during hot-swap operations.

Q: Does the module support remote monitoring through plant-wide SCADA systems?
A: Diagnostic data and position feedback are accessible via Ovation's native OPC-DA/UA servers, enabling integration with third-party historians, HMI platforms, and condition monitoring applications.

Q: How do I verify firmware compatibility with older Ovation controller generations?
A: Check the Ovation system software version against Emerson's compatibility matrix (document reference: SE 30M01A19-01). Modules shipped after 2018 support all Ovation 3.x and later releases.

Ready to Optimize Your Valve Control Performance?

Contact our industrial automation specialists to confirm compatibility with your Ovation system configuration, request volume pricing for multi-site projects, or arrange expedited shipping for emergency spares. Our team is available to support your process control objectives with genuine OEM components and expert technical guidance.
