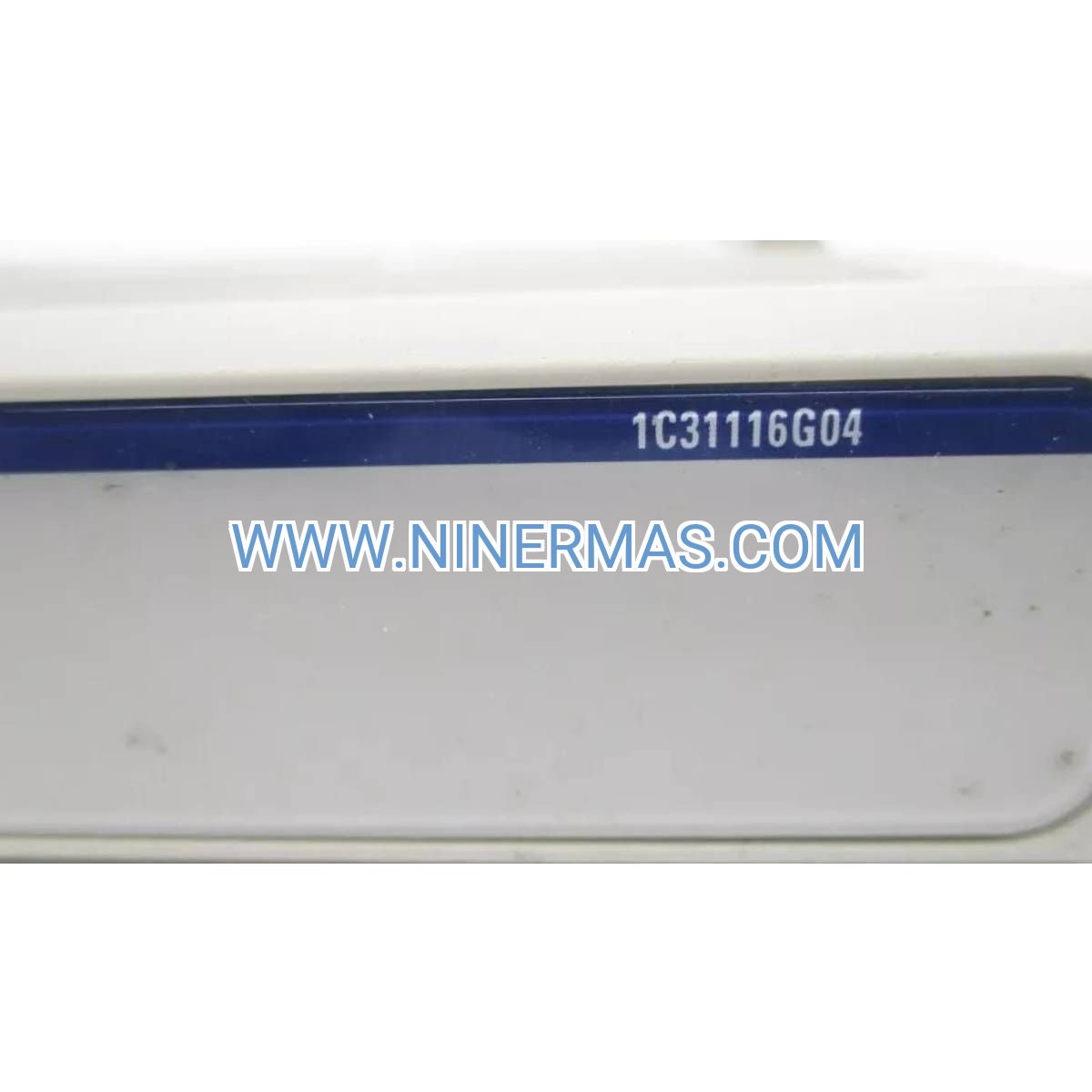

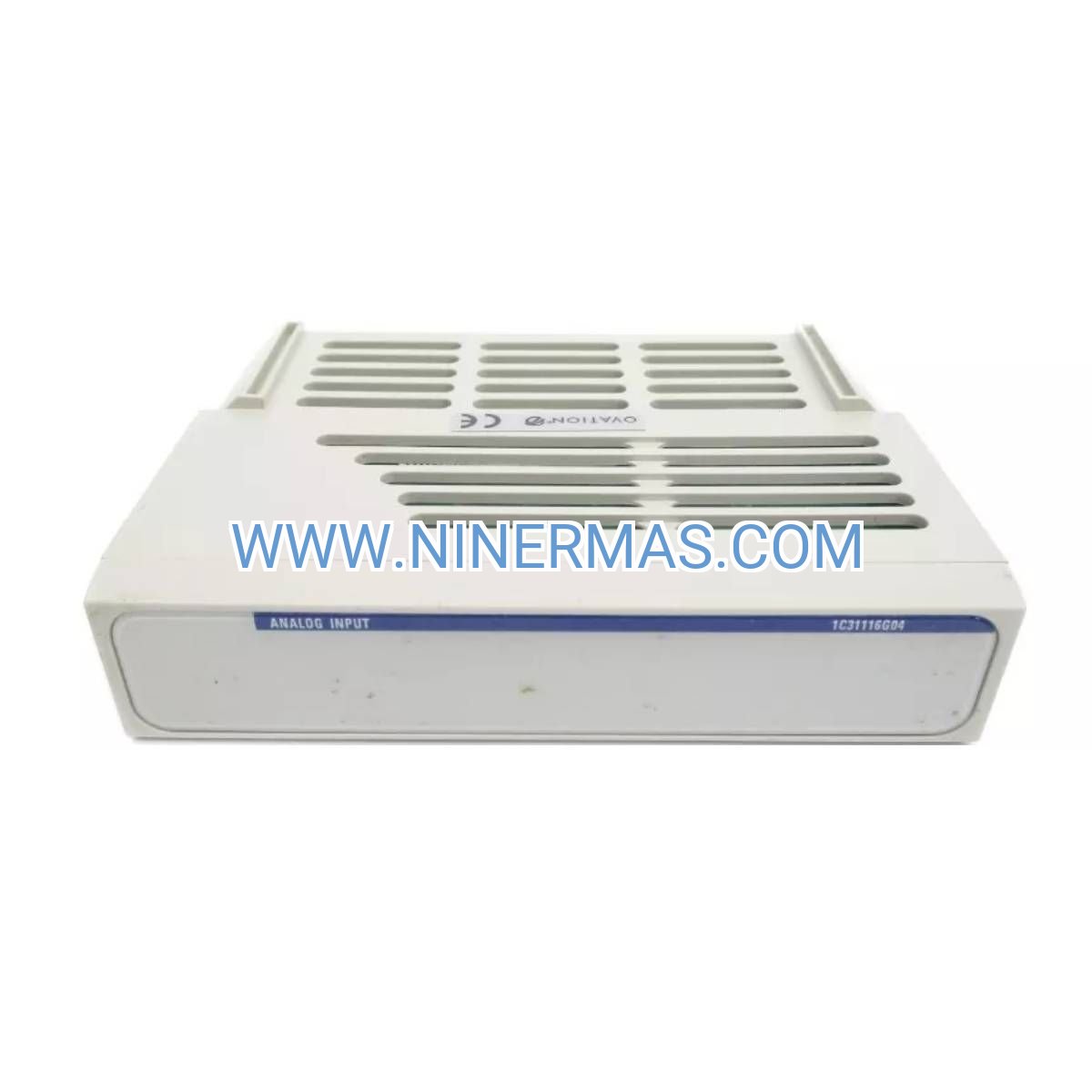

1C31116G04 Analog Input Module (Industrial-Grade Process Control)

The 1C31116G04 represents a critical interface between field instrumentation and your Emerson Ovation distributed control system. This 8-channel analog input personality module converts 4-20 mA current signals into high-resolution digital data while simultaneously enabling HART protocol communication for advanced device diagnostics and remote configuration capabilities.

Designed for mission-critical industrial environments, this module addresses the fundamental challenge of accurate signal acquisition in process automation: maintaining measurement integrity across temperature extremes, electrical noise, and long cable runs. Whether you're monitoring reactor temperatures, flow rates, or pressure transmitters, the 1C31116G04 delivers the precision and reliability that modern process control demands.

With FM, CSA, ATEX, and IECEx certifications, this module integrates seamlessly into hazardous area installations while providing the diagnostic intelligence needed for predictive maintenance programs and regulatory compliance documentation.

Core Features & Technical Advantages

→ 8 Differential Current Input Channels: Each channel independently processes 4-20 mA signals with 16-bit ADC resolution (0.0015% of span), enabling detection of subtle process variations critical for quality control and early fault detection.

→ Integrated HART Communication: Simultaneous analog and digital communication on each channel extracts device health metrics, calibration data, and secondary process variables without interrupting control loops or requiring additional wiring infrastructure.

→ Superior Measurement Accuracy: ±0.1% of reading ±0.05% of span ensures regulatory compliance for custody transfer, emissions monitoring, and pharmaceutical batch documentation while reducing calibration frequency requirements.

→ Robust Electrical Isolation: 250VAC channel-to-channel and 1500VAC channel-to-logic isolation protects against ground loops, lightning surges, and cross-channel interference in electrically noisy industrial environments.

→ Configurable Signal Processing: Adjustable filtering (0.1 to 10 seconds) and 100 ms update rates balance noise rejection with control responsiveness, optimizing performance for applications ranging from fast batch reactions to slow tank level monitoring.

→ Hazardous Area Certification: FM, CSA, ATEX, and IECEx approvals enable deployment in Zone 0/Division 1 locations when paired with appropriate intrinsic safety barriers, expanding installation flexibility across refineries, chemical plants, and offshore platforms.

Application Scenarios & Industry Solutions

Chemical Manufacturing & Batch Processing:

Monitor reactor temperature, pressure, and pH from smart transmitters during polymerization, crystallization, and distillation operations. HART diagnostics identify sensor drift before product quality deviates from specifications, while high-resolution measurement supports statistical process control (SPC) programs. Typical installations include jacketed reactors, continuous stirred-tank reactors (CSTR), and multi-stage separation columns.

Oil & Gas Production Facilities:

Acquire flow, pressure, and level signals from separator vessels, storage tanks, and pipeline metering stations. The module's hazardous area certifications support installations in explosive atmospheres, while HART asset management tracks calibration status across hundreds of field devices to maintain custody transfer accuracy and regulatory compliance.

Power Generation & Utilities:

Interface with boiler feedwater flow meters, steam pressure transmitters, and flue gas analyzers in coal, gas, and biomass power plants. Sub-0.1% accuracy enables precise combustion optimization for emissions control, while HART trending identifies fouled sensors before they trigger false trips that cost thousands in lost generation.

Pharmaceutical & Biotech Manufacturing:

Connect to sterilizable transmitters monitoring dissolved oxygen, conductivity, and bioburden in fermentation vessels and clean-in-place (CIP) systems. Built-in diagnostics generate audit trails for FDA 21 CFR Part 11 compliance, while 16-bit resolution captures critical process parameters (CPP) required for process validation and batch release documentation.

Water & Wastewater Treatment:

Read turbidity meters, chlorine analyzers, and ultrasonic level sensors in clarifiers, digesters, and distribution systems. Wide ambient temperature range (-40°C to +70°C) supports outdoor installations without climate-controlled enclosures, reducing capital costs while maintaining measurement reliability through seasonal temperature swings.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1C31116G04 when your application requires HART-enabled 4-20 mA input acquisition with high accuracy and hazardous area certification. For voltage input applications, consider the 1C31125G series. For higher channel density, evaluate the 1C31132G 16-channel variant. Ensure your Ovation I/O chassis has available slots and sufficient backplane power capacity (verify 3.5W per module).

Extended Functionality & System Integration

IIoT & Predictive Maintenance: HART variables feed into Ovation's AMS Suite for equipment health monitoring, enabling condition-based maintenance strategies that reduce unplanned downtime by 25-40% compared to time-based schedules.

Advanced Diagnostics: Built-in loop integrity checks detect open circuits, shorts, and out-of-range conditions, automatically driving outputs to configured safe states per ISA-84/IEC 61511 safety instrumented system requirements.

Remote Configuration: Ovation's Device Descriptor (DD) library enables complete transmitter setup from the control room—adjust ranges, damping, and alarm setpoints without field visits, reducing commissioning time by 30% and eliminating confined space entry risks.

Cybersecurity Compliance: Module firmware supports Ovation's defense-in-depth security architecture, meeting NERC CIP requirements for critical infrastructure protection in power generation and transmission facilities.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during high-demand periods.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions.

Technical Support: Access to Emerson-certified application engineers for configuration assistance, troubleshooting, and system integration guidance via email and phone during business hours.

Documentation Package: Installation manual, HART Device Descriptor files, dimensional drawings, and certification documents included with shipment. Ovation configuration examples and wiring diagrams available upon request.

Frequently Asked Questions

How does the 1C31116G04 connect to existing Ovation DCS infrastructure?

The module installs in any available slot within an Ovation I/O chassis (1C31222G01 or compatible). Field wiring terminates on corresponding I/O termination panels using standard 4-20 mA two-wire connections. Configuration occurs through Ovation Developer Studio software—no special programming required.

What is the maximum cable length between transmitters and the input module?

Standard 4-20 mA loops support up to 1000 meters (3280 feet) with 18 AWG shielded twisted-pair cable, assuming 24VDC loop power and typical transmitter voltage drop. HART communication remains functional across this distance, though update rates may decrease slightly beyond 500 meters.

Can this module reduce energy consumption in my control system?

At 3.5W per module versus legacy systems drawing 8-12W, the 1C31116G04 cuts I/O power consumption by 60-70%. In large installations with 200+ I/O modules, this translates to 1-2 kW reduction in continuous power draw, lowering cooling requirements and operating costs over the system's 15-20 year lifespan.

What installation requirements apply for hazardous area deployments?

The module itself mounts in a safe area control room or equipment shelter. For Zone 0/Division 1 field device connections, install certified intrinsic safety barriers (Emerson 1C31197G01 or equivalent) between the module and field transmitters. Consult your local authority having jurisdiction (AHJ) for specific installation codes.

Does the module support remote monitoring and diagnostics?

Yes—HART data integrates with Ovation's web-based HMI and mobile operator interfaces, enabling real-time monitoring of device health, calibration dates, and process trends from any network-connected device. Alarm notifications can trigger email or SMS alerts for critical diagnostic conditions.

How do I verify compatibility with my current Ovation system version?

The 1C31116G04 requires Ovation system software version 3.3.1 or later. Check your current version in Developer Studio under Help → About. Modules are backward-compatible with older chassis hardware but may require firmware updates for full HART functionality—contact technical support for compatibility verification.

Take the Next Step

Ready to enhance your process control accuracy and diagnostic capabilities? Contact our technical sales team for application-specific configuration guidance, volume pricing, or to request a detailed integration proposal for your Ovation DCS expansion project.
