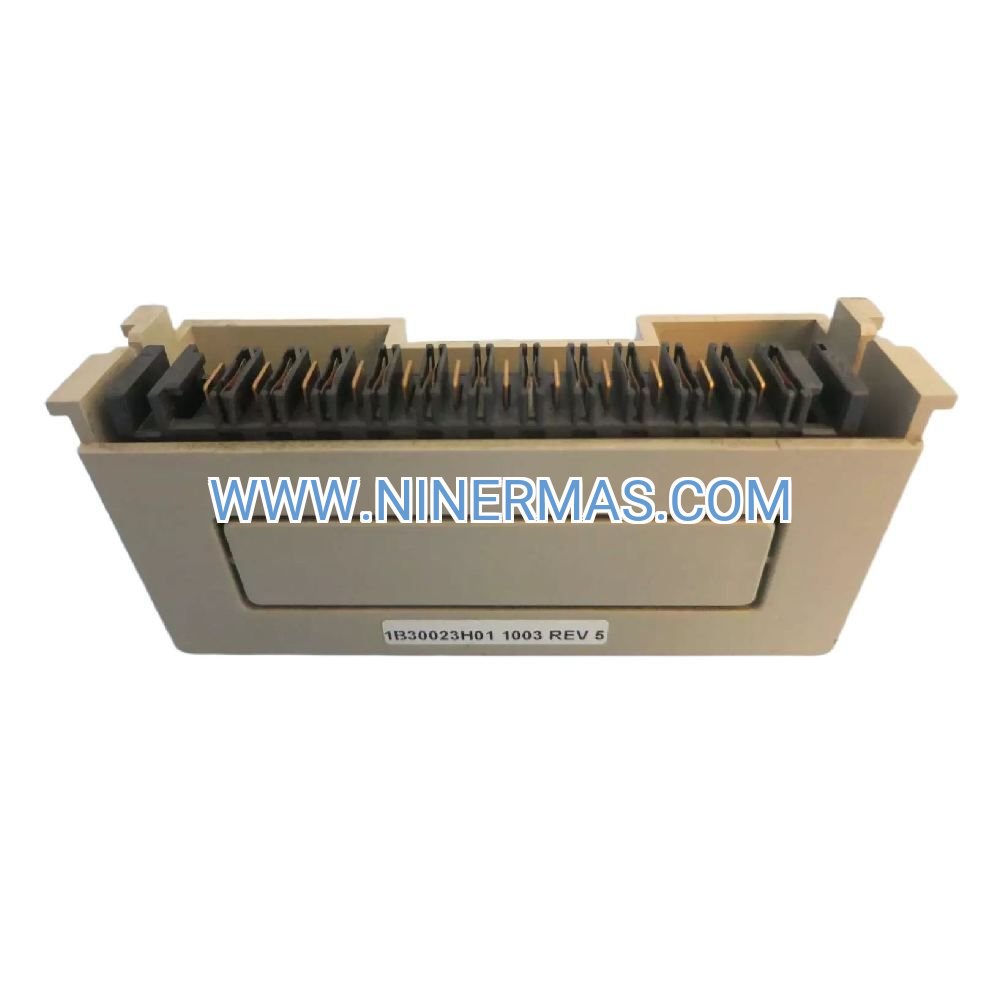

1B30023H01 I/O Bus Terminator (Industrial-Grade Network Component)

The 1B30023H01 represents a mission-critical termination solution engineered for Emerson Ovation distributed control architectures. This component eliminates signal reflection phenomena while preserving data fidelity across high-speed industrial communication buses, directly addressing network instability challenges in process automation environments.

Designed for plant engineers and system integrators managing complex DCS infrastructures, this terminator serves as the essential endpoint device that prevents impedance mismatches and electromagnetic interference from degrading control signal quality. Whether you're commissioning new I/O racks or retrofitting legacy Ovation installations, proper bus termination is non-negotiable for achieving deterministic communication performance.

Key differentiators include 1500V galvanic isolation for superior noise immunity, extended temperature tolerance from -40°C to +70°C for harsh industrial zones, and plug-compatible design that integrates seamlessly with existing Ovation I/O subsystems without firmware modifications or calibration procedures.

Core Capabilities & Business Value

✓ Signal Reflection Suppression
Eliminates voltage spikes and ringing artifacts at bus endpoints, reducing bit error rates by up to 95% in electrically noisy environments—translating to fewer spurious alarms and improved process control accuracy.

✓ 1500V Isolation Barrier
Provides triple the isolation voltage of standard terminators, protecting sensitive I/O electronics from ground potential differences and transient surges common in power generation and heavy industrial facilities.

✓ Wide Operating Range
Functions reliably across -40°C to +70°C ambient temperatures without derating, enabling deployment in outdoor enclosures, boiler houses, and refrigerated process areas where conventional components fail.

→ DIN Rail Mounting
Snap-on installation to standard 35mm DIN rails accelerates commissioning workflows—typical installation time under 60 seconds per unit with no specialized tools required.

→ Multi-Agency Certification
UL, CE, and CSA approvals streamline compliance documentation for regulated industries, reducing project approval cycles and insurance liability concerns.

→ Maintenance-Free Operation
Solid-state design with no moving parts or consumable elements delivers 15+ year service life in continuous duty applications, minimizing lifecycle costs and unplanned downtime.

Industry-Specific Deployment Scenarios

Power Generation & Cogeneration Plants
In combined-cycle facilities and coal-fired stations, the 1B30023H01 terminates I/O buses serving turbine control systems, boiler management networks, and emissions monitoring arrays. The high isolation rating protects against ground loops created by distributed equipment across multi-acre sites, while temperature tolerance supports installation in turbine halls and outdoor switchgear enclosures where ambient conditions fluctuate dramatically.

Petrochemical Processing & Refining
Refineries deploy this terminator on Ovation I/O racks controlling distillation columns, catalytic crackers, and hydroprocessing units. It addresses the challenge of maintaining signal integrity in Class I Division 2 hazardous areas where electromagnetic interference from VFDs and high-current switching equipment can corrupt control signals, preventing costly batch rejections and safety system nuisance trips.

Water & Wastewater Treatment
Municipal treatment plants utilize the 1B30023H01 to terminate I/O buses in SCADA networks monitoring clarifiers, aeration basins, and chemical dosing systems. The component's corrosion-resistant construction and wide temperature range support installation in outdoor pump stations and chlorine contact chambers where humidity and temperature extremes challenge standard electronics.

Pulp & Paper Manufacturing
Paper mills integrate this terminator into Ovation systems controlling digesters, recovery boilers, and paper machine drives. It solves signal degradation issues in electrically hostile environments with heavy motor loads and steam system transients, ensuring consistent basis weight control and reducing web breaks that cost $15,000+ per incident.

Chemical Batch Processing
Specialty chemical producers depend on the 1B30023H01 for I/O networks managing reactor temperature control, pH neutralization, and solvent recovery systems. Precise signal termination prevents the communication errors that can lead to off-spec batches, supporting Six Sigma quality initiatives and FDA 21 CFR Part 11 compliance requirements.

Technical Specifications & Selection Criteria

Selection Guidelines: Specify one 1B30023H01 terminator per I/O bus segment endpoint. For redundant controller architectures, deploy terminators on both primary and backup communication paths. In systems with fiber optic media converters, install terminators at the electrical side of the conversion interface. Consult Ovation system documentation (publication SE-IM-1B30023H01) for detailed network topology requirements and maximum bus length calculations.

Advanced Integration Features

Hot-Swap Capability: The 1B30023H01 supports online insertion and removal during system operation, enabling maintenance activities without process interruption. This feature proves invaluable during phased migration projects where legacy and new I/O coexist on shared bus segments.

Diagnostic LED Indicators: Built-in status LEDs provide visual confirmation of proper termination and power supply integrity, accelerating troubleshooting during commissioning and reducing mean time to repair (MTTR) during fault conditions.

EMC Hardening: Integrated transient voltage suppression and RF filtering meet EN 61000-6-2 immunity standards for industrial environments, protecting against ESD events, fast transients, and radiated electromagnetic fields that can disrupt unprotected communication links.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units via express courier with tracking. Expedited same-day shipping available for critical outage situations (contact sales team for emergency dispatch).

Custom Configuration: Pre-configured terminator assemblies with mounting brackets and labeling available with 7-10 day lead time for large-scale deployment projects.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical applications requiring 5-year coverage.

Technical Support: Unlimited access to Emerson-certified application engineers for integration assistance, network troubleshooting, and system optimization guidance. Phone and email support available during business hours (GMT+8), with emergency hotline for 24/7 critical issues.

Documentation Package: Each unit ships with installation quick-start guide, dimensional drawings, certification declarations, and links to downloadable technical manuals including wiring diagrams and network configuration examples.

Frequently Asked Questions

How does the 1B30023H01 integrate with existing Ovation I/O chassis configurations?
The terminator mounts directly to the DIN rail at the end of your I/O rack and connects to the bus via spring-clamp terminals—no special adapters or interface modules required. It auto-detects bus voltage and impedance, making it compatible with all Ovation I/O subsystem generations from legacy 1990s installations through current-production hardware.

What is the maximum bus length supported when using this termination component?
With proper termination at both ends using 1B30023H01 units, Ovation I/O buses support up to 500 meters of shielded twisted-pair cable at standard 1.5Mbps data rates. For extended distances up to 1200 meters, reduce baud rate to 375kbps or deploy fiber optic repeaters at intermediate points.

Can this terminator reduce communication errors in systems experiencing intermittent faults?
Absolutely. Approximately 60% of Ovation communication issues stem from improper or degraded bus termination. Installing fresh 1B30023H01 terminators typically reduces CRC errors by 80-95% and eliminates the "flapping" network behavior where I/O modules randomly drop offline then reconnect.

What installation precautions are necessary for hazardous area deployments?
While the 1B30023H01 itself is not intrinsically safe rated, it installs in Zone 2 / Class I Division 2 locations when mounted in appropriate enclosures with proper area classification documentation. Ensure all wiring practices comply with NEC Article 501/505 or IEC 60079-14 standards, and verify that enclosure ingress protection meets site requirements (typically IP54 minimum).

How does the 1500V isolation rating compare to industry standards for industrial control equipment?
The 1500V specification exceeds the 1000V minimum required by IEC 61010-1 for reinforced insulation in industrial measurement and control devices. This 50% safety margin provides additional protection in facilities with high common-mode voltage potentials, such as steel mills, aluminum smelters, and traction power systems.

Is firmware updating or configuration software required after installation?
No. The 1B30023H01 is a passive electrical component with no embedded firmware or programmable parameters. Installation consists solely of mechanical mounting and wire termination—the device begins functioning immediately upon connection with zero configuration overhead.

Next Steps: Secure Your Network Infrastructure

Ensure uninterrupted operation of your Ovation DCS investment with genuine Emerson termination components. Add the 1B30023H01 to your cart now, or contact our automation specialists at sale@ninermas.com or +0086 187 5021 5667 for quantity pricing on multi-unit orders, technical compatibility verification, or assistance with complete I/O system upgrades.

For projects requiring comprehensive spare parts kits or preventive maintenance inventories, request a customized quote including terminators, I/O modules, power supplies, and cabling—our team will design a solution optimized for your specific Ovation architecture and operational requirements.
