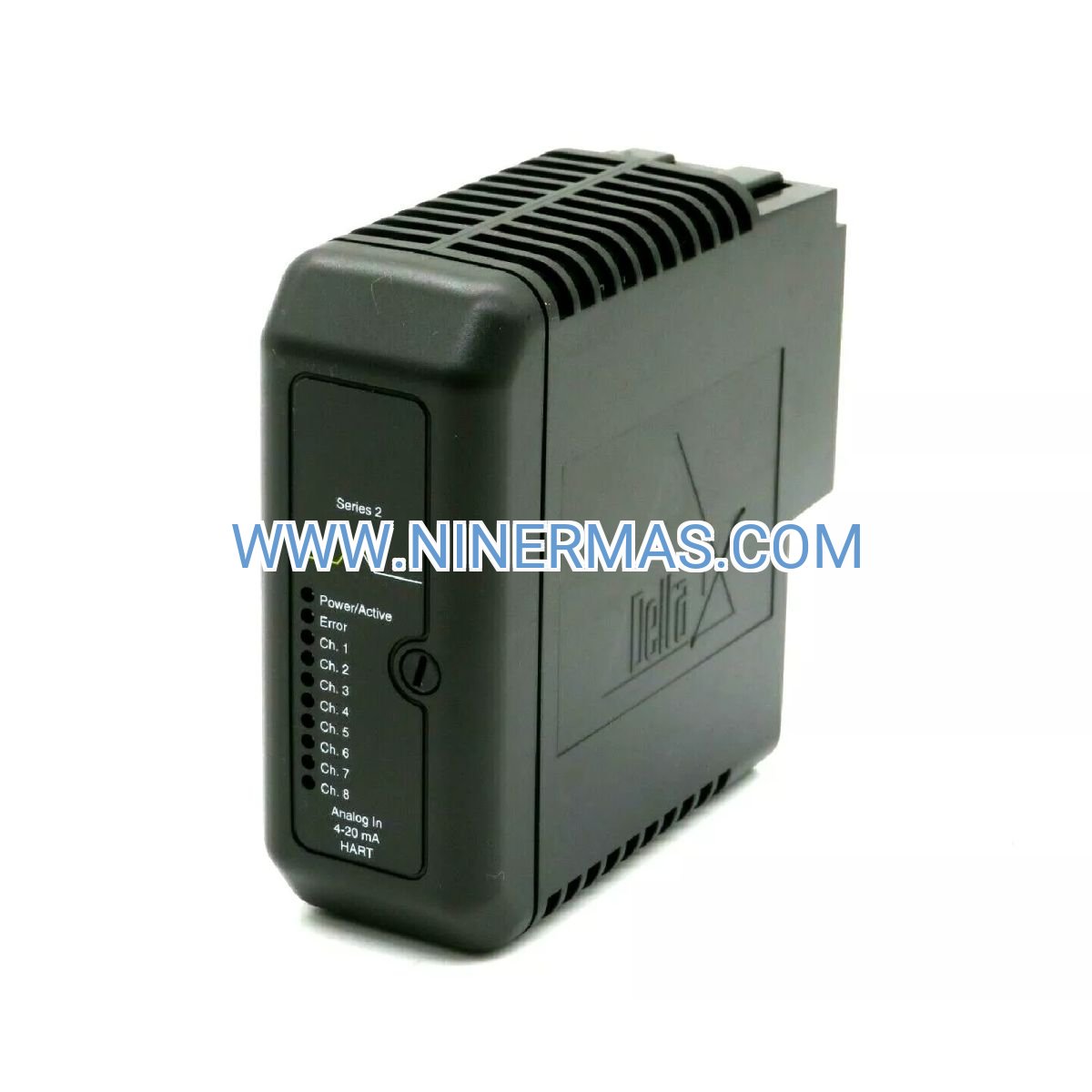

12P2532X092 Analog Input CHARM (Industrial-Grade Signal Processing Module)

The 12P2532X092 represents a field-proven solution for industrial process control, delivering precision analog signal acquisition through HART-enabled 4-20 mA channels. Engineered for DeltaV S-Series distributed control architectures, this CHARM (Characterization Module) transforms raw field signals into actionable process data while maintaining continuous HART digital communication for advanced diagnostics and asset management.

Designed for engineers managing complex process environments—from chemical reactors to power generation facilities—this module addresses the critical challenge of reliable signal integrity in electrically noisy industrial settings. Its ruggedized construction and intelligent signal conditioning ensure measurement accuracy even under extreme temperature fluctuations and electromagnetic interference.

Key differentiators include hot-swappable architecture for zero-downtime maintenance, automatic configuration recognition within DeltaV control strategies, and dual-layer signal isolation that protects both field devices and control systems from ground loops and transient voltage spikes.

Core Capabilities & Business Value

→ HART Protocol Integration: Simultaneous analog measurement and digital communication enable remote device configuration, calibration verification, and predictive maintenance alerts—reducing field service trips by up to 40% while maintaining uninterrupted process control.

→ Hot-Swap Serviceability: Field-replaceable design allows module exchange during live operation without process shutdown or controller reboot, translating to measurable uptime improvements in continuous manufacturing environments where every minute of downtime costs thousands in lost production.

→ Extended Temperature Range (-40°C to +85°C): Operates reliably in outdoor enclosures, furnace-adjacent installations, and arctic processing facilities without auxiliary cooling or heating systems, lowering total cost of ownership through simplified installation requirements.

✓ Precision Signal Conditioning: Advanced filtering algorithms reject common-mode noise and power line interference, delivering ±0.1% accuracy across the full 4-20 mA span—critical for custody transfer applications and regulatory compliance in pharmaceutical manufacturing.

✓ Plug-and-Play DeltaV Integration: Auto-discovery and configuration within DeltaV Explorer eliminate manual parameter entry, cutting commissioning time from hours to minutes per I/O point and reducing human error during system expansion projects.

✓ Galvanic Isolation (Channel-to-Channel & Channel-to-Bus): 1500V isolation barriers prevent fault propagation between field circuits and protect expensive control hardware from field wiring faults, lightning strikes, and welding current backfeed.

Industry Applications & Problem-Solving

Chemical & Petrochemical Processing:
Monitor reactor vessel temperatures, distillation column pressures, and flow control loops with HART-enabled smart transmitters. The module's intrinsic safety barrier compatibility supports hazardous area installations (Class I Div 2) without additional isolators, simplifying panel design in explosive atmospheres.

Oil & Gas Production:
Interface with wellhead pressure transmitters, separator level sensors, and pipeline flow meters for SCADA integration. HART diagnostics provide early warning of sensor drift or process anomalies, preventing costly product quality excursions and environmental incidents.

Power Generation & Utilities:
Integrate boiler drum level controls, turbine vibration monitors, and emissions analyzers into centralized DeltaV control rooms. The module's high common-mode rejection handles ground potential differences across large plant sites spanning multiple substations.

Water & Wastewater Treatment:
Process pH, conductivity, dissolved oxygen, and turbidity measurements from municipal treatment plants. Remote HART calibration capabilities reduce technician exposure to confined spaces and hazardous chemical environments.

Food & Beverage Manufacturing:
Acquire temperature, pressure, and flow data from CIP (clean-in-place) systems and pasteurization processes. The module's stainless-steel compatible design meets sanitary construction standards for FDA-regulated facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 12P2532X092 when your application requires HART communication for smart transmitter integration. For basic 4-20 mA signals without HART, consider standard analog input CHARMs. Verify compatibility with your DeltaV S-Series carrier card generation (consult DeltaV I/O subsystem documentation). For hazardous area installations, pair with Emerson-approved intrinsic safety barriers rated for your area classification.

Advanced Integration Features

DeltaV Control Studio Integration: Module parameters appear automatically in control module function blocks, enabling drag-and-drop configuration of PID loops, alarms, and trending. HART variables (secondary process values, diagnostics, device status) map directly to DeltaV parameters for comprehensive asset monitoring.

AMS Device Manager Compatibility: Full integration with Emerson's AMS Suite enables centralized HART device management, calibration tracking, and predictive maintenance workflows across your entire installed base of smart field instruments.

Redundancy Support: Compatible with DeltaV redundant controller and I/O configurations for high-availability applications requiring 99.99%+ uptime (pharmaceutical batch processing, continuous polymerization reactors).

Cybersecurity Hardening: Operates within DeltaV's secure control network architecture with no external IP connectivity, meeting IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or large quantity orders: 2-3 weeks. Expedited shipping available for emergency shutdowns and critical path projects.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available through authorized Emerson service partners.

Technical Support: Access to application engineering support for system integration questions, configuration assistance, and troubleshooting. Phone and email support during business hours (Asia/Pacific time zone).

Documentation Package: Each module ships with installation quick-start guide, dimensional drawings, and wiring diagrams. Complete technical manuals, HART DD (Device Description) files, and DeltaV library objects available for download from Emerson support portal.

Frequently Asked Questions

Q: How do I connect this CHARM module to my existing DeltaV S-Series system?
A: The 12P2532X092 installs into any compatible DeltaV S-Series carrier card slot. Simply insert the module into an available position, secure the retention clip, and power-cycle the carrier. DeltaV Explorer will auto-detect the new module and prompt you to assign it to a control strategy. No manual addressing or DIP switch configuration required.

Q: What is the maximum cable length between field transmitters and this input module?
A: For standard 4-20 mA HART signals, maximum cable length depends on loop resistance. With 18 AWG shielded twisted pair, typical installations support 1000-1500 meters (3300-5000 feet) before voltage drop affects accuracy. For longer runs, use 16 AWG or 14 AWG cable, or consider 2-wire transmitters with lower voltage drop specifications.

Q: Can this module reduce energy consumption in my control system?
A: While the module itself draws minimal power from the DeltaV backplane (<5W typical), its primary energy benefit comes from enabling HART-based loop diagnostics that identify failing transmitters before they cause process upsets. Early detection prevents energy-wasting off-spec production and emergency shutdowns that require energy-intensive restart procedures.

Q: Does the 12P2532X092 require special installation tools or calibration equipment?
A: No special tools needed for mechanical installation—standard screwdriver for terminal connections. HART communication requires a HART modem or AMS Device Manager for advanced configuration, but basic 4-20 mA operation works immediately upon installation. Factory calibration is valid for 5 years under normal operating conditions; recalibration requires return to authorized service center or on-site calibration with precision current source.

Q: Is remote monitoring possible with this analog input module?
A: Yes, through DeltaV's native SCADA integration and OPC connectivity. All process values, HART diagnostics, and module health status are accessible via DeltaV Operate, third-party HMI systems, or cloud-based analytics platforms. Configure email/SMS alarms for critical process deviations or module fault conditions through DeltaV alarm management.

Q: What happens if I need to replace this module during operation?
A: The hot-swap design allows removal and replacement without shutting down the DeltaV controller or adjacent I/O modules. Process control continues using the last valid input value (configurable hold/fail-safe behavior). After inserting the replacement module, DeltaV automatically downloads the configuration and resumes normal operation within 2-3 seconds—no manual intervention required.

Take the Next Step

Ready to enhance your DeltaV system's signal acquisition capabilities? Contact our industrial automation specialists for application-specific recommendations, quantity pricing, or technical integration support. We provide same-day quotations and can coordinate with your project timeline for just-in-time delivery.

Request a quote: Include your DeltaV system generation, number of I/O points, and hazardous area classification for accurate proposal.
