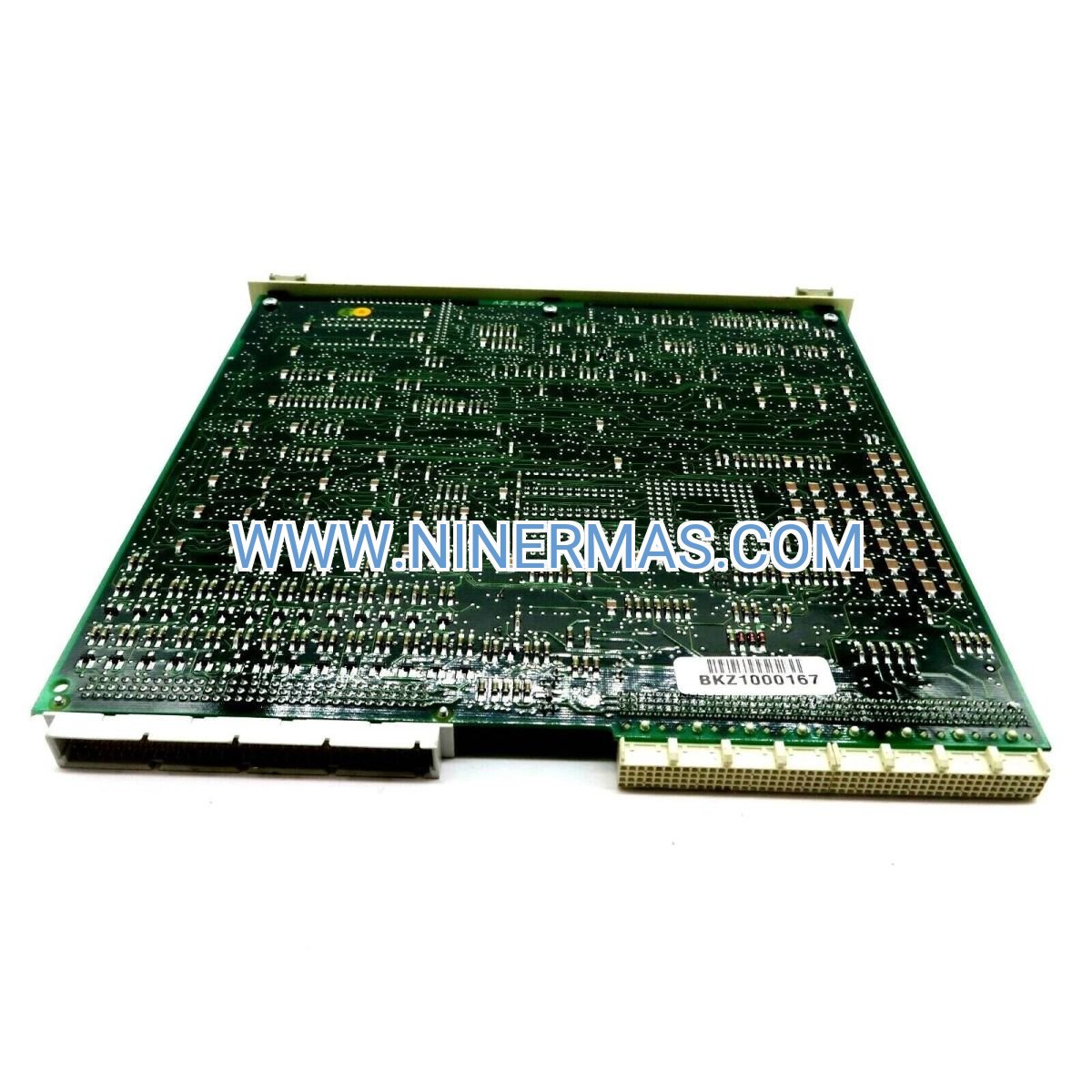

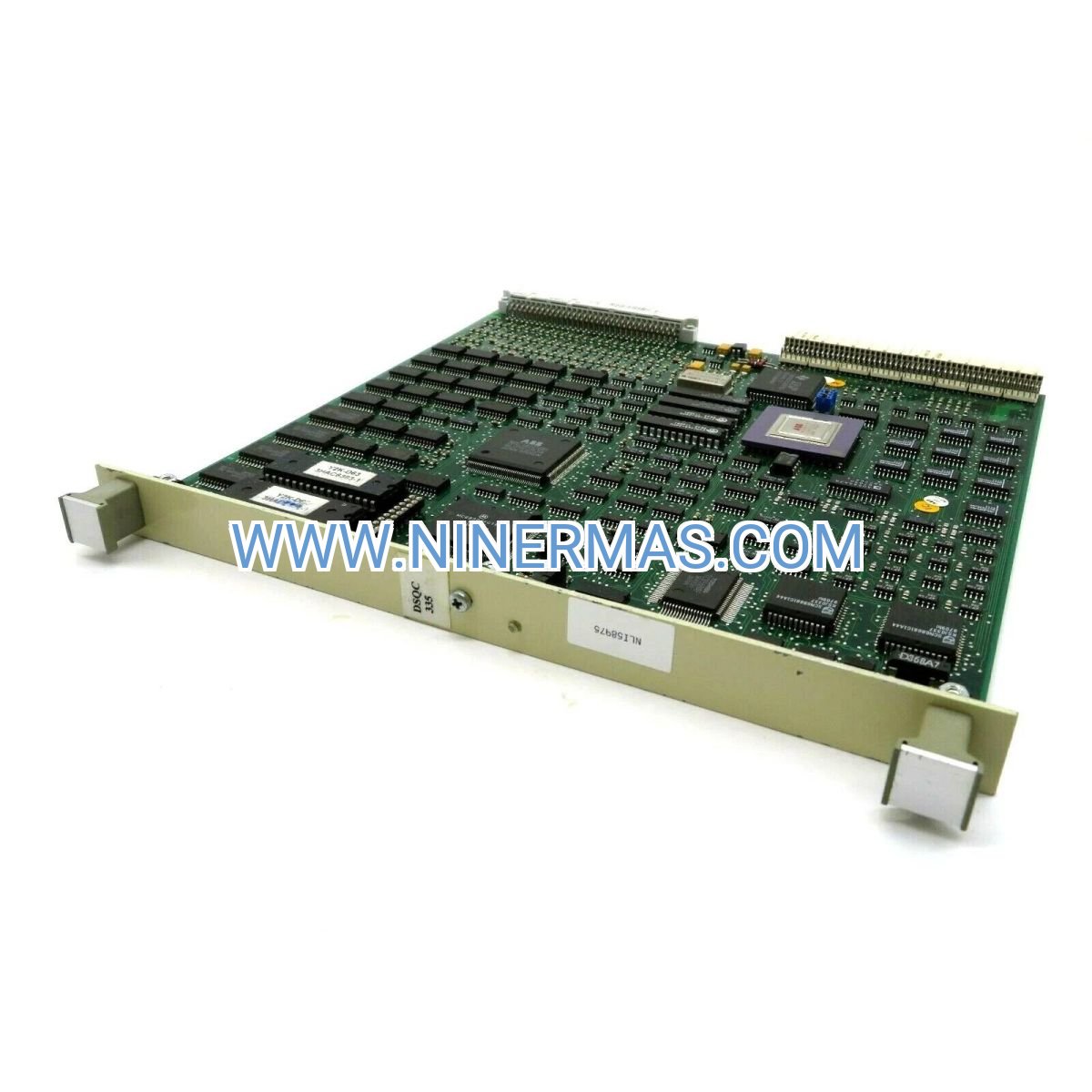

ABB DSQC335 Digital Output Module (Industrial-Grade I/O Control System)

The ABB DSQC335 Digital Output Module is an industrial control device designed for robotics automation and manufacturing process control. Through high-speed digital signal switching and isolated output architecture, it enables precise actuator control, real-time device coordination, and reliable signal transmission in demanding industrial environments.

Suitable for robotic welding cells, material handling systems, automated assembly lines, packaging machinery, and process control applications, this module helps solve challenges including signal interference, slow response times, limited I/O expansion capacity, inadequate protection mechanisms, and complex system integration requirements.

Through standardized design and flexible configuration options, this product delivers fast switching response, robust electrical isolation, comprehensive fault protection, multi-protocol compatibility, and simplified maintenance procedures—making it ideal for system integrators, automation engineers, OEM manufacturers, and industrial facility operators. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Functions & Advantages

High-Speed Digital Switching
With sub-2ms response time and isolated output channels, the module ensures precise timing control for synchronized multi-axis operations, reducing cycle times and improving production throughput in time-critical automation sequences.

Comprehensive Protection Architecture
Integrated short-circuit, overload, and reverse-polarity protection safeguards connected actuators and control circuits, minimizing downtime and reducing maintenance costs in harsh industrial environments with electrical noise and power fluctuations.

Flexible System Integration
Compatible with ABB IRC5, S4C+, and legacy robot controllers, plus support for DeviceNet, PROFIBUS, and Ethernet/IP fieldbus protocols, enabling seamless integration into existing automation infrastructure without extensive rewiring or protocol conversion.

Enhanced Diagnostic Capabilities
Channel-specific LED status indicators and built-in self-diagnostics provide real-time visibility into output states and fault conditions, allowing maintenance teams to identify and resolve issues quickly without specialized test equipment or system shutdown.

Industrial-Grade Reliability
Conformal-coated PCB construction and wide operating temperature range (0°C to +55°C) ensure stable performance in environments with dust, humidity, vibration, and temperature variations, with MTBF exceeding 100,000 hours for continuous operation applications.

Space-Efficient Design
Compact DIN rail mounting format and hot-swappable architecture optimize control cabinet space utilization while enabling module replacement during production shifts, reducing installation costs and minimizing production interruptions during maintenance activities.

Typical Application Scenarios

This product is suitable for systems requiring precise output control, high reliability, and seamless integration with industrial automation networks, especially in:

Robotic Welding & Assembly Systems
Controls pneumatic grippers, tool changers, torch ignition sequences, and wire feed mechanisms in automotive, aerospace, and heavy equipment manufacturing, ensuring synchronized operation and consistent weld quality across multi-station robotic cells.

Material Handling & Logistics Automation
Manages conveyor diverters, sorting gates, pneumatic actuators, and product rejection mechanisms in distribution centers, e-commerce fulfillment operations, and automated warehousing systems, supporting high-throughput sorting and routing requirements.

Packaging & Labeling Machinery
Coordinates seal activation, label applicators, product ejectors, and quality inspection triggers in food processing, pharmaceutical packaging, and consumer goods production lines, maintaining precise timing for high-speed packaging operations.

Process Control & Manufacturing Execution
Interfaces with valves, motor starters, indicator lights, and alarm systems in chemical processing, water treatment, HVAC control, and discrete manufacturing environments, providing reliable signal output for supervisory control and data acquisition systems.

Machine Tool & CNC Integration
Activates tool clamps, coolant pumps, chip conveyors, and safety interlocks in machining centers, turning operations, and grinding systems, supporting coordinated machine sequencing and operator safety protocols in metalworking facilities.

Technical Parameters & Selection Guide

To facilitate design and selection, we provide standard electrical, mechanical, and environmental specifications. Custom configurations are available based on project-specific requirements.

Electrical Specifications:

• Output Channels: 16 discrete digital outputs
• Voltage Rating: 24V DC nominal (18-30V DC operating range)
• Current Capacity: 0.5A per channel (continuous), 2A surge (100ms)
• Output Type: Sourcing (PNP) or Sinking (NPN) configurable
• Isolation: 1500V DC channel-to-backplane isolation
• Response Time: <2ms turn-on/turn-off delay
• Power Consumption: 3.5W typical at full load

Mechanical & Environmental:

• Mounting: Standard 35mm DIN rail (EN 50022)
• Dimensions: 120mm (H) × 45mm (W) × 115mm (D)
• Weight: Approximately 0.35 kg
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)
• Protection Rating: IP20 (enclosed cabinet installation)
• Vibration Resistance: IEC 60068-2-6 compliant

Communication & Compatibility:

• Controller Compatibility: ABB IRC5, S4C+, S4, S3, legacy systems
• Fieldbus Support: DeviceNet, PROFIBUS-DP, Ethernet/IP, Modbus RTU
• Diagnostic Interface: LED indicators per channel, system status display
• Configuration: Software-configurable via ABB RobotStudio or controller HMI

Selection Recommendations:
When selecting this module, consider the following factors: total number of discrete outputs required, load current per channel, control voltage compatibility, fieldbus protocol requirements, environmental conditions (temperature, humidity, vibration), available control cabinet space, and integration with existing ABB or third-party controllers. For assistance with system design, please provide application details including controller model, I/O count, load specifications, and environmental parameters. Our engineering team will recommend the optimal configuration and provide integration support.

Extended Functionality

Redundancy & Fault Tolerance
Supports dual-channel redundant configurations for critical safety applications, with automatic failover and diagnostic reporting to supervisory systems, ensuring continuous operation in mission-critical manufacturing processes.

Remote Monitoring & Diagnostics
Integrates with SCADA systems, MES platforms, and cloud-based analytics tools via standard industrial protocols, enabling predictive maintenance, performance trending, and remote troubleshooting capabilities for distributed manufacturing facilities.

Custom I/O Mapping
Flexible software configuration allows custom assignment of physical outputs to logical control functions, supporting application-specific sequencing, interlocking, and safety logic without hardware modifications or additional relay panels.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 3-5 business days from stock; custom-configured modules require 10-15 business days for testing and documentation preparation.

Warranty: All modules include a minimum 24-month manufacturer warranty covering defects in materials and workmanship, with extended warranty options available for critical applications.

Technical Support: Comprehensive support includes remote configuration assistance, on-site commissioning services (region-dependent), and 24/7 technical hotline access for troubleshooting and application guidance.

Documentation Package: Each module ships with complete electrical schematics, terminal wiring diagrams, DIN rail installation instructions, software configuration guides, and dimensional drawings in PDF and CAD formats for integration planning and maintenance reference.

Compliance & Certifications: CE marked, UL/cUL listed, RoHS compliant, and manufactured in ISO 9001 certified facilities, meeting international standards for industrial automation equipment safety and electromagnetic compatibility.

Frequently Asked Questions (FAQ)

Q: How does the ABB DSQC335 digital output module integrate with existing robot controllers?
A: The module connects via standard I/O bus interfaces on ABB IRC5 and S4C+ controllers, using plug-and-play DSQC-series backplane connectors. Configuration is performed through RobotStudio software or the controller teach pendant, with automatic recognition of module type and channel count. For legacy S3/S4 systems, adapter boards may be required—contact our technical team with your controller model for specific integration requirements.

Q: What is the maximum number of output modules that can be installed in a single system?
A: ABB IRC5 controllers support up to 16 I/O modules per system, providing a maximum of 256 discrete outputs when using DSQC335 modules exclusively. Actual capacity depends on controller model, power supply rating, and bus loading. For systems requiring higher I/O density, distributed I/O solutions using fieldbus networks can extend capacity to thousands of points.

Q: What energy savings or efficiency improvements can be expected with this module?
A: The DSQC335 consumes approximately 3.5W at full load, representing a 40-60% reduction compared to relay-based output systems of equivalent capacity. Energy savings are most significant in applications with frequent switching cycles, where solid-state outputs eliminate coil power consumption and reduce heat generation in control cabinets, potentially lowering cooling requirements.

Q: What are the installation environment requirements and protection rating?
A: The module is rated IP20 and designed for installation in enclosed control cabinets with ambient temperatures between 0°C and +55°C. Adequate ventilation is required to maintain cabinet temperature within operating range. For harsh environments with dust, moisture, or corrosive atmospheres, install in NEMA 4/4X or IP65-rated enclosures with appropriate climate control and air filtration.

Q: Does the module support remote monitoring and data acquisition protocols?
A: Yes, when integrated with ABB IRC5 controllers, the module supports Ethernet/IP, PROFIBUS-DP, and Modbus TCP/RTU protocols for communication with SCADA systems, PLCs, and industrial IoT platforms. Real-time output status, diagnostic data, and fault logs can be accessed remotely for condition monitoring, predictive maintenance, and production analytics applications.

Q: Can the module be replaced during production without shutting down the entire system?
A: The DSQC335 features hot-swap capability when used with IRC5 controllers equipped with redundant I/O power supplies. Module replacement can be performed during production with proper safety procedures, though the specific outputs controlled by the replaced module will be inactive during the swap. Always follow ABB safety guidelines and local electrical codes when performing live maintenance.

Request Technical Support & Quotation

To receive detailed application engineering support, custom configuration recommendations, or pricing quotations, please provide the following information: project name and industry sector, application type (robotics, process control, material handling, etc.), required number of digital outputs and load specifications, controller model and communication protocol, environmental conditions (temperature range, enclosure type), installation timeline and quantity requirements. Our application engineers will provide one-on-one consultation and system design assistance within 24 business hours.
