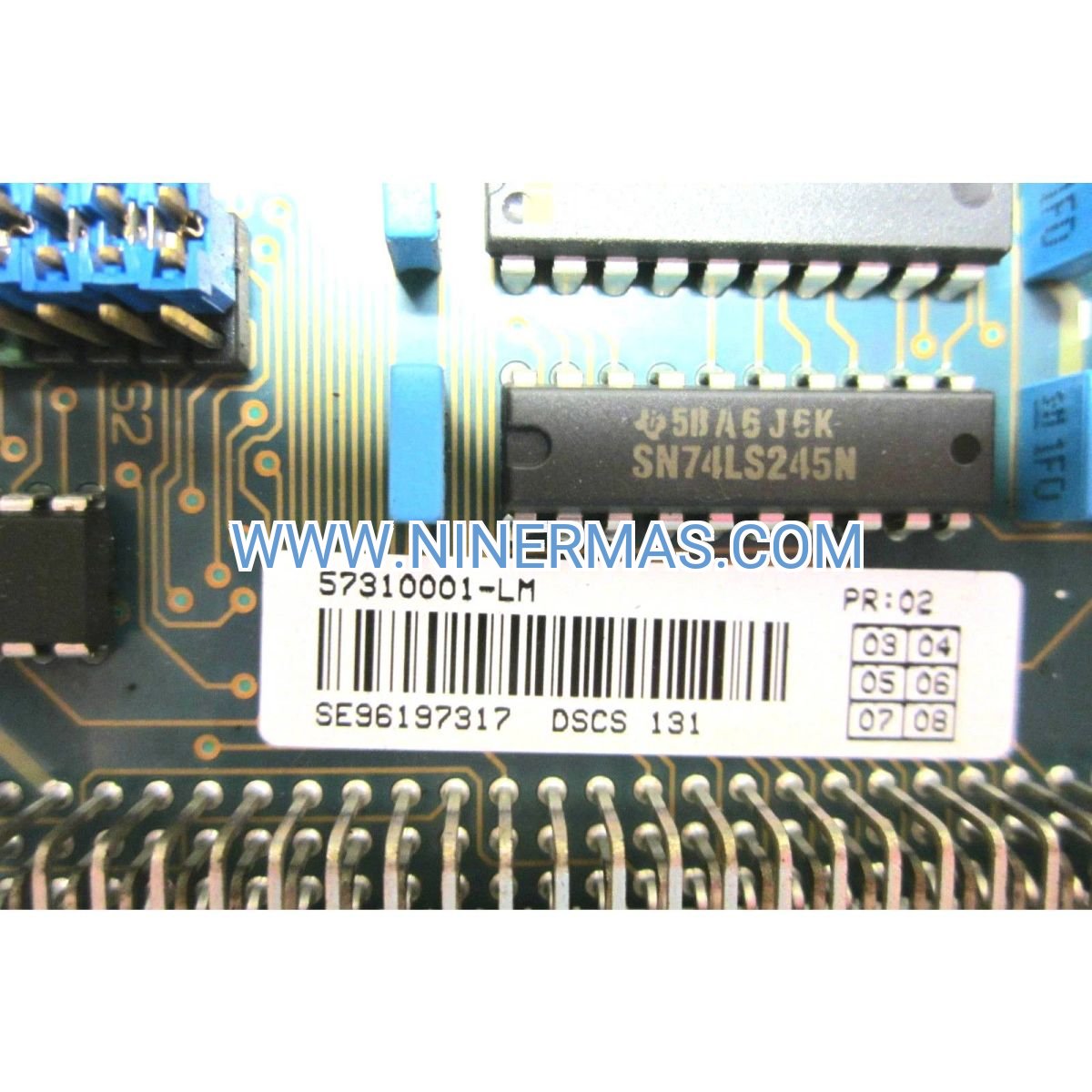

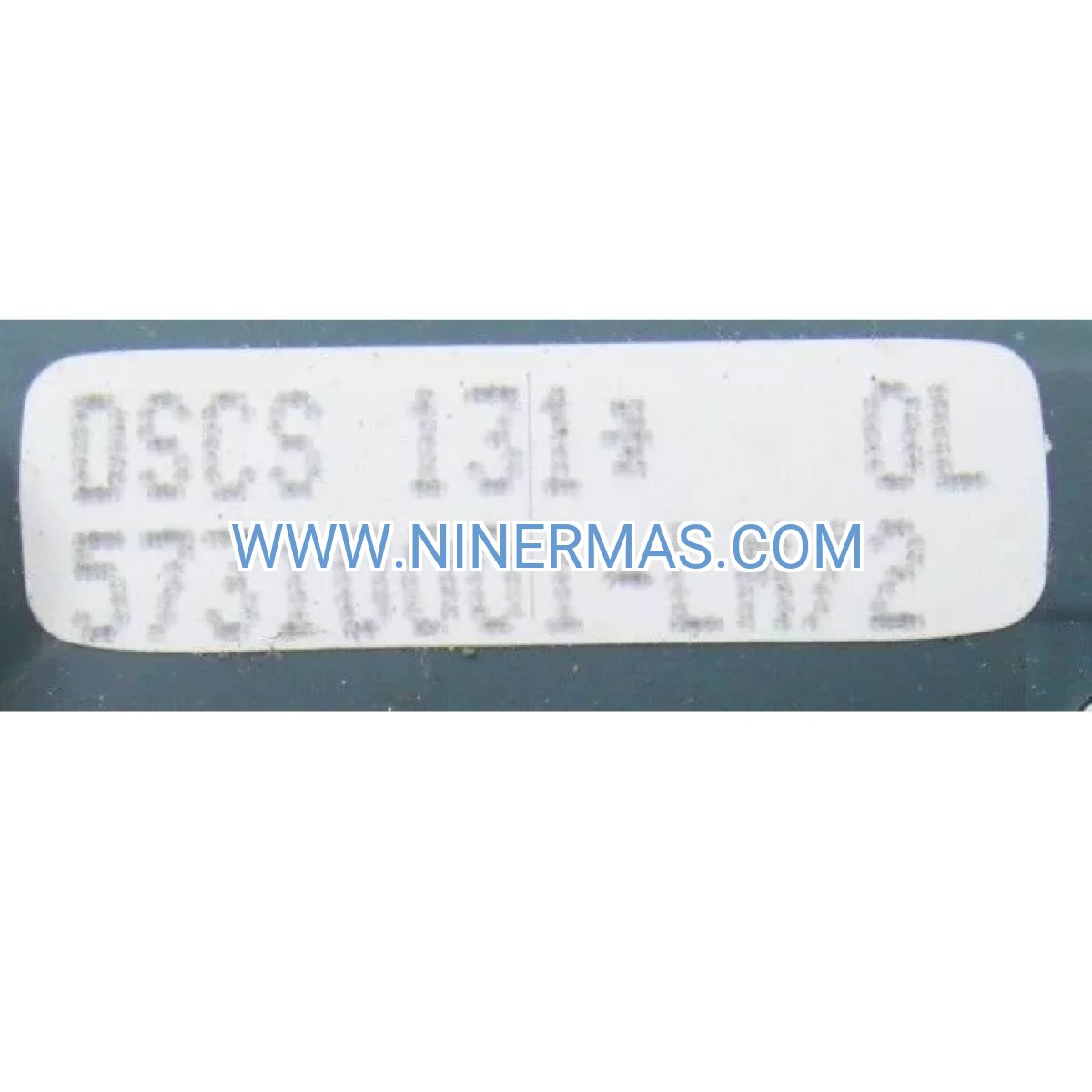

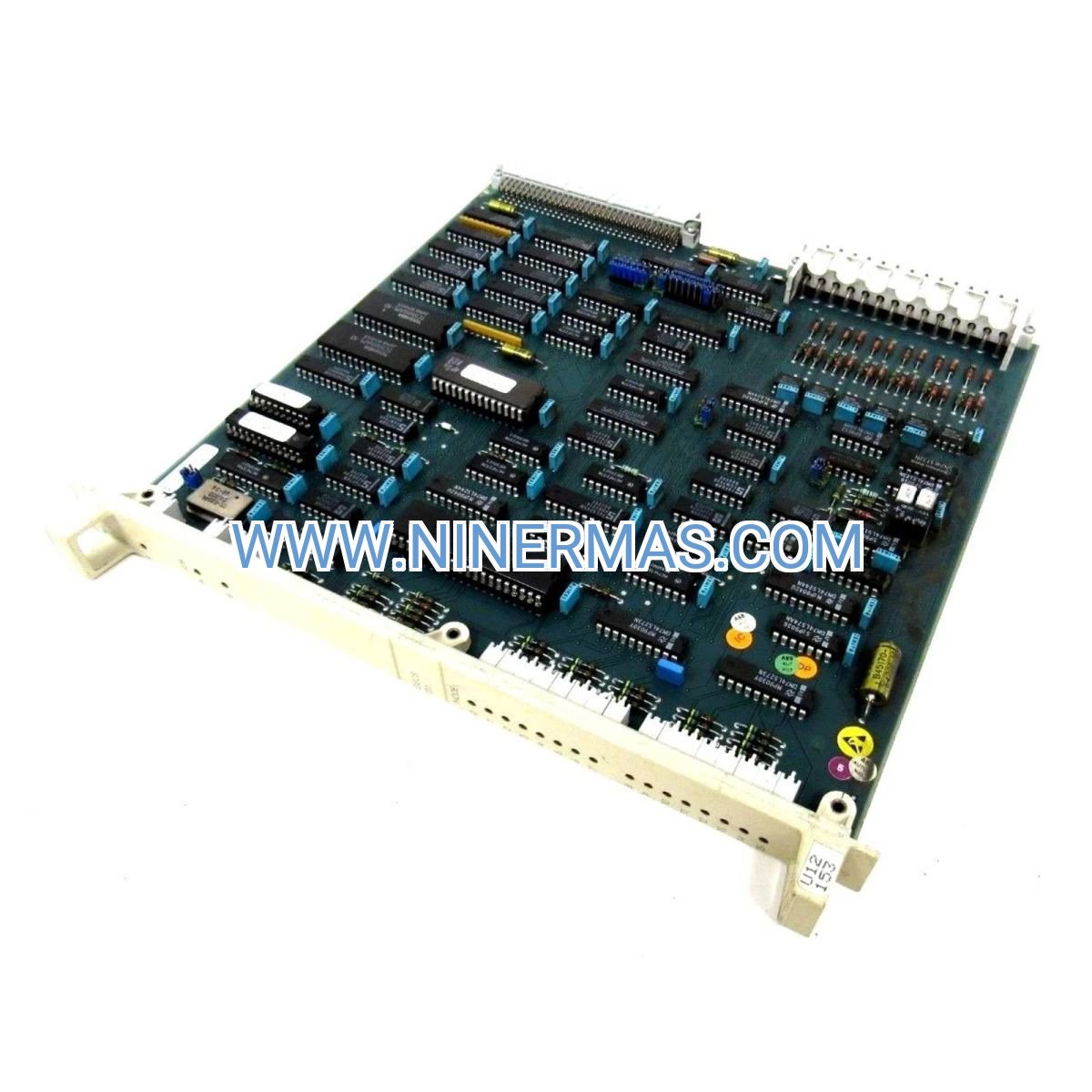

ABB DSCS131 MasterFieldbus Communication Board (Industrial-Grade Fieldbus Master Controller)

The ABB DSCS131 MasterFieldbus Communication Board is an industrial-grade communication interface designed for distributed control systems (DCS), delivering master-level fieldbus orchestration through advanced protocol management and cyclic data exchange. Engineered for ABB Advant OCS platforms, this board enables centralized command over distributed I/O networks, intelligent field devices, and remote sensor arrays with deterministic timing precision.

Ideal for process industries requiring high-reliability communication infrastructure—including petrochemical plants, power generation facilities, water treatment systems, pharmaceutical manufacturing, and continuous production lines—the DSCS131 addresses critical challenges such as communication bottlenecks, single-point-of-failure risks, protocol incompatibility, and real-time data synchronization across multi-vendor device ecosystems.

Through standardized design and configurable redundancy options, this communication board delivers exceptional network stability, seamless legacy system integration, and minimal maintenance overhead. Suitable for system integrators, design engineers, plant automation teams, and OEM equipment manufacturers seeking proven fieldbus master solutions. Contact our application engineers for customized network topology design and technical specifications.

Core Functions & Advantages

Master-Level Fieldbus Orchestration
Executes cyclic polling, acyclic messaging, and alarm propagation with microsecond-level timing accuracy. The DSCS131 manages complete fieldbus lifecycles—from device initialization and parameter assignment to diagnostic monitoring and fault isolation—ensuring synchronized data flow across up to 126 slave devices per segment.

Redundancy Architecture for Mission-Critical Applications
Supports dual-channel redundancy configurations with automatic failover capability. When primary communication paths experience disruption, the board seamlessly transitions to backup channels within 50ms, maintaining continuous process control and eliminating costly production interruptions in 24/7 operating environments.

Proven Compatibility with ABB Advant OCS Ecosystem
Direct integration with Advant OCS controllers, operator stations, and engineering workstations through standardized backplane interfaces. Backward compatibility with legacy installations protects existing infrastructure investments while enabling phased modernization strategies without complete system replacement.

Comprehensive Diagnostic & Protection Features
Built-in diagnostics monitor bus voltage levels, signal integrity, device response times, and communication error rates. Automatic protection against short circuits, ground faults, and electromagnetic interference (EMI) reduces unplanned downtime and simplifies troubleshooting through detailed event logging and status indicators.

Industrial-Hardened Environmental Resilience
Operates reliably across -25°C to +70°C ambient temperature ranges with conformal coating protection against moisture, dust, and corrosive atmospheres. Vibration resistance and shock tolerance meet IEC 61131-2 standards for installation in high-vibration environments such as compressor stations and mobile equipment.

Intuitive Configuration & Maintenance
Configuration through ABB Control Builder software with graphical network topology visualization, drag-and-drop device assignment, and automated parameter validation. Hot-swappable design enables board replacement during scheduled maintenance windows without full system shutdown, minimizing production impact.

Typical Application Scenarios

This communication board excels in applications demanding deterministic fieldbus control, multi-device coordination, and high-availability network architectures, particularly in:

Petrochemical & Refining Process Control
Manages communication between distributed control units, smart transmitters, and final control elements across distillation columns, reactor systems, and pipeline networks. Ensures real-time data acquisition from hazardous area devices while maintaining intrinsic safety compliance through isolated communication channels.

Power Generation & Substation Automation
Coordinates data exchange between turbine controllers, generator protection relays, and auxiliary system monitors in thermal, hydro, and combined-cycle power plants. Supports IEC 61850 protocol mapping for seamless integration with modern substation automation architectures.

Water & Wastewater Treatment Systems
Enables centralized monitoring and control of pump stations, filtration units, chemical dosing systems, and flow measurement devices across municipal and industrial water treatment facilities. Handles variable network topologies spanning multiple treatment stages with different device densities.

Pharmaceutical & Biotechnology Manufacturing
Provides validated communication infrastructure for batch control systems, clean-in-place (CIP) automation, and environmental monitoring networks in GMP-regulated production environments. Supports audit trail requirements through timestamped communication logs and configuration change tracking.

Metals & Mining Material Processing
Manages fieldbus networks controlling conveyor systems, crusher operations, grinding circuits, and flotation processes in mineral processing plants. Withstands harsh environmental conditions including extreme temperatures, dust exposure, and electrical noise from high-power motor drives.

Technical Parameters & Selection Guide

To facilitate system design and component selection, we provide standardized specifications for electrical, mechanical, and environmental parameters. Custom configurations available based on specific network topology requirements.

Selection Recommendations
When selecting the DSCS131 for your application, consider the following factors: total number of fieldbus devices in your network topology, required communication cycle time (typically 10-100ms for process control), environmental conditions at installation location, redundancy requirements based on process criticality, and compatibility with existing ABB Advant OCS hardware revisions. For complex network architectures involving multiple communication boards or integration with third-party systems, our application engineers can provide detailed network load calculations, cable length limitations, and termination resistor specifications. Submit your project parameters including device count, network layout drawings, and environmental data for customized recommendations.

Extended Capabilities

Multi-Protocol Gateway Integration
When combined with ABB protocol converters, the DSCS131 enables data exchange between MasterFieldbus networks and Modbus RTU/TCP, PROFIBUS DP, or Ethernet/IP devices, facilitating hybrid automation architectures during system migration projects.

Remote Diagnostics & Predictive Maintenance
Integration with ABB Ability™ digital platforms enables cloud-based monitoring of communication health metrics, trend analysis of error rates, and predictive alerts for preventive board replacement before failure occurrence.

Cybersecurity Hardening Options
For installations requiring enhanced security posture, the DSCS131 supports network segmentation strategies, encrypted configuration files, and role-based access control when deployed with ABB System 800xA security modules.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard DSCS131 boards typically ship from stock within 3-5 business days for single-unit orders. For bulk quantities (10+ units) or custom-configured redundancy pairs, delivery timeframe extends to 2-3 weeks depending on current production schedules and regional logistics.

Warranty & Technical Support
All units include a minimum 12-month manufacturer warranty covering material defects and workmanship issues. Extended warranty programs available for critical infrastructure applications. Technical support includes remote troubleshooting assistance, configuration file review, and on-site commissioning services (subject to geographic availability and service agreement terms).

Documentation Package
Each board ships with comprehensive technical documentation including installation manual with mechanical drawings, electrical connection diagrams showing backplane pinouts and external wiring, configuration guide for Control Builder software, diagnostic troubleshooting flowcharts, and compliance certificates (CE Declaration of Conformity, UL certification documents). Digital versions available through ABB Library portal for registered users.

Quality Certifications
Manufactured under ISO 9001:2015 quality management systems with full traceability of electronic components. Factory acceptance testing (FAT) includes power-on diagnostics, communication protocol verification, and environmental stress screening. Test reports available upon request for projects requiring documented quality evidence.

Frequently Asked Questions (FAQ)

Q: How does the ABB DSCS131 MasterFieldbus Communication Board integrate with existing Advant OCS systems?
A: The DSCS131 installs directly into available backplane slots within Advant OCS racks, automatically recognized by the system controller upon power-up. Configuration is performed through ABB Control Builder software where you define the fieldbus network topology, assign device addresses, and map I/O points to controller logic. The board communicates with the Advant OCS processor via the backplane bus, eliminating external cabling requirements. Compatibility spans Advant OCS hardware revisions from the mid-1990s onward, though firmware updates may be required for optimal performance with newer controller versions.

Q: What is the maximum number of slave devices one DSCS131 board can manage effectively?
A: The DSCS131 supports up to 126 addressable slave devices per fieldbus segment according to protocol specifications. However, practical device count depends on communication cycle time requirements and data volume per device. For typical process control applications requiring 50-100ms update rates, we recommend limiting to 40-60 devices per board to maintain deterministic performance. High-speed applications (10-20ms cycles) should target 20-30 devices maximum. For larger networks, deploy multiple DSCS131 boards on separate fieldbus segments, each managing a logical group of devices.

Q: Can the DSCS131 communication board operate in redundant configurations for high-availability systems?
A: Yes, the DSCS131 fully supports redundant operation when deployed in pairs with appropriate redundancy modules. In this configuration, both boards actively monitor the fieldbus network, with one designated as primary and the other as standby. Upon detecting primary board failure or communication loss, the standby board assumes control within 50 milliseconds, maintaining process continuity. Redundant configurations require dual fieldbus cables, redundant power supplies, and compatible Advant OCS controller redundancy. Consult ABB application notes for detailed redundancy wiring diagrams and configuration procedures.

Q: What are the installation environment requirements and protection ratings for the DSCS131?
A: The DSCS131 is designed for installation within climate-controlled control rooms or industrial enclosures providing IP54 or better protection. The board itself carries IP20 rating, suitable for clean, dry environments with controlled temperature. Operating temperature range spans -25°C to +70°C, accommodating unheated buildings in moderate climates. For harsh environments with extreme temperatures, corrosive atmospheres, or high dust levels, install the Advant OCS rack within a NEMA 4/4X or IP65-rated enclosure with appropriate thermal management (ventilation or air conditioning). Ensure adequate clearance around the rack for airflow and maintenance access.

Q: Does the DSCS131 support remote monitoring and diagnostics capabilities?
A: The DSCS131 provides comprehensive diagnostic data accessible through the Advant OCS operator interface and engineering workstation. Real-time status includes communication error counters, device response times, bus voltage levels, and individual slave device health. This data can be integrated with SCADA systems, plant historians, or ABB Ability™ cloud platforms for remote monitoring, trend analysis, and predictive maintenance alerts. For remote access, ensure proper network security measures including firewalls, VPNs, and role-based authentication to protect industrial control systems from cyber threats.

Q: What communication protocols and standards does the DSCS131 MasterFieldbus board support?
A: The DSCS131 implements ABB's proprietary MasterFieldbus protocol, optimized for deterministic data exchange in process control applications. While not directly compatible with open standards like PROFIBUS or Modbus, the board can interface with these protocols through ABB gateway modules or third-party protocol converters. For new installations, consider whether MasterFieldbus aligns with your long-term automation strategy, or if migration to modern Ethernet-based protocols (PROFINET, EtherNet/IP) better serves future expansion plans. ABB offers migration paths and hybrid solutions for transitioning legacy MasterFieldbus networks to contemporary communication standards.

Request Technical Consultation

To receive detailed selection guidance, customized network topology design, or technical specifications tailored to your application, please provide the following information to our engineering team:

• Project name and application industry (e.g., petrochemical, power generation, water treatment)
• Total number of fieldbus devices and device types (I/O modules, smart transmitters, valve positioners, etc.)
• Required communication cycle time and data update frequency
• Existing ABB Advant OCS hardware configuration (controller model, rack size, current modules)
• Redundancy requirements (simplex or redundant architecture)
• Environmental conditions at installation site (temperature range, humidity, vibration levels)
• Network topology layout (linear, star, tree structure) and maximum cable distances
• Integration requirements with third-party systems or protocols

Our application engineers will provide one-on-one consultation including network load calculations, cable specification recommendations, configuration file templates, and detailed quotations. Typical response time for technical inquiries is 1-2 business days.
