Description

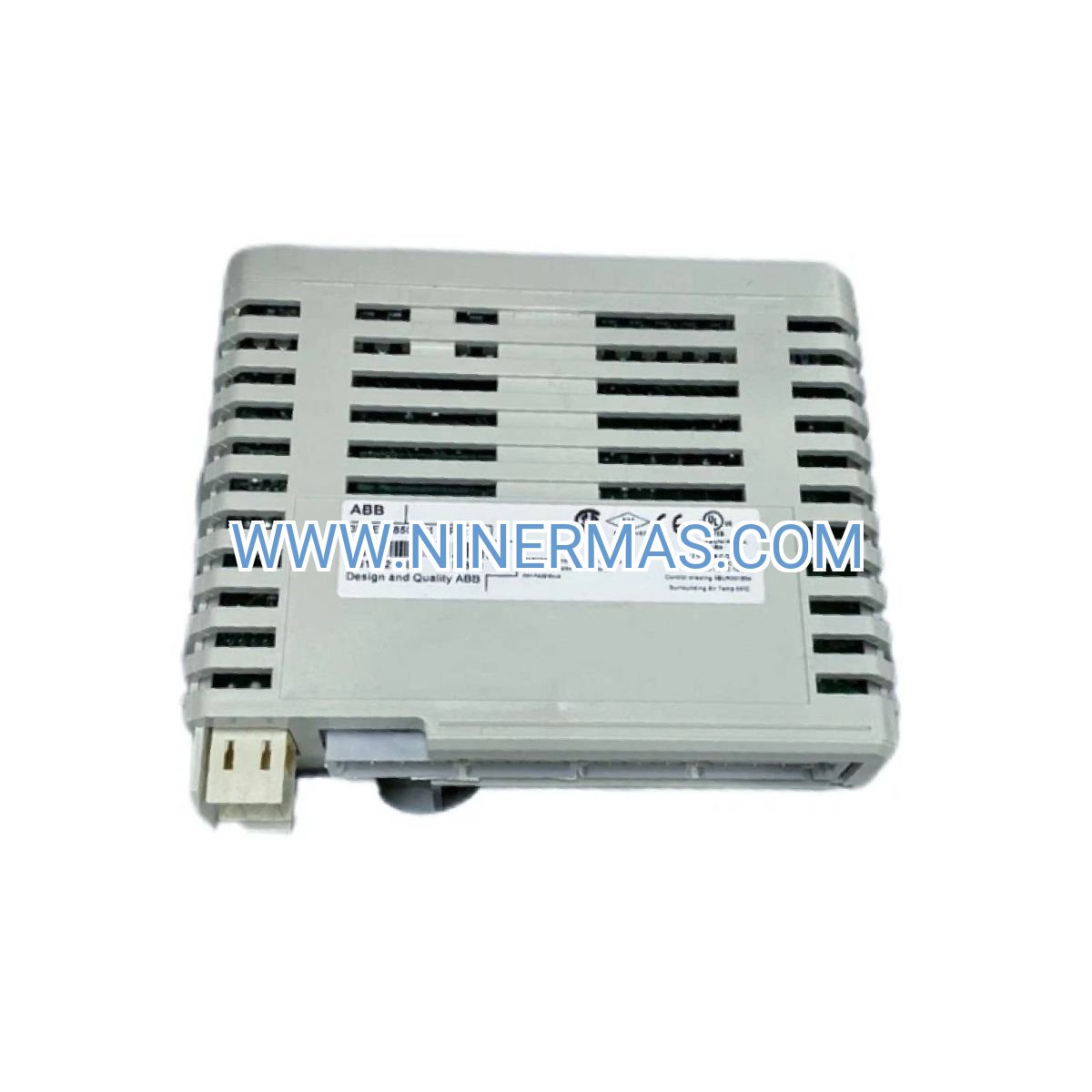

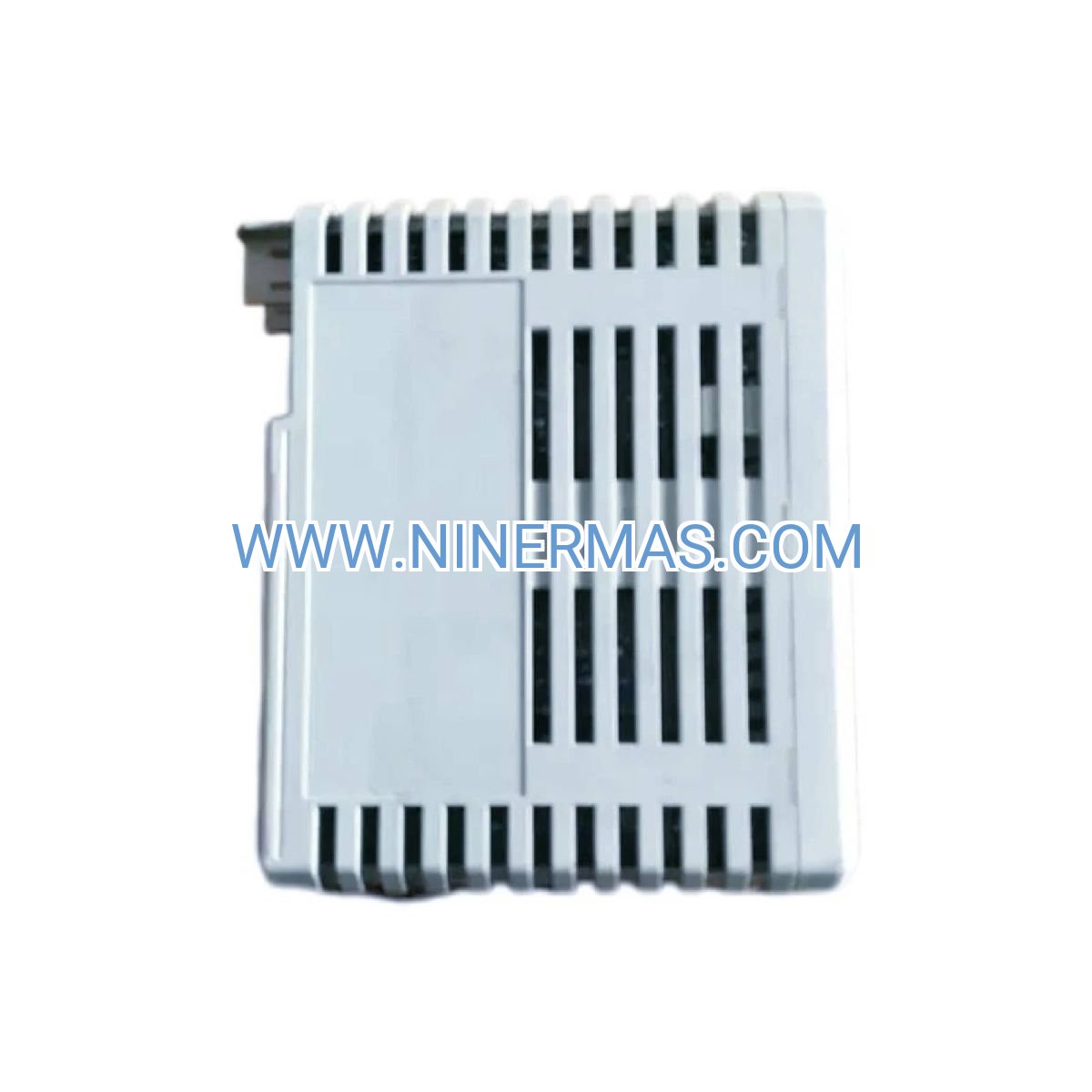

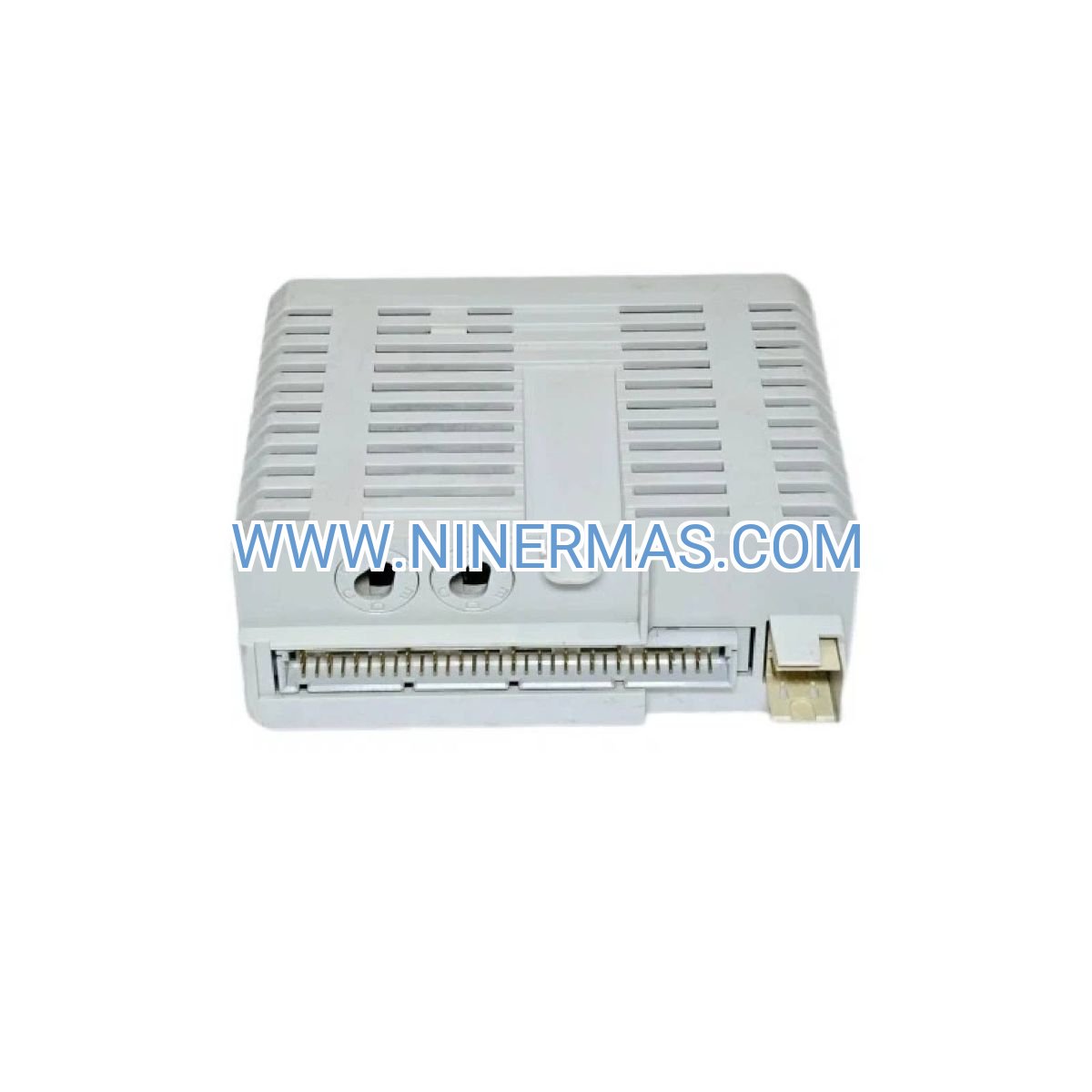

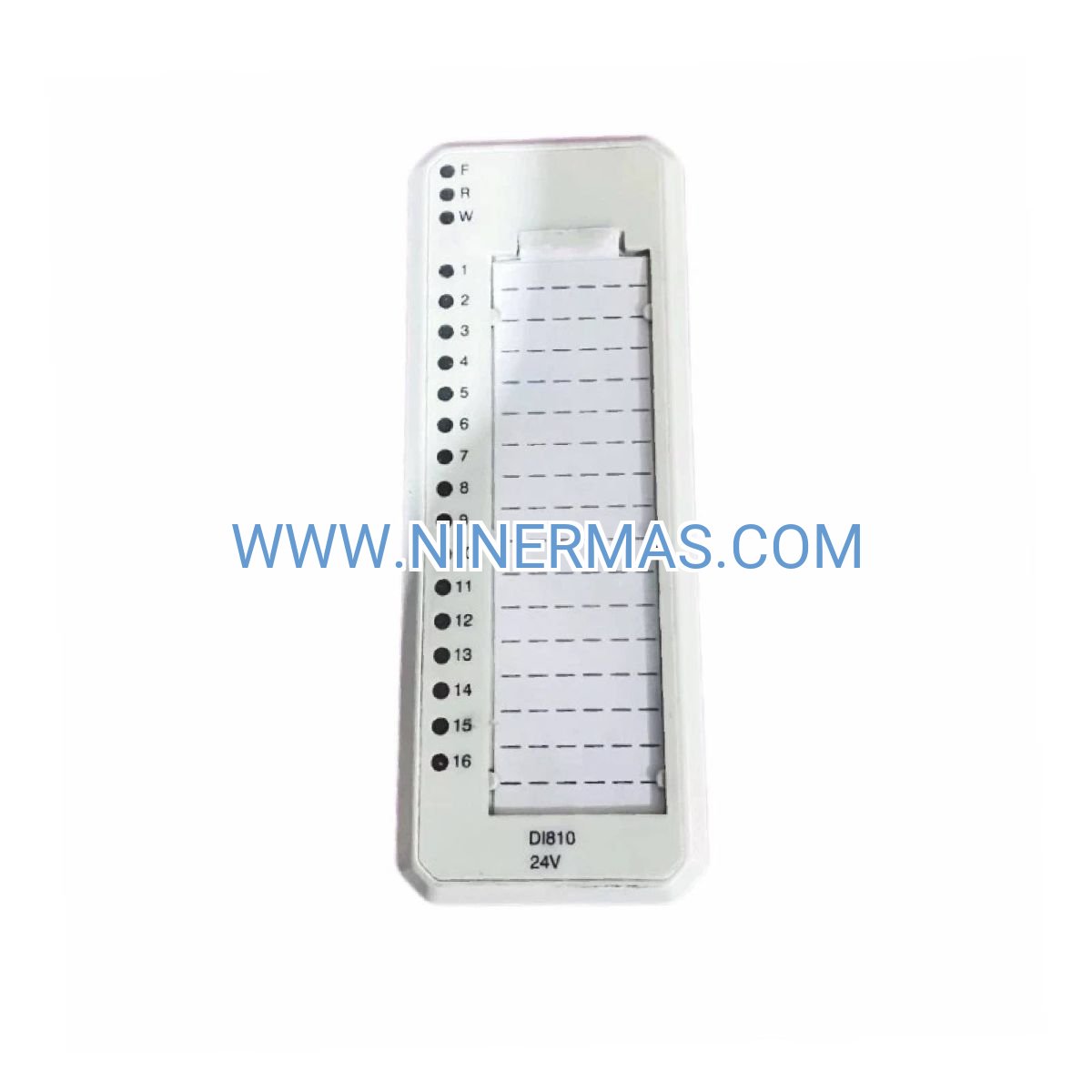

ABB DI810 Digital Input Module (Industrial-Grade 24VDC Signal Acquisition System)
The ABB DI810 Digital Input Module is an industrial control device designed for reliable 24VDC digital signal acquisition in distributed control systems. Through galvanic isolation technology and configurable digital filtering, it delivers stable signal processing, real-time status monitoring, and intelligent diagnostics for S800 I/O and 800xA DCS platforms.
Ideal for process control, machine automation, building management systems, and water treatment facilities, this module addresses challenges such as electrical noise interference, signal instability, contact bounce, and ground loop issues in harsh industrial environments.
With standardized design and flexible configuration options, the DI810 offers high-density I/O integration, hot-swappable capability, wide temperature tolerance, and comprehensive protection features—making it suitable for design institutes, system integrators, OEM manufacturers, and end-user facilities. Contact our engineers for application-specific selection guidance and quotations.
Core Functions & Advantages
16 Isolated Input Channels
Two groups of 8 channels with 500VAC channel-to-channel and channel-to-system isolation eliminate ground loops, prevent electrical noise propagation, and protect control systems from field-side voltage surges.
Configurable Digital Filtering
Adjustable input filter time constants (0.2-20ms) effectively suppress contact bounce from mechanical switches, relay chatter, and electrical transients, ensuring accurate signal detection and reducing false alarms.
Flexible Signal Type Support
Supports both sinking and sourcing input configurations, providing seamless compatibility with proximity sensors, photoelectric switches, limit switches, push buttons, and various field devices from different manufacturers.
Wide Operating Temperature Range
Rated for -25°C to +70°C operation, the module performs reliably in non-climate-controlled equipment rooms, outdoor enclosures, and extreme industrial environments without derating or auxiliary cooling.
Hot-Swappable Design
In redundant S800 I/O configurations, modules can be replaced during system operation without process interruption, minimizing downtime and maintenance costs while maintaining continuous production.
Compact High-Density Architecture
With a 45mm width and DIN rail mounting, the DI810 maximizes I/O point density in control cabinets, reducing panel space requirements and simplifying wiring for large-scale distributed control projects.
Comprehensive Diagnostic Capabilities
Built-in self-diagnostics monitor module health, power supply status, and communication integrity, with fault indication via LED and system alarms for proactive maintenance and rapid troubleshooting.
Typical Application Scenarios
This module is designed for applications requiring high signal integrity, continuous monitoring, and robust noise immunity, particularly in:
Process Control & Monitoring
Chemical plants, refineries, and pharmaceutical facilities deploy DI810 modules to monitor valve positions, pump run status, safety interlocks, and emergency shutdown systems. The 500VAC isolation prevents VFD-induced electrical noise from corrupting critical safety signals, ensuring compliance with IEC 61511 SIL requirements.
Machine Automation & Manufacturing
Packaging lines, assembly systems, and CNC machining centers utilize DI810 for limit switch monitoring, proximity sensor inputs, conveyor status detection, and emergency stop circuits. Configurable filtering eliminates false triggers caused by mechanical contact bounce and electromagnetic interference from servo drives.
Building Management & HVAC Systems
Commercial buildings and data centers employ DI810 to monitor damper positions, fan status, chiller alarms, occupancy sensors, and fire alarm inputs. The wide temperature range supports installation in rooftop equipment rooms and non-climate-controlled mechanical spaces.
Water & Wastewater Treatment
Municipal water treatment plants and industrial wastewater facilities use DI810 for level switch monitoring, pump status feedback, flow switch inputs, and alarm consolidation. The robust isolation protects control systems from lightning-induced surges in outdoor pump stations and remote lift stations.
Power Generation & Distribution
Utility substations and power plants integrate DI810 for breaker status monitoring, transformer alarm inputs, and protective relay contact monitoring, ensuring reliable SCADA integration and real-time grid management.
Technical Parameters & Selection Guide
To facilitate engineering design and system integration, we provide comprehensive technical specifications for the DI810 module. Custom configurations are available based on project-specific requirements.
| Parameter | Specification |
|---|---|
| Part Number | DI810 (3BSE008508R1) |
| Input Channels | 16 (two groups of 8) |
| Input Voltage Range | 18-30 VDC (24 VDC nominal) |
| Input Current | 7 mA per channel @ 24 VDC |
| Signal Type | Sinking or sourcing (software configurable) |
| Isolation Voltage | 500 VAC channel-to-channel and channel-to-system |
| Input Filter | 0.2-20 ms (configurable via software) |
| Power Supply | 24 VDC via ModuleBus or external supply |
| Power Consumption | 3W typical |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5-95% RH, non-condensing |
| Dimensions (H×W×D) | 119 mm × 45 mm × 102 mm |
| Weight | 0.3 kg |
| Mounting Method | 35mm DIN rail (IEC 60715) |
| Protection Rating | IP20 |
| Communication | ModuleBus (high-speed backplane) |
| Certifications | IEC 61131-2, CE, UL, CSA |
| MTBF | >500,000 hours @ 40°C |
Selection Recommendations
When selecting the DI810 module, consider the following factors: total number of digital input points required, field device signal type (sinking vs. sourcing), maximum cable run length, ambient temperature conditions, required isolation level, and compatibility with existing S800 I/O infrastructure. For applications requiring higher I/O density, consider the DI818 (32-channel) module. If you need assistance, please provide your application details—our engineers will recommend the optimal configuration and termination unit pairing.
System Compatibility & Integration
The DI810 integrates seamlessly with ABB's automation ecosystem:
Control Systems: ABB 800xA DCS (versions 4.0-6.1), Compact Product Suite (4.1-5.1), AC800M controllers (PM860-PM866 series)
I/O Platform: S800 I/O system with ModuleBus communication
Termination Units: TU810, TU812, TU814, TU830, TU833, TU838 (selected based on application requirements)
Engineering Tools: Control Builder M, 800xA Engineering, Drive Composer
Communication Protocols: PROFIBUS DP, PROFINET, Modbus TCP, EtherNet/IP (via communication interface modules)
Installation & Configuration Guide
Mechanical Installation
- Mount DI810 module on 35mm DIN rail adjacent to compatible TU8xx termination unit
- Ensure minimum 10mm clearance on both sides for heat dissipation
- Connect module to termination unit via supplied ribbon cable
- Verify secure mechanical locking and proper seating
Wiring Requirements
- Wire size: 0.5-2.5 mm² (20-14 AWG) for field connections
- Cable type: Shielded twisted pair recommended for runs >10 meters
- Shield grounding: Ground shield at module end only to prevent ground loops
- Termination: Screw terminals on TU8xx unit (torque: 0.5-0.6 Nm)
Software Configuration
- Add DI810 module to hardware configuration in Control Builder M or 800xA Engineering
- Configure signal type (sinking/sourcing) to match field device outputs
- Set input filter time constant based on signal characteristics (0.2ms for fast signals, 5-20ms for mechanical contacts)
- Assign I/O tags and map to control logic
- Download configuration and verify channel status via diagnostics
Delivery Cycle & Service Guarantee
Lead Time: Stock items ship within 3-5 business days; custom configurations require 10-15 business days
Warranty Period: 24 months from shipment date, covering manufacturing defects and component failures
Technical Support: Remote configuration assistance, on-site commissioning support (region-dependent), and 24/7 technical hotline
Documentation: Complete package includes installation manual, wiring diagrams, configuration examples, and troubleshooting guide in English and Chinese
Standard shipments include the DI810 module and installation guide. Termination units (TU8xx series) are sold separately and must be specified based on application requirements. We provide complete electrical schematics, terminal block layouts, and configuration templates to streamline installation and commissioning.
Frequently Asked Questions (FAQ)
Q: How does the ABB DI810 digital input module interface with existing field devices?
A: The DI810 supports both sinking and sourcing input configurations, which are software-selectable. For sinking inputs, the field device switches the negative side of the 24VDC circuit to ground. For sourcing inputs, the device switches the positive side. Verify your field device output type (NPN vs. PNP for sensors) and configure the module accordingly in Control Builder M. The module's 18-30 VDC input range accommodates voltage drops in long cable runs.
Q: What is the maximum number of DI810 modules that can be installed in a single S800 I/O cluster?
A: A single S800 I/O cluster supports up to 12 I/O modules on the ModuleBus. For applications requiring more than 192 digital inputs (12 modules × 16 channels), deploy multiple clusters connected to the same AC800M controller or 800xA system. Each cluster requires a communication interface module (CI8xx series) and power supply module.
Q: What energy savings or efficiency improvements does the DI810 provide?
A: While the DI810 itself is a signal acquisition device with 3W power consumption, it enables system-level energy optimization by providing accurate real-time status feedback for variable speed drives, pump sequencing logic, and demand-based control strategies. In building automation applications, precise occupancy and damper position monitoring can reduce HVAC energy consumption by 15-25% compared to time-based control.
Q: What are the environmental requirements for installing the DI810 module?
A: The module is rated IP20 and requires installation in an enclosed control cabinet. Operating temperature range is -25°C to +70°C with 5-95% RH non-condensing humidity. For outdoor or harsh environments, ensure the enclosure provides adequate protection (minimum IP54) and temperature control. Avoid installation near high-voltage switchgear or sources of electromagnetic interference exceeding IEC 61000-6-2 limits.
Q: Can the DI810 support remote monitoring and data acquisition via industrial protocols?
A: Yes, when integrated with an AC800M controller or 800xA DCS, the DI810's input data is accessible via standard industrial protocols including OPC UA, Modbus TCP, PROFINET, and EtherNet/IP. The 800xA system provides built-in web visualization, mobile access, and cloud connectivity options for remote monitoring and predictive maintenance applications.
Q: Is the DI810 module hot-swappable, and what precautions are required?
A: In redundant S800 I/O configurations, the DI810 is hot-swappable without system shutdown. Before removal, verify that redundancy is active and the backup module is operational. After installing the replacement module, the system automatically synchronizes configuration and resumes normal operation. For non-redundant systems, a brief process interruption occurs during module replacement.
Request Selection Assistance & Quotation
To receive detailed selection recommendations, technical specifications, and pricing for the ABB DI810 digital input module, please provide the following information:
- Project name and application description
- Total number of digital input points required
- Field device signal types (sinking/sourcing, voltage levels)
- Maximum cable run lengths from field devices to control cabinet
- Ambient temperature range and environmental conditions
- Existing control system platform (800xA version, AC800M model, or other)
- Required certifications (UL, CE, ATEX, IECEx, etc.)
- Delivery timeline and installation support requirements
Our application engineers will provide one-on-one selection guidance, system architecture recommendations, and complete bill of materials including termination units, cables, and accessories.
