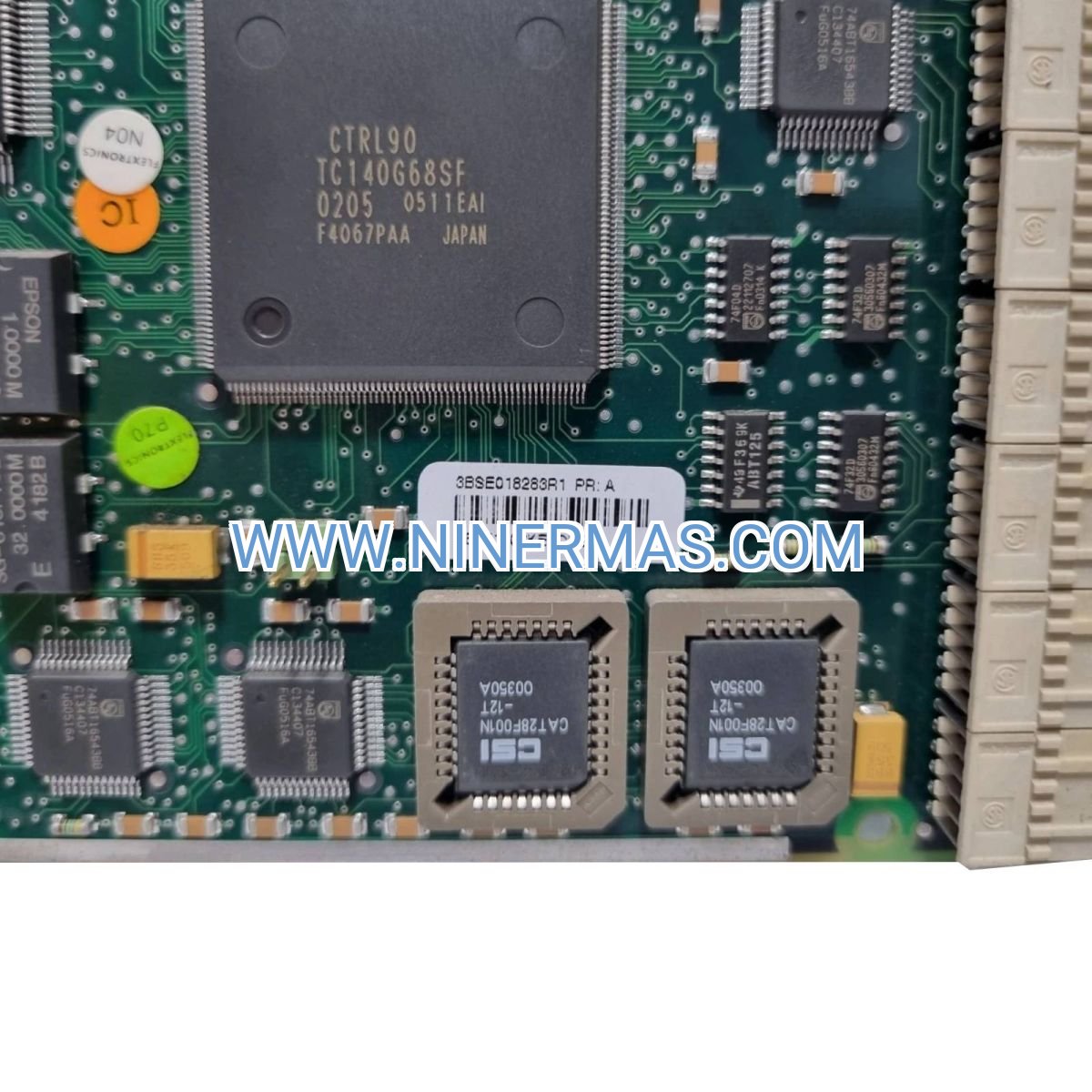

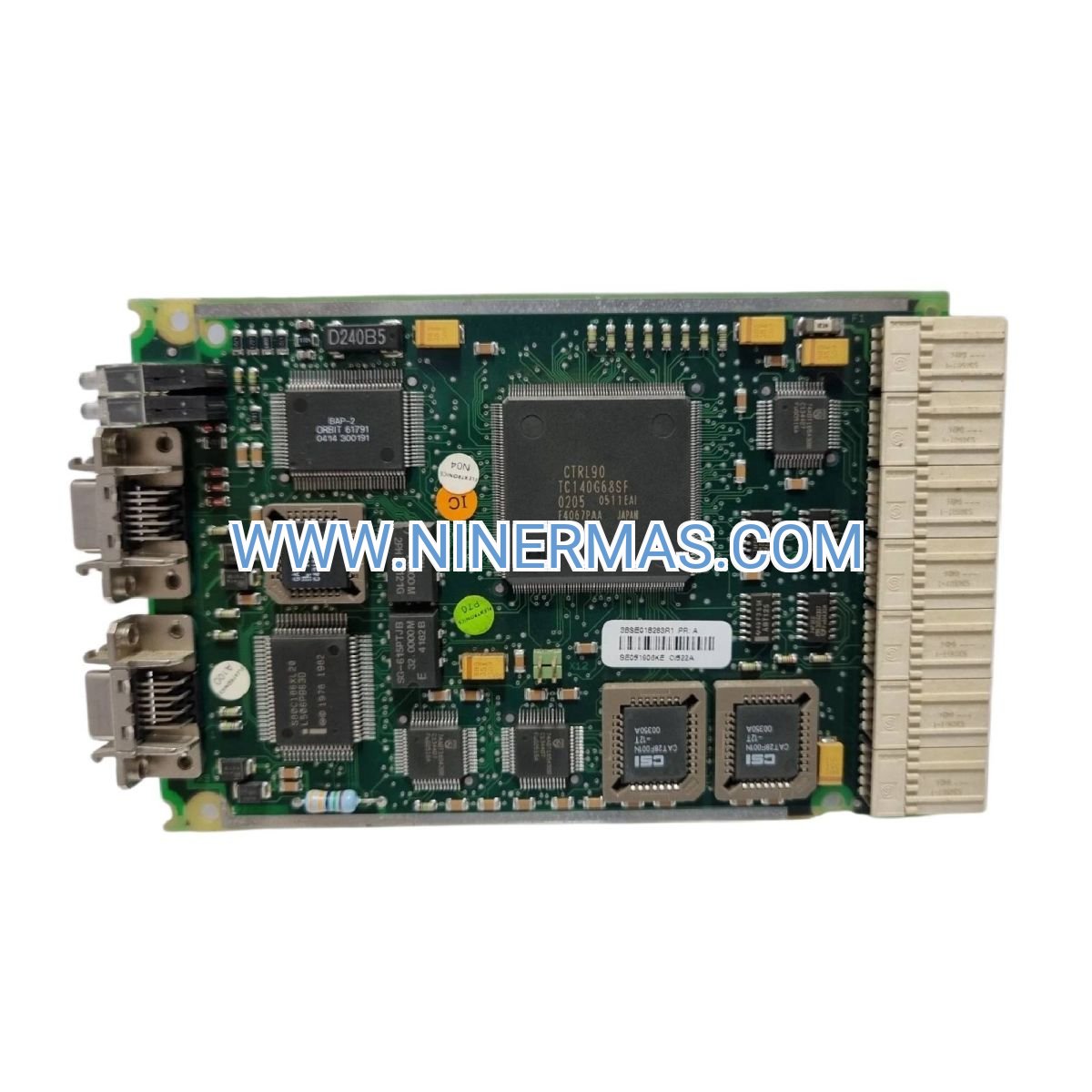

ABB CI522A Advant AF100 Interface Module (Industrial Fieldbus Communication System)

The ABB CI522A Interface Module is a professional-grade fieldbus communication device designed for seamless integration between S800 I/O systems and Advant AF100 control networks. Through advanced AF100 protocol implementation and intelligent data routing, it delivers real-time process data exchange, diagnostic monitoring, and distributed control capabilities across industrial automation infrastructures.

Ideal for process industries including oil & gas facilities, chemical plants, power generation stations, water treatment systems, and discrete manufacturing environments, this module addresses critical challenges such as communication bottlenecks, network latency issues, complex wiring requirements, limited diagnostic visibility, and system scalability constraints in legacy fieldbus architectures.

Leveraging standardized design with flexible configuration options, the CI522A offers exceptional reliability, plug-and-play deployment, hot-swap serviceability, redundancy support, and broad compatibility with ABB automation ecosystems—making it the preferred choice for system integrators, control engineers, plant maintenance teams, and OEM equipment manufacturers. Contact our automation specialists for application-specific configuration guidance and technical quotations.

Core Features & Technical Advantages

High-Performance Fieldbus Communication
Utilizes ABB's proven AF100 protocol stack with deterministic data transfer rates up to 12 Mbps, ensuring sub-millisecond response times for time-critical control loops and maintaining data integrity across extended network segments up to 1,900 meters.

Seamless S800 I/O Integration
Provides native connectivity to the complete S800 I/O family including digital input/output, analog I/O, and specialty modules, with automatic module recognition and configuration download that reduces commissioning time by 40-60% compared to manual setup procedures.

Enhanced System Reliability
Supports dual-redundant network configurations with automatic failover switching (< 100ms), built-in watchdog timers, and comprehensive error detection mechanisms including CRC validation, frame sequence monitoring, and cable fault diagnostics to maximize uptime in mission-critical applications.

Intelligent Diagnostic Capabilities
Features multi-color LED status indicators for power, communication activity, and fault conditions, plus embedded diagnostic registers accessible via engineering tools for proactive maintenance, troubleshooting network issues, and performance optimization without process interruption.

Compact & Rugged Industrial Design
Engineered in a space-efficient DIN-rail mountable housing (45mm width) with conformal coating protection, operating temperature range of -40°C to +70°C, vibration resistance per IEC 60068-2-6, and IP20 enclosure rating suitable for harsh industrial cabinet environments.

Hot-Swap Maintenance Support
Enables online module replacement during system operation through intelligent connection management and state preservation, minimizing planned downtime and allowing maintenance activities during production windows without full system shutdown.

Typical Application Scenarios

This interface module excels in environments demanding robust, high-availability distributed control architectures with centralized monitoring capabilities:

Upstream Oil & Gas Production
Connects wellhead monitoring systems, separator control panels, and pipeline instrumentation to central SCADA platforms in offshore platforms and remote production facilities where environmental extremes and safety-critical operations require proven reliability.

Chemical & Petrochemical Processing
Integrates reactor temperature control, batch sequencing systems, and emergency shutdown logic across multi-unit plants, providing the deterministic communication required for SIL-rated safety functions and complex cascade control strategies.

Power Generation & Distribution
Links turbine control systems, generator protection relays, and auxiliary equipment monitoring in thermal, hydro, and combined-cycle plants, supporting both steady-state operation and rapid load-following response requirements.

Municipal Water & Wastewater Treatment
Enables distributed pump station control, filtration process monitoring, and chemical dosing automation across geographically dispersed facilities, with network architecture supporting both local autonomous operation and centralized supervisory control.

Automotive & Discrete Manufacturing
Coordinates assembly line conveyors, robotic work cells, and quality inspection stations in high-speed production environments where synchronized motion control and rapid I/O response determine throughput and product quality.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive technical parameters for the CI522A module. Custom configurations are available for specialized project requirements.

Selection Considerations:
When specifying the CI522A for your application, evaluate the following factors: total I/O point count and distribution across process areas, required network response time for critical control loops, physical distance between controller and remote I/O clusters, redundancy requirements based on process safety classification, existing Advant system architecture and controller models, cabinet space availability and environmental conditions, and integration with third-party SCADA or HMI platforms. Our application engineers can review your P&IDs, I/O lists, and network topology diagrams to recommend optimal configurations and identify potential design optimizations.

Advanced Configuration Options

For complex automation projects requiring specialized functionality, the CI522A supports extended capabilities:

Multi-Drop Network Topologies
Deploy up to 12 interface modules on a single AF100 network segment, enabling distributed I/O architecture across large process units while maintaining centralized control logic and reducing inter-cabinet wiring by 60-80% compared to hardwired designs.

Mixed I/O Type Support
Combine digital, analog, temperature, and specialty I/O modules (including HART, FOUNDATION Fieldbus gateways, and motor management interfaces) on the same communication cluster, simplifying spare parts inventory and standardizing maintenance procedures.

Diagnostic Data Integration
Expose module-level health metrics, communication statistics, and predictive maintenance indicators to plant asset management systems via OPC UA, Modbus TCP, or proprietary ABB protocols for condition-based maintenance strategies.

Cybersecurity Hardening
Implement network segmentation using managed industrial Ethernet switches, configure MAC address filtering on AF100 segments, and deploy firmware authentication procedures aligned with IEC 62443 industrial cybersecurity standards.

Delivery, Service & Quality Assurance

Lead Times & Availability:
Factory-sealed CI522A modules typically ship within 3-5 business days from our regional distribution centers. Custom-configured systems with pre-programmed settings or integrated testing require 10-15 business days. Expedited shipping options available for critical project milestones and emergency replacement scenarios.

Warranty & Support:
All modules include ABB's standard 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (up to 60 months) available for high-criticality installations. Technical support includes remote diagnostic assistance via secure VPN connections, on-site commissioning services (subject to geographic availability), and access to ABB's global automation support network.

Documentation Package:
Each shipment includes comprehensive technical documentation: installation manual with mechanical drawings and DIN-rail mounting instructions, electrical wiring diagrams showing AF100 bus connections and power distribution, configuration guide for Control Builder software integration, troubleshooting flowcharts for common fault conditions, and compliance certificates (CE Declaration of Conformity, UL listing documentation, ATEX/IECEx certificates where applicable).

Training & Commissioning:
Optional services include hands-on training workshops covering AF100 network design principles, Control Builder configuration procedures, and advanced diagnostic techniques. Commissioning support packages provide factory-trained technicians for system startup, loop testing, and performance validation to ensure optimal operation from day one.

Frequently Asked Questions (FAQ)

Q: How does the ABB CI522A interface module integrate with existing S800 I/O installations?
A: The CI522A connects directly to S800 I/O cluster modules via the integrated AF100 fieldbus connector. Simply mount the interface module on the DIN rail adjacent to your S800 power supply and I/O modules, connect the AF100 communication cable to your Advant controller, and configure the I/O mapping in Control Builder software. The module auto-detects connected I/O types and addresses, eliminating manual DIP switch configuration found in older systems.

Q: What is the maximum number of I/O points supported per CI522A module?
A: Each CI522A can manage up to 12 S800 I/O modules in a single cluster, with total I/O capacity depending on module types (typically 192-384 I/O points per cluster). For larger systems, deploy multiple CI522A modules on the same AF100 network segment, with each controller supporting up to 12 interface modules for distributed architectures exceeding 4,000 I/O points.

Q: Can the CI522A operate in redundant configurations for high-availability applications?
A: Yes, the module fully supports dual-redundant AF100 network architectures when paired with redundant Advant controllers (AC 800M or AC 450). In redundant mode, both communication channels remain active with automatic failover occurring within 100 milliseconds upon primary channel failure, ensuring continuous process control without operator intervention or data loss.

Q: What environmental conditions can the CI522A withstand in industrial installations?
A: The module operates reliably across -40°C to +70°C ambient temperatures with conformal coating protecting against humidity (5-95% RH non-condensing), airborne contaminants, and vibration per IEC 60068-2-6 standards. The IP20-rated housing is designed for climate-controlled cabinet mounting; for outdoor or harsh environments, install within NEMA 4X/IP65-rated enclosures with appropriate thermal management.

Q: Is remote monitoring and diagnostics possible with the CI522A interface module?
A: Absolutely. The module exposes comprehensive diagnostic data through the AF100 network, accessible via Control Builder engineering software, ABB's System 800xA operator workstations, or third-party SCADA platforms using OPC UA/DA servers. Diagnostic parameters include communication error counters, signal quality metrics, module temperature, power supply status, and I/O channel health—enabling predictive maintenance and remote troubleshooting without site visits.

Q: What communication protocols does the CI522A support beyond AF100 fieldbus?
A: The CI522A is purpose-built for AF100 protocol communication between Advant controllers and S800 I/O. For integration with other industrial networks (Modbus, PROFIBUS, EtherNet/IP), use ABB's protocol gateway modules or leverage the controller's native multi-protocol support. The AF100 architecture prioritizes deterministic performance and tight integration within the ABB ecosystem rather than multi-protocol flexibility.

Request Technical Consultation & Quotation

To receive detailed application engineering support, competitive project pricing, or technical specifications tailored to your automation requirements, please provide the following information to our team:

• Project name and industry sector (oil & gas, chemical, power, water, manufacturing, etc.)
• Application description and control objectives (process control, safety systems, data acquisition, etc.)
• Total I/O point count breakdown (digital inputs/outputs, analog inputs/outputs, specialty modules)
• Physical layout and maximum distance between controller and remote I/O locations
• Existing ABB system components (controller model, software version, installed I/O modules)
• Redundancy requirements and availability targets (single-channel, dual-redundant, SIL rating if applicable)
• Environmental conditions (temperature range, hazardous area classification, vibration/shock exposure)
• Project timeline and delivery requirements

Our automation specialists will respond within 24 business hours with application-specific recommendations, system architecture diagrams, bill of materials, and competitive quotations. For urgent inquiries or complex integration challenges, schedule a technical consultation call with our engineering team.
