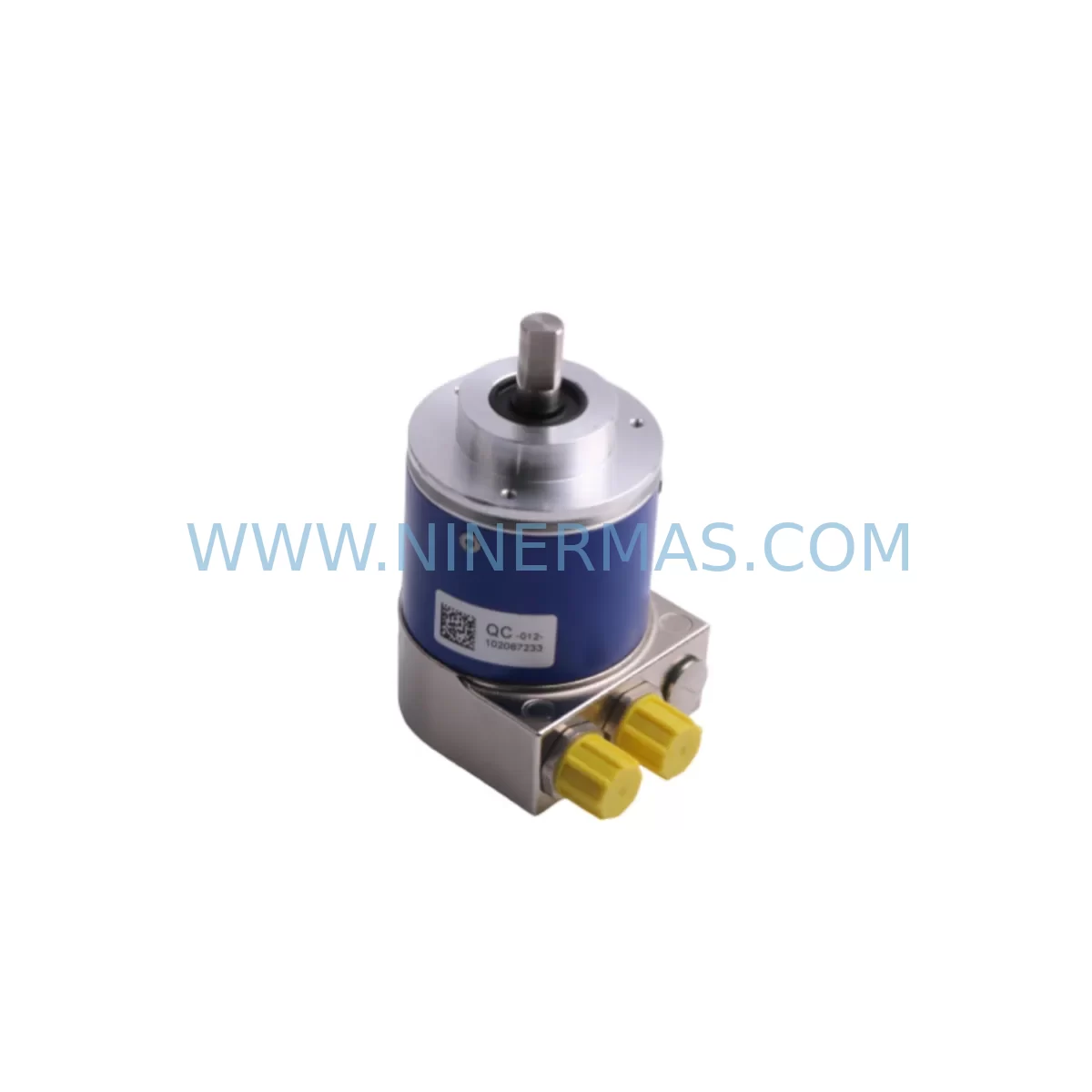

Baumer GXMMW.A202PA2 Service-Ready Industrial Spare Part

Baumer GXMMW.A202PA2 Service-Ready Industrial Spare Part

Unplanned encoder failure in a production line or process control system can cascade into hours of costly downtime. The Baumer GXMMW.A202PA2 is a ruggedized absolute encoder module engineered for demanding industrial environments — and maintaining a verified, service-ready spare on your shelf is the single most effective measure against position-feedback loss in motion-critical applications. Whether you are managing a CNC machining cell, a servo-driven conveyor, a robotic arm, or a multi-axis packaging line, the GXMMW.A202PA2 delivers the positional accuracy and environmental resilience that maintenance engineers depend on when every minute of downtime carries a measurable cost.

NINERMAS sources original Baumer GXMMW.A202PA2 units through verified supply channels, each inspected and function-tested prior to dispatch. Every unit ships with a 12-month warranty and full traceability documentation, giving procurement engineers the confidence to approve the purchase against a long-term spare parts strategy rather than a reactive emergency order.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for encoder-driven systems extends well beyond stocking the encoder itself. When a Baumer GXMMW.A202PA2 fails or is flagged during a routine control cabinet inspection, the root cause is rarely the encoder alone. Maintenance engineers should treat the replacement event as a trigger for a broader circuit audit.

Begin with the encoder cable assembly. Shielded, twisted-pair encoder cables — such as those rated for continuous flex in cable chains — are a common failure point in high-cycle applications. Damaged shielding introduces noise into the SSI signal, causing position jitter or communication faults that are frequently misdiagnosed as encoder failure. Inspect the full cable run from the encoder connector to the terminal block or directly to the encoder interface card.

At the control cabinet level, verify the encoder interface module. In Beckhoff TwinCAT architectures, the EL5101 incremental encoder interface or EL5002 SSI master terminal should be checked for firmware currency and channel diagnostics. In Siemens environments, the SMC20 Sensor Module Cabinet-Mounted, used with SINAMICS S120 drives, handles absolute encoder feedback and should be inspected for parameter consistency after any encoder swap. A mismatch in encoder resolution parameters between the drive and the physical unit is a frequent commissioning error during emergency replacements.

Power supply quality directly affects encoder reliability. A 24 V DC rail with excessive ripple or voltage sag under load can corrupt absolute position data at startup. Phoenix Contact QUINT-series or Siemens SITOP PSU8200 DIN-rail power supplies provide the regulated, filtered output that encoder electronics require. If the encoder supply is shared with inductive loads such as solenoid valves or relay coils, install a dedicated branch with appropriate filtering.

Signal isolation is equally important in electrically noisy environments. Pepperl+Fuchs or Turck signal conditioners and galvanic isolators placed between the encoder output and the PLC input card protect against ground loops and transient spikes that can corrupt position data or damage interface electronics. During a GXMMW.A202PA2 replacement, this is the right moment to verify that isolation barriers are functioning correctly and that shielding is grounded at one end only.

Terminal blocks and connector integrity deserve attention during every encoder replacement. Phoenix Contact CLIPLINE or Weidmüller Klippon terminal blocks should be inspected for oxidation, loose ferrules, and correct torque. A high-resistance connection at the terminal block can produce intermittent encoder faults that are extremely difficult to diagnose under load.

For systems with HMI feedback loops — particularly where operator panels display real-time position data — verify that the HMI tag mapping and scaling remain consistent after the encoder swap. Siemens SIMATIC HMI panels or Weintek cMT series displays should be checked for alarm history that may indicate pre-existing position drift before the encoder failure became critical.

Finally, if the GXMMW.A202PA2 is part of a multi-axis system, inspect the backplane or rack-mounted I/O modules for any latent faults triggered by the encoder event. Siemens ET 200SP distributed I/O or Beckhoff EtherCAT couplers should be checked for diagnostic entries that may indicate secondary issues in adjacent channels.

Site Replacement Workflow

Replacing a Baumer GXMMW.A202PA2 on-site follows a structured sequence designed to minimize downtime and eliminate re-commissioning errors. Before removing the failed unit, photograph the cable routing, connector orientation, and any mechanical coupling arrangement. Record the current encoder parameters from the drive or controller — resolution, counting direction, preset value, and any offset — so they can be verified against the replacement unit.

Disconnect power to the encoder supply rail before removing the connector. For IP67-rated units, inspect the cable gland and O-ring seating on the replacement unit before installation. Torque the mounting screws to the manufacturer’s specification to maintain the IP rating and prevent shaft misalignment that accelerates bearing wear.

After mechanical installation, restore power and verify the absolute position readback against a known reference point before releasing the axis to automatic control. In SSI systems, confirm that the clock frequency and data length settings in the master interface match the GXMMW.A202PA2 datasheet values. Document the replacement in the equipment maintenance log with the unit serial number, installation date, and the name of the technician — this record supports the 12-month warranty claim if a defect emerges during the coverage period.

For legacy systems where the original GXMMW.A202PA2 mounting interface or connector type has been discontinued, NINERMAS can advise on compatible adapter solutions and cable assemblies to maintain system integrity without requiring a full drive or controller upgrade. This approach extends the operational life of end-of-life control architectures while deferring capital expenditure on full system replacement.

Spare Parts Support FAQ

Q1: How do I confirm that the GXMMW.A202PA2 is compatible with my existing drive or controller?
Compatibility depends on the encoder interface type (SSI, parallel, or other), supply voltage, and resolution. Provide your drive model and current encoder datasheet to our technical team at sale@ninermas.com. We will cross-reference the GXMMW.A202PA2 specifications against your system requirements and confirm compatibility before shipment.

Q2: What is included in the 12-month warranty, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is function-tested prior to dispatch and ships with a test report. To initiate a claim, contact sale@ninermas.com with the unit serial number, installation date, and a description of the fault. We will arrange replacement or repair within the warranty period.

Q3: Can NINERMAS support long-term supply of the GXMMW.A202PA2 for multi-year maintenance contracts?
Yes. NINERMAS maintains sourcing relationships across multiple supply channels to support long-term spare parts programs. We can provide blanket order arrangements, consignment stock agreements, and scheduled delivery programs for customers with ongoing maintenance requirements. Contact our procurement team to discuss volume and lead time commitments.

Q4: What pre-shipment testing is performed on each GXMMW.A202PA2 unit?
Each unit undergoes electrical continuity verification, supply voltage and current draw measurement, and output signal validation before dispatch. Units that do not meet Baumer’s published specifications are quarantined and not shipped. A test record is included with each shipment to support incoming inspection at your facility.
