Baumer HOGS151 DN 5000 Service-Ready Spare Part

Baumer HOGS151 DN 5000 Service-Ready Spare Part: Spare Replacement and Downtime Risk Control

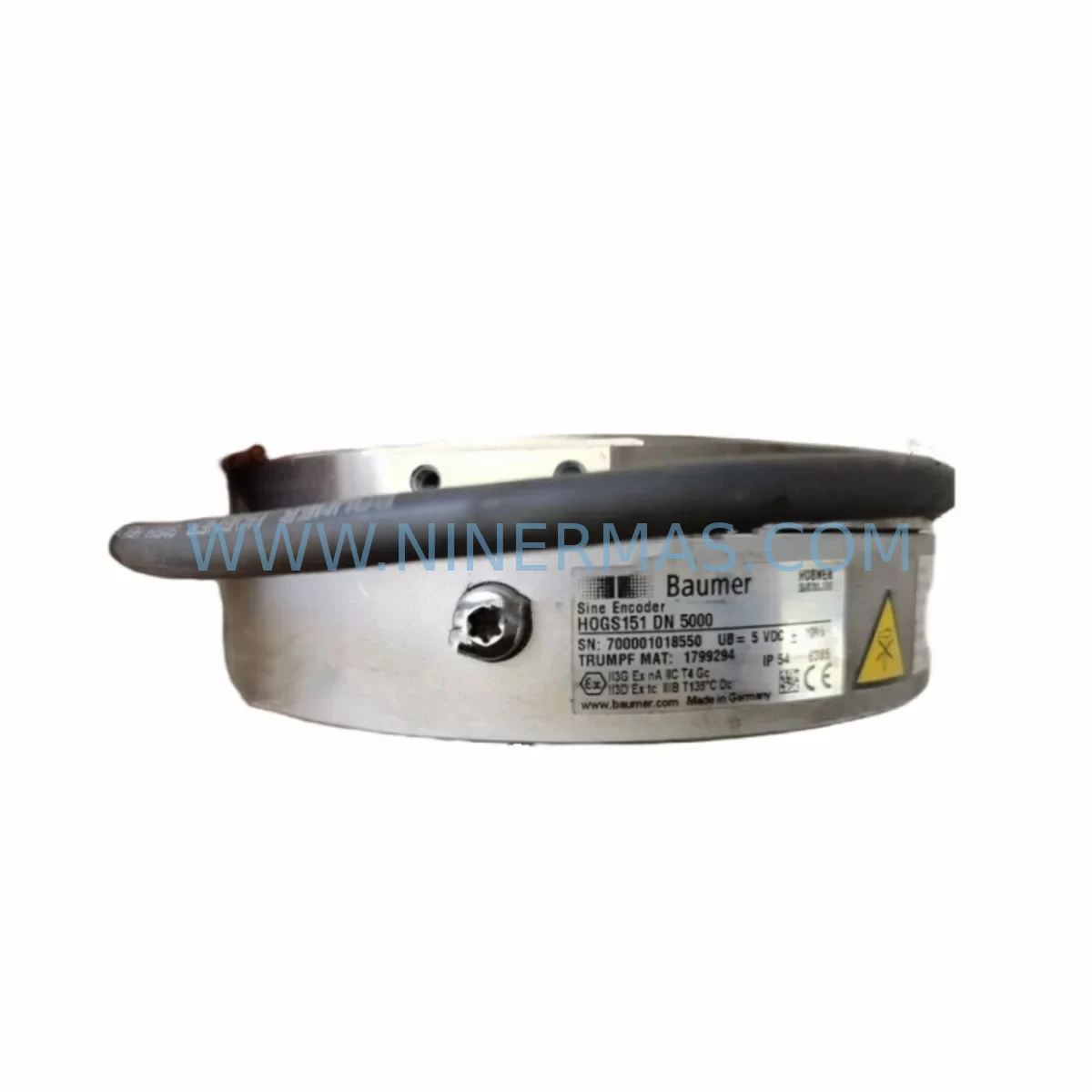

The Baumer HOGS151 DN 5000 is a heavy-duty hollow shaft incremental encoder engineered for demanding industrial environments where precision motion feedback and long-term reliability are non-negotiable. As a service-ready spare part stocked by NINERMAS, this unit is pre-tested, fully verified, and available for immediate dispatch — enabling maintenance engineers and procurement teams to minimize unplanned downtime and restore production continuity with confidence.

In high-cycle manufacturing lines, paper mills, steel processing plants, crane systems, and printing machinery, encoder failure is one of the most common causes of unplanned stoppages. The HOGS151 DN 5000 is specifically designed for applications requiring a large hollow shaft bore, allowing direct shaft mounting without mechanical couplings. Its robust housing and sealed bearing system make it suitable for environments with vibration, dust, and moisture exposure. Stocking a verified replacement unit of the HOGS151 DN 5000 is a fundamental element of any proactive maintenance strategy for systems relying on Baumer HOGS-series encoders.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems using the Baumer HOGS151 DN 5000 extends beyond the encoder itself. During scheduled annual inspections or emergency fault isolation, maintenance engineers should systematically evaluate the entire signal chain and power distribution architecture to prevent cascading failures.

Begin with the encoder cable assembly. The HOGS151 DN 5000 typically connects via a shielded multi-core cable — inspect for insulation damage, connector corrosion, and shield continuity. Replacement cables compatible with Baumer HOGS-series connectors should be held in the spare parts inventory alongside the encoder unit itself. A degraded cable can introduce signal noise that mimics encoder failure, leading to misdiagnosis and unnecessary downtime.

Next, verify the encoder power supply. Many HOGS151 installations are powered from a dedicated 24 VDC rail within the control cabinet. Check the associated power supply module — such as a SITOP PSU100S or Phoenix Contact QUINT-PS — for output voltage stability and ripple. An unstable supply voltage is a common root cause of intermittent encoder faults that are difficult to reproduce during static testing.

At the PLC or motion controller input side, inspect the high-speed counter module or encoder interface card. For Siemens S7-300/S7-400 systems, the FM 350-1 or FM 450-1 counter modules are commonly paired with HOGS-series encoders. For Beckhoff EtherCAT systems, the EL5101 or EL5151 encoder interface terminals should be checked for firmware version compatibility and channel diagnostics. Replacing the encoder without verifying the interface module can result in persistent fault codes even after a successful mechanical swap.

Signal isolation is another critical consideration. In environments with significant electrical noise — such as near variable frequency drives (VFDs) or large motor starters — a signal isolator or line driver amplifier may be required between the HOGS151 DN 5000 and the controller input. Units such as the Pepperl+Fuchs KFD2-SR2-Ex1.W or equivalent DIN-rail signal conditioners should be inspected for proper function and included in the annual maintenance checklist.

Terminal blocks and wiring within the control cabinet should also be audited. Loose or corroded terminals on the encoder signal wiring are a frequent source of intermittent faults. Phoenix Contact or Weidmüller terminal blocks used in the encoder circuit should be re-torqued and visually inspected for discoloration or oxidation. Fuse holders protecting the encoder supply circuit should be checked for continuity and replaced if the fuse element shows signs of thermal stress.

For systems with HMI visualization of encoder-derived position or speed data, verify that the HMI panel — whether a Siemens TP700 Comfort, Weintek MT8000, or equivalent — is correctly displaying live values after encoder replacement. A configuration mismatch in the HMI tag mapping can cause operators to misread system status post-maintenance.

Finally, if the HOGS151 DN 5000 is part of a servo or positioning axis, re-reference the axis zero point and verify homing sequence behavior after installation. Document the replacement in the maintenance log with the new unit’s serial number, installation date, and pre-shipment test certificate for traceability and warranty validation.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Lock out the drive and control power to the affected axis. Confirm zero energy state with a calibrated voltage tester before touching any encoder wiring.

Step 2 — Document existing wiring. Photograph the connector pinout and cable routing before disconnection. Cross-reference with the original Baumer HOGS151 wiring diagram to confirm signal assignment (A, /A, B, /B, Z, /Z, +V, GND, Shield).

Step 3 — Remove the failed unit. Loosen the hollow shaft clamping ring and release the anti-rotation torque arm. Slide the encoder off the machine shaft carefully to avoid bearing damage to the shaft surface.

Step 4 — Inspect the shaft and mounting interface. Check the machine shaft for wear, scoring, or out-of-round condition. A damaged shaft surface will reduce the service life of the replacement encoder. Clean the shaft and verify diameter tolerance before installing the new HOGS151 DN 5000.

Step 5 — Install the replacement unit. Slide the HOGS151 DN 5000 onto the shaft, align the torque arm, and torque the clamping ring to the manufacturer’s specification. Reconnect the cable using the documented pinout. Verify shield grounding at the control cabinet end only — double-grounding the shield will introduce ground loop noise.

Step 6 — Power up and verify. Restore control power and monitor the encoder signal at the PLC input. Confirm pulse count per revolution matches the configured 5000 PPR value. Run the axis through a slow manual jog cycle and verify A/B quadrature signal integrity with an oscilloscope or diagnostic tool if available.

Step 7 — Resume production and log the event. Record the replacement in the maintenance management system (CMMS) with the new unit serial number, installation timestamp, and technician sign-off. Retain the NINERMAS pre-shipment test certificate with the maintenance record for warranty and audit purposes.

Spare Parts Support FAQ

Q1: Is the HOGS151 DN 5000 supplied by NINERMAS an original Baumer unit?
Yes. NINERMAS sources original Baumer HOGS151 DN 5000 encoders from authorized supply channels. Each unit undergoes pre-shipment electrical and mechanical verification before dispatch. A test certificate is included with every shipment. The 12-month warranty covers manufacturing defects and is valid from the date of delivery.

Q2: How many units should we stock for a critical production line?
For high-utilization lines running 24/7, we recommend holding a minimum of one verified spare per axis using the HOGS151 DN 5000, plus one additional unit for multi-axis systems. For seasonal or lower-utilization equipment, a shared pool of one to two units per site is typically sufficient. NINERMAS can support long-term supply agreements and reserved inventory arrangements for customers with defined annual consumption.

Q3: How do I confirm compatibility before ordering?
Provide the full nameplate data from the installed encoder — including the complete model number, supply voltage, output type (HTL/TTL), and connector style. NINERMAS technical staff will cross-reference against the Baumer HOGS151 series specification matrix and confirm compatibility before order confirmation. For legacy installations where the nameplate is damaged or missing, the machine model and axis function description are sufficient for a compatibility assessment.

Q4: What is the lead time and how is the unit shipped?
In-stock units are dispatched within 1–2 business days of order confirmation. International shipments are made via DHL Express or equivalent tracked courier with full export documentation. Each unit is individually packaged in anti-static and shock-resistant packaging. For urgent breakdown situations, contact NINERMAS directly at sale@ninermas.com or +0086 187 5021 5667 to arrange priority dispatch.
